Aprašymas
Trumpai apie prekę

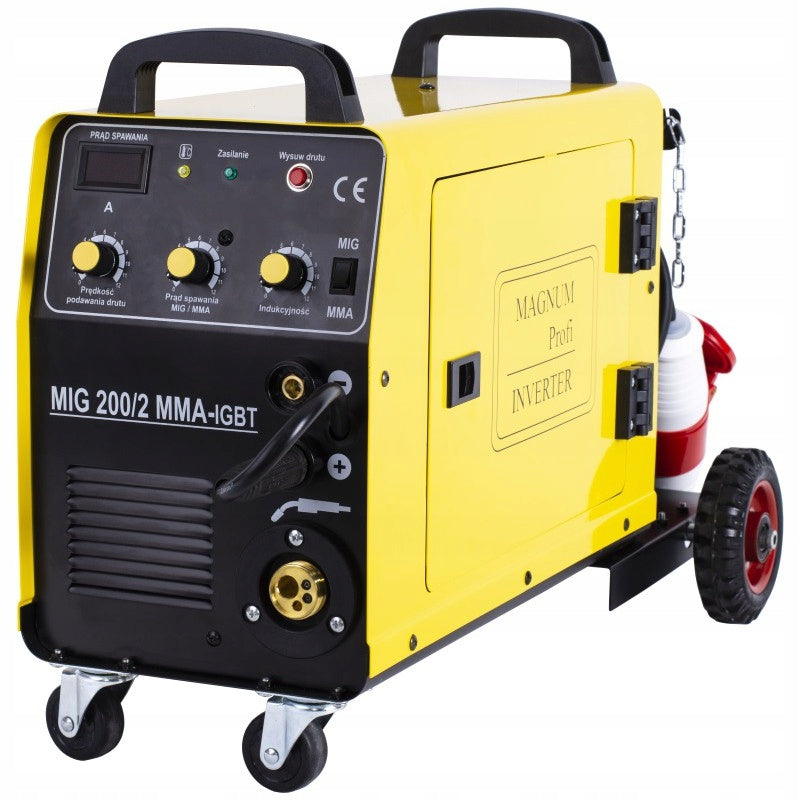

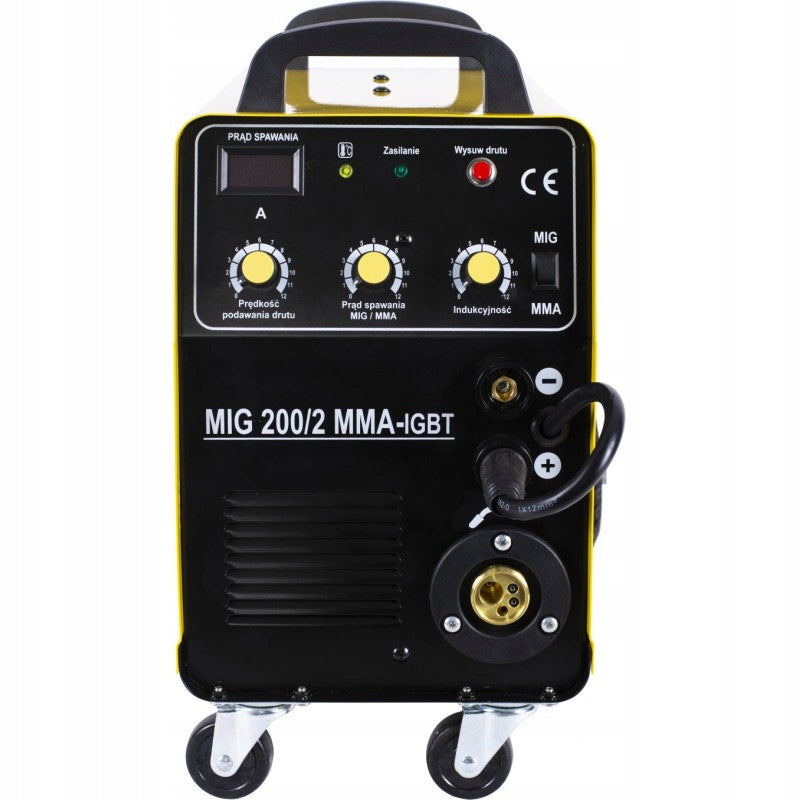

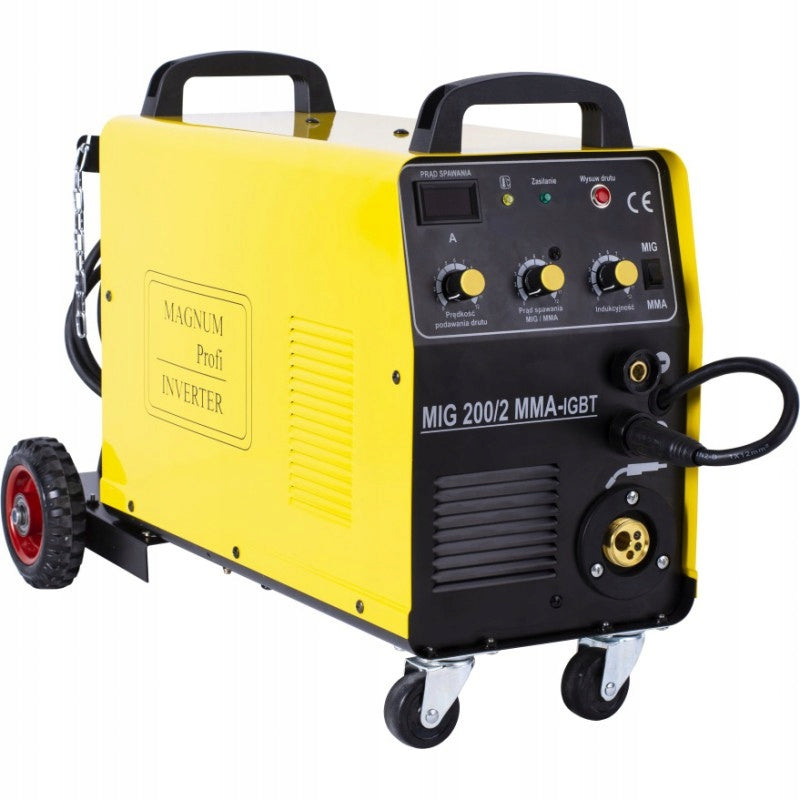

Prekė: Pusiau automatinis suvirinimo aparatas MAGNUM MIG MAG 200/2 KN MMA, 200A, 230V/400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: MIG 200/2 MMA
TRUST THE EXPERTS!!!
The MAGNUM MIG 200/2 MMA KN is a semi-automatic welding machine made in inverter technology, it can be powered from both 230 V and 400 V networks.
- Welding methods: MIG/MAG, MMA, SOLDERING, FLUX
- Power supply: 230V/400V
- Operating cycle 60% at maximum welding current 200A
- Welding: any type of steel, aluminum, nickel, copper and their alloys
- Max. thickness of welded material: 10mm
- Regulation of inductance, current and wire feed speed
- Professional, 2-roll wire feeder
- Durable chassis with space for cylinder
- Euroconnector
- Cooling with fan
- Overload switch
- Clean, aesthetic welds
- Made in IGBT technology.
The power source was built on IGBT transistors providing a minimum of electromagnetic interference, enabling increased efficiency and reliability of the power source, lower energy consumption and rapid adjustment of the current to changes in parameters during welding.
FEATURES AND ADVANTAGES:
- FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,
- INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,
- LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various connections,
- EUROCONNECTOR - allows the interchangeable use of various types of handles,
- OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,
- IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.
TECHNICAL DATA:
- Power Supply: 230V/400V 50Hz (1ph/2ph)
- Network security: 20A/16A
- MIG/MAG welding current: 30 - 200A | MMA: 30 - 180A
- Max. power consumption: 6.2kW
- MIG/MAG welding current voltage: 16.5 - 23V
- Idle voltage: 57V
- Wire diameter: 0.6 / 0.8 / 1.0 mm
- Spool with wire: up to 200mm; up to 5kg
- Degree of protection: IP21S
- Dimensions: 65.5 x 23 x 40 cm
- Weight: 14kg
SET INCLUDES:
- Migomat magnum 200/2 KN
- mass cable with 2M handle
- MMA welding wire with 2M handle
- MIG/MAG welding cable with handle (euroconnector) MB 15 3M
- adapter from 400V to 230V
- power cord
- instruction manual
- original packaging
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 7.4 kVA |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Device weight | 14 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Product weight with unit packaging | 19 kg |
| Parametry | Manufacturer code | Migomat Magnum MIG 200/2 RSW4 |
| Parametry | Model | MIG 200/2 MMA |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | transport wheels,infinitely adjustable welding current,EURO holders,LCD display |
