Aprašymas
Trumpai apie prekę
Prekė: Pusiau automatinis suvirinimo aparatas MIG/MAG 370A 4x4 MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: TMIG370V2

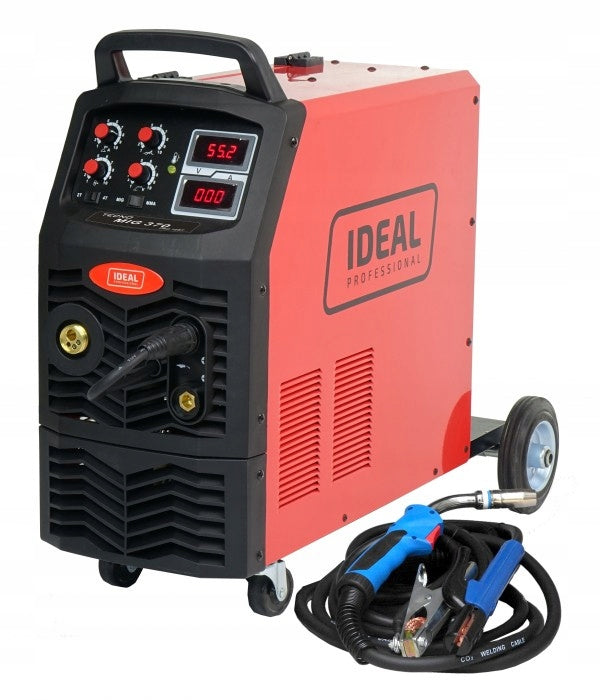

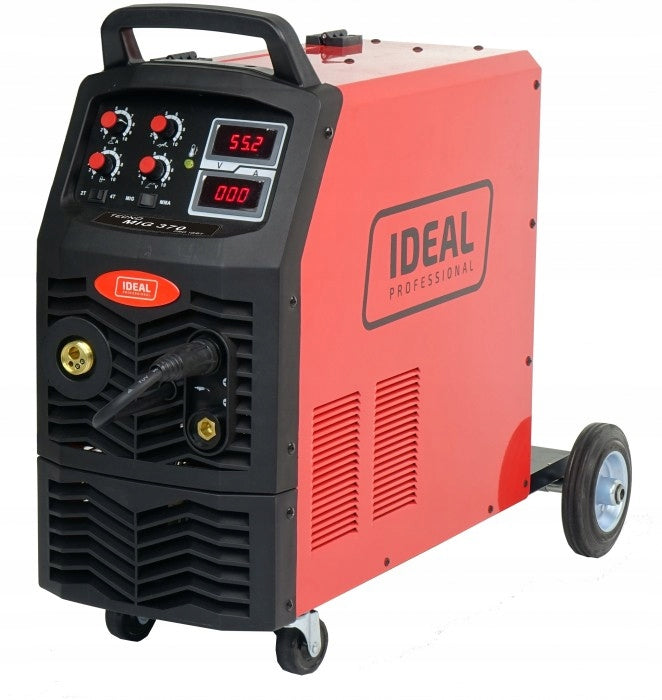

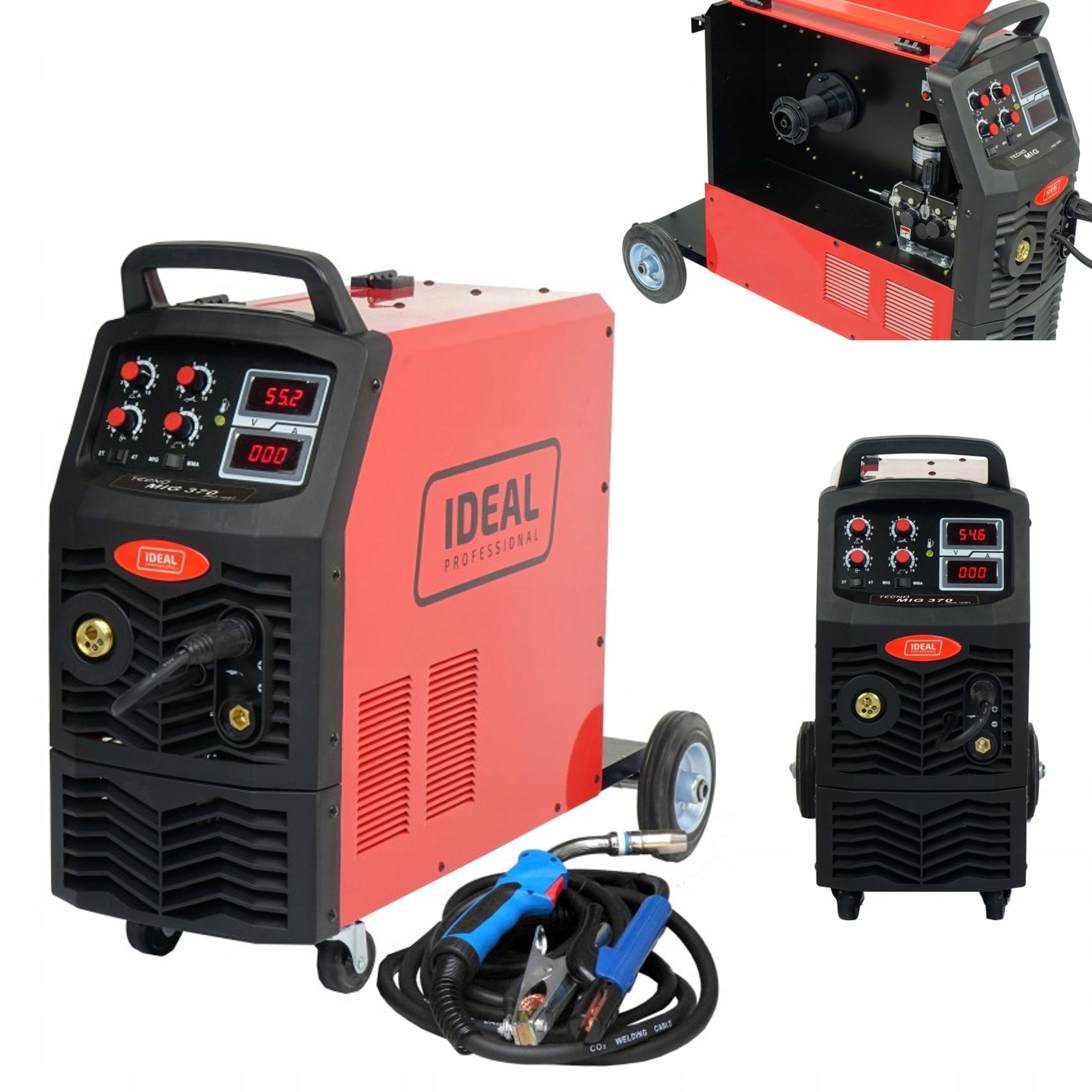

MIGOMAT SEMI-AUTOMATIC MIG MAG 370A 4x4 MMA WELDER
TECNO MIG 370 4x4 DIGITAL MMA is an inverter semi-automatic welding machine designed for MIG/MAG and MMA arc welding.
TECNO MIG 370 is used for welding aluminium and its alloys, stainless steel and carbon and low alloy steels. Welding is carried out in an inert or active gas shield.
The device has a welding current stabilization system ensuring obtaining the desired output parameters. This guarantees control of the current supplied to the welded material and obtaining a high-quality weld.
Electronically controlled smooth welding current regulation and wire feed speed and smoothly adjustable electronic choke allows you to get a small amount of chipping during welding.
TECNO MIG 370 is equipped with a digital meter (voltmeter, ammeter) which allows you to control welding parameters on an ongoing basis.
With the MIG/MAG method, we can adjust:
- welding current
- Wire feed speed
- inductance
Physical parameters
The device has a fan cooling system which significantly increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Three-phase power supply 400VThe device is equipped with a power plug.
Equipment
Delivery includes a device with a professional MIG 36 welding torch with a length of 3 meters, an electrode cable with a length of 3 meters, a mass cable with a length of 3 meters and rollers leading welding wire 0,8-1,0V and 1,0-1,2V
TECHNICAL DATA:
Physical parameters
- Degree of protection IP 21
- Weight of the device / set 37 kg
- Overall dimensions L x W x H 820x370x720 mm
Technical parameters
- Power 12,8 kW
- Idle voltage 56 V
- Current at work 60%350 A
- Diameter of aluminum wire 1,0 - 1,2 mm
- Diameter of self-shielding wire 0,8 - 1,2 mm
- Steel wire diameter 0,6 - 1,2 mm
- Stainless steel wire diameter 0,8 - 1,0 mm
- Welding electrode diameter 1,6 - 4,0 mm
- Welding Current Adjustment Range 30 - 370 A
Power supply parameters
- Protection of the power supply network 25 A
- Rated supply voltage 3x400 V; 50Hz (3ph)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Welding range | 30–370 A |
| Parametry | Product weight with unit packaging | 37 kg |
| Parametry | Manufacturer code | TMIG370V2 |
| Parametry | EAN (GTIN) | 5903991108548 |
| Parametry | Welding methods | MIG/MAG,MMA |
