Pusiau automatinis suvirinimo aparatas MIG/MAG/MMA/FLUX su 2 vielomis

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIG/MAG/MMA/FLUX su 2 vielomis. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Majster Polska
• Modelis: MP0106

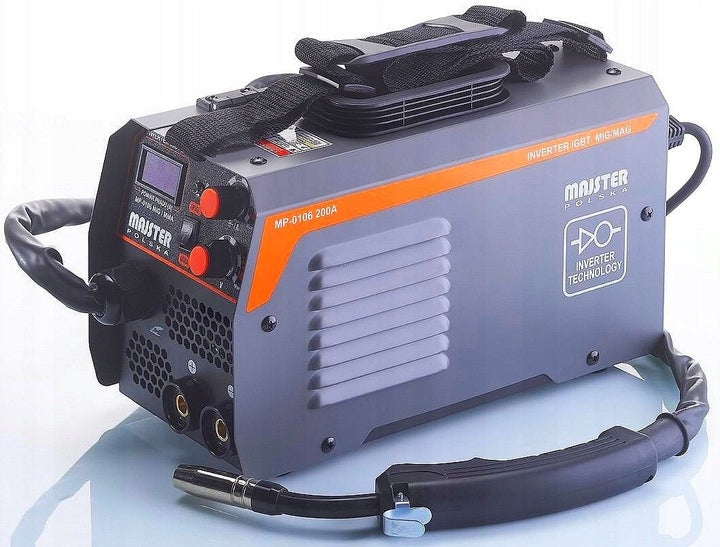

Semi-automatic welding machine MAJSTER POLSKA MP-0106

• ✔ MIG
• ✔ MMA
• ✔ FLUX
• ✔ TIG-LIFT

⚫ The device from the MAJSTER POLSKA series is a semi-automatic welding machine designed for manual, electric welding of steel with self-shielding wire (FCAW Flux-Cored Arc Welding method), MIG/MAG, MMA, as well as TIG Lift method (this requires the purchase of an additional TIG Lift welding handle)

✨ Every even the simplest INVERTER is incomparably BETTER than even the most expensive outdated transformer

FCAW method is arc welding with core wire (powder)

✅ This is a welding method similar to the MIG/MAG method, except that the wire inside is filled with flux or a chemical that produces protective gases during welding.

✅ FCAW welding combines the advantages of both wrapped electrode welding and MAG welding: very high efficiency (no need to change the electrode frequently) can also be welded outdoors (the flux also protects against weld oxidation) the welder does not have to have very high qualifications.

✅ It is designed for all kinds of welding work, in locksmith workshops, repair workshops, bodywork, farm, etc.

✅ The power source was built on IGBT transistors providing minimum electromagnetic interference, small power losses in basic systems, enabling increase in efficiency and reliability of the power source, lower consumption

✅ Specification:

• Power greater than 90% of the migrations on Allegro 200A
• Model: MP-0106
• Real current MIG: 40-130A
• Real current MMA: 20-130A
• Power supply voltage: 230V
• Frequency: 50Hz
• Rated input capacity: 3,7KVA
• Welding methods: FLUX - semi-automatic welding with self-shielding wire "without gas"
• Electrode range: 1,6-4 mm
• Wire diameter: 0.6 - 0,8 mm
• Wire spool weight: max 1kg
• Rated welding cycle: 60%
• Working cycle: 25%
• Performance: 85%
• Degree of protection: IP21S
• Degree of protection: H
• Weight: 5,6kg

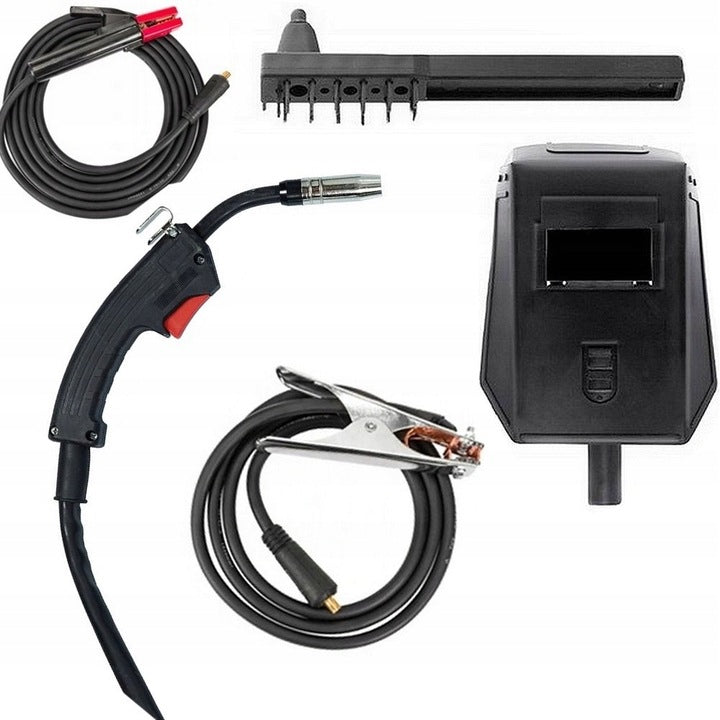

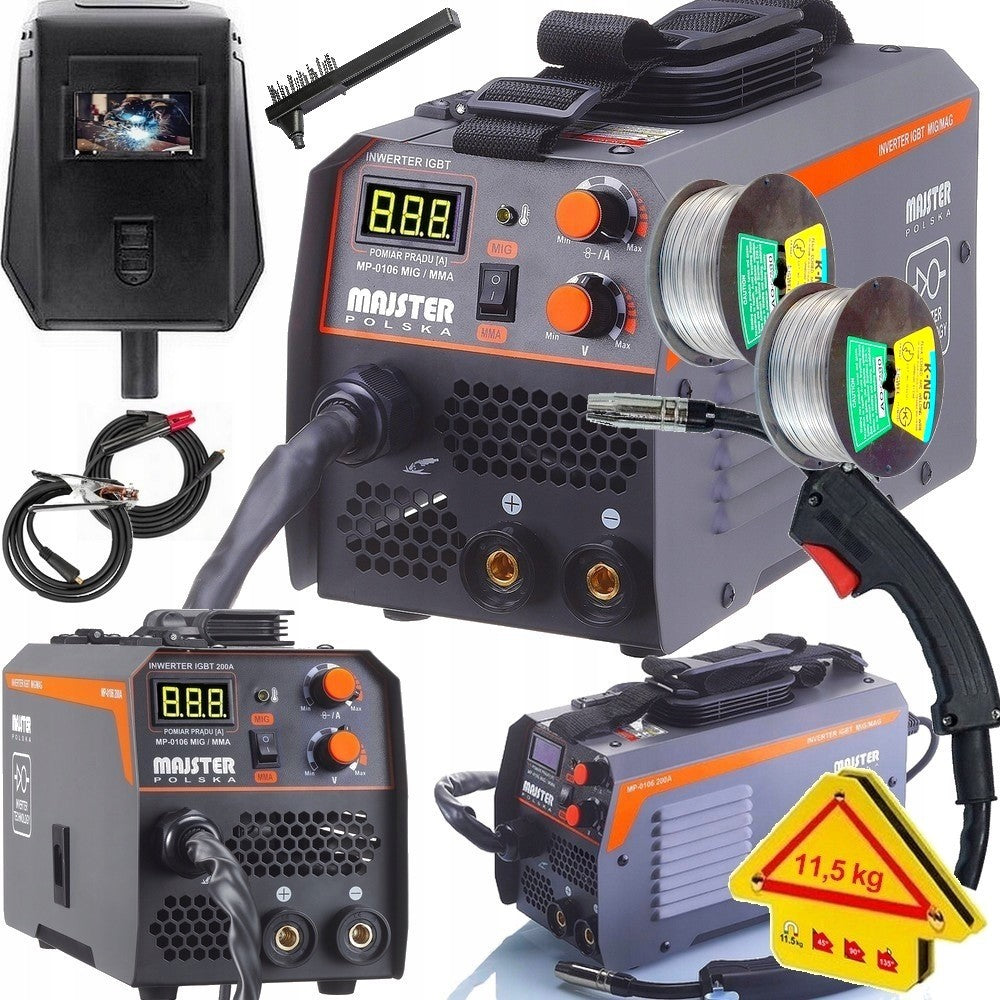

✅ Composition of the set

• MP-0106 welder
• Hand mask
• Brush with hammer
• Bulk cable
• Electrode cable
• Integrated MIG handle
• Self-shielding wire 0.8mm 0.45kg - 2 pieces
• User manual in Polish,
• Original packaging

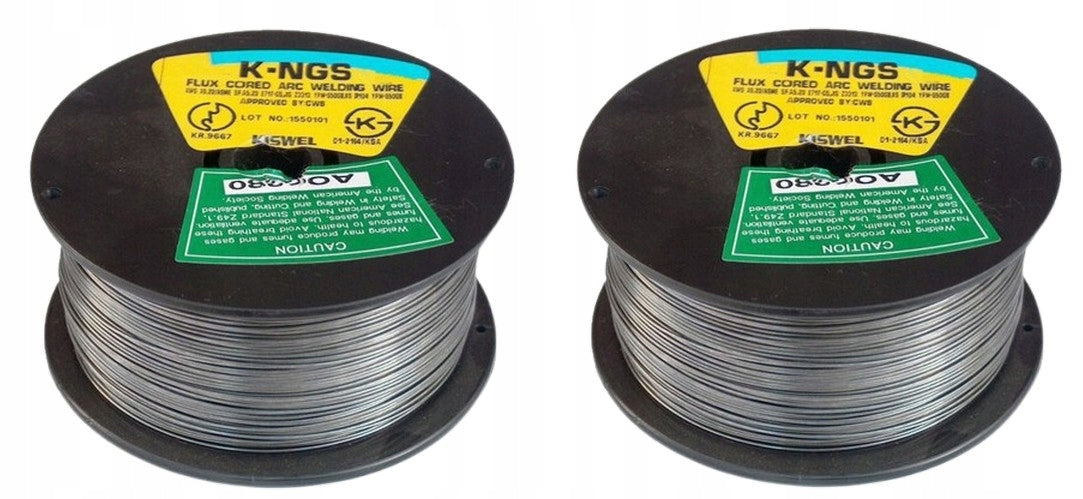

Self-shielding wire 0,8 mm 0,45 kg - 2 pieces

• Self-shielding welding wire for welding steel elements without the use of shielding gas.
• The use of wire allows welding without the need for additional shielding gas.

✅ Ready set for welding WITHOUT GAS!

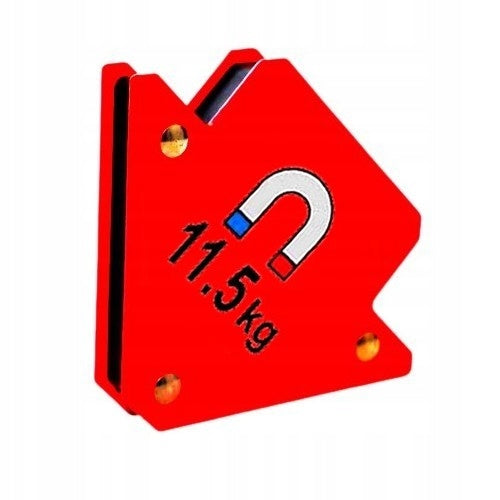

✅ Welding angle / magnetic angle 11,5 kg included

• Magnetic angle, which will allow precise and durable positioning of the material at an angle of 45, 90 or 135 degrees.
• It is an indispensable helper during welding or soldering, and at the same time it is cheap and reliable.
• The product is made of strong, high durability magnets additionally covered with a very resistant plastic shell, in a solid steel housing.
• It is an invaluable help in welding, assembly of metal elements, soldering, routing.

Parameters:

• Measurement angles: 45, 90, 135
• Leverage: 11,5 kg
• Accuracy 0,5%

Application:

• Installation of pipes
• Selection
• Fastening
• Soldering
• Welding

Preview color

✅ The quality of the Master is:

⚫ Long-lasting materials used in production.

⚫ Door To Door care for full 2 years - Ppower and support for customers

⚫ The foreman thus confirms his Quality⭐⭐⭐⭐⭐

⚫ Thoughtful, improved and gaining great popularity over the years construction, this is not a disposable.

⚫ We create a budget ALE! - fully trouble-free, good quality, working well, trouble-free equipment !

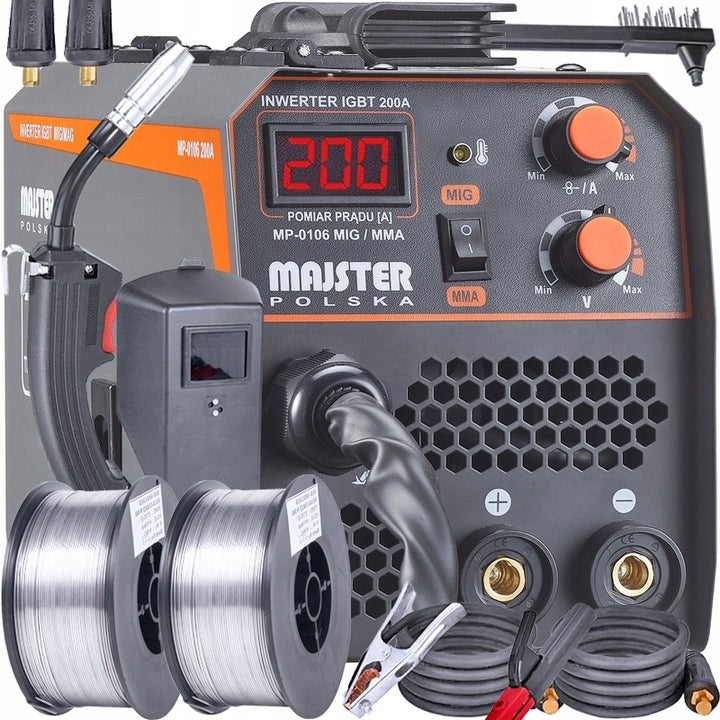

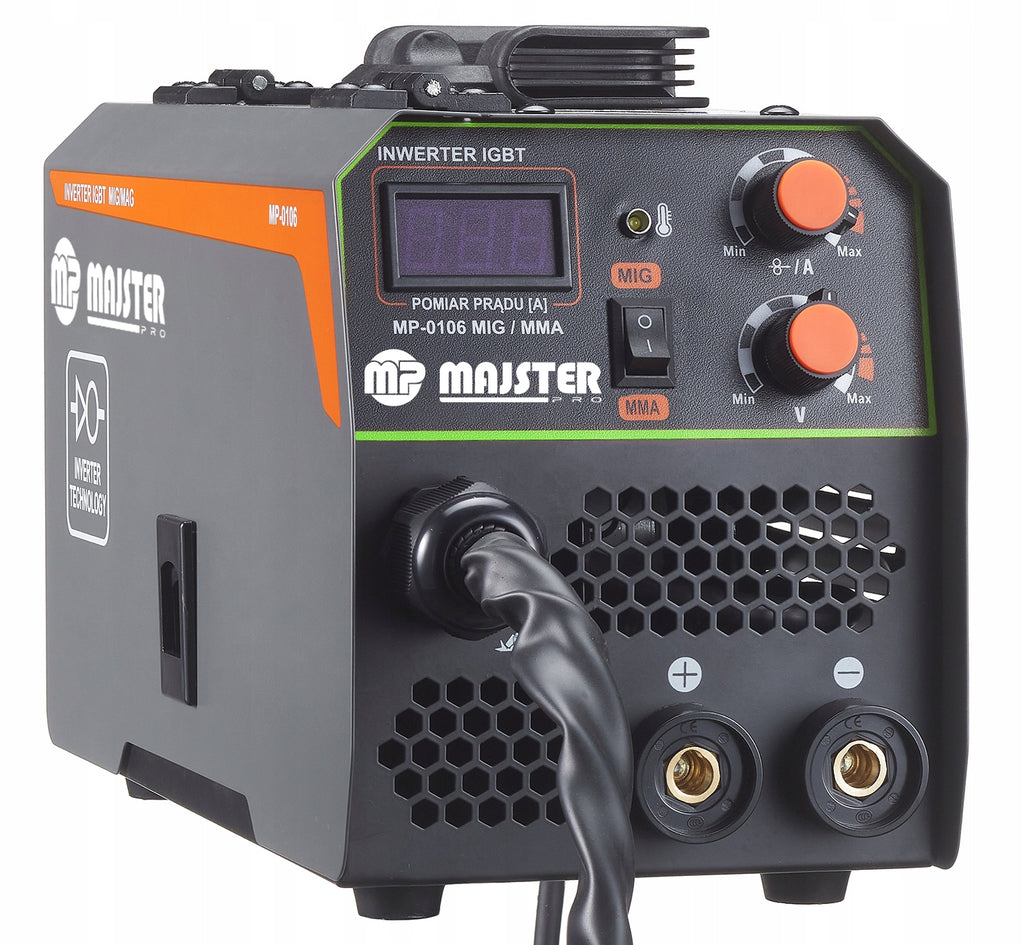

✅ Semi-automatic welding machine MAJSTER POLSKA MP-0106

⚫ Mass cable

⚫ Electrode cable

⚫ Integrated MIG handle

⚫ Hand mask

⚫ Brush with hammer

❓How to properly connect wires

⚫ ➖ In case of MMA welding, the ground cable is connected to the ➖ ( minus ) ❇ connector

⚫ ➕ To weld with self-shielded wire in the FLUX method you need to link the mass cable to the connector ➕ (plus) ✴

✅ Scheme of connecting wires depending on the chosen welding method

⚫ TIG Lift holder is not on offer (sold separately)

✅ Majster POLSKA

⚫ The device from the MAJSTER POLSKA series is a semi-automatic welding machine designed for welding steel in gas shielding and self-shielding wire FCAW (FLUX), MIG/MAG, MMA, as well as the TIG Lift method (this requires the purchase of an additional TIG Lift welding handle)

⚫ It is intended for all kinds of welding work, in locksmith workshops, repair workshops, bodywork, farm, etc.

⚫ The power source was built on IGBT LATEST GENERATION transistors providing minimum electromagnetic interference, small power losses in basic systems, enabling increase in efficiency and reliability of the power source, lower consumption

✅ HOT START

• Popularly called hot start, it allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.

✅ ANTI STICK

• Cuts off/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

✅ ARC FORCE

• Stabilizes the arch regardless of its length. Regulates the dynamics of the welding arc. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

✅ The welding machine works with wire weighing 1 kg and diameter 0.8-1.0mm

✅ Single-roll feeder works with 0,6 / 0,8mm diameter wire
