Pusiau automatinis suvirinimo aparatas SHERMAN DIGIMIG 210XS, MIG/MAG, MMA, TIG Lift Synergy

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas SHERMAN DIGIMIG 210XS, MIG/MAG, MMA, TIG Lift Synergy. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: DIGIMIG 210 XS

Sherman DIGIMIG 210XS

Are you looking for a versatile and modern welding device that will work in the hands of both a professional and an ambitious hobbyist? Sherman DIGIMIG 210XS is an advanced inverter welding machine designed for precision welding of steel, non-ferrous metals and soldering.

Thanks to built-in synergic programs and a clear digital LCD display, the operation of the device is extremely intuitive, and the selection of appropriate parameters becomes simple and fast.

The most important advantages of the device:

• Many welding methods: The device supports MIG/MAG, MMA DC (wrapped electrode) and TIG Lift DC (brushing by rubbing). In addition, it allows soldering of galvanized sheets (Synergy CuSi3).
• IGBT technology: Modern transistors guarantee lower power consumption, high efficiency, as well as a significant reduction in weight (only 16,5 kg) and dimensions of the welding machine.
• Synergic programs: Automatic selection of parameters for carbon steel, stainless steel, aluminum, self-shielding wire and soldering. The ability to work also in fully manual mode.
• Gas-free welding (FLUX): Changing the polarity on the front panel allows free welding with powder wires (self-shielded) without the use of a protective gas cylinder.

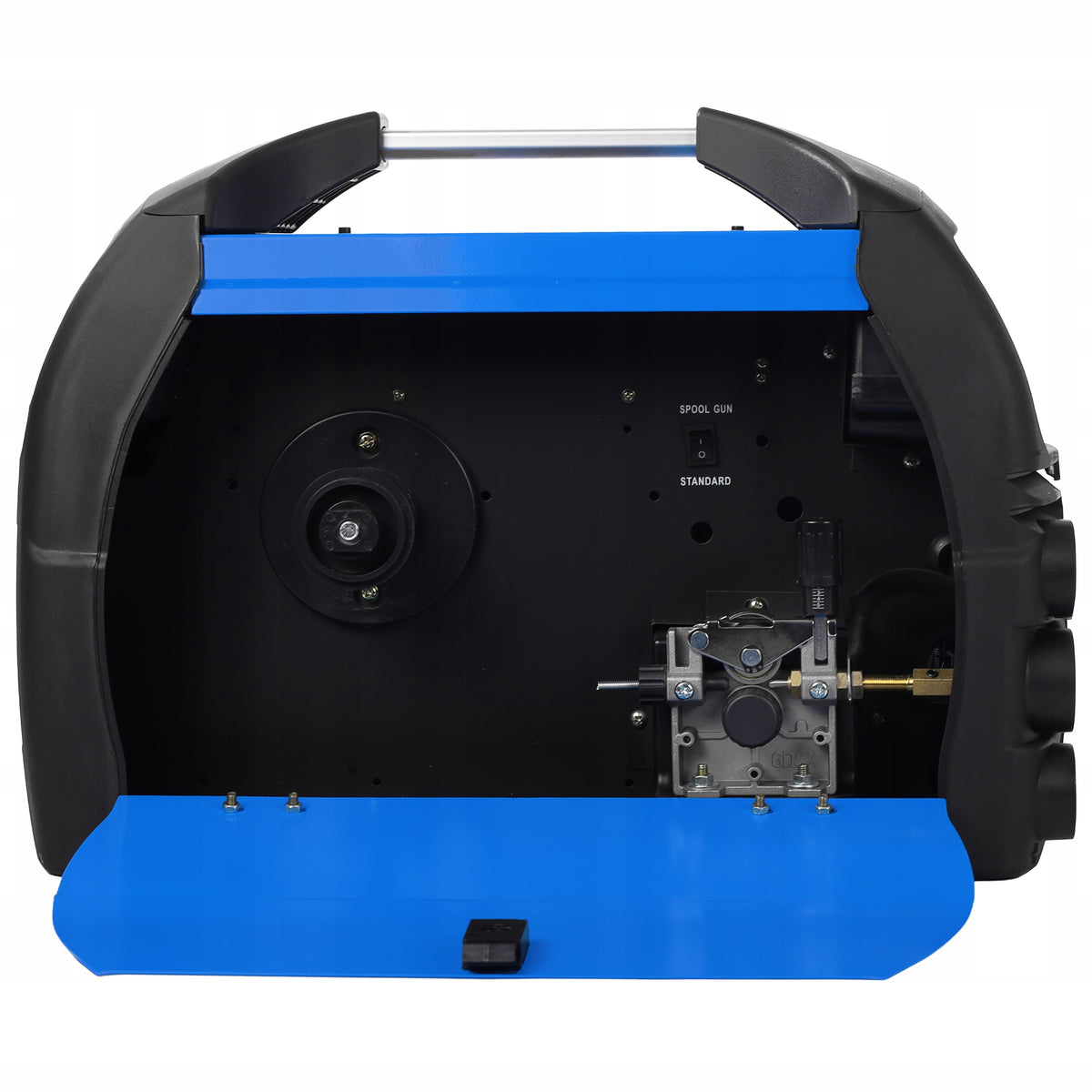

• Spool Gun option: Inside the feeder compartment there is a switch that allows you to connect a Spool Gun handle with a built-in mini-feeder and a D100 spool, which is an ideal solution e.g. when welding aluminium.
• Advanced digital control: Full control over arc dynamics (inductance adjustment), feeder access speed, wire burning and gas outflow.

Functions to facilitate work:

• 2T/4T – facilitates long welds.
• MIG spot welding – ideal for joining thin sheets (e.g. in car workshops).
• Hot Start & Arc Force – easier arcing and stable MMA welding.
• Anti-Stick – prevents the electrode from sticking to the material.
• VRD – reduces idle voltage for greater operational safety.

Features of the device:

• maximum amperage 200 A
• 230 V power supply
• digital control
• memory of the last setting
• 2T/4T
• regulation of inductance
• regulation of pre-outflow and gas outflow time
• welding without gas
• spot welding
• equipped with a euro socket
• Welding wire spool diameter D100, D200

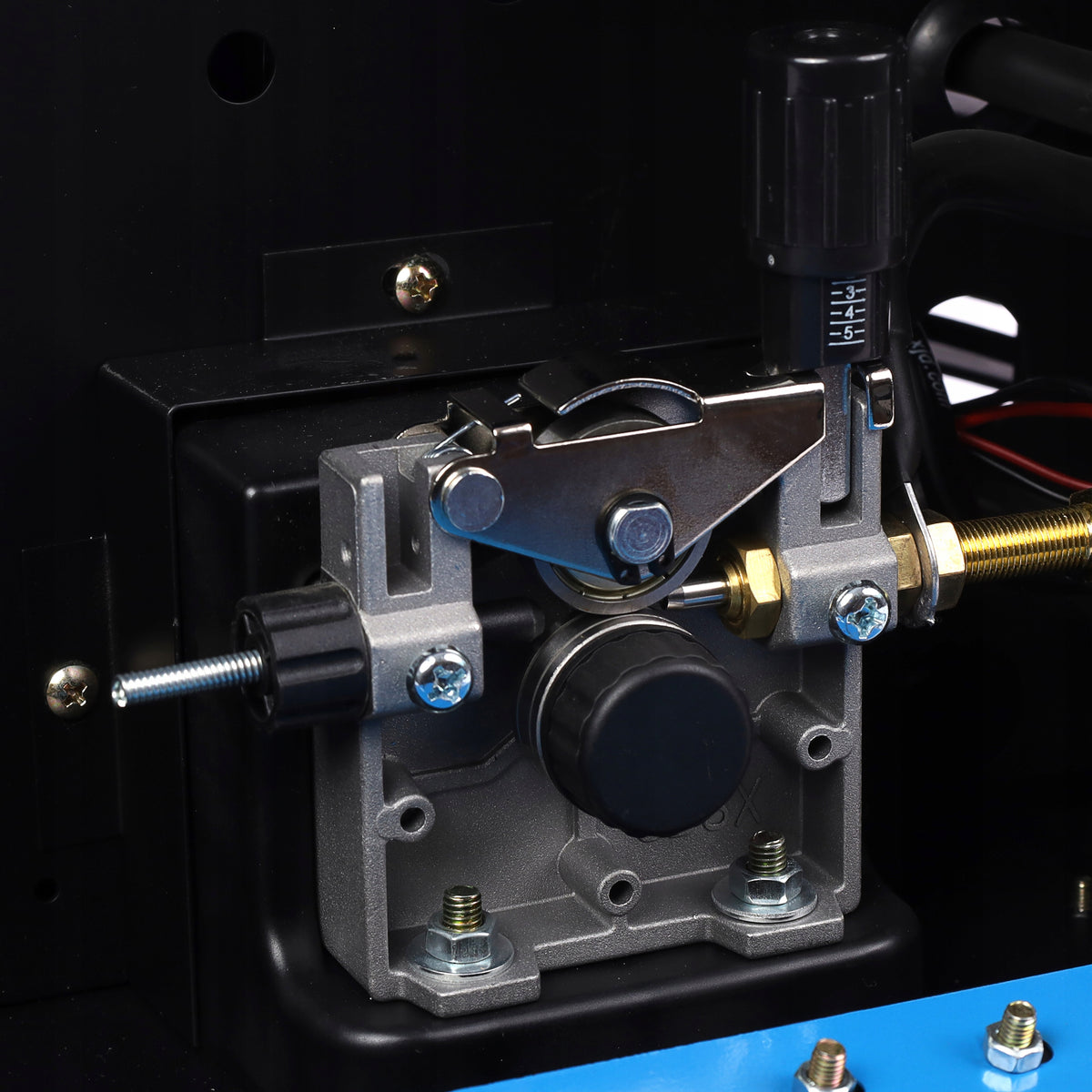

• 2 roller feeder
• replacement handle polarity
• welding current adjustment range: MIG 20 - 200 A, MMA/TIG 10 - 200 A
• fan cooling
• protection against overheating

Welding Assist Systems:

• VRD - reduces voltage in the unloaded state, minimizes the risk of electric shock
• ARC FORCE - allows you to adjust the dynamics of the welding arc and thus the depth of melting
• HOT START - facilitates arcing and prevents the electrode from sticking to the material
• ANTI STICK - prevents sticking of the electrode and facilitates its detachment

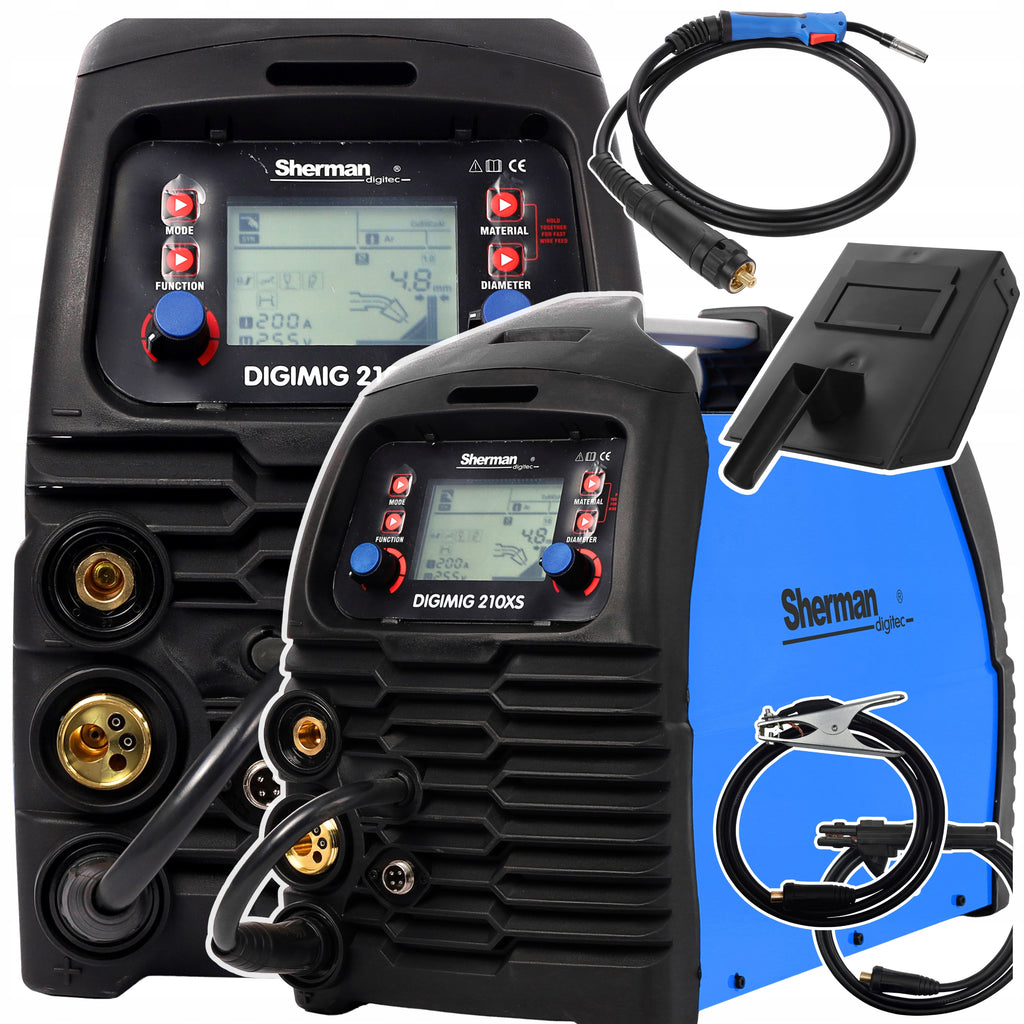

Contents of the set:

According to the included photos and specifications, when you buy this set you get:

• Sherman DIGIMIG 210XS welding machine with 2-roll wire feeder
• MIG welding torch
• Robust electrode cable (for MMA method)
• Bulk cable with tick clamp
• Basic welding disc
• Brush-hammer for cleaning welds

• Power supply: 230 V (Network protection: 25 A)
• Welding methods: MIG/MAG, MMA DC, TIG Lift DC, Soldering
• Maximum welding current: 200 A (for all methods)
• Working cycle: MIG/MAG: 35%, TIG: 35%, MMA: 40%
• Spool diameter with wire: 100 mm, 200 mm (D100, D200)
• Wire feed speed: 2 – 20 m/min
• Wire feeder: 2-roll (roll dimensions: 30x10x10 mm)
• Max power/current consumption: 7,1 kVA / 32 A
• Weight of the device: 16,5 kg
• Dimensions (D x SZ x W): 49 x 22 x 37,5 cm
