Aprašymas
Trumpai apie prekę
Prekė: Pusiau automatinis suvirinimo aparatas SPARTUS EASY MIG 215 MMA/TIG, 230V, 200A, 3in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Spartus
- Modelis: EasyMIG 215
- Ilgis: 490 mm
- Plotis: 230 mm
- Aukštis: 330 mm
Manufacturer: SPARTUS ║ Welding methods: MIG/MAG, FLUX, MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%
- Welding machine 3in1 - MIG/MAG, MMA, TIG DC
- Possibility of welding with self-shielding wire - FLUX
- Synergy - automatic selection of parameters - with the possibility of manual correction
- Programs synergistic to welding steel, aluminum and welding without gas
- Ability to manually set welder
- Large, color and readable display LCD
- Welding current 200A with efficiency 60%
- 2T/4T mode
- HOT START function
- ARC FORCE function
- VRD function
- Lutowelding - adjustable inductance
- SPOOL GUN - the ability to work with a wire handle in the handle
- Feeder 2R - excellent work
- Excellent semi-automatic for working in workshops, platework, industry light and household
MULTIFUNCTIONAL SEMI-AUTOMATIC 3in1!
The SPARTUS EASYMIG 215 welding machine is a 3in1 welding machine that can be used for welding using the MIG/MAG, MMA (wrapped electrode) and TIG DC (with LIFT touch). The device allows for welding with a maximum current of 200A, ensuring excellent quality weld.
WIDE RANGE OF APPLICATIONS
The welding machine, thanks to its adjustable inductance , allows you to set the width and depth of the melt, and also allows you to weld without chipping both thin sheets and thick profiles and conduct the CuSi lutowelding process, thanks to which you can freely combine galvanized sheets, which are often used in car bodies.

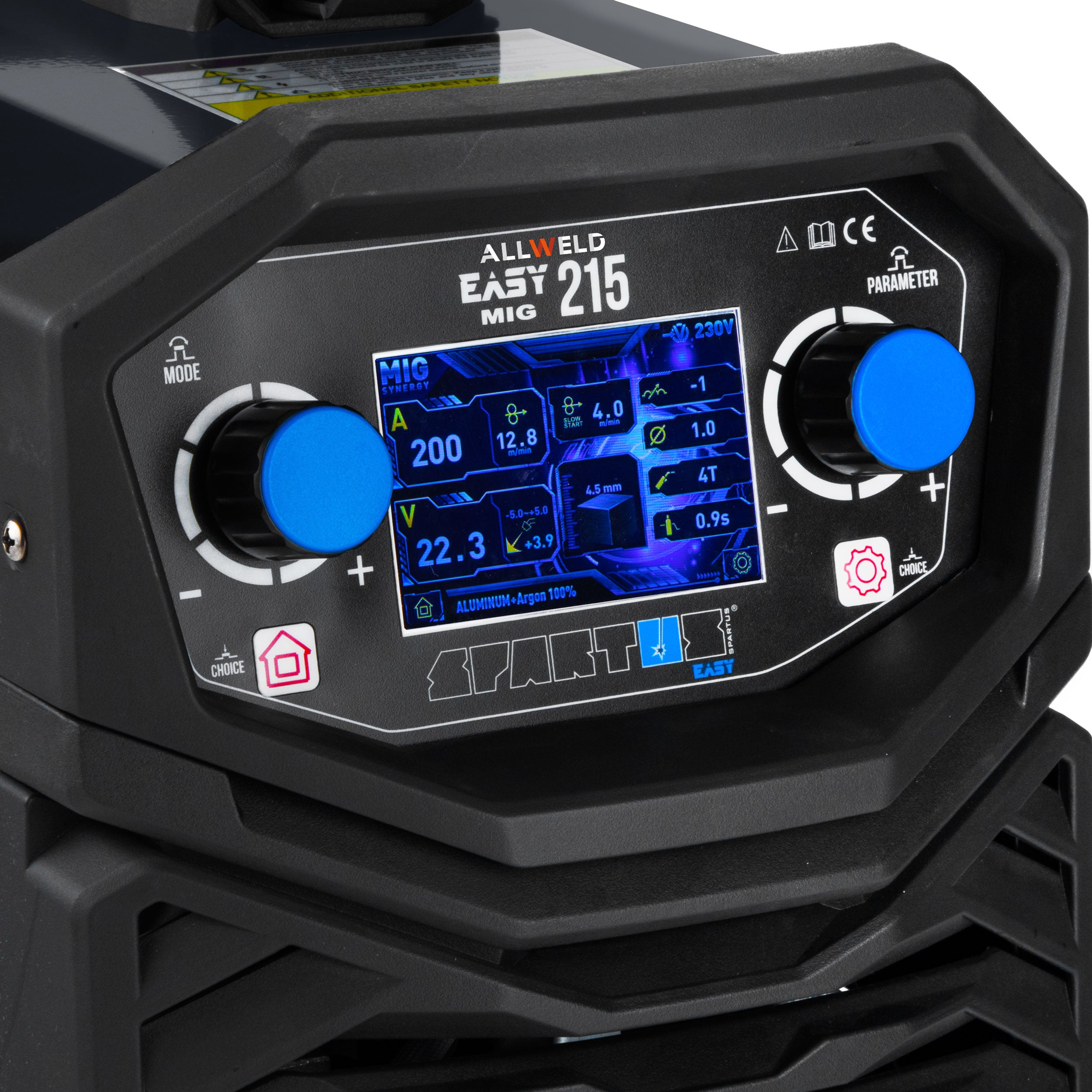

LCD DISPLAY - HINTS DURING THE CORRECTION!

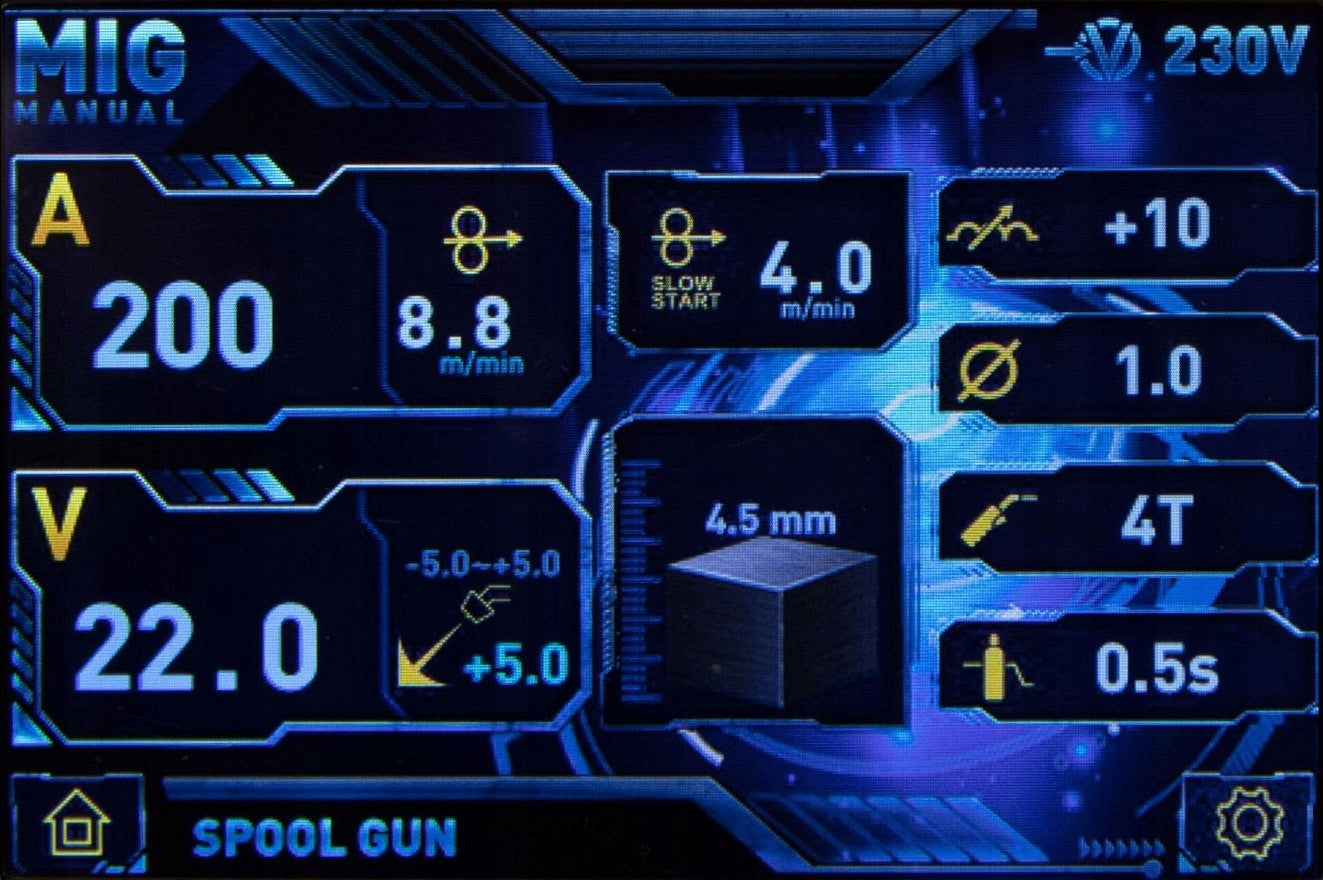

The latest generation color LCD display helps us to set up the welding machine more easily. We can quickly and easily set the current voltage and quickly manage the functions of the device. In addition, the display at the time of correction suggests the shape of the spoiny and graphically recommends choice thickness of the material for a given current.
REG. INDUCTION - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.
LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel.
SPOOL GUN - welding torch with built-in wire feeder. It is used mainly in car workshops and in welding thin sheets, it is perfect for hard-to-reach places and at heights. A spool with welding wire is placed in the handle of the handle. The handle has a standard EURO connection and a control plug.
HOT START "hot start" - consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.
2T/4T - at two bars after pressing the start button, the welding process takes place after releasing the button, the welding process is stopped - at four bars after the first press and release of the button, the welding process stops at the second press.
ARC FORCE “arch dynamics” – shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length.
FLUX - welding without gas shield with self-shielding wire
VRD - function that turns off (reduces) power after welding.
IGBT - modern IGBT transistors are used in the welding machine, the solution ensures lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation.
CHECK THE LIST OF SYNERGISTIC PROGRAMMES
MIG STEEL - program for welding black steel in CO2 shield.
MIG STEEL - program for welding black steel in Ar/CO2 shield.
ALUMINIUM - program for welding aluminum in Ar sheath
FLUX CORE - program for welding with self-shielding wires
SPOOL GUN - welding with handle with built-in feeder
TIG DC - welding with tungsten electrode
MMA - welding with an electrode wrapped without the use of gas
Display after selecting a given type of welding proceeds to further presentation of its parameters along with graphic presentation of the thickness of the material.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Number of phases: 1ph
- Frequency: 50/60Hz
- Network security: 25C
- Max. power consumption [A]: MIG 40 / MMA 38
MIG/MAG WELDING PARAMETERS
- Welding current: 50-200A
- Work cycle: 60%
- Wire feed speed: 2 – 12,8m/min
- Type of feeder: built-in, 2 - roller
- 2T/4T: YES
- Wire spool: ≤ 5kg / ∅200mm
- Wire diameter: 0.6 / 0.8 / 1.0mm
- Output voltage: 12,3 – 26V
WELDING PARAMETERS MMA
- Welding current: 10-180A
- Work cycle: 60%
- Diameter of electrode: 1.6 – 4.0mm
- ARC FORCE ADJUSTMENT: YES
WELDING PARAMETERS TIG DC LIFT
- Welding current: 10-200A
- Work cycle: 60%
- 2T/4T: YES
- Arc glow: LIFT
ADDITIONAL FUNCTIONS
- ARC FORCE function: YES
- 2T/4T function: YES
- SOLDERING function: YES
- TIG LIFT function: YES
- SYNERGY: YES
PHYSICAL PARAMETERS
- Cooling: fan
- Isolation class: H
- Security rating: IP 21S
- Dimensions: 490x230x330mm
- Weight: 12 kg

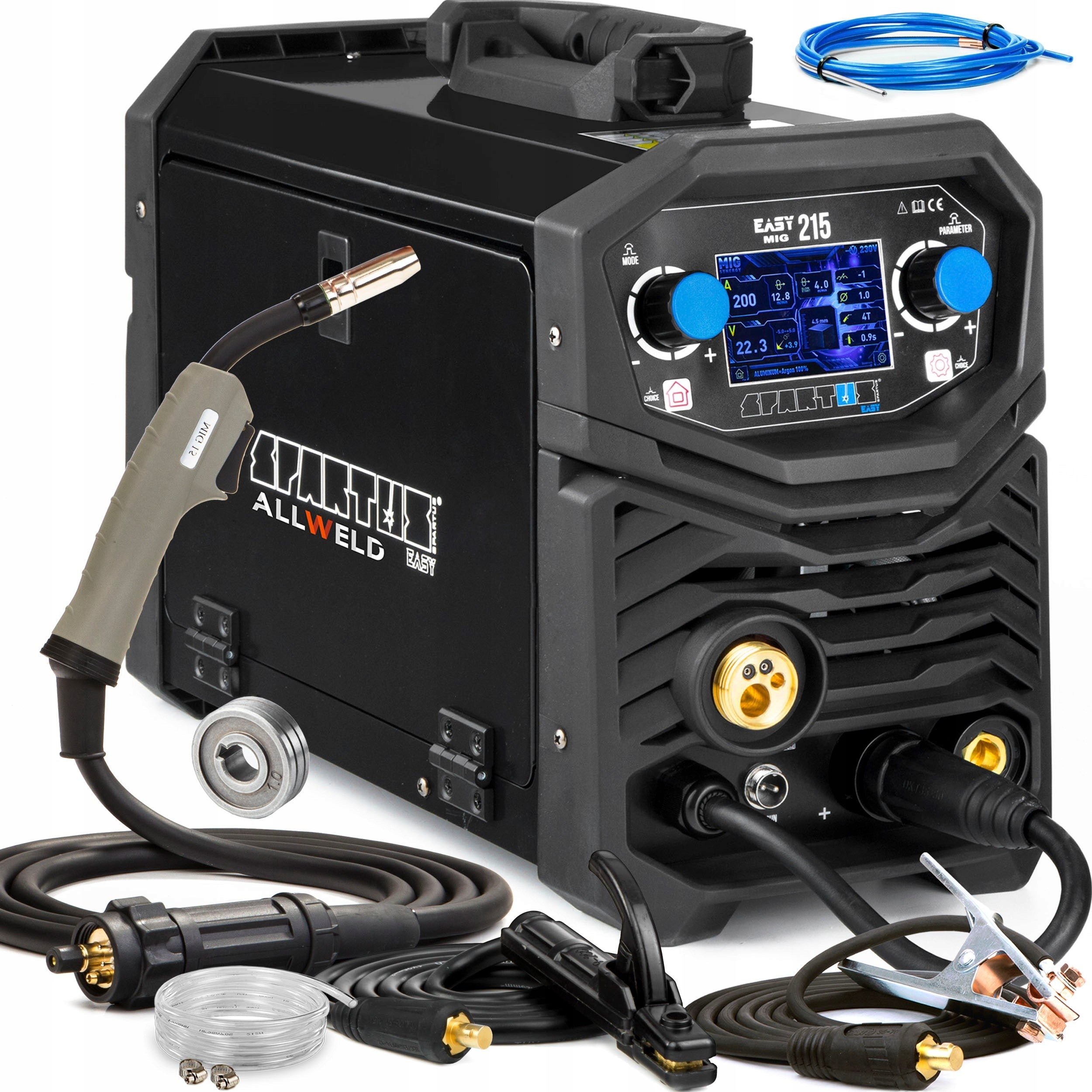

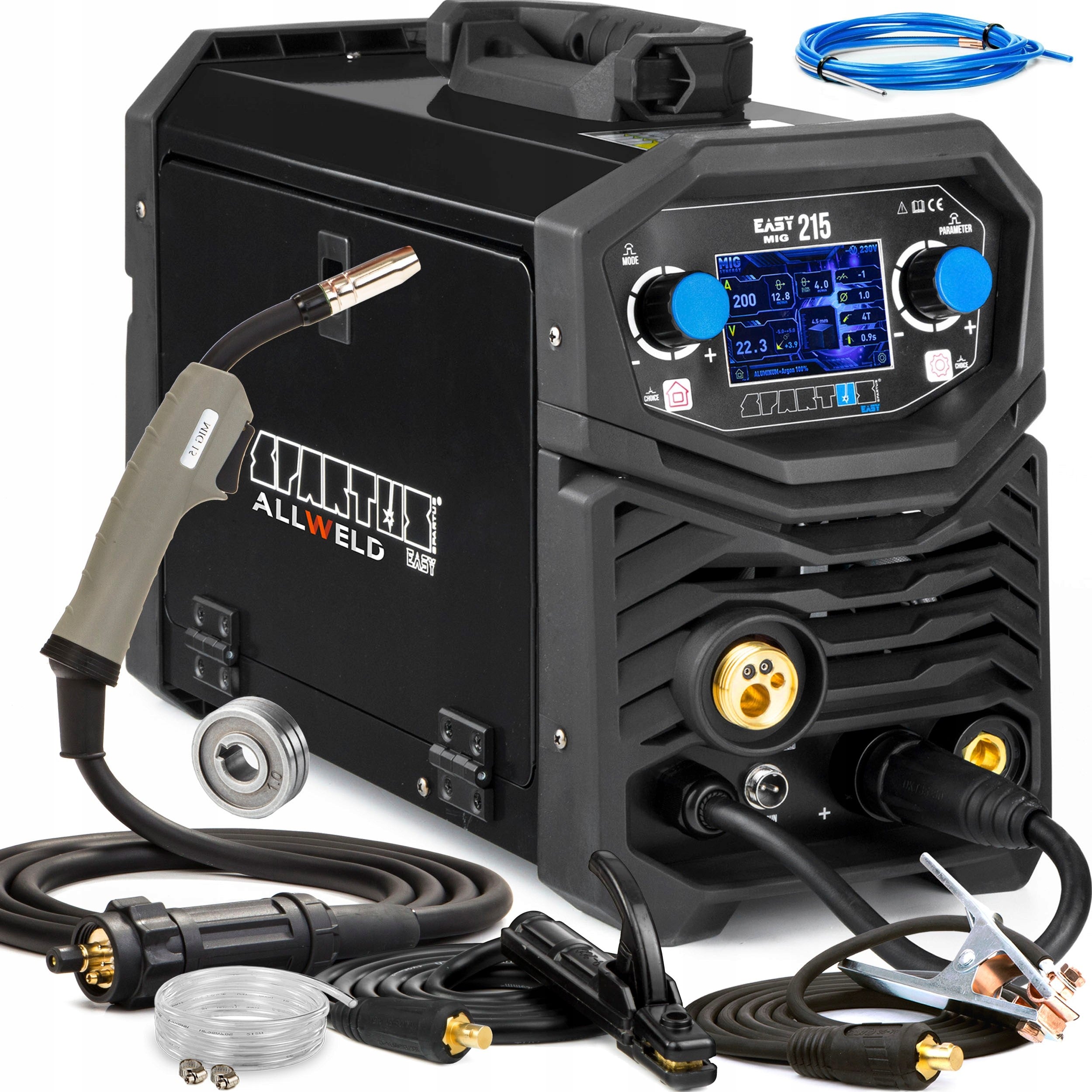

THE SET INCLUDES:
- Welding machine SPARTUS EasyMIG 215 SYNERGY LCD
- Welding torch SPARTUS MIG SPE 150 MB 15 - 3m
- Bulk holder - 1,5m
- Electrode holder - 2m
- Refill for steel wire - 1 pcs
- Steel wire feeder roller - 1pcs
- Gas connection hose - 1pcs
- Operating manual and warranty card
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Spartus |
| Parametry | Power consumption | 6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 12 kg |
| Parametry | Welding range | 50–200 A |
| Parametry | Height | 330 mm |
| Parametry | Length | 490 mm |
| Parametry | Width | 230 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Manufacturer code | EASYMIG215-PAK-15-3 |
| Parametry | EAN (GTIN) | 5900391242261 |
| Parametry | Packaging status | original |
| Parametry | Model | EasyMIG 215 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
