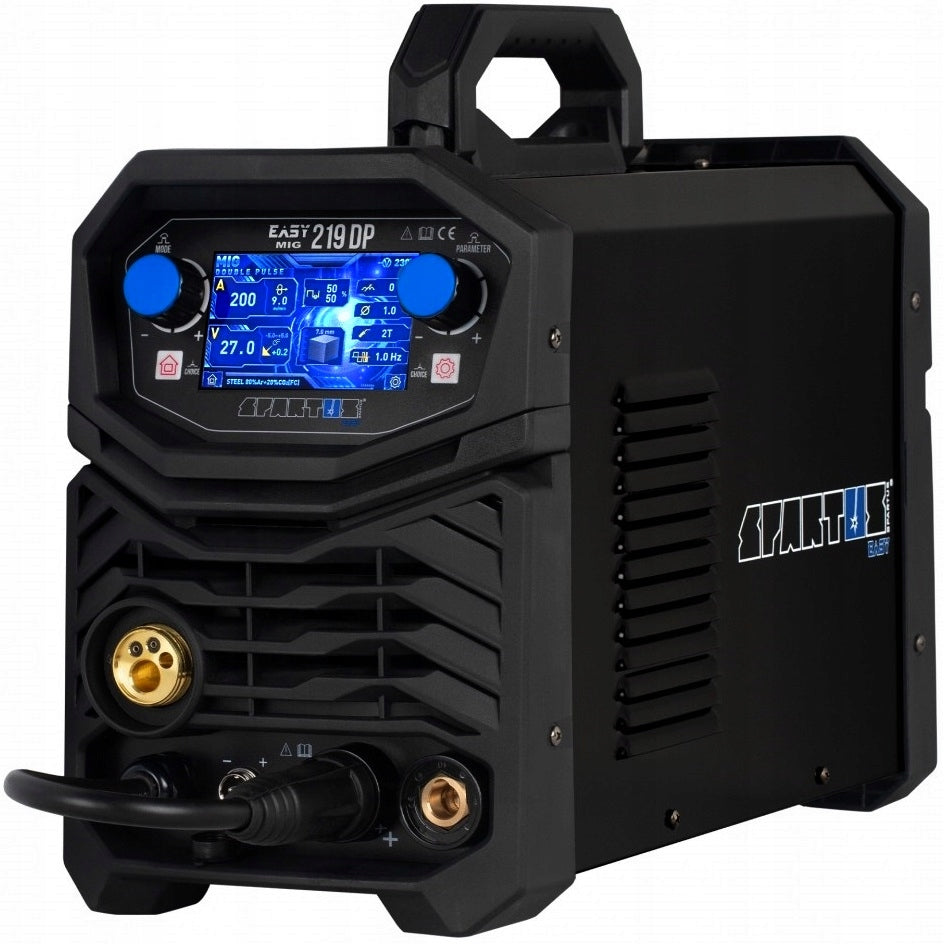

Pusiau automatinis suvirinimo aparatas SPARTUS EasyMIG 219 Dual Pulse 4R

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas SPARTUS EasyMIG 219 Dual Pulse 4R. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EASYMIG219DP-PAK-15-3
• Ilgis: 552 mm
• Plotis: 225 mm
• Aukštis: 340 mm

SPARTUS EASYMIG 219 DUAL PULSE WELDING MACHINE

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG PULS - synergistic settings with single pulse,
• MIG 2-PULS - synergistic settings with dual pulse
• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding with manual settings.
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The EASYMIG 219 DUAL PULSE welder is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ acid-resistant steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys.

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

SPARTUS EASYMIG 219 DUAL PULSE has synergic programs, thanks to which you can adjust welding parameters to the selected material.

MIG PROGRAMS:

• Fe CO2 - program for welding black steel in CO2 gas shield
• Fe Ar+CO2 - program for welding black steel in gas shield MIX (Ar+CO2)
• Flux program for welding carbon steel with self-shielding wires with a diameter of 0.8mm, 1.0mm

MIGRATION PULSE / DUAL PULSE PROGRAMS:

• Fe Ar+CO2 - program for welding black steel in gas shield MIX (Ar+CO2)
• Ss - Stainless steel welding program with gas shield AR-80% /CO2- 20% (MIX
• Ss - program for welding stainless steel in gas shield AR- 97.5%/CO2 -2.5% (MIX
• CuSi, - program for welding copper and its alloys in Argon (Ar) sheath.
• AlSi - Welding of aluminium alloys with silicon, MIG method, in argon sheath.
• AlMg - Welding of aluminium alloys with magnesium, MIG method, in argon sheath.

The welding machine has a simple and user-friendly control panel using the soft panel and a knob allows for full adjustment of parameters. Easy-to-read display makes it easy to operate the device

During the correction of parameters, the display determines the dependence of the weld shape in relation to the voltage and graphically indicates the recommended material thickness for the selected current.

Functional Panel Support :

• Welding mode selector knob / MIG voltage adjustment
• Button – return to menu
• Parameter adjustment knob
• Welding parameter selection button: wire feed speed / wire diameter / inductance / 2T-4T/Hot Start / Arc Force mode

Description of parameters on the LCD display:

• Welding current
• Wire feed speed
• Welding voltage
• Voltage correction – face shape adjustment
• Currently selected program
• Inductance
• Wire feed speed with “slow loss”
• Wire diameter
• Operating mode 2T/4T
• Post gas (gas flow after welding)
• Thickness of welded material

✔ REPAIR WORKSHOPS,

✔ AUTOMOTIVE INDUSTRY,

✔ LOCKSMITH WORKSHOPS,

✔ OF ALL BODYWORK REPAIRS,

✔ FACTORIES,

✔ FARMS,

✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ MANUAL MODE - the ability to manually set the welding machine and make adjustments to synergistic settings (most synergistic welding machines currently available on the Polish market do not have a fully manual mode, and thus it is not possible to manually set the m.in wire feed speed, which is not always in synergy tailored to our needs).

✔ DOUBLE PULSE - By welding using the MIG/MAG method with a double pulse, we obtain a high level of face appearance (husk effect). The MIG/MAG method with double pulse allows you to adjust the current pulsation (pulse balance) and adjust the wire feed speed. Thanks to this, we improve the appearance of the weld. When welding with dual pulse MIG/MAG, current pulses occur in two ranges

✔ PULS - pulsed current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ SYNERGY - is a very helpful feature available in professional welding equipment of PREMIUM class. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ SOLDERING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire

✔ SPOOL GUN CONNECTOR - allows you to connect a special handle with space for an additional spool with wire. .

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas outflow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ VRD - (Voltage Reduction Device) - reduces the idle voltage on the electrode to a safe value. Provides shock safety when working in humid environments.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

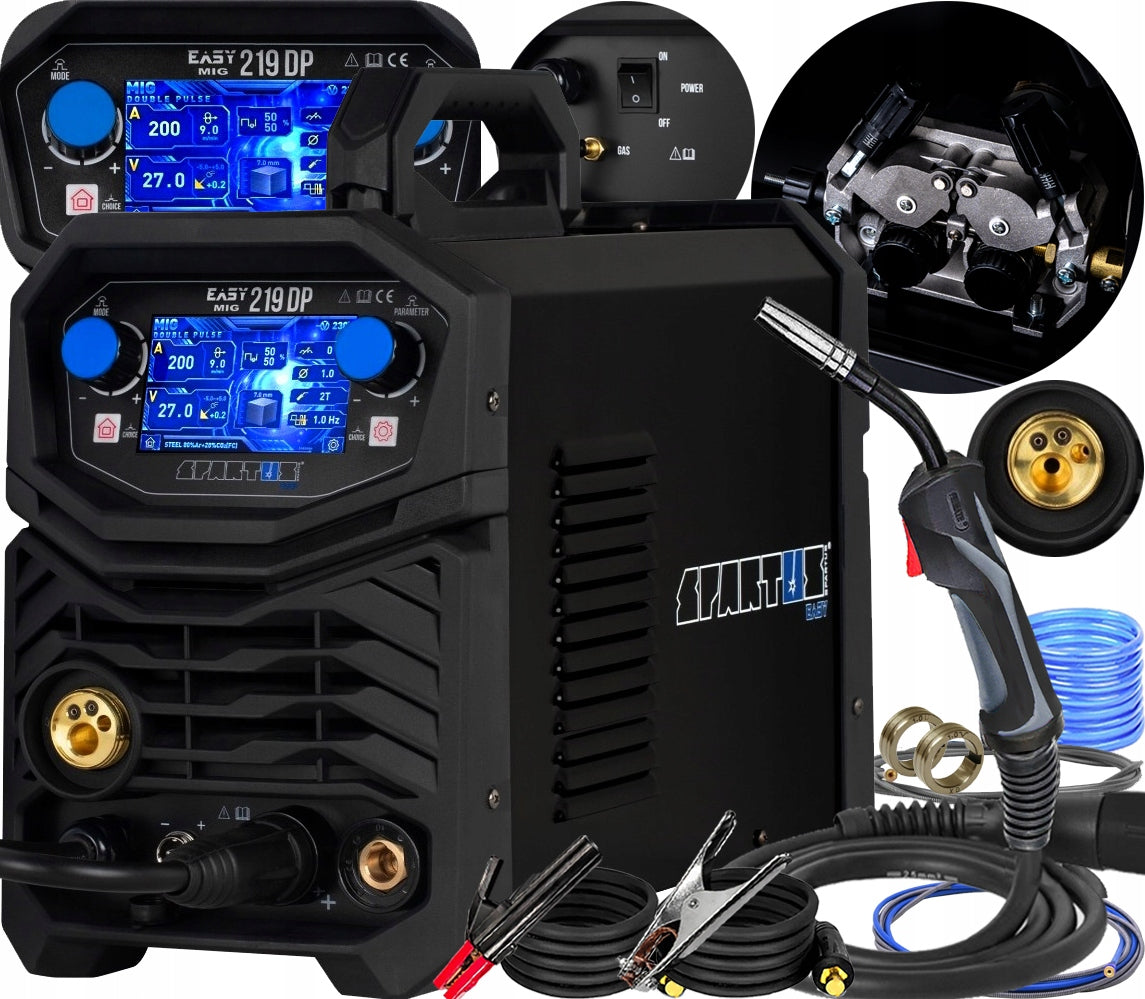

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device.

The 4-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

HANDLE WITH EURO CONNECTOR

The welder has a EURO socket for MIG welding wire. The socket allows you to quickly change the handle to the same standard

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: × ~1× 230V ± 10% 50 / 60 Hz
• Output voltage : 15.5 - 24.0V
• Efficiency η [%] : 84,3%
• Power factor (cosφ): 0.66
• Isolation class : H

⏩ MIG PARAMETERS:

• Welding current MIG [A]: 30 – 200
• Electricity at 60% operation: 200A
• Electricity at work 100%: 155A
• Voltage at work 60%: 24V
• Voltage at work 100%: 21,7V
• Type of feeder: built-in, 4 - roller
• Wire diameter : 0.8 / 1.0 / 1.2
• Wire spool: ≤ 5[kg], ø200
• Working cycle [%]: 60

⏩ MMA PARAMETERS:

• MMA welding current [A]: 10 – 200
• Maximum current consumption [A]: 43
• Working cycle [%]: 60

⏩ TIG PARAMETERS:

• TIG welding current [A]: 10 – 200
• Maximum current consumption [A] : 28
• Welding TIG: Tig DC Lift
• Working cycle [%]: 60

⏩ OTHER:

• Weight: 13 kg
• Dimensions [mm]: 552 x 225 x 340
• Degree of protection: IP21

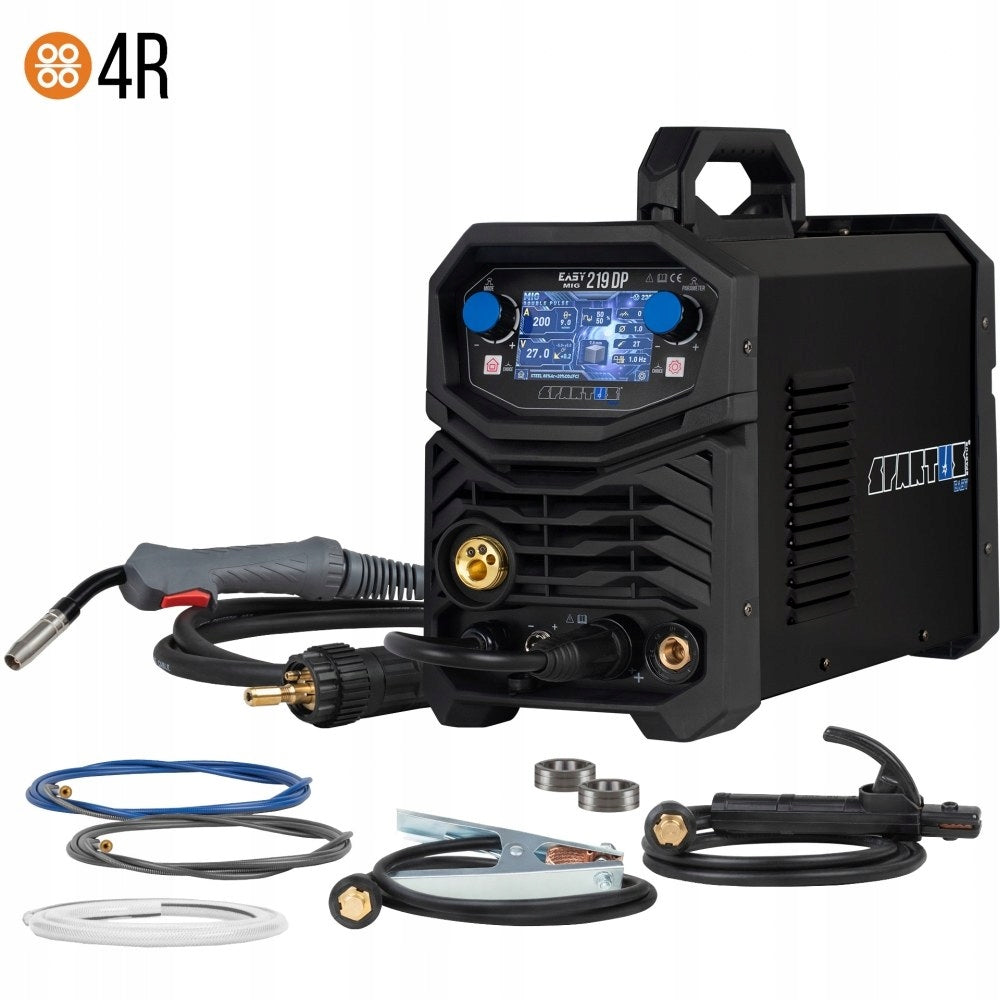

ORIGINAL PRDUCENT SET, WHICH INCLUDES:

• Welding machine SPARTUS EASYMIG 219 DUAL PULSE - 1 pc.
• Welding torch - SPARTUS® MIG SPE 150/3m (MB15 3m) equipped with graphite wire guide- 1 pc.
• Steel Wire Guide
• Guide roller 1.0-1.2U fi30 + additional 0.8-1.0V fi30
• Electrode holder - 2m - 1pc
• Bulk cable - 1.5/m - 1pc
• Gas hose - 1 pc.
• Instruction service in Polish

SET OF 1 MIG INDUCTANCE MB15.
