Pusiau automatinis suvirinimo aparatas SPARTUS XPro MIG 200 DUAL PULSE ALU INOX CUSI3 4X4

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas SPARTUS XPro MIG 200 DUAL PULSE ALU INOX CUSI3 4X4. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: XPro MIG 200 DUAL PULSE
• Ilgis: 550 mm
• Plotis: 215 mm
• Aukštis: 370 mm

– Dual Pulse technology in a mobile form

SPARTUS XPro MIG 200 Dual Pulse is a modern semi-automatic welding machine designed for users who expect maximum functionality in an extremely compact housing. Despite its small size, the device is equipped with a professional 4-roll wire feeder and advanced Dual Pulse function – solutions characteristic of much larger industrial equipment.

Modern IGBT inverter technology, 230V power supply and a wide range of welding processes make the XPro MIG 200DP perfect for both professional workshops, as well as during assembly or service work.

Support for MIG/MAG methods (manual, synergy, Pulse and Dual Pulse), TIG Lift and MMA provides full versatility for a variety of materials and applications.

The XPro MIG 200DP is designed not only for mobility, but also for intensive daily work. The high 60% duty cycle at 200A allows the process to remain stable even during longer welds and more demanding applications.

MIG/MAG welding – from full control to advanced Dual Pulse

SPARTUS XPro MIG 200 Dual Pulse offers a wide range of MIG/MAG configuration options, making it easy to adapt to both everyday workshop work and more demanding applications.

Synergistic MIG DC mode significantly simplifies the configuration of welding parameters.

The device automatically selects optimal settings based on the type of material, wire diameter and shielding gas, which allows you to start working faster and reduces the risk of incorrect settings.

This solution is particularly useful when working with various materials and changing tasks.

For more experienced users, there is also a manual mode, which provides full control over welding parameters and allows you to precisely adjust the characteristics of the arc to your preferences and the specifics of the work performed.

However, the true potential of the device is revealed in Pulse and Dual Pulse modes.

Pulse technology allows you to better control the amount of energy transferred to the material, stabilizes the arc and reduces the amount of chipping.

As a result, the process becomes more predictable and the weld cleaner and more aesthetic. Dual Pulse mode additionally allows you to achieve the characteristic “husk” effect, known from TIG welding, while maintaining high MIG/MAG efficiency.

This solution is perfect for welding aluminum, stainless steel and thin materials susceptible to thermal deformation.

In practice, Dual Pulse means:

less chipping,

easier control of the lake,

limiting overheating of the material,

better aesthetics of the weld,

fewer corrections after welding.

Advanced regulation of parameters such as pulsation frequency, base current or fill factor allows even more precise control of the process, depth of melting and appearance of the weld.

Thanks to this, the operator receives not only greater stability of work, but also a real impact on the quality of the final effect. The advancement of the device is also visible in the possibility of detailed management of the welding process.

The user has access to full control over the stages of work – from gas blowing, through soft start and glow parameters, to arc extinguishing.

Features such as Burn Back eliminate the risk of wire sticking, and proper gas setting after welding effectively protects the weld from oxidation, reducing the need for corrections.

The device also offers extensive handle operating modes, such as 2T, 4T and their extended versions S2T and S4T, which allow precise management of the welding process, especially for long and demanding welds.

SPOT spot mode increases the accuracy of work in applications requiring repeatability and control of welding time.

Inductance adjustment allows you to adjust the nature of the arc to the material and welding position, reducing the amount of chipping and improving the quality of melting, while the Slow Feed function ensures stable glow and controlled start of wire feeding.

The whole is complemented by the possibility of working with a Spool Gun handle, which significantly improves the stability of feeding soft wires, especially aluminum. This solution eliminates the problems associated with conducting wire over longer sections, providing greater control and repeatability of the process.

The combination of Dual Pulse mode, 4-roll feeder and Spool Gun support creates a complete system for working with aluminum.

4 - roller feeder - stable wire feeding

The SPARTUS XPro MIG 200 Dual Pulse is equipped with a professional 4-roll wire feeder that ensures smooth and stable feeding even when working with more demanding materials such as aluminum.

Stable wire transport has a direct impact on the quality of the arc and repeatability of welding parameters.

Reducing tugging and irregular feeding improves the comfort of the operator and allows you to take full advantage of the Pulse and Dual Pulse modes.

The device works with wires with a diameter of 0.8 to 1.2 mm and supports spools up to 5 kg, while maintaining a very compact form of construction.

Electromagnetic compatibility (EMC)

SPARTUS XPro MIG 200 Dual Pulse is characterized by high electromagnetic compatibility (EMC), which guarantees stable operation without interference in demanding industrial environments.

The device has been designed so as not to affect the operation of other machines and control systems, while maintaining resistance to external interference.

This ensures reliable operation in the environment of automation, robots and modern production installations.

Memory channels – quick access to saved parameters

The device is equipped with a memory system that allows you to record up to 20 welding programs.

This allows you to immediately recall previously saved settings, which significantly reduces the time of preparation for work and ensures high repeatability of the process. This solution will be especially appreciated by users working in serial production, where speed and elimination of settings errors count.

TIG Lift and MMA – more job opportunities

SPARTUS XPro MIG 200 Dual Pulse offers extensive TIG Lift and MMA welding modes that significantly expand the range of applications of the device.

TIG Lift mode enables precise welding with ignition by touch, ensuring good arc control and stable process flow, especially for work requiring greater accuracy.

In addition to the standard operation of TIG handles with valve, the SPARTUS XPro MIG 200 Dual Pulse also allows you to connect a TIG handle equipped with a EURO connection and control in the handle.

This solution increases the comfort of work and allows for more convenient control of the TIG Lift process without having to take your hand off the handle.

In MMA mode, the device offers two advanced ways of working: constant current and constant power. The first provides a stable arc regardless of its length, which translates into high weld quality and easier process control. The second dynamically adjusts the parameters to changing conditions, increasing work comfort and efficiency. Features such as Hot Start and Arc Force further support the process of arcing and stabilization, especially in more difficult conditions.

Additional benefits – comfort that makes a difference

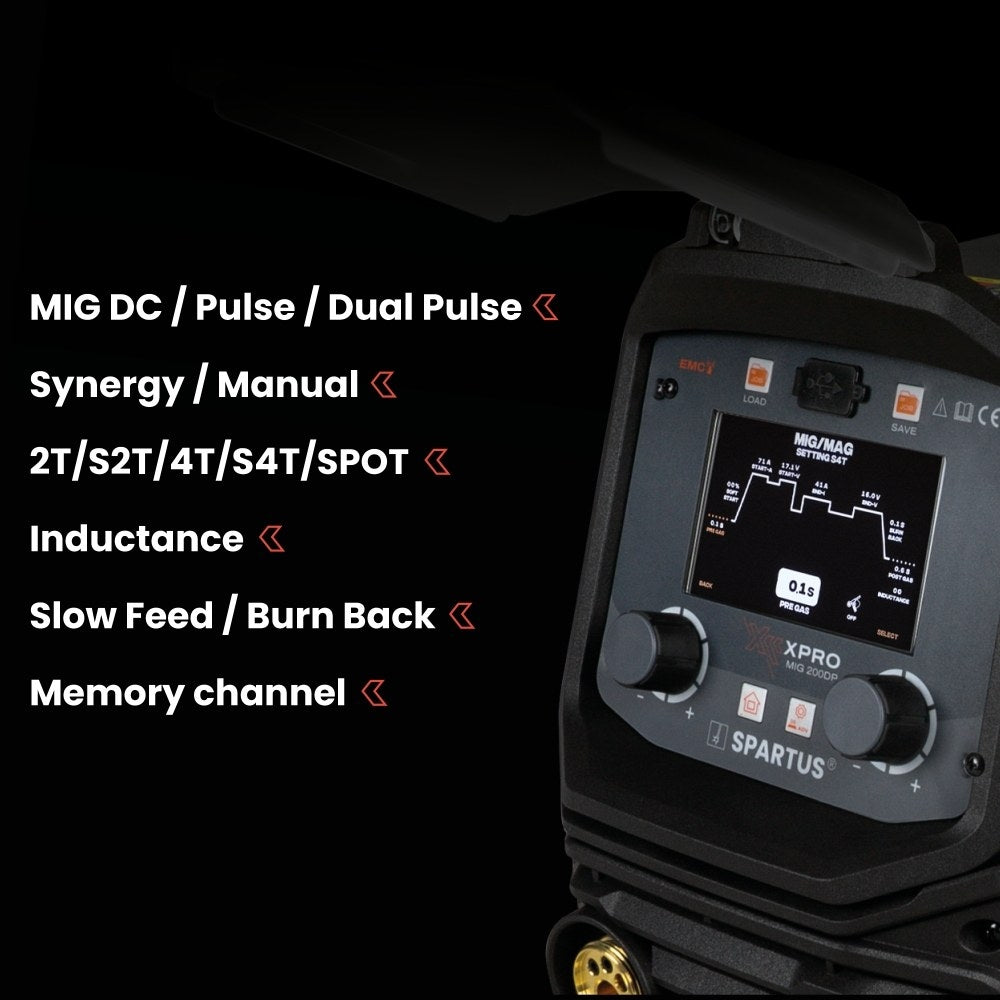

Modern, easy-to-read LCD display and intuitive control panel make the operation of the device quick and convenient, even with extensive functions. During welding, the interface dynamically adjusts its appearance, presenting in a clear way the most important operating parameters, such as current and voltage, which allows you to control the process on an ongoing basis and reduce the risk of errors.

Greater working range, fewer restrictions

Thoughtful configuration of wires – 3-meter welding torch, mass and power cord – provides real freedom of work with large elements and reduces the need for frequent rearrangement of the device. The 3-meter gas hose terminated with a quick coupler speeds up connection and streamlines the organization of the station, which translates into greater efficiency.

Compact dimensions and full mobility

One of the many advantages of the device is its compact design.

With a weight of only 14,5 kg and a small footprint, the XPro MIG 200DP can be conveniently transported and used wherever large welding sources prove impractical. It is an ideal solution for mobile welders, assembly teams, service workshops and users who expect high efficiency without having to sacrifice the convenience of transport and organization of the workplace.

Despite its small size, the XPro MIG 200DP offers functionality characteristic of industrial equipment.

An additional advantage of the device is an intelligent cooling control system (Fan Stop), which starts the fan only when necessary. This translates into quieter operation, less suction of impurities and extended service life of components.

The IP21S rating ensures that you can work safely in workshop and industrial settings, ensuring that you are properly resistant to external factors.

Synergic programs XPro MIG 200 Dula Pulse

Technology created for a modern workshop

SPARTUS XPro MIG 200 Dual Pulse is a device created for users who expect modern functions, high quality welds and maximum mobility. It combines a compact design with advanced pulsed welding capabilities. It is a semi-automatic that allows you to work faster, more conveniently and more precisely – regardless of the workplace.

It is one of the most advanced Dual Pulse compact semi-automatics in the 200A class.

Guarantee

The warranty period for SPARTUS XPro series devices is up to 36 months.

Technical data:

• Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• MIG welding current: 30 – 200A
• MIG duty cycle: 60%
• Output voltage: 15.5 – 24.0V
• Type of feeder: built-in, 4 - roller
• Wire spool: ≤ 5kg / ∅200mm
• Wire diameter: 0.8 /1.0 / 1.2mm
• Synergy: yes
• Working mode 2T/4T: yes
• Working mode s2T: yes
• Working mode s4T: yes
• SPOT spot welding: yes
• Additional MIG functions: DUAL PULSE, Burn Back, inductance, soldering (CuSi3), Pre-gas, Post-gas, pulsation, synergistic programs, manual parameter correction, spool gun, Slow Feed, gas test, wire test, polarity change
• TIG welding current: 10 – 200A
• Power drop time: 0 – 5s
• MMA welding current: 10 – 200A
• Arc Force: yes
• Hot Start: yes
• VRD: yes
• Power consumption: MIG 39A / TIG 32A / MMA 45A
• Power factor (cosφ): 0.69
• Efficiency η: 81
• Isolation class: H
• Degree of protection: IP21S
• Weight: 14.5kg
• Dimensions: 550 x 215 x 370mm
