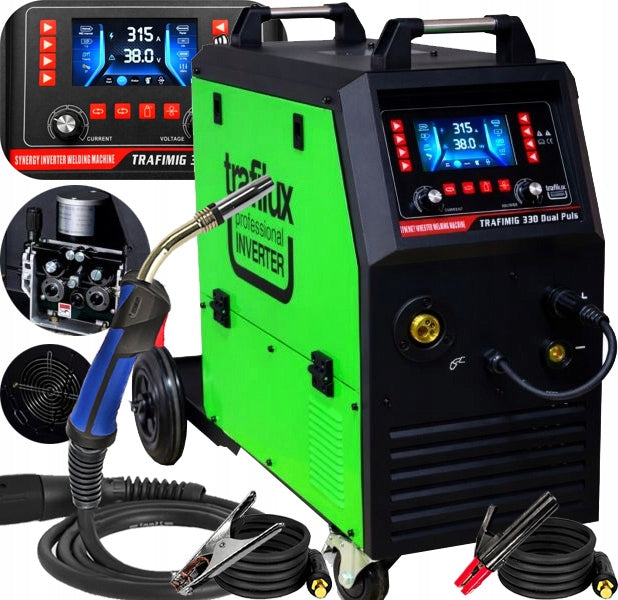

Pusiau automatinis suvirinimo aparatas Trafilux, MIG/MAG, MMA, TIG, 40–315 A, 400 V

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Trafilux, MIG/MAG, MMA, TIG, 40–315 A, 400 V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Trafilux
• Modelis: Trafilux 330 puls

CRASH TRAFILUX HITMIG 330 DUAL PULSE LCD

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG PULS - synergistic settings with single pulse,
• MIG 2-PULS - synergistic settings with double pulse,
• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding with manual settings.
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The TRAFIMIG 330 DUAL PULS LCD welder is used for welding:

- stainless steels (MMA, MIG/MAG, TIG Lift DC),

- low carbon steel (MMA, MIG/MAG, TIG Lift DC),

-low-alloy steels (MMA, MIG/MAG, TIG Lift DC),

- cast iron (MMA, MIG/MAG, TIG Lift DC),

- aluminium and its alloys (MIG),

- other weldable metals and alloys

The device has been designed for all kinds of welding work in automotive workshops, locksmiths, repairs, industrial

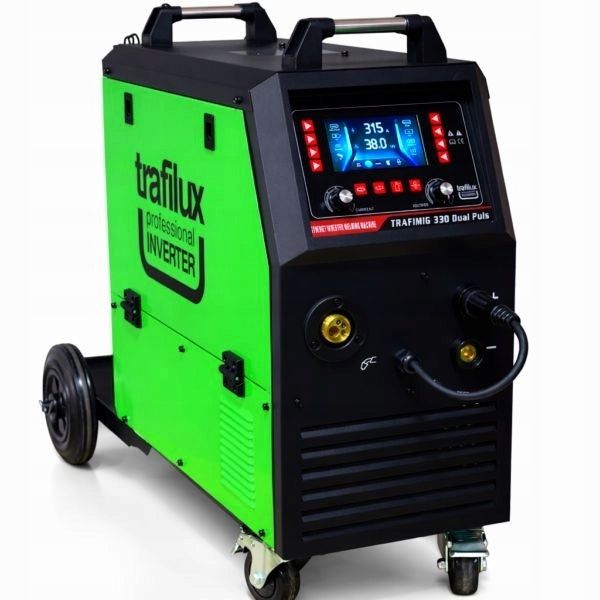

TRAFIMIG 330 DUAL PULS LCD has a readable and easy to use function panel, which has m.in.:

• Color LCD display,
• Left knob,
• Right knob,
• Functional buttons.

The display includes:

• Welding method,
• Wire diameter,
• Program for welded material,
• Welding mode,
• Electricity voltage,
• Welding current.
• INDUCTION ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing their burning and soldering of galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

  - MANUAL MODE - the ability to manually set the welding machine and make corrections to synergistic settings (most synergistic welding machines currently available on the Polish market do not have a fully manual mode, and thus it is not possible to manually set the m.in wire feed speed, which is not always in synergy tailored to our needs).

  - SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

  - DUAL PULS - provides better transfer of the binder into the welded material, which fundamentally improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping. The most advanced welding method, in which current pulses occur in two ranges, thanks to which we obtain the optimal aesthetics of the weld face, the so-called. husk effect.

  - PULS - pulsed current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. In addition, you can get narrower and more penetrating welds on thicker metals.

  - SPOT WELDING - consists in making on a small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

  - TWO-TAKT 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

  - FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

  - S2T - special two-bar with hot start and final current.

  - S4T - special four-bar with hot start and final current.

  - HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

  - ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

  - EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

  IGBT INVERTER TECHNOLOGY - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.

  - WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

  - CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

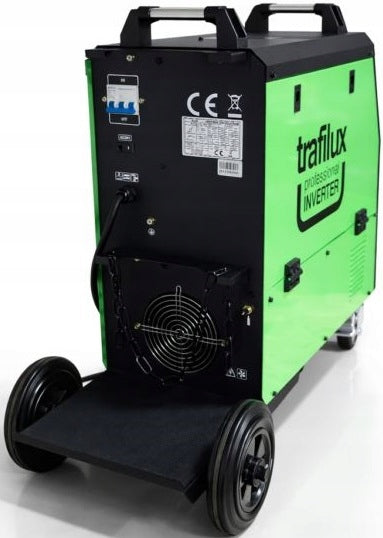

  - CHASSIS - The semi-automatic machine is also equipped with a solid chassis, equipped with durable, bearing wheels that guarantee high mobility and give the possibility of moving the welding machine on uneven ground.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

• The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

  The 4x4 feeder enables precise extension of the welding wire excluding its slippage.

  The feeder has a quick wire change knob as well as a wire feed roller.

  The set includes:

• ✔ Rolls of feeder for steel 1,0-1,2,
• ✔ Aluminium feeder rollers 1,0-1,2.

The device is equipped with overload protection, which increases its reliability.

TECHNICAL DATA:

• Power supply voltage: 400v ±15%/50Hz
• Efficiency: 60%

• MIG/MAG welding current: 40 - 315 A
• Welding current at 60% operation: 315 A
• Welding current at work 100%: 240 A
• Working voltage: 16-30V
• Wire spool size: max 15 kg
• Wire feeder: 4x4
• Wire diameter: 0,8/1,0/1,2 mm

• Welding current MMA: 30 - 315 A
• Working voltage: 13.6-79V
• Welding current TIG: 10A - 315 A

• Degree of protection: IP21S
• Weight of the device : 38 kg
• Dimensions: 860x300x690mm

Included:

• Welding machine TRAFILUX TRAFIMIG 330 DUAL PULS LCD - 1 pc.
• Welding torch MB 24/3m - 1 pc.
• Electrode cable - 1 pc.
• Bulk cable - 1 pc.
• Roll feeder for steel 1,0-1,2
• Aluminum feeder rollers 1,0-1,2
• Chassis with wheels
• Heater socket 36V
• Instruction service in Polish
