Radijo jutiklis Zamel RCK-21 Exta Life

Trumpai apie prekę

Prekė: Radijo jutiklis Zamel RCK-21 Exta Life. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: RCK-21

Radio Contact Sensor Opening/Closing

ZAMEL RCK-21

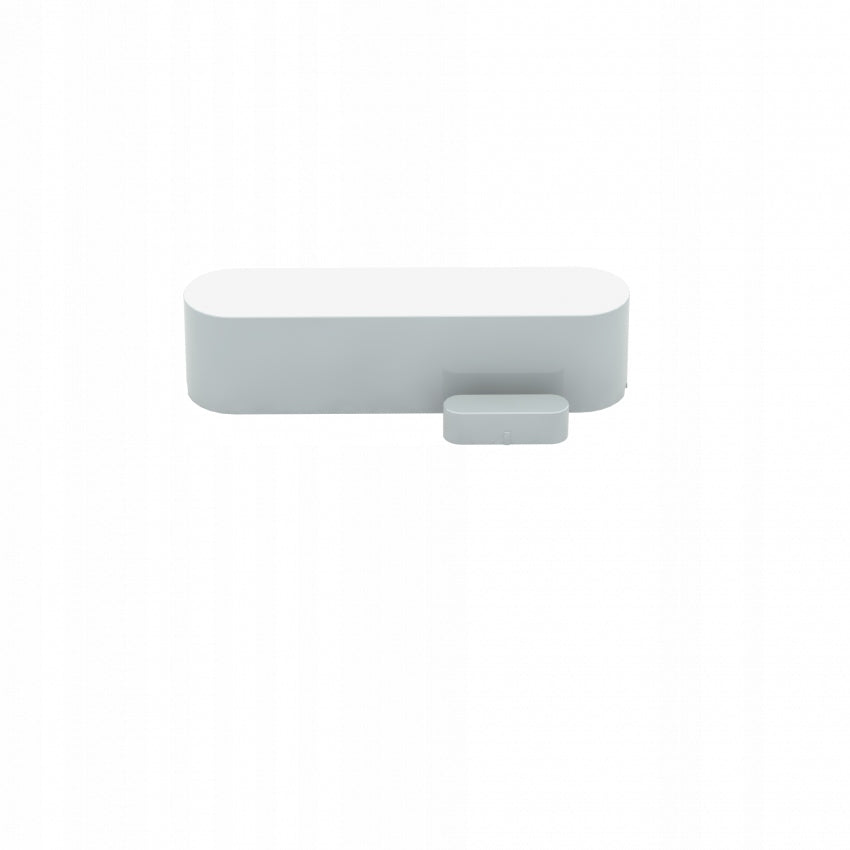

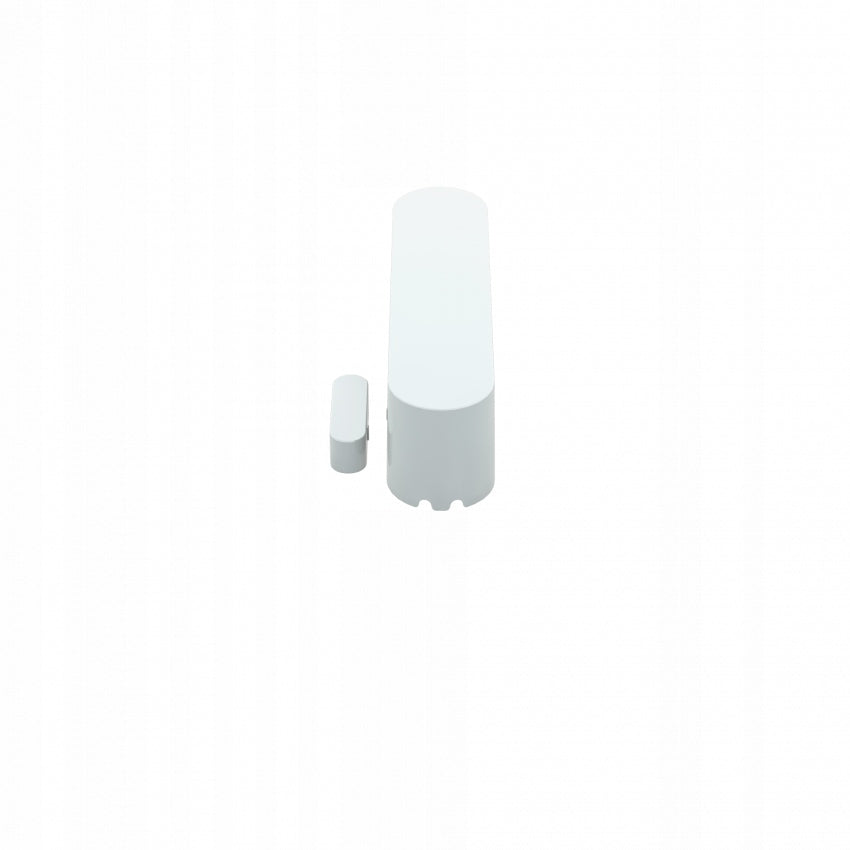

RCK-21 is a wireless magnetic door or window opening/closing sensor. Each time information about the current state of the sensor (open / closed) is sent to the EFC-01 controller and displayed in the mobile application. The sensor can work directly with selected EXTA LIFE receivers or indirectly through the logic function module in the EFC-01 controller. This allows you to automate the control processes of various devices in your home or office. In the case of direct cooperation of the sensor with the receiver, 10 different operating modes are available. The opening/closing detection is realized by Hall's built-in magnetic sensor. The device can be powered from a battery or from an external voltage source (6-24 V AC/DC). In the case of external power supply, it is possible to configure the sensor (this operation is not available with battery power). The sensor is designed to be mounted on double-sided tape or screwed with screws. It is dedicated to use only indoors.

FUNCTIONAL FEATURES OF THE PRODUCT:

detection of opening / closing doors or windows,

control of receivers based on the module of logical functions in the EFC-01 controller,

optical transmission signalling,

possibility of updating the software,

sensor status indicated in the mobile application,

built-in magnetic Hall sensor,

battery power or from an external power source,

fastening with double-sided tape or mounting screws,

direct control of selected EXTA LIFE receivers (without controller),

10 different modes of operation in direct cooperation with receivers,

possibility of configuration (only with external power supply),

indoor use only (IP20).

Degree of protection (IP): IP20

Transmission: radio, bidirectional – ISM band 868 MHz ( 868,50 MHz )

Transmission method: only broadcasting (battery powered)

Optical signaling (transmission/programming): RGB LED

Specifications
