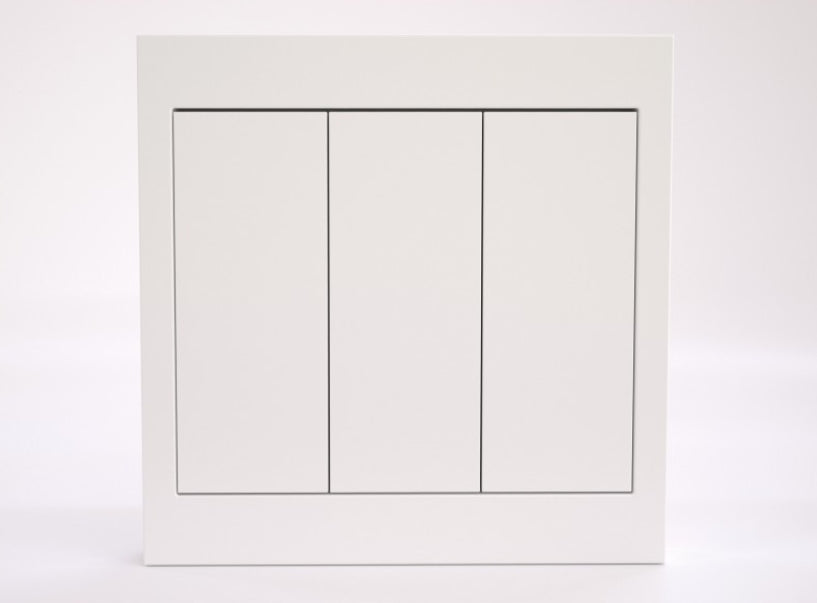

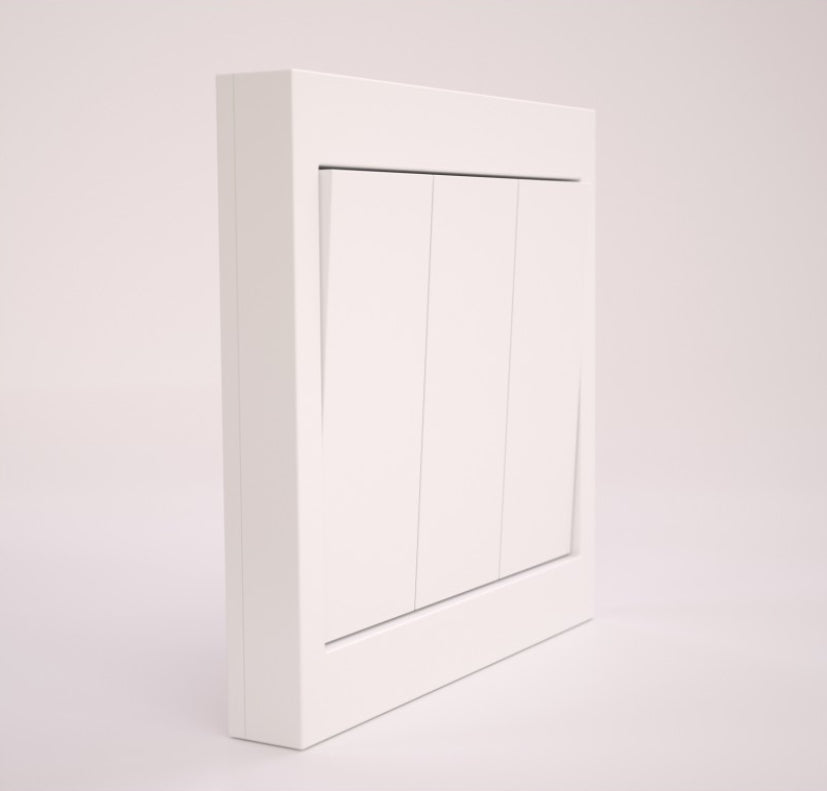

Radijo sieninis mygtukas FW-WS3, 3 klavišai

Trumpai apie prekę

Prekė: Radijo sieninis mygtukas FW-WS3, 3 klavišai. Kategorija: Išoriniai moduliai.

• Gamintojas: F&F
• Modelis: FW-WS3

Features of the device:

- 3-button remote control;

- Cooperation with F & Wave remote control receivers;

- Possibility to control any number of receivers;

- On / off functionality (bistable switch) with the FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D receivers;

- Functionality to raise / lower the roller shutter with the FW-STR1P, FW-STR1D receivers;

- Functionality to dim / brighten the light with the FW-D1P, FW-D1D, FW-LED2P, FW-LED2D receivers.

- Ability to change the configuration of the first button to the ON function - always turn on the paired receivers and / or raise the blind;

- Ability to change the configuration of the second button to the OFF function - always turn off the paired receivers and / or lower the blind;

- Installation does not require a flush-mounted box.

Supply voltage 3 V

Transmitter function

Radio frequency 868 MHz

Battery type 2032 (lithium)

Working temperature 5 ÷ 50 ° C

Dimensions 86 mm x 86 mm x 15 mm

battery life approx. 15 hours of transmission (key pressed on the button)

current consumption pressed 20 mA key

current consumption standby 15 nA

max. power of the emitted frequency 10 mW

symbol FW-WS3

producer F&F Filipowski

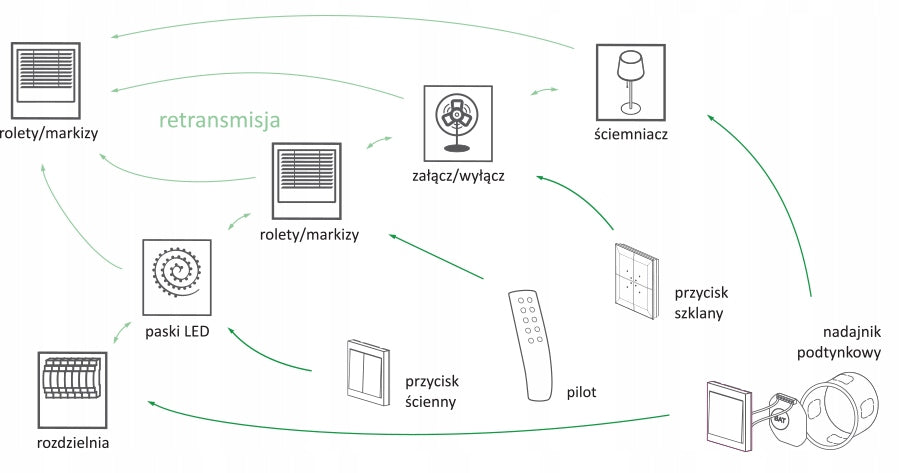

Description of the F & Wave system:

F & Wave is a family of radio-controlled wireless devices with a range

up to 100 m *. Receivers are available for mounting on a DIN rail (1S housing)

and in a Ø60 flush-mounted box. The transmitters are handheld remotes, buttons

wall and in a version for installation in a flush-mounted box. Receivers retransmit

control signals. A device that will receive the control signal from the transmitter automatically

will send it on, which allows you to increase the range of the remote control.

* Range up to 100 m in open space without the presence of disturbing factors. In building conditions and in the presence of interference sources (power lines, transmitters, etc. ) actual range may be less

Simple and inexpensive F & Wave radio remote control system

The F & Wave system is a solution for everyone who is looking for simple, easy-to-use amenities for everyday life.

It is an easy-to-install and easy-to-use wireless control system for everyday devices. Due to its properties, it fits perfectly with the "do it yourself" concept, and is also inexpensive. Enables remote control of:

- lighting - including smooth brightness adjustment,

- control of roller shutters, shutters, awnings, entrance and garage gates

- other home appliances.

The basic elements of the F & Wave radio system are:

- receivers - actuators. They are produced in a version for mounting in a Ø60 flush-mounted box or for mounting on a TH-35 rail (width of 1 module, i.e. 17.5 mm).

- transmitters - These are handheld remote controls or devices for installation in a flush-mounted box, including battery buttons.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	Remote Control
Parametry	Series	F&Wave
Parametry	Brand	F&F
Parametry	Manufacturer code	FW-WS3
Parametry	EAN (GTIN)	5908312599661
Parametry	Product weight with unit packaging	0.06 kg
