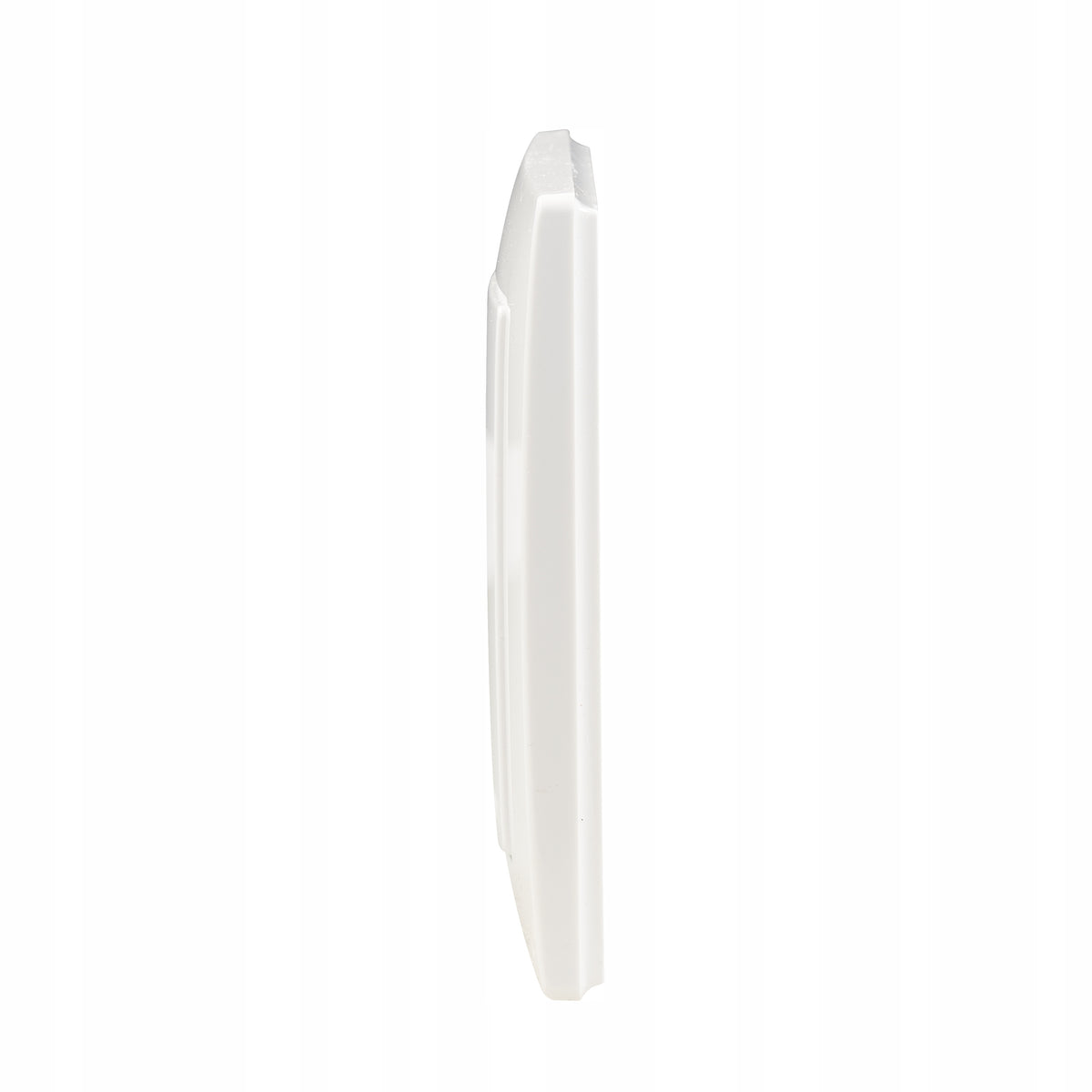

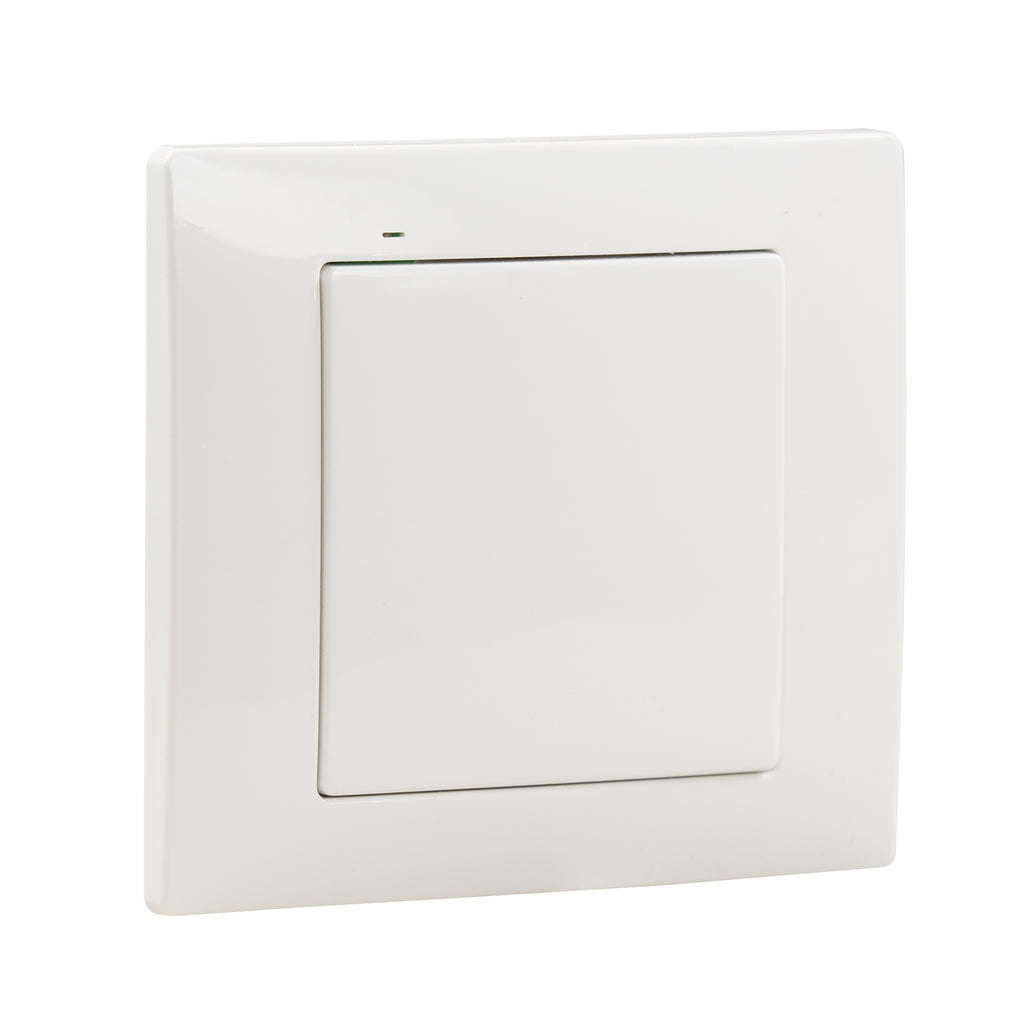

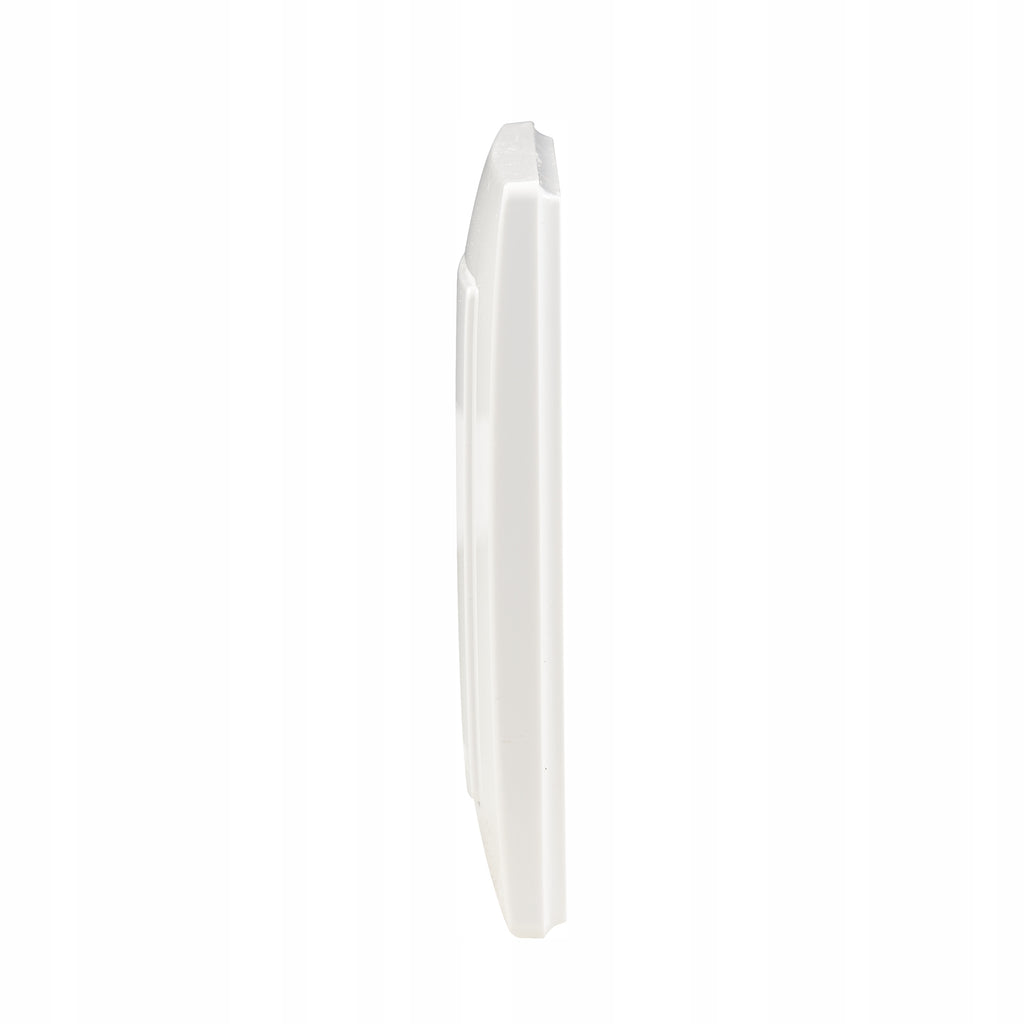

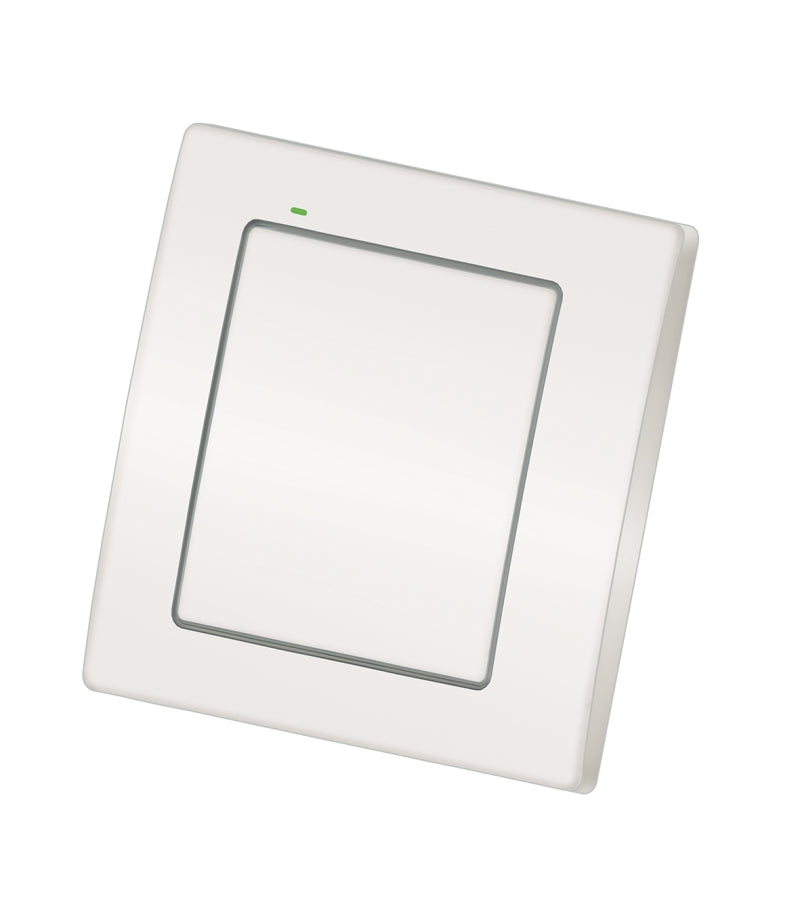

Radijo siųstuvas klaviatūra sienai, 2 kanalų, Zamel RNK-22

Trumpai apie prekę

Prekė: Radijo siųstuvas klaviatūra sienai, 2 kanalų, Zamel RNK-22. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: EXL10000005

• Power Supply: Battery (battery)
• Variable (Carousel) Code System: YES
• Handheld Radio Transmitter: YES
• Radio Frequency: 868,000 MHz
• Degree of protection: IP20
• Transmission
• Method of transmission algorithm based on 128 bit key
• Compliance with PN-ETSI EN 300 220-1, PN-ETSI EN 300 220-2
• Optical signaling of battery transmission/discharge: LED green
• Temperature measurement range realized by the sensor: -40 ÷ 125 °C
• Measurement resolution: 0,1 °C
• Measurement accuracy 1 °C (type) 0 ÷ 85 °C and 2 °C (type) -40 ÷ 125 °C
• Frequency of temperature measurement every 15 minutes
• Battery life 2 ÷ 3 years with temperature sensor on, 3 ÷ 5 years with temperature sensor off, (battery consumption depends on frequency of use and operating conditions)

Radio transmitters RNK-22 and RNK-24 are used to send control signals and information about the temperature value in the EXTA LIFE system. They are used in the implementation of such operations as switching on / off, brightening / dimming, control of window blinds. The implemented frame encoding algorithm increases transmission security. Temperature information combined with the functionality of the EFC-01 controller can be used to control the heating system. Transmitters in appearance and dimensions refer to traditional installation connectors. Battery power and lack of any wiring give a wide range of application possibilities.

Transmitters can be placed on any surface (excluding metal) and in any location of the room. The ability to program several transmitters to one receiver gives great freedom when creating the control part of the installation.

FUNCTIONAL FEATURES OF THE PRODUCT:

• The RNK-22 and RNK-24 buttons allow for mounting on any surface. This is especially important for large glazing, as well as wooden houses. The button can be moved to another, more convenient place at any time.
• Thanks to the integration of the temperature sensor inside the key, we have constant control over changes occurring during the day.
• The 2-channel key transmitter allows for independent control of 2 circuits. It is also possible to program selected scenarios.

COMFORTABLE... LIKE AT HOME

The house equipped with the EXTA LIFE system is a place that brings rest, comfort, safety and, above all, comfort every day, thanks to the possibility of adapting and configuring devices in accordance with the lifestyle and expectations of all household members.

WIRELESS MEANS CONVENIENT

Thanks to the EXTA LIFE wireless structure, the system can be installed in almost any building without the need to modify existing cabling.

HOME AT YOUR FINGERTIPS

This is an excellent option for people who often stay away from home. The system allows you to control the home installation and, above all, control the devices coupled within the system from anywhere in the world.

Control of roller shutters

The application allows you to manage roller shutters divided into levels and rooms of the building.

Control of entrance gates

Logical functions

The system allows you to define individual events, sequences, as well as scenes whose implementation may be conditioned by the fulfillment of logical conditions specified by the user. Most often, they can be coupled with the value of parameters given by sensors operating within the system. The condition may also be pressing the selected transmitter. These activities may be one or multiple depending on the date, time, day of the week.

Automatic adjustment

Thanks to lighting dimmers, you have the ability to smoothly adjust the level of light intensity, as well as determine its brightening dynamics or the minimum value of illumination of specific light sources.

Temperature control

Thanks to temperature controllers, EXTA building automation enables, depending on the temperature in the probe environment, control of heating devices, such as: radiators or underfloor heating.

MODEL: RNK-22

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	Switch
Parametry	Series	Exta Life
Parametry	Brand	Zamel
Parametry	Communication	ZigBee
Parametry	Manufacturer code	EXL10000005
Parametry	EAN (GTIN)	5903669207306
Parametry	Product weight with unit packaging	0.1 kg
Parametry	Batteries included	yes
Parametry	Certificates of conformity	CE
