Rankinis pjūklas su 2 x 70 cm kreipiančiosiomis Graphite

Trumpai apie prekę

Prekė: Rankinis pjūklas su 2 x 70 cm kreipiančiosiomis Graphite. Kategorija: Giluminiai pjūklai.

• Gamintojas: GRAPHITE
• Modelis: Zagłębiarka + 2x prowadnica GRAPHITE

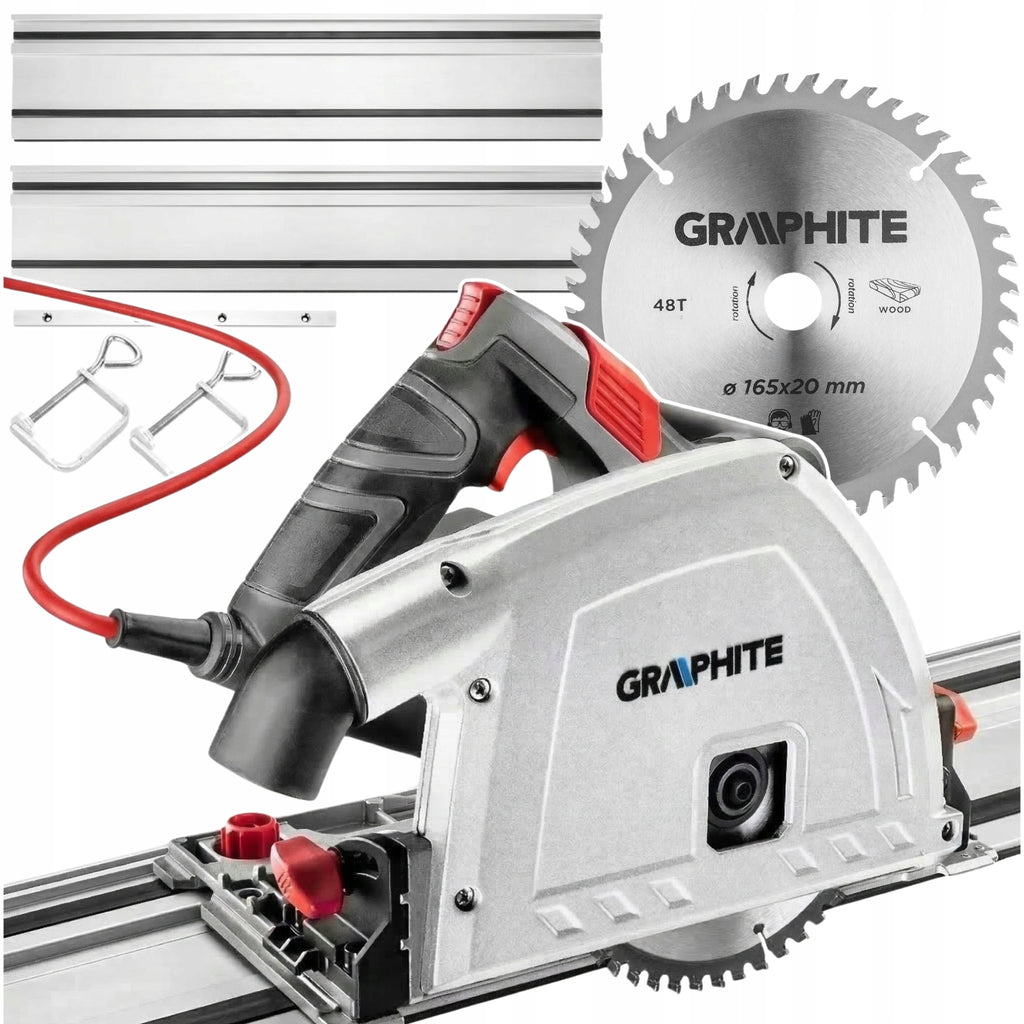

▶ Contents of the set

• Saw-deepening machine GRAPHITE 1200W, disc 165 mm, model 58G495

• 2 x guide rail GRAPHITE 700 mm

• Rail connector

• 2 x clamp / compression GRAPHITE

• 48T wood disc (installed)

▶ Precision cutting without limits

► The GRAPHITE 1200W saw-deepening machine is designed for accurate cutting of wood, laminate and aluminum, ensuring clean and controlled work in the workshop and on assembly.

► The plunge cutting function allows you to start working anywhere in the material, without having to start from its edge – it is a great convenience when cutting holes and working with large plates.

► The 165 mm shield guarantees an optimal balance between precision and performance, making the device perfect for a variety of carpentry and finishing tasks.

► Maximum cutting depth up to 57 mm without strip and 52 mm with strip allows free processing of popular plate materials, countertops or wooden elements.

▶ Full control over every cut

► Rotation adjustment in the range of 2200 – 5200 rpm /min allows you to adjust the speed of work to the type of material, which translates into greater precision and a better end result.

► Depth limiter with precise graduation and indicator facilitates quick setting of operating parameters, both when cutting with and without a guide.

► Adjusting the cutting angle 0 to 47° gives you more freedom when making straight and oblique cuts, which will be appreciated by both professionals and ambitious DIYers.

► The foot with the clearance adjustment system relative to the guide bar increases the stability of the tool, helping to achieve even and repeatable results.

▶ Comfort and safety of use

► Aluminum shield increases the durability of the device and tolerates intensive use in everyday work well.

► The minimum distance of the cutting line from the obstacle of only 11,5 mm allows you to work close to the walls and edges, which significantly increases the possibilities of using the tool.

► Rotating chip ejection with the possibility of connecting a vacuum cleaner helps to keep the workstation tidy and improves the visibility of the cutting line.

► Flexible, durable power cord in a rubber coating with a length of 2 m ensures comfort of use and resistance to demanding working conditions.

▶ Two 700 mm rails – flexibility and accuracy

► A set of two guide rails GRAPHITE with a length of 700 mm each allows precise guidance of the saw-deepening machine and convenient adjustment of the configuration to the type of task performed.

► The included connector allows you to connect both rails into one longer guide path, giving you more freedom when cutting long pieces.

► High-quality aluminum strips combine low weight with appropriate rigidity, making them comfortable to use and durable.

► Teflon slides support smooth tool movement, improving work comfort and driving accuracy.

► Non-slip tapes fixed on the bottom of the rails increase the stability of the guides on the material and increase the safety of use.

► The full-length rubber anti-chipping insert adapts to the tool on first use, supporting the achievement of a clean and aesthetic cutting edge.

▶ Clamps and stable fastening

► Two dedicated GRAPHITE clamps allow you to firmly attach the rails to the treated surface, so you can fully focus on the accurate handling of the saw.

► Specially shaped grooves in the rails ensure that the clamps do not interfere with operation and do not limit the comfort of use.

► Sure attachment of guides translates into greater accuracy, better repeatability of cuts and less risk of material shifting.

▶ Video of product test

► Link to the video presenting the operation of the chainsaw: https://www.youtube.com/watch?v=DVazRANru6A

▶️ Application

► This set is ideal for cutting countertops, furniture boards, panels, plywood, and other wood-based materials where a clean edge and high precision are essential.

► It's an excellent choice for carpenters, installers, and ambitious DIY enthusiasts who need a mobile tool with the ability to be guided accurately along a track.

⚙️ Technical Specifications

• Brand: GRAPHITE

• Device type: Plunge Cut Saw

• Power: 1200 W

• Blade diameter: 165 mm

• Blade bore diameter: 20 mm

• Rotation speed: 2200–5200 RPM

• Maximum cutting depth without guide rail: 57 mm

• Maximum cutting depth with guide rail: 52 mm

• Cutting angle adjustment range: 0–47°

• Minimum distance from cutting line to obstacle: 11.5 mm

• Blade guard: aluminum

• Dust extraction: vacuum cleaner connection possible

• Power cord length: 2 m

• Number of guide rails: 2

• Length of one rail: 700 mm

• Total length when connected: 1400 mm

• Rail material: aluminum

• Additional elements: connector, 2 clamps
