Rankinis plytelių pjaustytuvas, 630 mm, tinkamas keraminėms ir gresinėms plytelėms

Trumpai apie prekę

Prekė: Rankinis plytelių pjaustytuvas, 630 mm, tinkamas keraminėms ir gresinėms plytelėms. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Sevico
• Modelis: V177
• Galia: 0 W

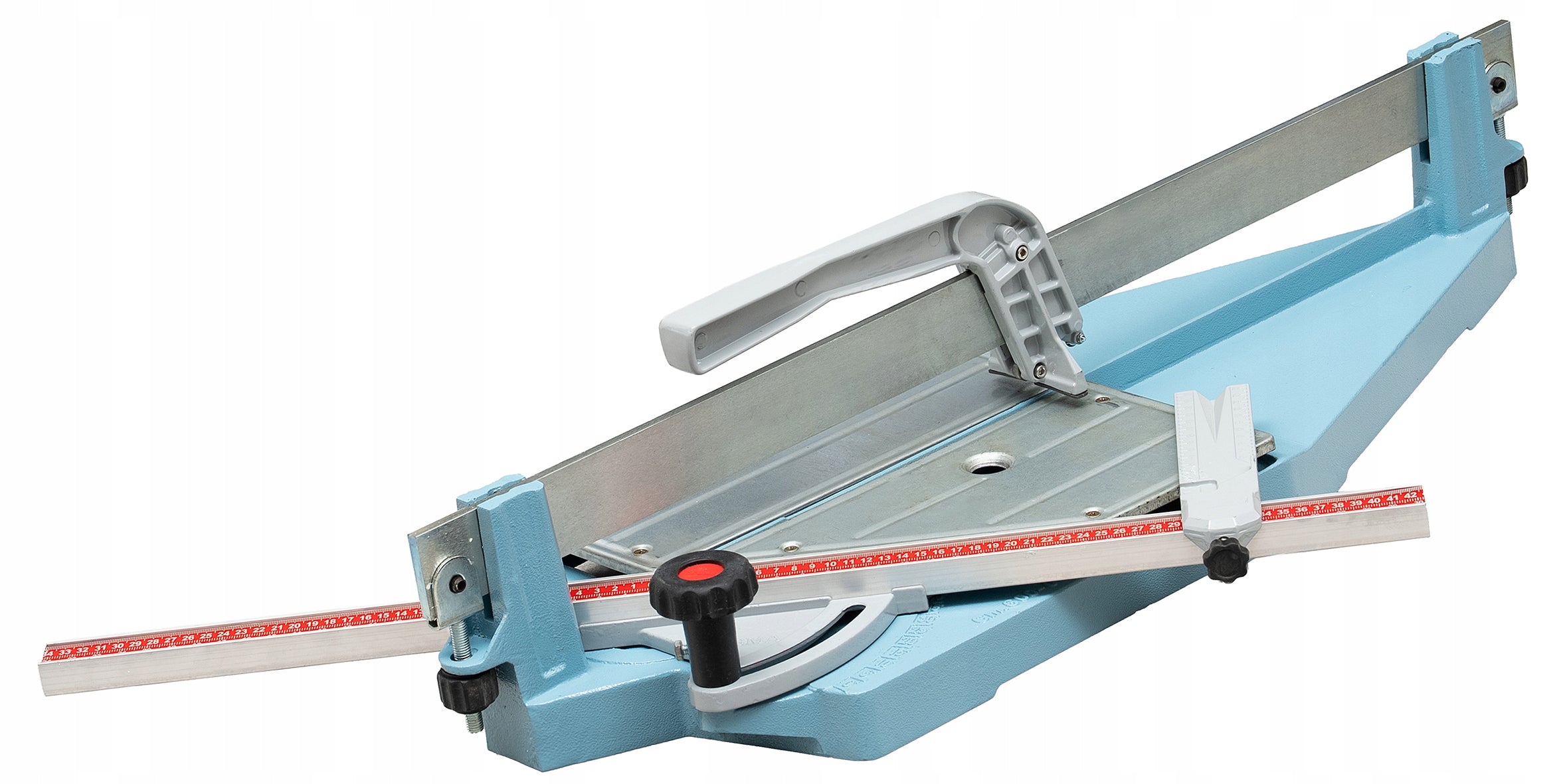

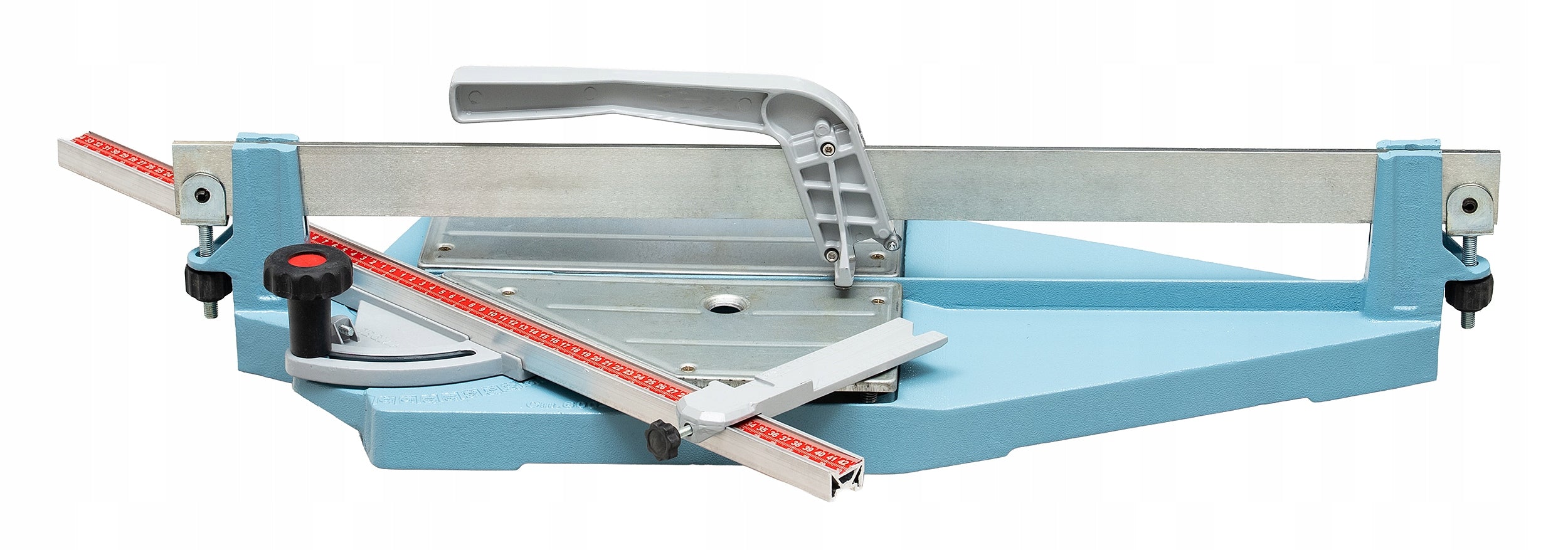

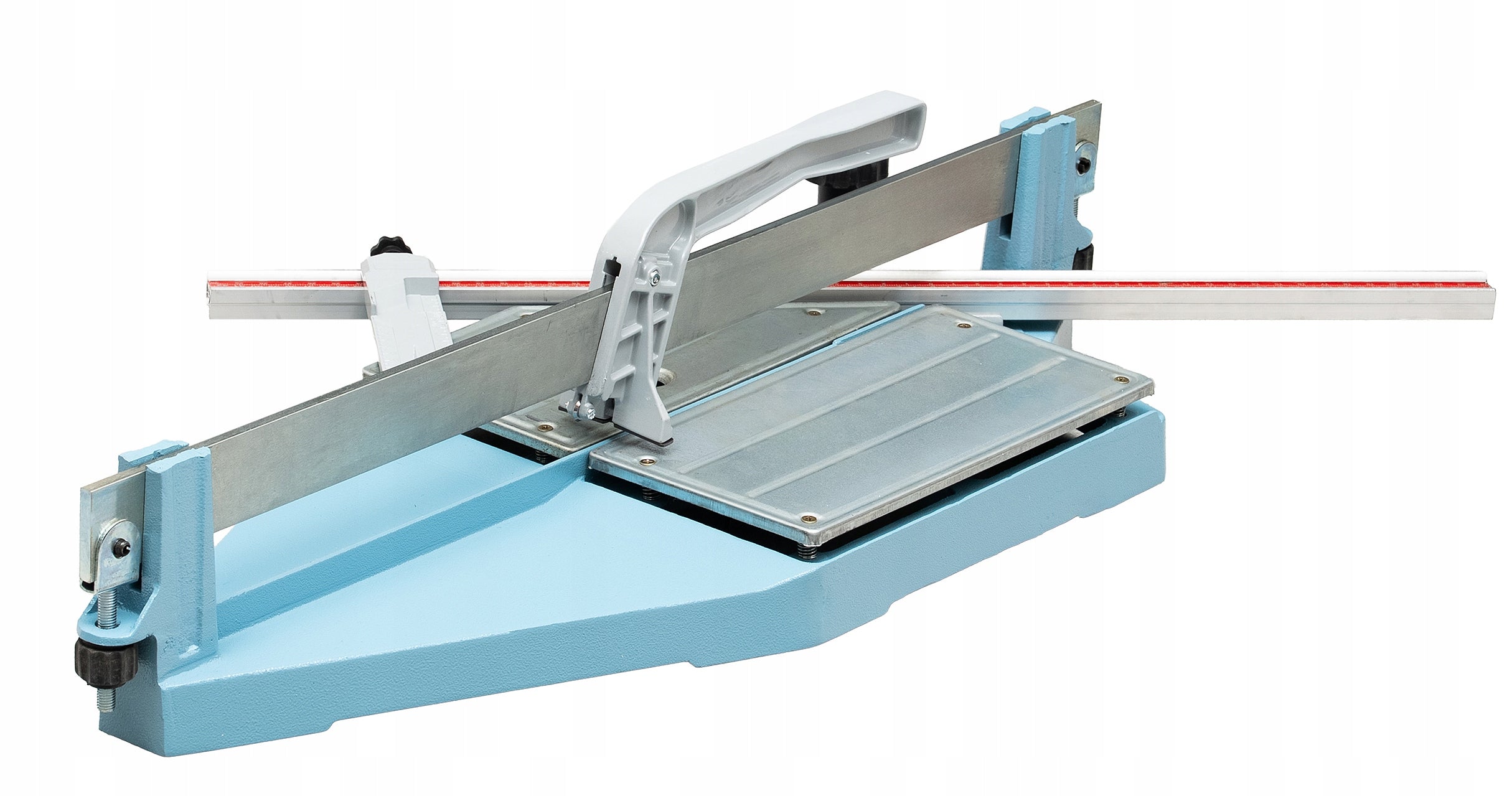

TILE CUTTING MACHINE 63 cm

SEVICO - MODEL V177

✅ Maximum ergonomics, precision and reliability in every way! The manual tile cutting machine is an advanced tool for anyone who values perfectly straight edges, speed of work and comfort of use. Designed for efficient, dust-free and quiet cutting of ceramics, stoneware and glaze up to 630 mm long.

🎯 For whom and what is the machine used?

• For professional tilers – as a basic, quick to set up tool for precise cuts on the construction site without the use of electricity and water.
• For DIYers (DIY) – irreplaceable for self-renovation of the bathroom, kitchen, terrace or hallway.
• Application: Designed for longitudinal, transverse and diagonal cutting (in karo) of wall and floor tiles made of ceramics, terracotta and harder stoneware.

⚙ Guide height adjustment

The device is equipped with an intuitive mechanism for adjusting the height of the working arm. This allows for a perfect adjustment of the cutting gap to the thickness of the material being processed. Whether you’re cutting a thin wall mosaic or thick terrace stoneware – the optimal angle of attack of the cutting wheel ensures a clean cut without chipping the edges.

⚙ Wide and stable base

Thanks to the wide base, the machine guarantees full stability even when working with tiles of a larger format. The design prevents the material from wobbling, which translates into a perfect cutting line without unexpected cracks.

📏 Rotating measuring cup with metric graduation

Equipping the machine with a precise guide ruler with a working length of 630 mm and an adjustable angle gauge allows for instant measurement of the material. The adjustable stop allows you to quickly position at the most commonly used angles, making it easy to cut diagonally (in karo).

🔥 Reliable cutting wheel and cushioned top

The durable guide ensures a smooth and even feed of the cutting handle. The carbide blade ensures that the enamel is perfectly scratched without nicks, while the integrated spring arms make it easy to cleanly separate the cut parts of the plate using minimal force.

💡 Practical Glazing Tips

One cut is the key:

• The plate should be scratched with a cutting wheel only once, with a smooth movement with a uniform pressure. Repeatedly driving the wheel in the same line destroys the blade and causes uneven edge cracking.

Tabletop cleanliness:

• Before each cut, make sure that there are no hard shards of ceramic on the cushioned top of the razor. A small chipping underneath the tile can cause it to break uncontrollably during pressure.

Method for stoneware:

• With very hard stoneware tiles, it is worth gently increasing the pressure at the very beginning and end of the tile to facilitate precise edge breaking.

🛡 Safety at work

Hand safety:

• The handle is designed so that the hand does not slip on the guide during strong pressure.

Working without dust and noise:

• Unlike angle grinders and electric cutters, a manual machine for quiet operation. It also does not generate harmful silica dust.

Foots:

• The base of the device is equipped with feet that prevent the machine from moving when breaking tiles.

📊 TECHNICAL SPECIFICATION

• Tool Type: Manual Cutter / Tile Machine
• Working length / guide: 630 mm
• Overall dimensions of the product: 865 x 340 x 220 mm
• Diagonal cutting (in karo): Yes
• Cutting Wheel Material: Sintered Carbide
• Angle Measurement / Ruler: Yes, included
• Dominant Color: Blue
