Rankinis suvirinimo aparatas TELWIN DIGITAL MODULAR 230

Trumpai apie prekę

Prekė: Rankinis suvirinimo aparatas TELWIN DIGITAL MODULAR 230. Kategorija: Sandarikliai.

• Gamintojas: Telwin
• Modelis: 823016
• Įtampa: 230 V

Double Sided Tick Welding Machine

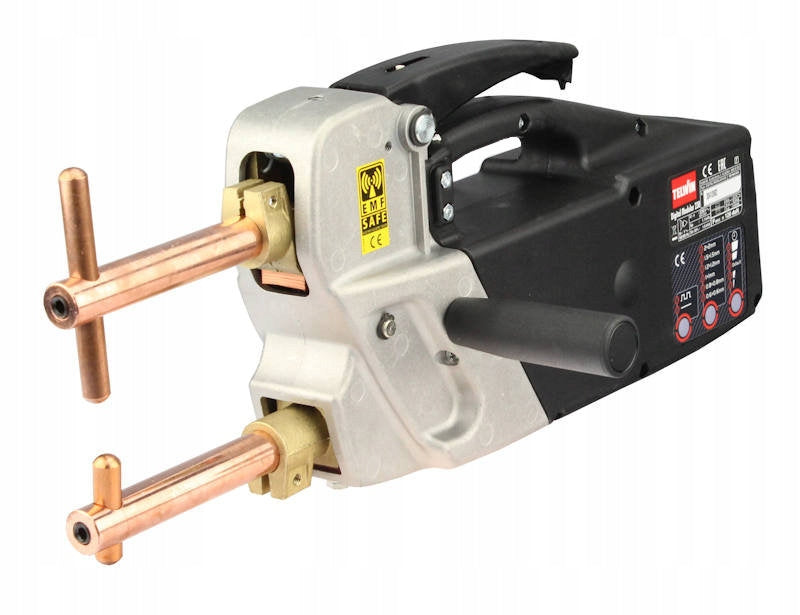

Double-sided forceps welding machine DIGITAL MODULAR 230 TELWIN

The TELWIN DIGITAL MODULAR 230 welding machine is an excellent device for double-sided welding of sheet metal. The maximum operating current of the device is up to 6900A from single-phase power supply. It offers the possibility of welding materials even 2+2mm. Intuitive control panel allows for precise setting of operating parameters of the device, which translates into ease of use and comfortable work. The device also uses a pressure regulator, which increases its precision. Italian quality at your fingertips.

PRODUCT CHARACTERISTICS

• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network

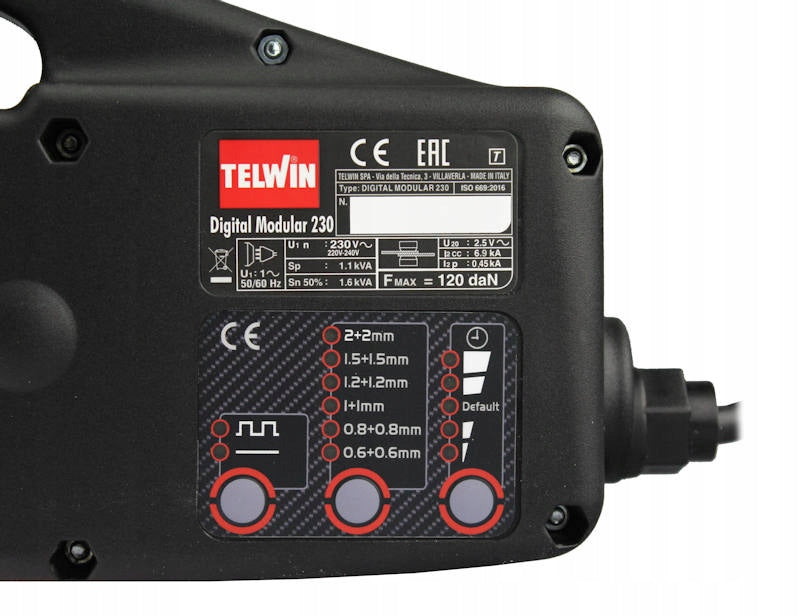

• Easy and intuitive control - selection of operating parameters of the device with the help of the control panel.
• Pulse welding function - gives the possibility of welding galvanized sheets and stainless
• Pressure force adjustment - the device has been equipped with a pressure regulator located on the handle.
• Protection against paralysis
• High quality

TECHNICAL PARAMETERS

• Power - 13kW
• Power supply - 230V
• Number of phases - 1ph
• Power supply network protection - 16A
• Idle voltage - 2,5V
• Maximum welding current - 6900A
• Working cycle - 1,5%
• Maximum sheet thickness - 2+2mm

PHYSICAL PARAMETERS

• Degree of protection: IP 20
• Dimensions: 440x100x185 mm
• Weight: 10 kg

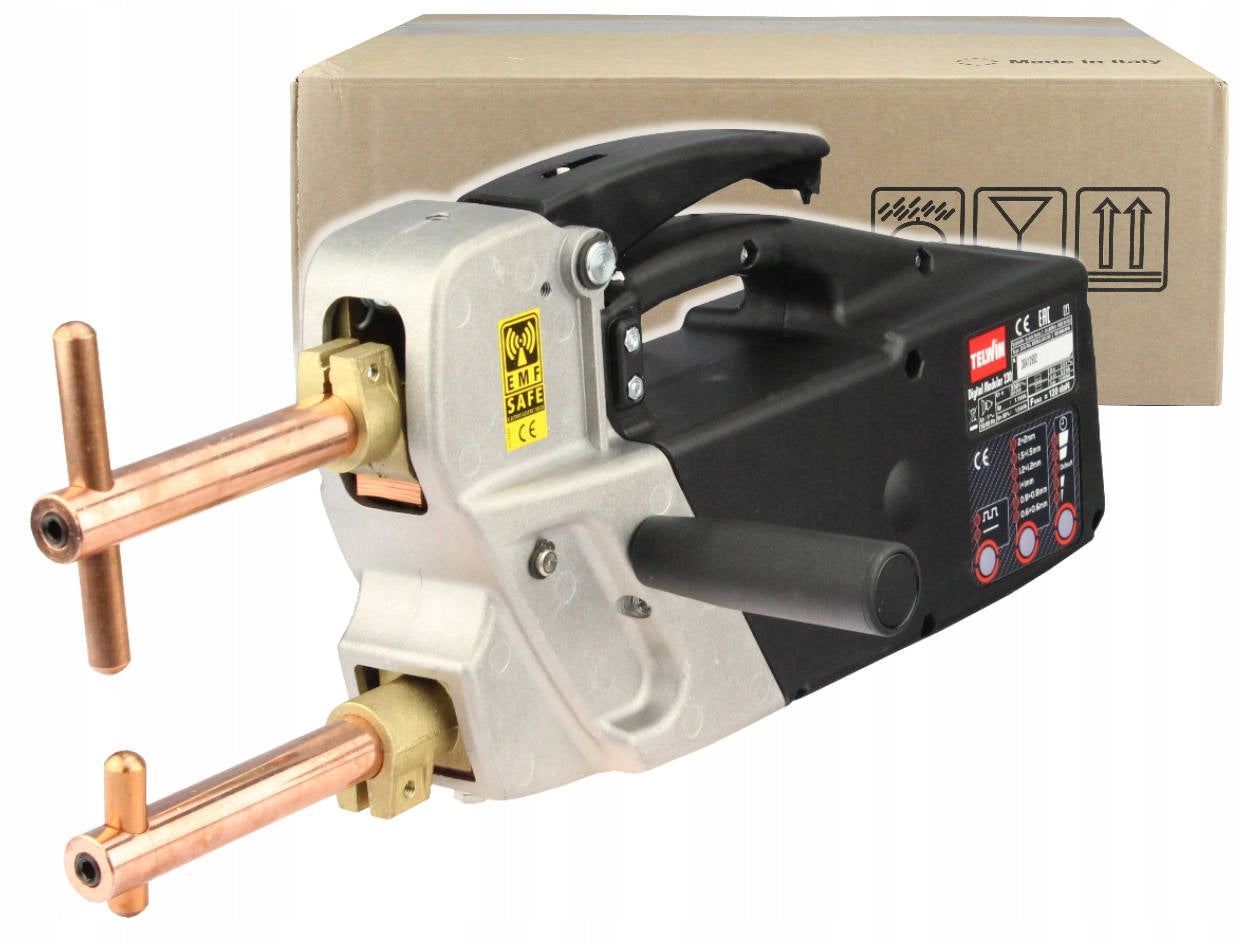

DELIVERY INCLUDES

TELWIN Digital Modular 230 welding machine

Specifications
