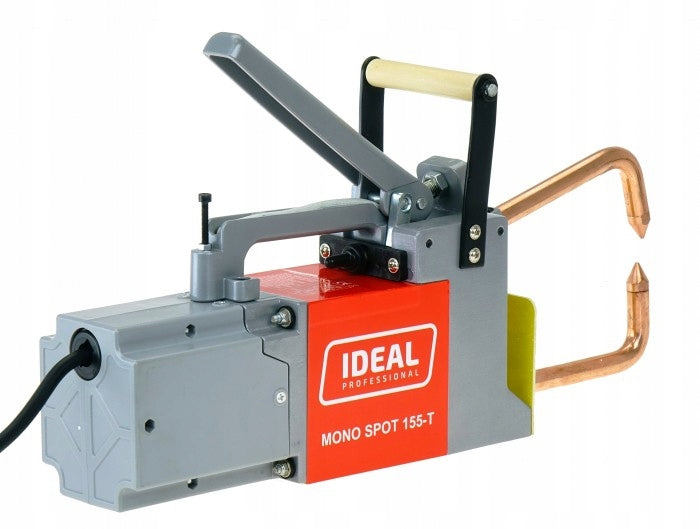

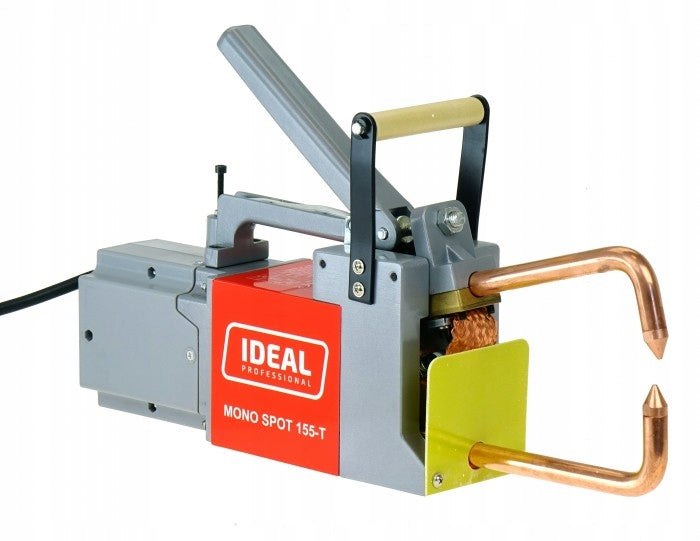

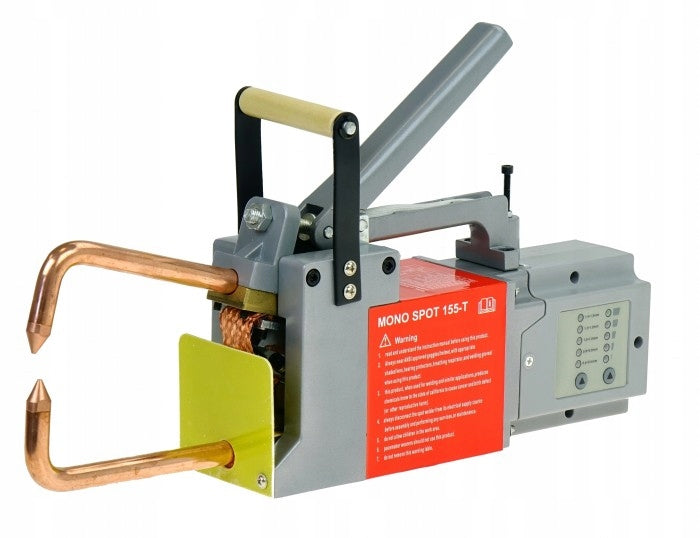

Rankinis taškų suvirinimo aparatas IDEAL MONO SPOT 155T, 1,5+1,5 mm, 230V, 3800A

Trumpai apie prekę

Prekė: Rankinis taškų suvirinimo aparatas IDEAL MONO SPOT 155T, 1,5+1,5 mm, 230V, 3800A. Kategorija: Sandarikliai.

• Gamintojas: IDEAL
• Modelis: MSPOT155T
• Įtampa: 230 V

TECHNICAL PARAMETERS

• C32A power supply network protection
• Rated power supply voltage 230V; 50/60Hz (1ph)
• Sterile secondary voltage 1,6V
• Maximum sheet thickness for double-sided welding 1,5 + 1,5mm
• Maximum electrode pressure 1780N
• Welding current 3800A

PHYSICAL PARAMETERS

• Weight 9.6kg
• Upper arm length: 14cm
• Length of lower arm: 15cm
• Overall dimensions L x W x H 480x100x300 mm
• Package dimensions L x W x H 590x150x245 mm

MONO SPOT 155-T is a manual welding machine designed for double-sided welding of low-carbon steel sheets, stainless steels and galvanized sheets with a maximum thickness of 1,5 + 1,5 mm.

The device is especially recommended for repair work, small-series production and bodywork workshops.

The welding machine is equipped with a control panel that allows you to set the time and thickness of welded sheets, which significantly increases the repeatability of the joints.

PRODUCT CHARACTERISTICS

• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• Easy and intuitive control - selection of operating parameters of the device with the help of the control panel.
• Protection against paralysis
• High quality

DELIVERY INCLUDES

MONO SPOT 155T welding machine

Specifications
