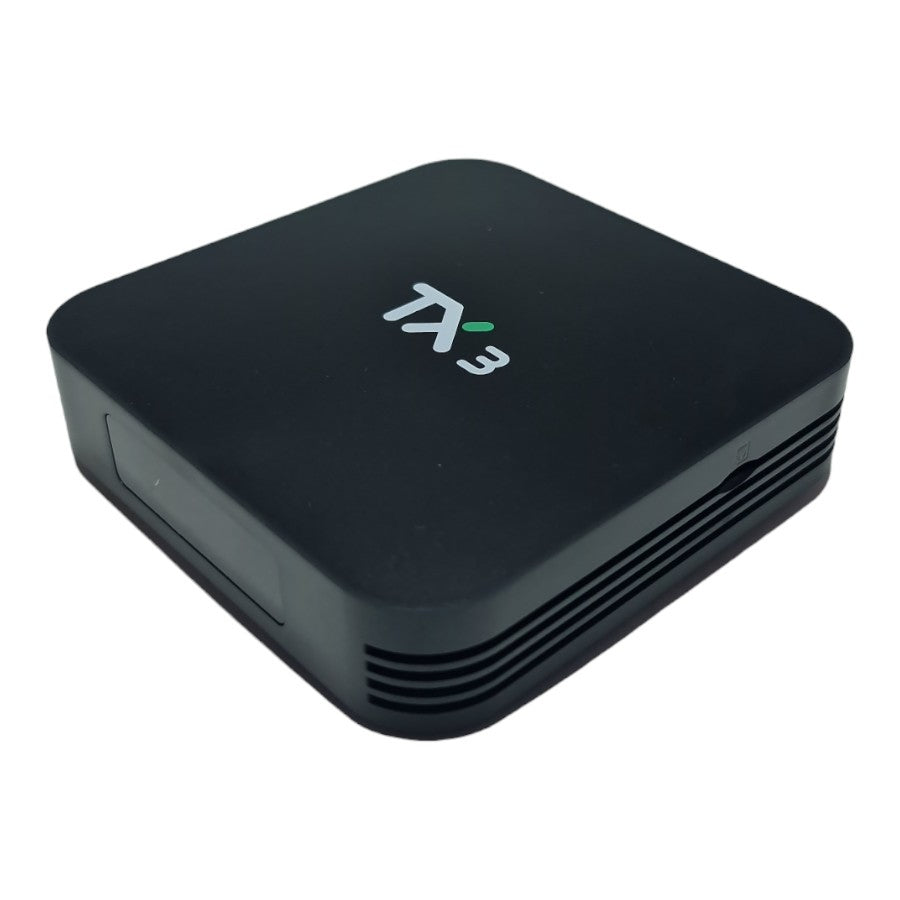

Reklaminis medijos grotuvas CoreElec Digital Signage TX3, 2/64GB

Trumpai apie prekę

Prekė: Reklaminis medijos grotuvas CoreElec Digital Signage TX3, 2/64GB. Kategorija: Įrenginiai.

• Gamintojas: Tanix
• Modelis: CoreElec Digital Signage TX3 2GB/64GB

• Player dedicated to Digital Signage of video and audio or graphics files from USB media, TF card, internal memory, local servers and over HTTP
• Autostart function when power is connected
• Support 4K 60Hz HDR and multi-channel audio
• ARM Cortex-A55 processor on Amlogic S905x3, GPU Mali Penta-Core T820MP3,
• 2GB RAM, 64GB Flash
• HDMI 2.0a connector
• WiFi 802.1.1 b/g/n/ac 2,4/5G, Gigabit Ethernet
• TF card reader, 1x USB 3.0, 1x USB 2.0
• IR remote control included
• Control with Android/iOS.

CoreElec Digital Signage TX3 is an economical Digital Signage advertising player, having the function of autostart after connecting the power supply with automatic start of video, audio or photos playback in slides.

Depending on the configuration, the advertising player allows you to play files:

• from USB or SD/MMC media,
• local server or via HTTP/FTP
• internal memory

The advantage of the device is the ability to remotely control from the local network and play files in a loop. CoreElec Digital Signage TX3 will work as a simple player of advertising and promotional materials in stores, supermarkets, hotels or service points.

Features of CoreElec Digital Signage TX3:

• Autostart after connecting the power supply;
• Automatically play video, audio or photo files from USB/SD local media, internal storage, local server or over HTTP;
• The device does not allow simultaneous display of video, music and graphic files (plays video/graphic or video/music files in one playlist);
• Possibility to change the orientation of the video files played (rotation every 90º);
• Playback configuration is done by locally uploading the playlist;
• With the ability to play files using HTTP /FTP protocol, etc. We can use the file substitution on the server to remotely change the content played in many places at the same time;
• Numerous possibilities to modify the device thanks to CoreElec/Kodi plugins and add-ons – installed proprietary C4i Digital Signage plugin;
• We gain access to online content as well as local resources instantly, while maintaining high quality of the materials played;
• Fast and efficient CoreElec software with auto-update capability;
• Play Ultra HD 4K 60Hz, 10bit video and HDR. The player has one HDMI 2.0 output;
• HDMI audio — playback of files up to 192kHz;
• S905X3 64-bit quad core ARM® Cortex™ A55 CPU, 2GB LPDDR3, Flash 64GB;
• 1Gbit network card, 2.4Ghz 802.11AC WiFi;
• Possibility of local control from Android/iOS application, IR remote control (included) or e.g. with the help of the AirMouse keyboard;
• Low power consumption;
• Seller guarantee, advice and support of C4i in the implementation of the Digital Signage project.

More about CoreElec

CoreElec is a Linux distribution based on Kodi 21 Omega that allows for extremely fast, smooth and direct use of Kodi itself.

It is an extension of the valued and popular OpenElec and LibreElec platforms. The player allows you to turn an ordinary TV into a device that actually plays every audio and video file. The offered device is configured to work as a full-fledged Digital Signage advertising player.

The device uses an Amlogic chipset designed specifically for multimedia. Amlogic S905X3 is offered in an architecture with a 4-core 64-bit Cortex A55 CPU 1,9GHz processor and Penta Core Mali G31™ MP2 GPU graphics. The device can be connected to the network as standard using an RJ45 cable (1000Mbps connector). The dual-band WiFi module 802.1.1 b/g/n AC (2.4/5GHz) is responsible for wireless connectivity.

The interface of the CoreElec TX3 player is based on KODI, which is a sensational software for managing multimedia and a reliable player for movies, images and online content. It also allows you to install add-ons and plug-ins that extend access to online sources. CoreElec supports H.265, H.264 and VP9 hardware video decoding and can release full resolution Ultra-HD 4K 60fps. Output signal max. 4K 60Hz.

The use of 2GB of fast DDR3 RAM in CoreElec TX3 allows for efficient operation. If necessary, the memory can be enlarged by connecting an external media via USB and a memory card reader. I also work great on the network using popular SMB, UPNP or NFS protocols.

• Operating system: CoreElec OS
• Processor: Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU
• GPU: GPU Mali Penta-Core T820MP3
• RAM: 2GB LPDDR3
• Internal memory: Flash 64GB
• WiFi: IEEE 802.11 a/b/g/n/ac ; 2.4G/5G
• Autostart: after connecting the power supply

Inputs/Outputs:

• HDMI: 2.0a, HDMI CEC support, dynamic HDR and maximum output resolution 4Kx2K@60
• Audio SPDIF mini jack
• USB: 1 * USB 3.0 ; 1*USB 2.0
• Memory cards: TF card reader
• LAN: RJ45, Gigabit Ethernet
• Power Supply: DC Jack 5V/2A

Software:

• System: CoreElec OS
• KODI: version 21 Omega – assigned to the latest version of CoreElec system with installed plugins to support Digital Signage.
• Video decoders: 4K, H.265, MPEG1/2/4, H.264, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6, RealVideo8/9/10
• Video formats: 4K @ 60fps, H.265, AVI, H.264, VC-1, MPEG-2, MPEG-4, DIVD / DIVX, Real8 / 9/10, RM, RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV
• Containers and extensions: *. mkv,*. wmv,*. mpg, *. mpeg, *. avi, *. mov, *. dates, *. iso, *. mp4, *. rm, *. jpg
• Audio formats: MP1, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV, HDMI audio support up to 192kHz.
• Multichannel sound: Dolby Atmos, Dolby True HD, DD, DTS:X, DTS HD MA, DTS, and downmix,
• Photo format: JPEG / BMP / GIF / PNG / TIFF

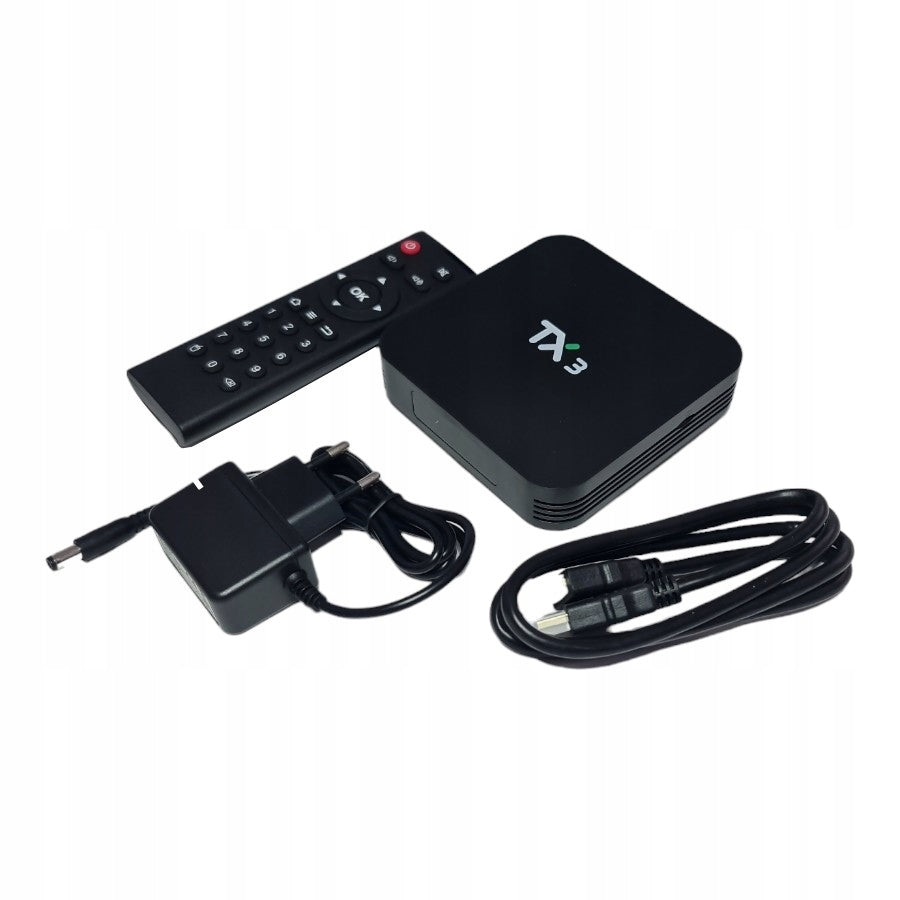

Accessories:

• 1x CoreElec Digital Signage TX3 2/64Gb player
• 1x HDMI cable
• 1x IR remote control
• 1x link to the user manual in electronic version to download from our official website
• 1x AC adapter

Specifications
