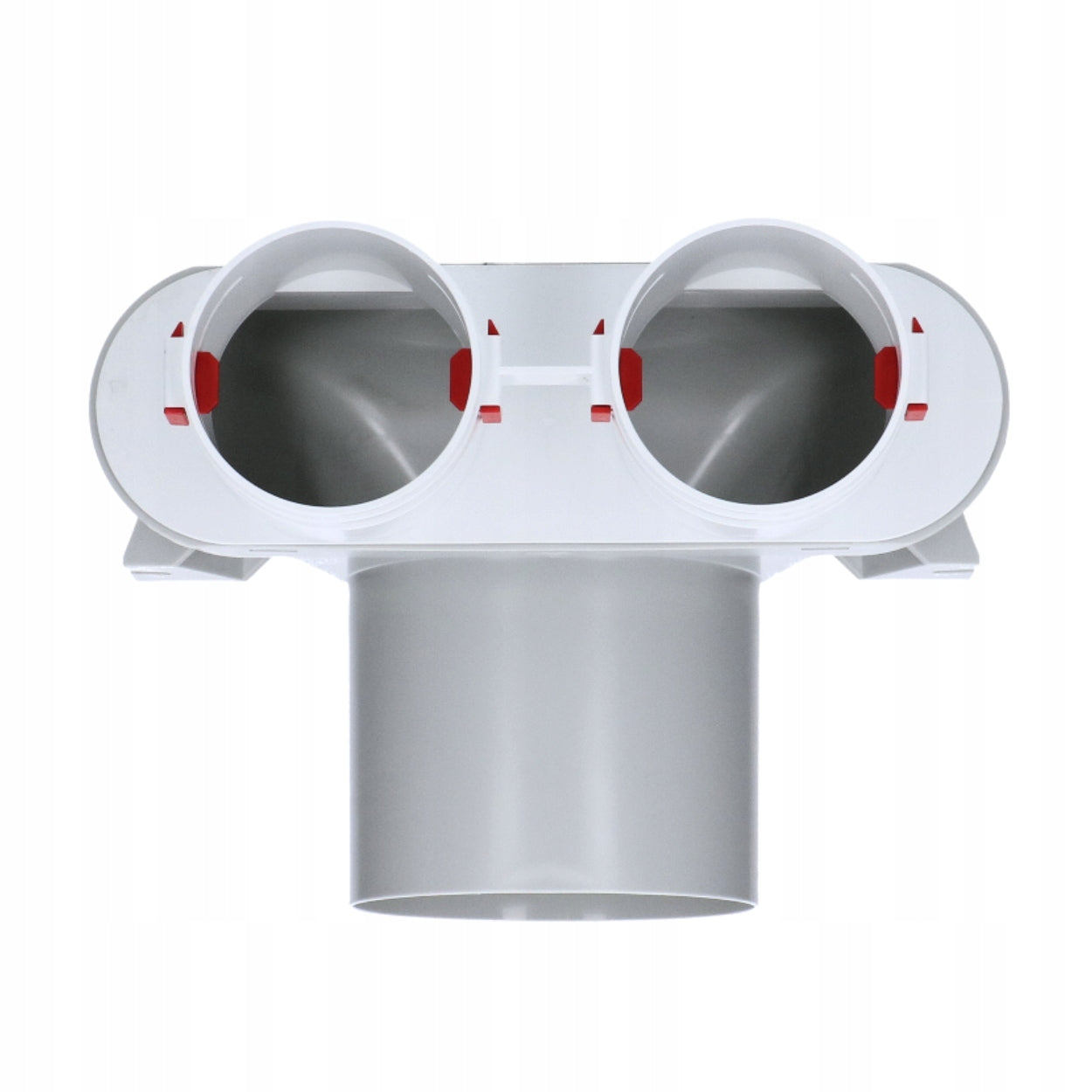

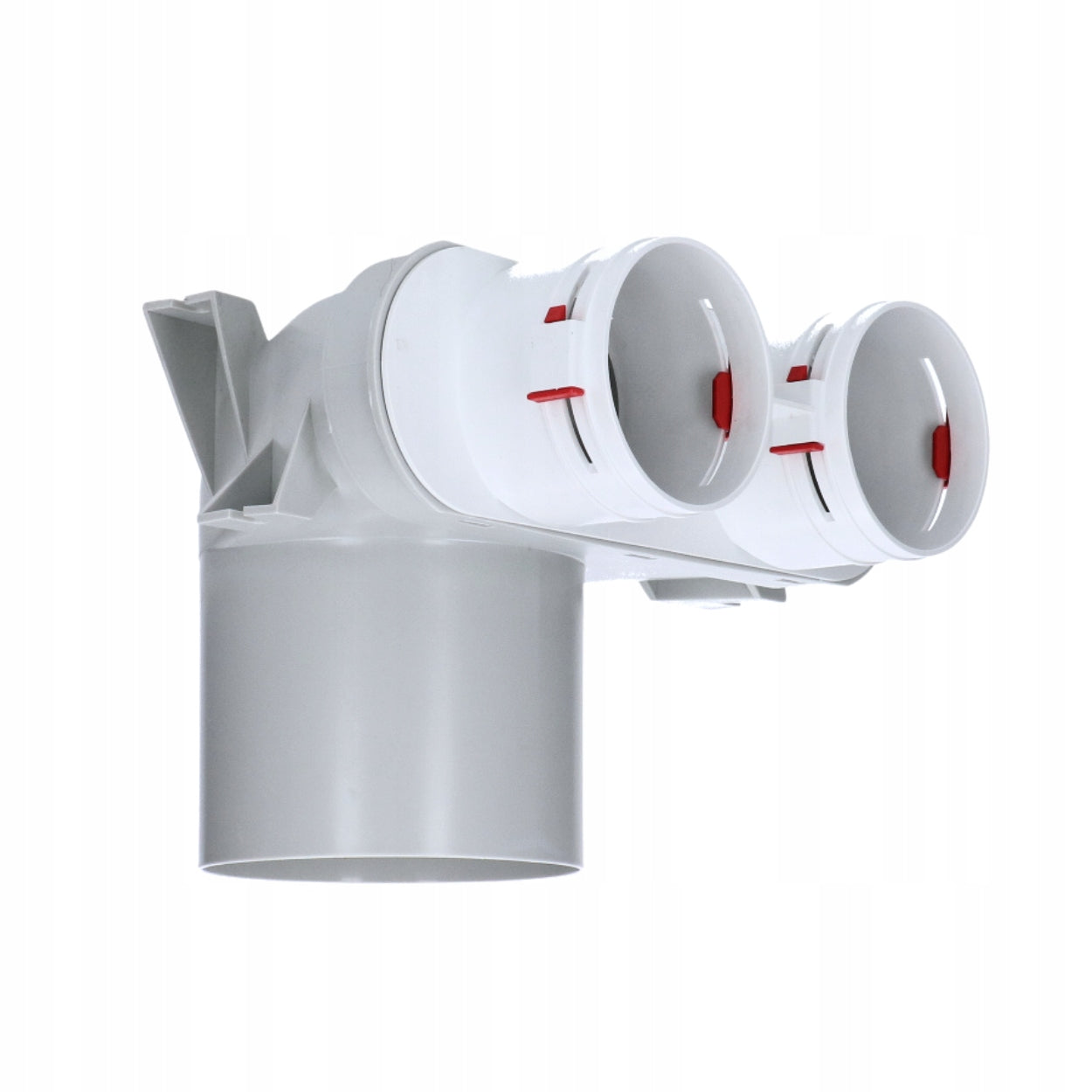

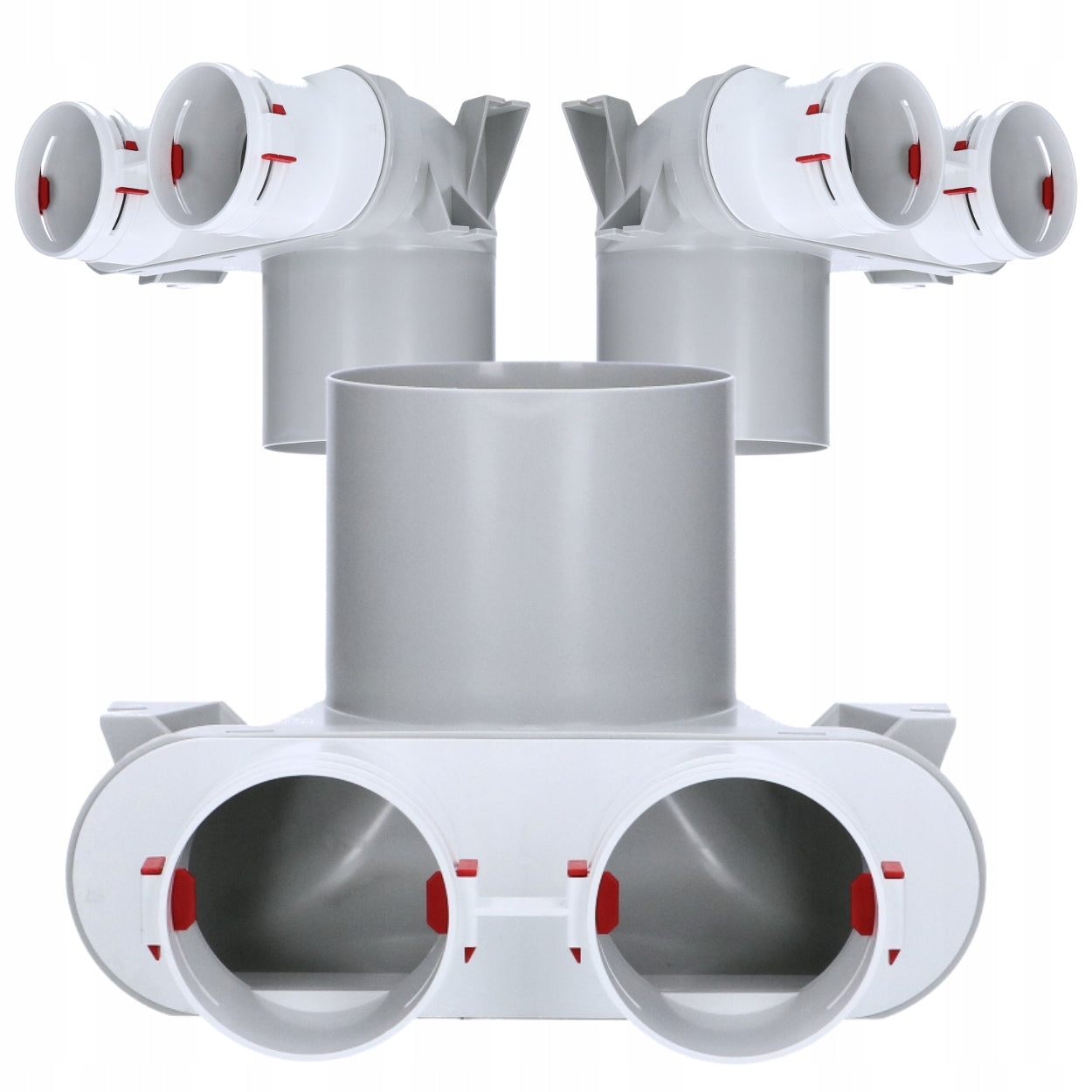

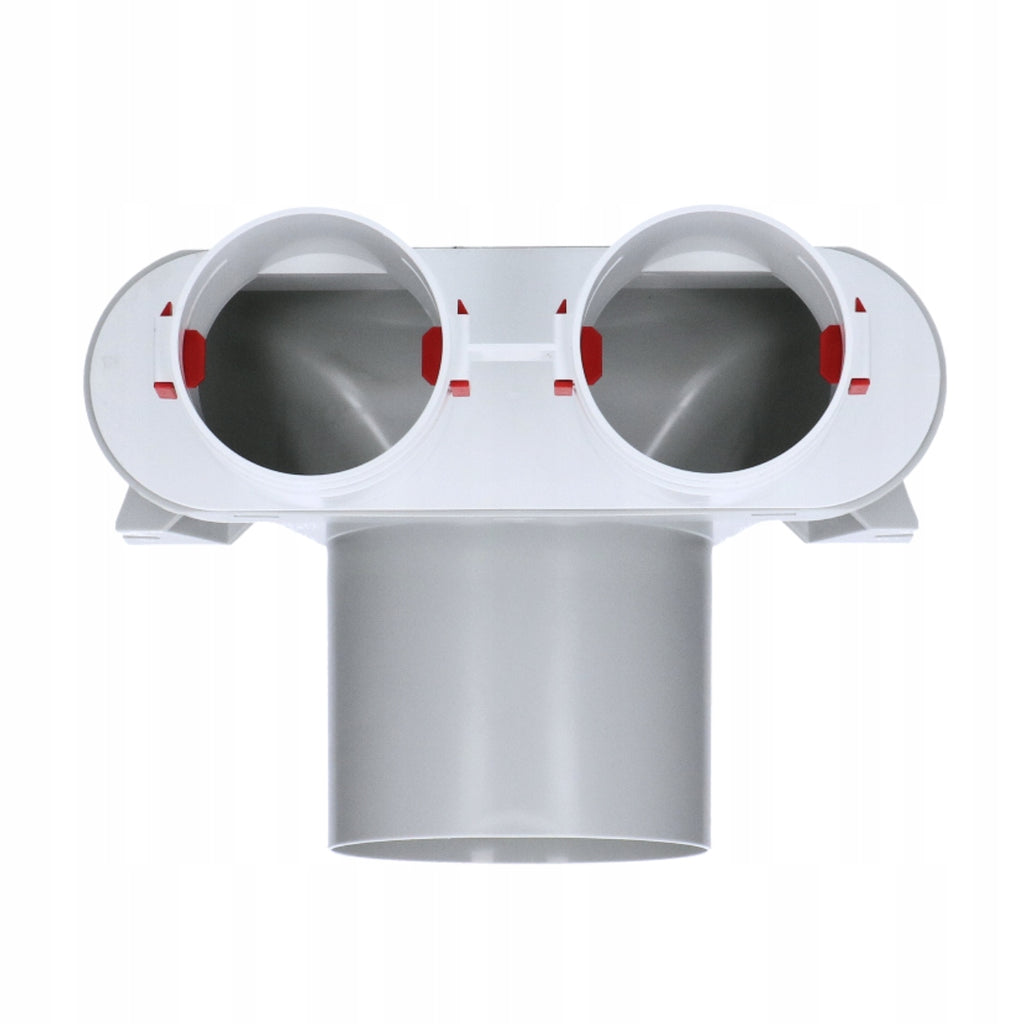

Rekuperacijos dėžės ventiliai Flexivent 2x75/125

Trumpai apie prekę

Prekė: Rekuperacijos dėžės ventiliai Flexivent 2x75/125. Kategorija: Dalys.

• Gamintojas: Vents
• Modelis: FLEXIVENT0812125/75X2

↘ Information

Ventilation accessories are designed for installation with the most popular ventilation system distribution based on corrugated double-walled pipe Ø75.

The supply and exhaust box has been designed as a modular element with a view to convenience of use and ease of installation.

The ventilation elements are compatible with all corrugated ventilation pipes available on the market Ø75.

For boxes, we recommend buying fi 75mm gaskets for each connector.

↘ PRODUCT FEATURES

• Compact design
• Low system height (83mm)
• Quick, convenient and easy installation
• Low noise
• Resilience

↘ Additional information

The shape of the supply and exhaust box ensures free air flow without unnecessary turbulence in the element, and the smooth surface inside prevents contaminants from settling in the element.

The snap-on design ensures confidence of installation and prevents accidental unzipping of elements on the construction site, while ensuring free unzipping of the installation, e.g. during service work or during cleaning of the installation.

The design of the supply and exhaust box allows it to be installed vertical in the layers of the floor or in the construction of the suspended ceiling as well as horizontal in the frame walls. Stabilization of the element in the building structure is ensured by two mounting brackets.

Characteristic

• polypropylene (PP) with thermoplastic elastomer (SEBS),
• operating temperature: -20 to +60°С,
• connection dimensions: 2xØ75 mm and Ø125 mm.
• FlexiVent 03 channel mounting brackets included.

❗ We have all the elements of flat and round ventilation systems. Welcome to other auctions.
