Rekuperacijos sistemos komplektas WEBER ECO 300, iki 120 m²

Trumpai apie prekę

Prekė: Rekuperacijos sistemos komplektas WEBER ECO 300, iki 120 m². Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Weber
• Modelis: 04010239

Index: 04010239

RELEVANT INFORMATION

Set of materials for self-assembly in the distributor system. The set also includes distributor connections to the recuperator and intake and launcher channels.

Air recuperator is the heart of recuperation - a ventilation unit with heat recovery, which is powered by electricity. His main tasks include providing fresh air to the interior of the house by supplying and exhausting the used outside.

Therefore, as soon as the recuperator is connected to a previously properly performed mechanical ventilation system, we are sure that heat recovery from previously used air will translate into lower costs associated with heating fees.

We present a ready-made set for self-assembly of recuperation for a house with an area of up to 120 m² with a high quality recuperator WEBER ECO 300.

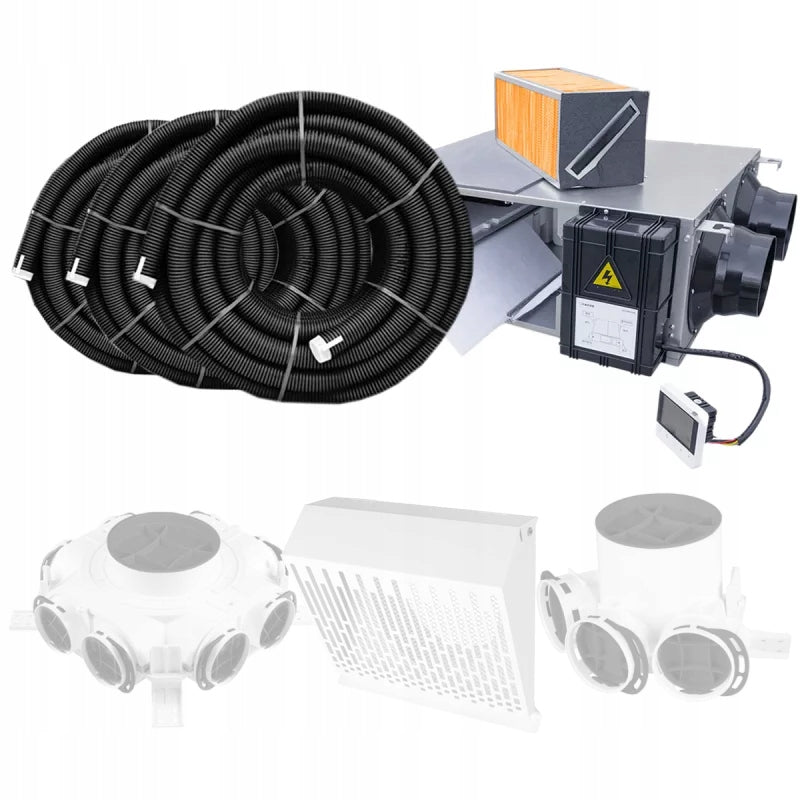

COMPONENTS OF THE HOME VENTILATION RECOVERY KIT FOR 120 m2 (approx. 1300 sq ft)

• Heat Recovery Unit (HRU): Weber Eco 300 (1 unit) - Recuperation parameters are available in the product data sheet.
• Ventilation Duct: 75 mm (approx. 3 inches) diameter, 50 m (approx. 164 ft) length (3 units)
• Distribution Box: 8-Channel (1 unit)
• Distribution Box: 12-Channel (1 unit)
• Plenum Box: 2-Channel (5 units)
• Plenum Box: 3-Channel (1 unit)
• Plenum Box Extension: 1 m (approx. 3.3 ft) length (2 units)
• Seals: ø75mm (approx. 3 inches) (30 units)
• Anemostat (Air Valve): Exhaust (3 units)
• Anemostat (Air Valve): Supply (3 units)
• Flexible Insulated Duct: 10 m (approx. 33 ft)
• Mounting Tape: Perforated (1 roll)
• Air Intake Vent (1 unit)
• Air Exhaust Vent (1 unit)

The color of the kit components may vary depending on availability!
