Rekuperacinės vėdinimo sistema namui 150–200 m² su valdymo pultu A300EPP

Trumpai apie prekę

Prekė: Rekuperacinės vėdinimo sistema namui 150–200 m² su valdymo pultu A300EPP. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: MAX-VENT
• Modelis: MAX-VENT 150-200 A300

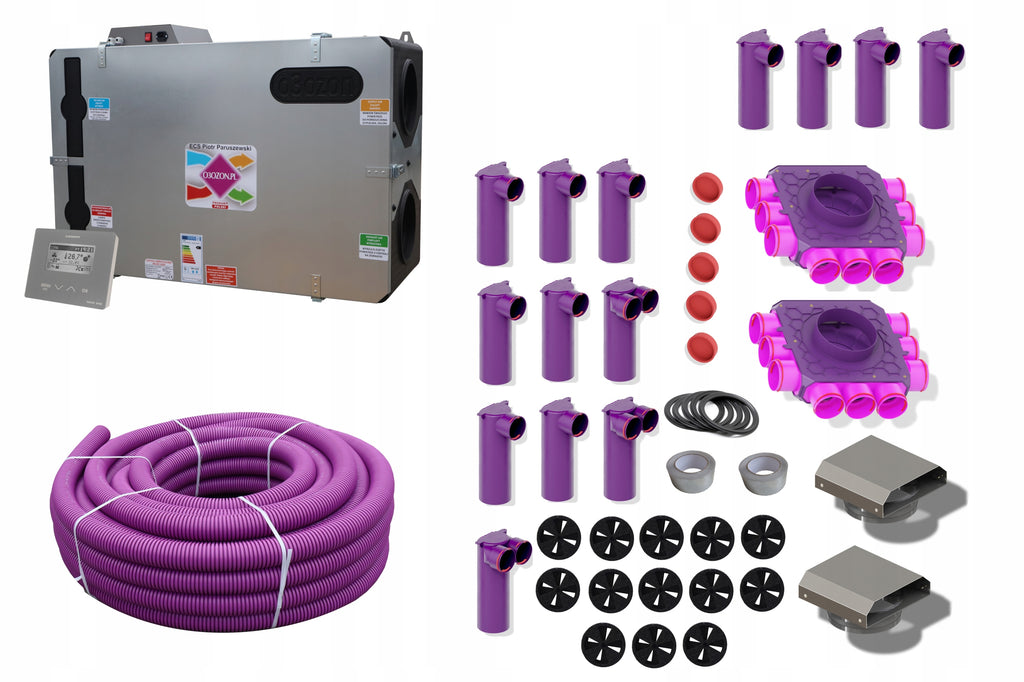

MAX-VENT 150-200 kit

✅ Ventilation unit A-300EPP with black and white controller

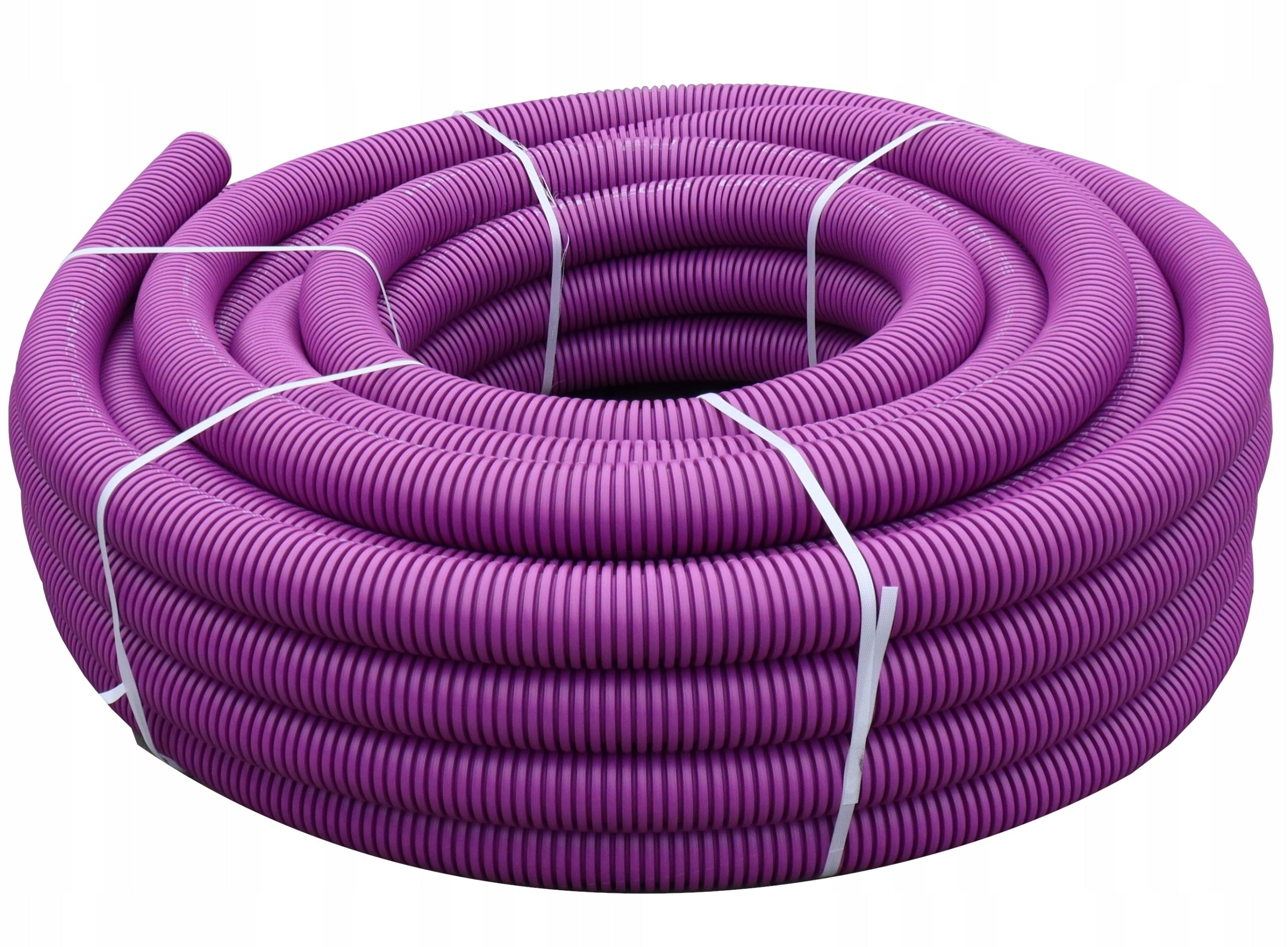

✅ Ventilation pipe with antibacterial coating (30 ppm Ag)

90mm - 150 mb (3 discs)

✅ Distribution box 9x90/200 - 2 pcs.

✅ Expansion box 1x90/125 - 11 pcs.

✅ Expansion box 2x90/125 - 3 pcs.

✅ Intake K1 - 1pcs.

✅ Launcher K1 - 1pcs.

✅ Cap - 9 pcs.

✅ Max-Vent Throttle - 14 pcs.

✅ Tape - 2 pcs.

✅ Gaskets - 40 pcs.

✅ Perimeter gaskets for distribution boxes 2 sets

✅ Muffins 3 pcs.

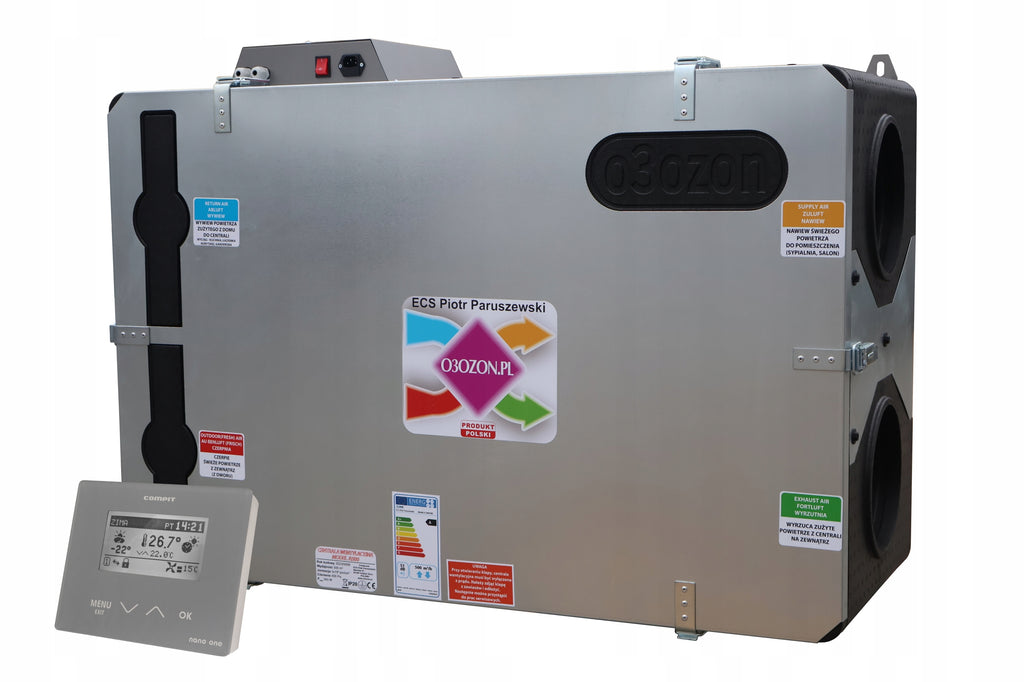

Ventilation unit A-300EPP

• CAPACITY max 350m3/h
• Power min 25W max 180W
• Pressure up to 350Pa
• EC FANS
• BUILT-IN IONIZER
• DIAMETER OF THE STUB 200 mm
• FILTERS OF CLASS G4
• COUNTERCURRENT RECUPERATOR PULL-OUT EASY TO WASH
• RECUPERATOR EFFICIENCY FROM 65% to 92% (parameter depends on the difference of temp.przepływu)
• POWER OF THE DEVICE FROM 25 TO 180W
• BUILT-IN AIR PURIFIER SYSTEM (MICRO PARTICLES)
• ANTI-ELECTROSTATIC SYSTEM
• DIRTY FILTER INFORMATION SYSTEM
• ELECTRONIC OR MECHANICAL BY-PASS (manual)
• HOUSING MADE OF EPP (foamed polypropylene)
• SOUND INSULATION
• DRAINAGE OF LIQUEFIED WATER!!!
• VERY GOOD VALUE FOR MONEY
• CONTROL PANEL
• OPERATING TEMPERATURE -25 to 50°C
• VERY GOOD VALUE FOR MONEY
• BLACK AND WHITE CONTROLLER

The standard controller (black and white, YOU CAN BUY COLORFUL) allows you to:

• temperature measurement
• regulation of the supply force
• by-pass control
• setting a schedule
• heater control
• Configuration of secondary radiator control
• switching on the preheater
• indication of soiled filter
• e.t.c. .

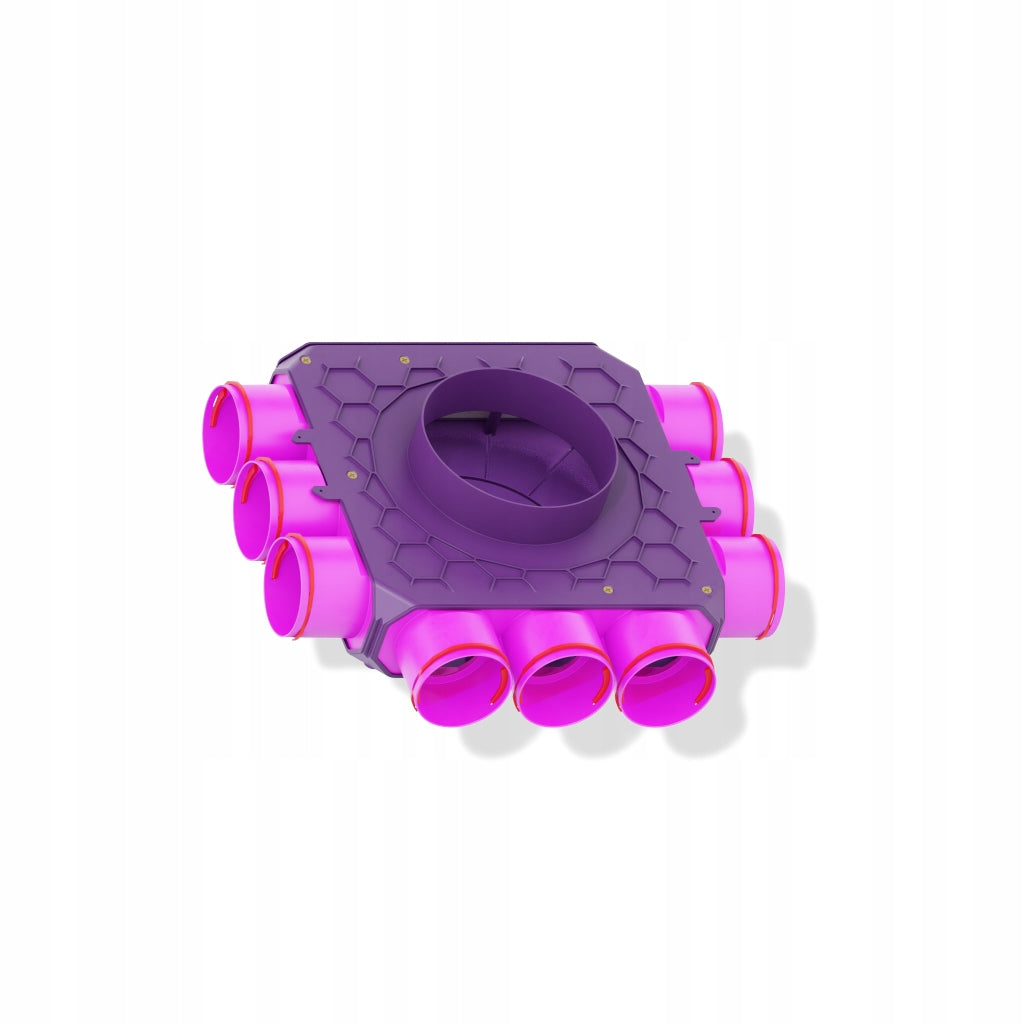

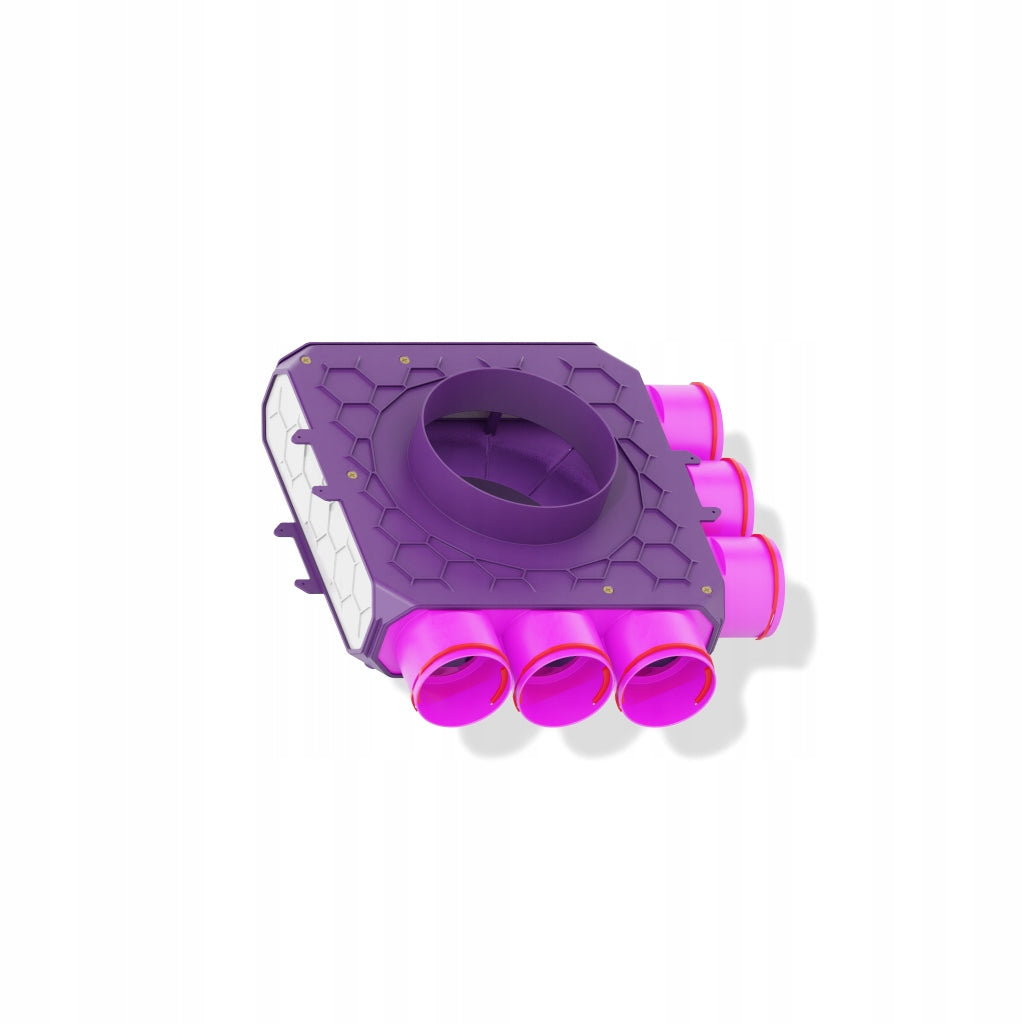

Distribution boxes 200mm

DISTINGUISHING FEATURES OF THE PRODUCT:

• Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)
• External reinforcement increases strength does not interfere with flow
• Extended mounting per channel -90mm (in some cases fastening with rings will be unnecessary)
• The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)
• They are quiet you do not need to suppress them
• They put up a small resistance
• PERIMETER GASKET guaranteeing always tightness (you do not need to use a special expensive disposable knife for cutting ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET)
• They have the addition of silver are antibacterial biocides
• They are antistatic
• Technologies of the twenty-first century NANOMATERIALS were used, which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection

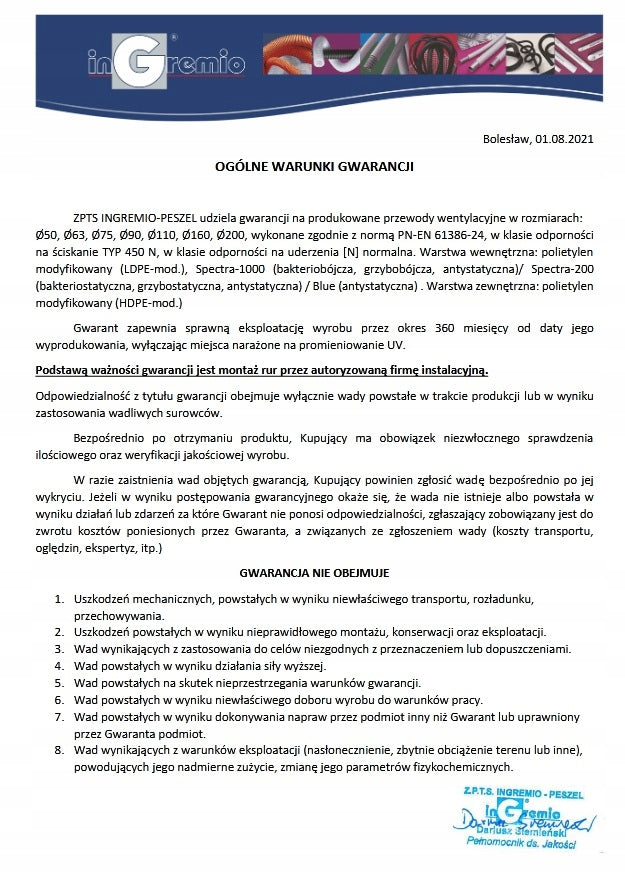

✔ 20 YEARS GWARAN.JI FOR EXPANSION AND DISTRIBUTION BOXES

➡ OUR PRODUCTS HAVE EXCELLENT BIOCIDAL PROPERTIES, CONFIRMED BY APPROPRIATE TESTS ⬅

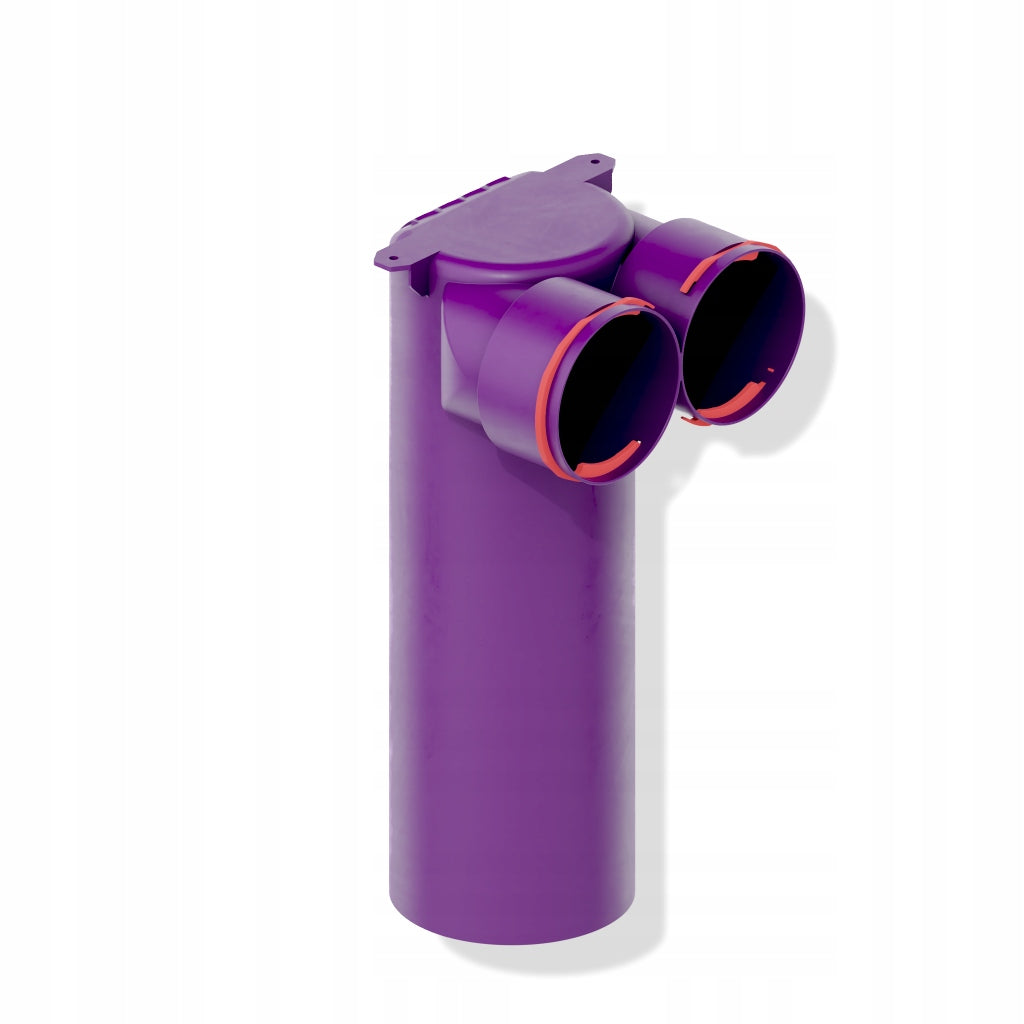

EXPANSION BOX 90mm / 125mm

Includes clamp for ventilation ducts.

• Diameter of ventilation duct - 90mm
• Diameter of the main channel - 125mm.

The layer of silver particles eliminates odors, is antistatic, antibacterial and biocidal.

Possibility of cutting and shortening the box.

I am suitable for the exhaust and supply side.



DISTINGUISHING FEATURES OF THE PRODUCT:

✔ Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)

✔ External reinforcement increases strength does not interfere with flow

✔ Extended mounting per channel -90mm (in some cases ring fastening will be unnecessary)

✔ The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)

✔ They are quiet you do not need to suppress them

✔ They put up a small resistance

✔ PERIMETER GASKET guaranteeing always tightness (you do not need to use a special expensive disposable knife to cut ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET)

✔ They have the addition of silver are antibacterial biocides

✔ They are antistatic

✔ Twenty-first century technologies NANOMATERIALS were used, which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

• System presentation: ▶ https://youtu.be/zwnY-pdrwj8
• Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
• Durability of our products: ▶ https://youtu.be/ZMhyH29QXEY
• How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
• How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
• How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
• Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
• Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
• Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
• Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
• Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
• Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
• Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
• Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU

Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...

Intake, launcher

• Diameter: Ø 200
• Made of acid-resistant sheet metal
• Quick and easy installation
• High quality workmanship ensures low noise
• Safety net against insects.

ADD DRAINER TO THE LAUNCHER

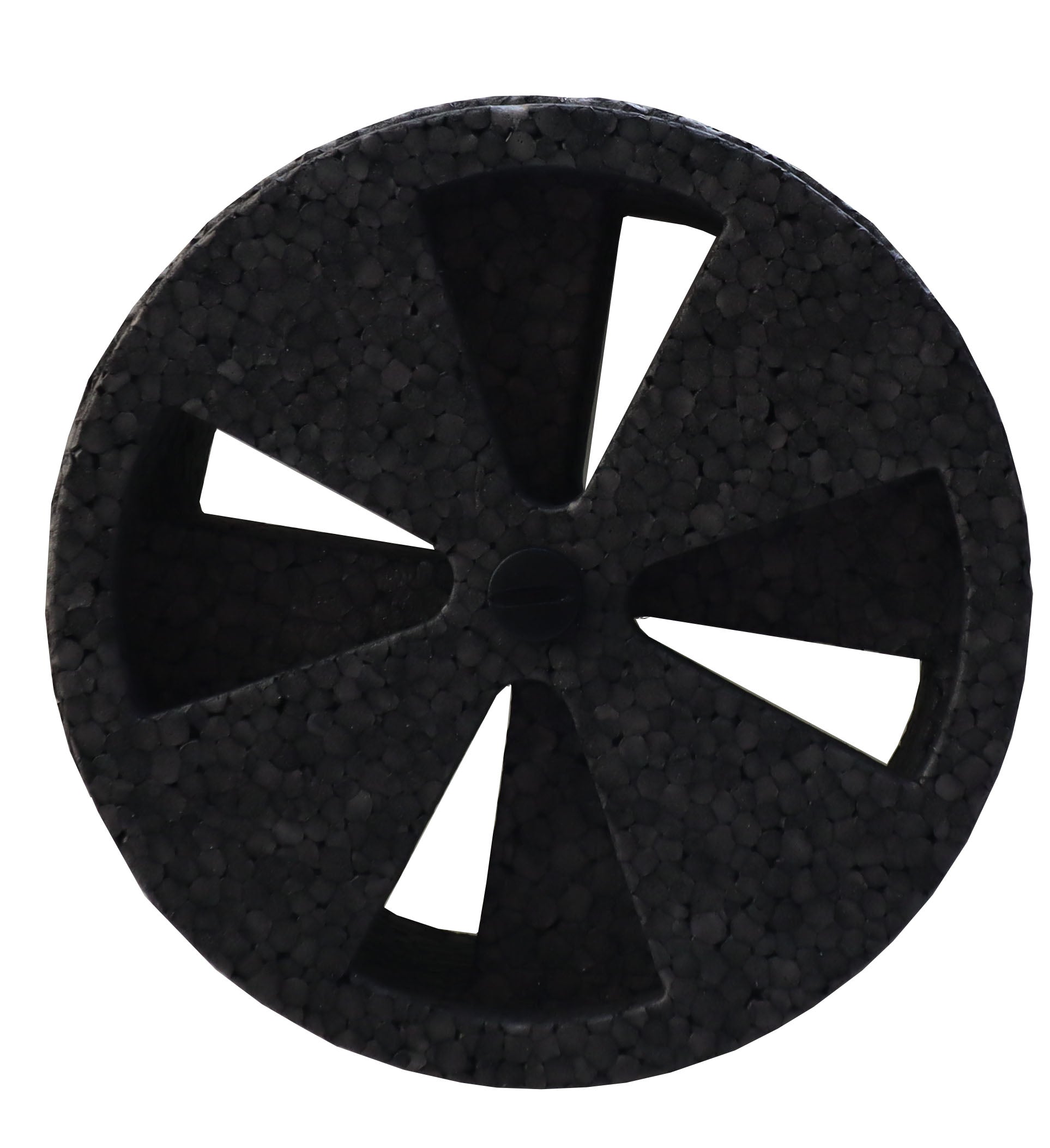

The set includes 10pcs of adjustment dampers to stabilize and silence air flow.

Adjusting these dampers allows you to enjoy exceptional quiet installation

Foam adjustment damper is an economical damper designed for central ventilation systems with damping properties. It obtains a double role thanks to the construction and the material from which it is made - elastic foam. The throttle slides into a round channel (e.g. before the valve) and then the selected number of factory cut inserts is removed. Several series can be mounted for greater damping

The throttle has very little resistance and adjusts it smoothly

Throttle characteristics

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	MAX-VENT
Parametry	Kind	heat recovery ventilator
Parametry	Manufacturer code	MAX-VENT 150-200 A300
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
