Rekuperacinės vėdinimo sistema su rekuperatoriumi namams 100–150 m²

Trumpai apie prekę

Prekė: Rekuperacinės vėdinimo sistema su rekuperatoriumi namams 100–150 m². Kategorija: Dalys.

• Gamintojas: MAX-VENT
• Modelis: 5907344501390

50 recuperation system installation course for floors 5cm Styrofoam 10cm floor

▶ https://www.youtube.com/watch?v=GF1mRaIuaEw

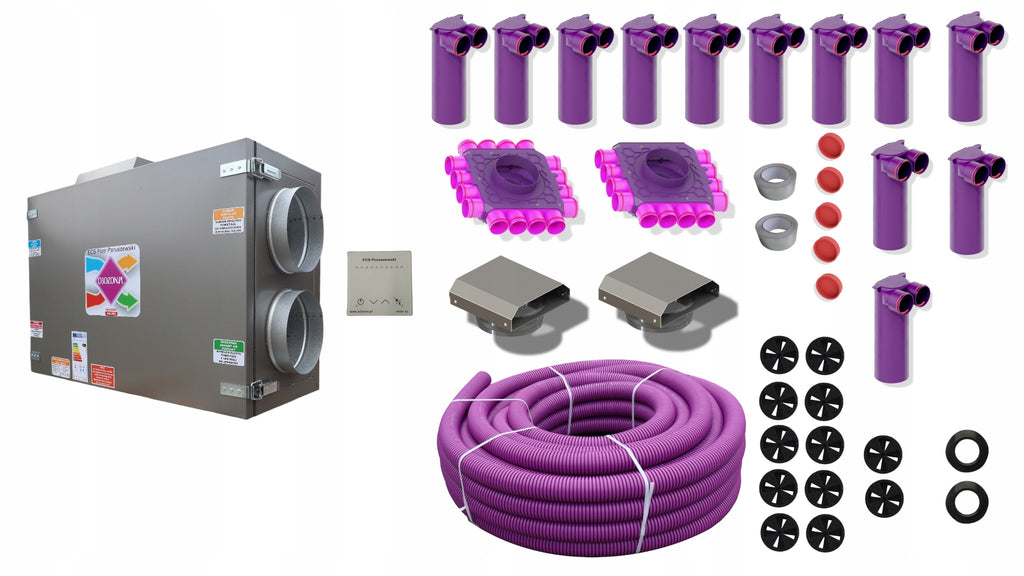

The set includes:

• ✅ Ventilation pipe with antibacterial coating (30 ppm Ag)
• 75mm - 200 mb (4 discs)

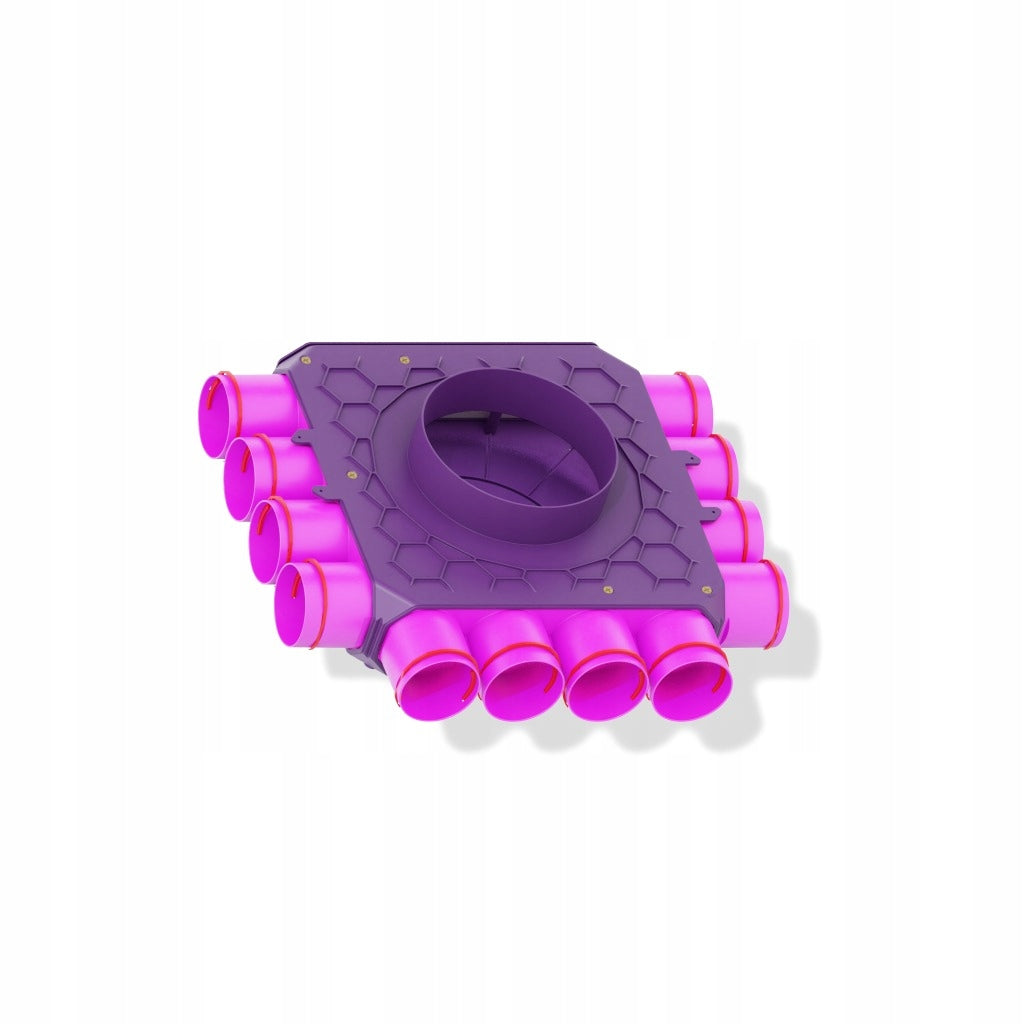

• ✅ Distribution box 12x75/200 - 1 pc.
• ✅ Distribution box 16x75/200 - 1 pc.
• ✅ Expansion box 2x75/125 -12 pcs.
• ✅ Intake K1 - 1pc.
• ✅ Launcher K1 - 1pc.
• ✅ Cap - 5 pcs.
• ✅ Max-Vent Throttle - 12 pcs.
• ✅ Tape - 2 pcs.
• ✅ CWP 360 recuperator - 1 unit
• ✅ Gaskets - 48 pcs.

The only system completely tested, take care of your health and safety.

The system has:

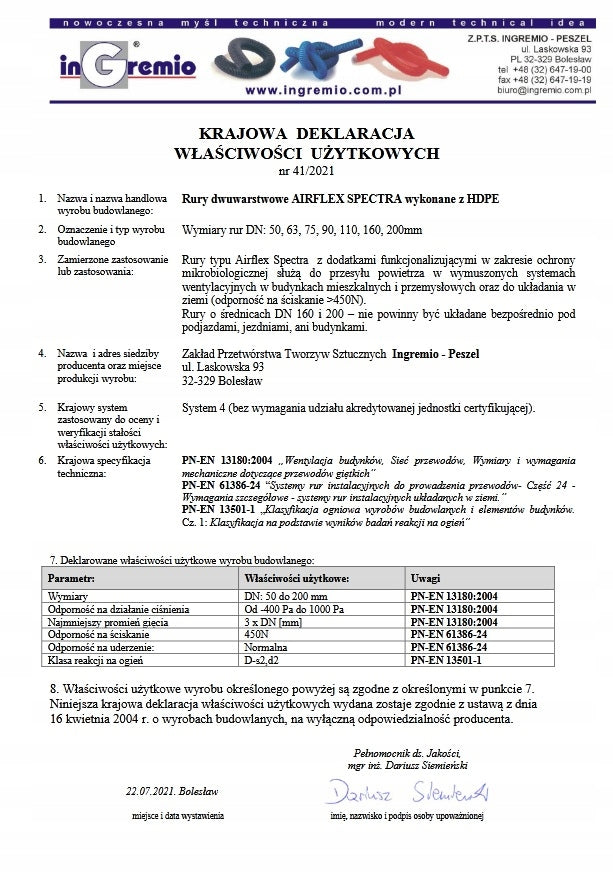

• Hygiene certificate of MAX-VENT system
• MAX-VENT leak test
• Hygiene certificate of EPS system
• Moldostatic test of MAX-VENT system

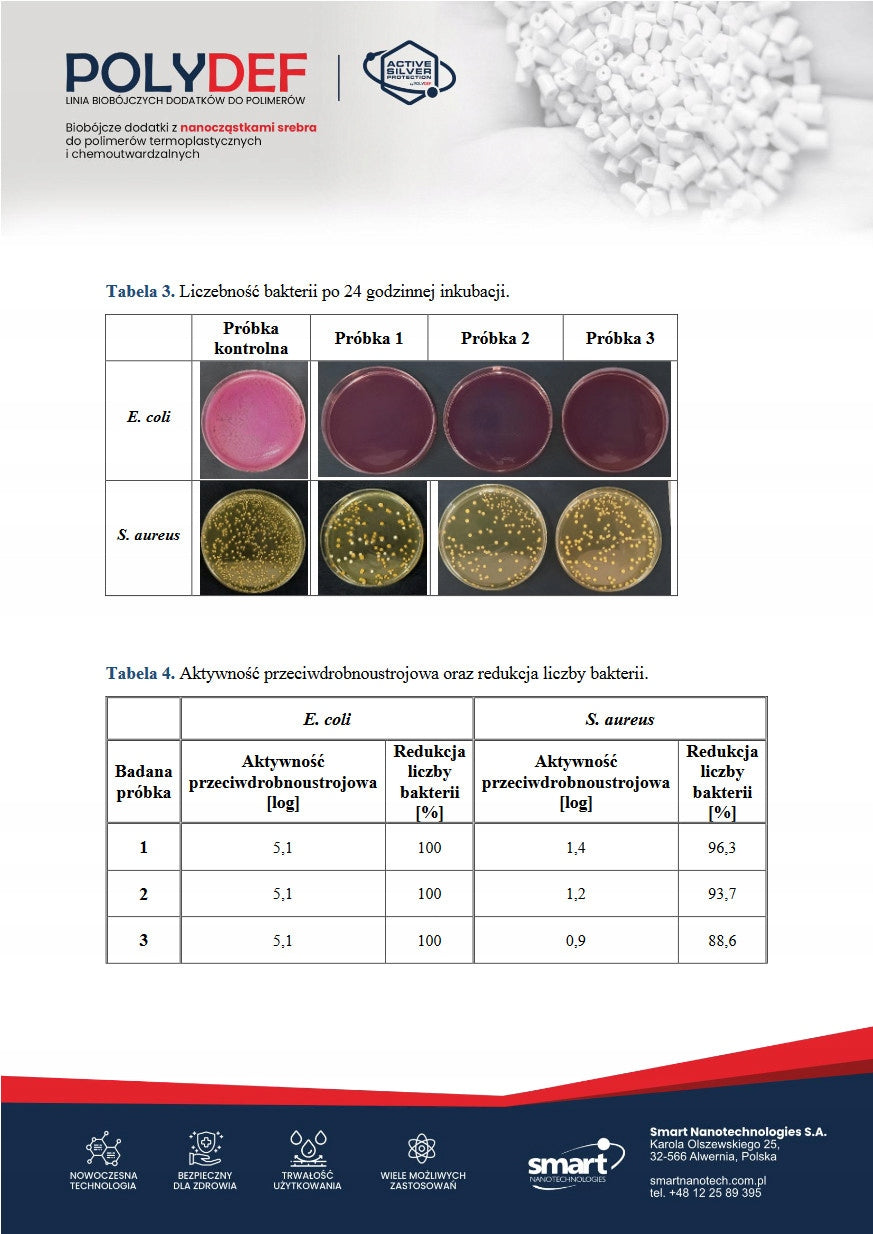

• MAX-VENT antibacterial certificate
• Hygiene certificates of air handling units
• Ventilation duct tests 63mm 75mm 90mm
• Bicidal studies of EPS system with O3OZON coating
• Seal tests

Ventilation unit:

• Control panel capacity: up to 300 m³/h
• Power: min. 30 W, max. 120 W
• Pressure: up to 200 Pa
• Fan capacity: 2x550 m³/h
• Voltage: 230 V, 50 Hz
• Heat recovery efficiency: 65% to 92%
• Engine speed: 2400 rpm
• Noise level: 24-40 dB(A)
• Maximum operating temperature: up to 45°C
• Housing: sheet metal
• Insulation: 40 mm wool
• Air supply filter: G4
• Extractor filter: G4
• Diameter of stubs: 200 mm
• Recuperator efficiency: up to 95%
• Recuperator type: countercurrent, made of plastic
• Anti-freeze system
• Weight: about 50 kg (compare with other products of this class! )
• Rotational speed controller

plastic with smooth, antibacterial and antifungal (30 ppm Ag)

outer diameter: Ø75 mm

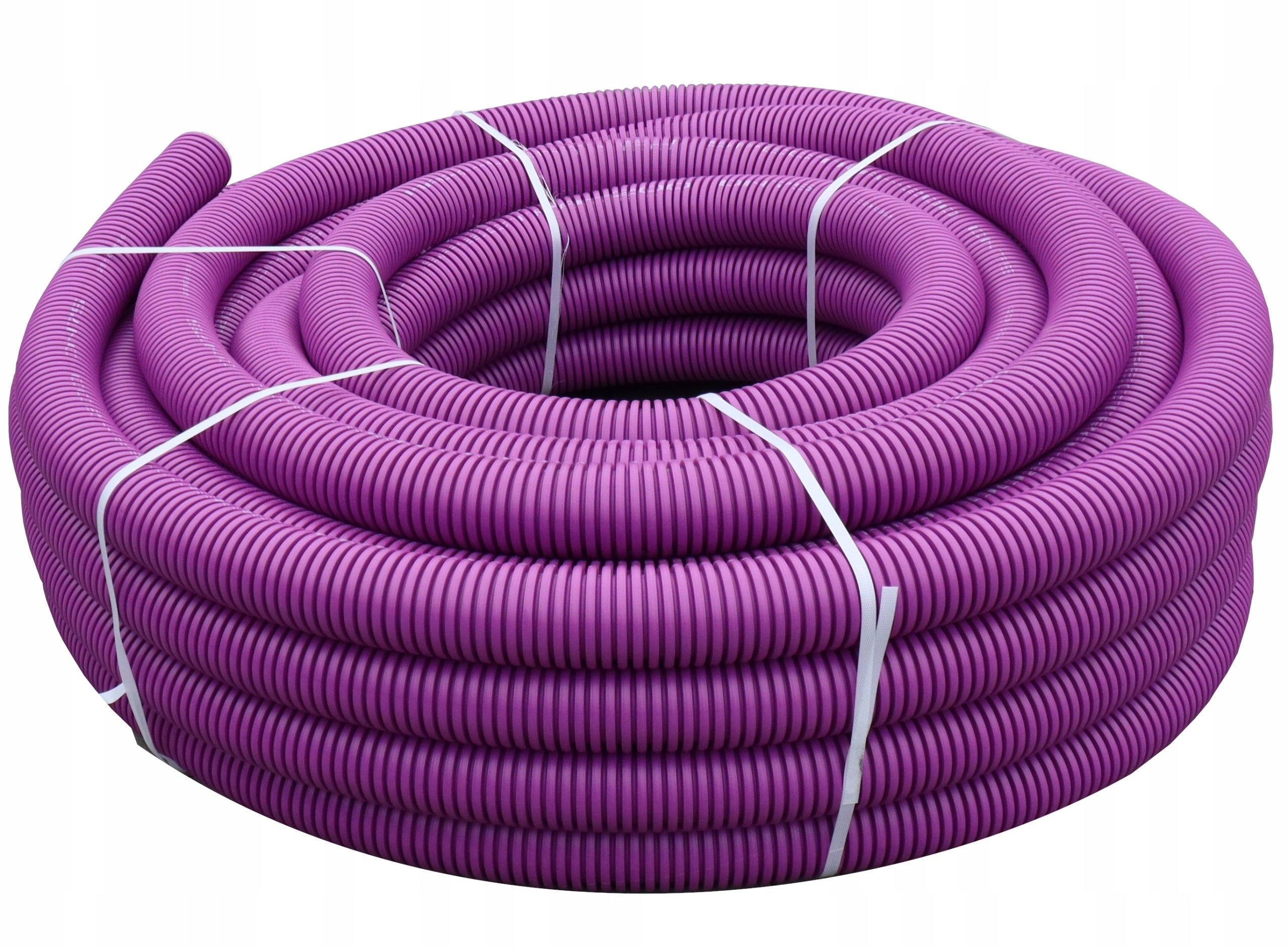

MAX-VENT flexible ventilation pipe is used for movement, transport of supply and exhaust air in mechanical ventilation systems

Wires are characterized by:

-Large flexibility

-Two-layer construction guarantees high strength and allows e.g. flooding with structural concrete and suppresses noise and insulates thermally.

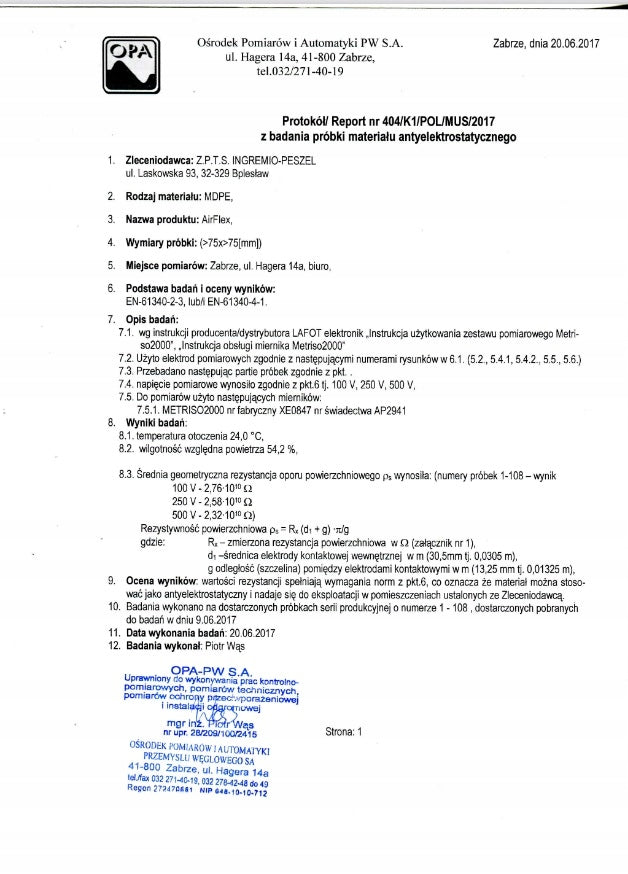

MAX-WENT double layer pipe has an internal coating antibacterial and fungicidal in the form of active silver particles The inner layer also has an antistatic action, which reduces the settlement and accumulation of dust in the pipes.

➡ OUR PRODUCTS HAVE EXCELLENT BIOCIDAL PROPERTIES, CONFIRMED BY APPROPRIATE TESTS ⬅

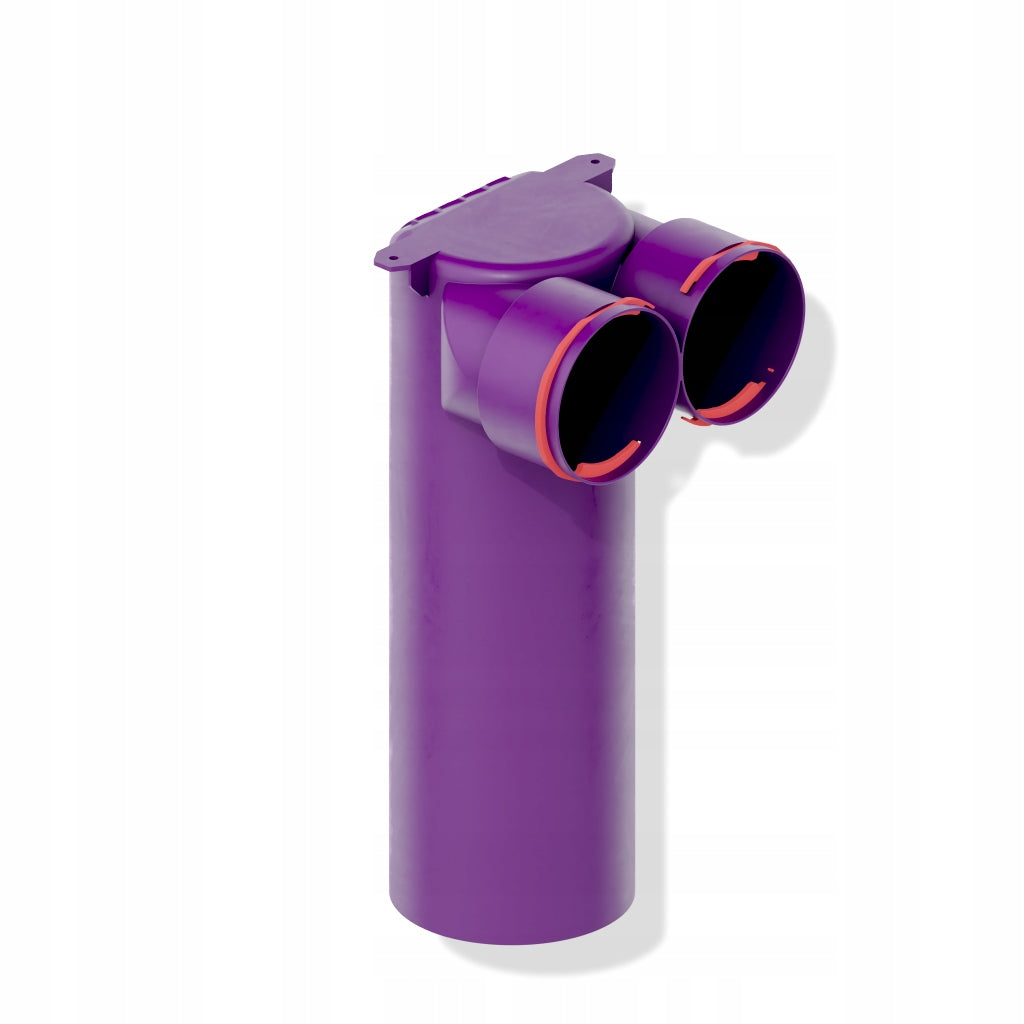

75mm / 125mm EXPANSION BOX

Includes clamp for ventilation ducts.

• Diameter of ventilation duct - 75mm
• Diameter of the main channel - 125mm.

The layer of silver particles eliminates odors, is antistatic, antibacterial and biocidal.

Possibility of cutting and shortening the box.

I am suitable for the exhaust and supply side.

DISTINGUISHING FEATURES OF THE PRODUCT:

✔ Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)

✔ External reinforcement increases strength does not interfere with flow

✔ Extended mounting per channel -75mm (in some cases, fastening with rings will be unnecessary)

✔ The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)

✔ They are quiet you do not need to suppress them

✔ They put up a small resistance

✔ PERIMETER GASKET guaranteeing always tightness (you do not need to use a special expensive disposable knife for cutting ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET )

✔ They have the addition of silver are antibacterial biocides

✔ They are antistatic

✔ Twenty-first century technologies NANOMATERIALS were used, which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

• System presentation: ▶ https://youtu.be/zwnY-pdrwj8
• Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
• Durability of our products: ▶ https://youtu.be/a3_OZIj2fLI
• See recuperation assembly course: ▶ https://youtu.be/ZMhyH29QXEY
• How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
• How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
• How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
• Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
• Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
• Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
• Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
• Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
• Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
• Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
• Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU

See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...

Intake, launcher

• Diameter: Ø 200
• Made of acid-resistant sheet metal
• Quick and easy installation
• High quality workmanship ensures low noise
• Safety net against insects.

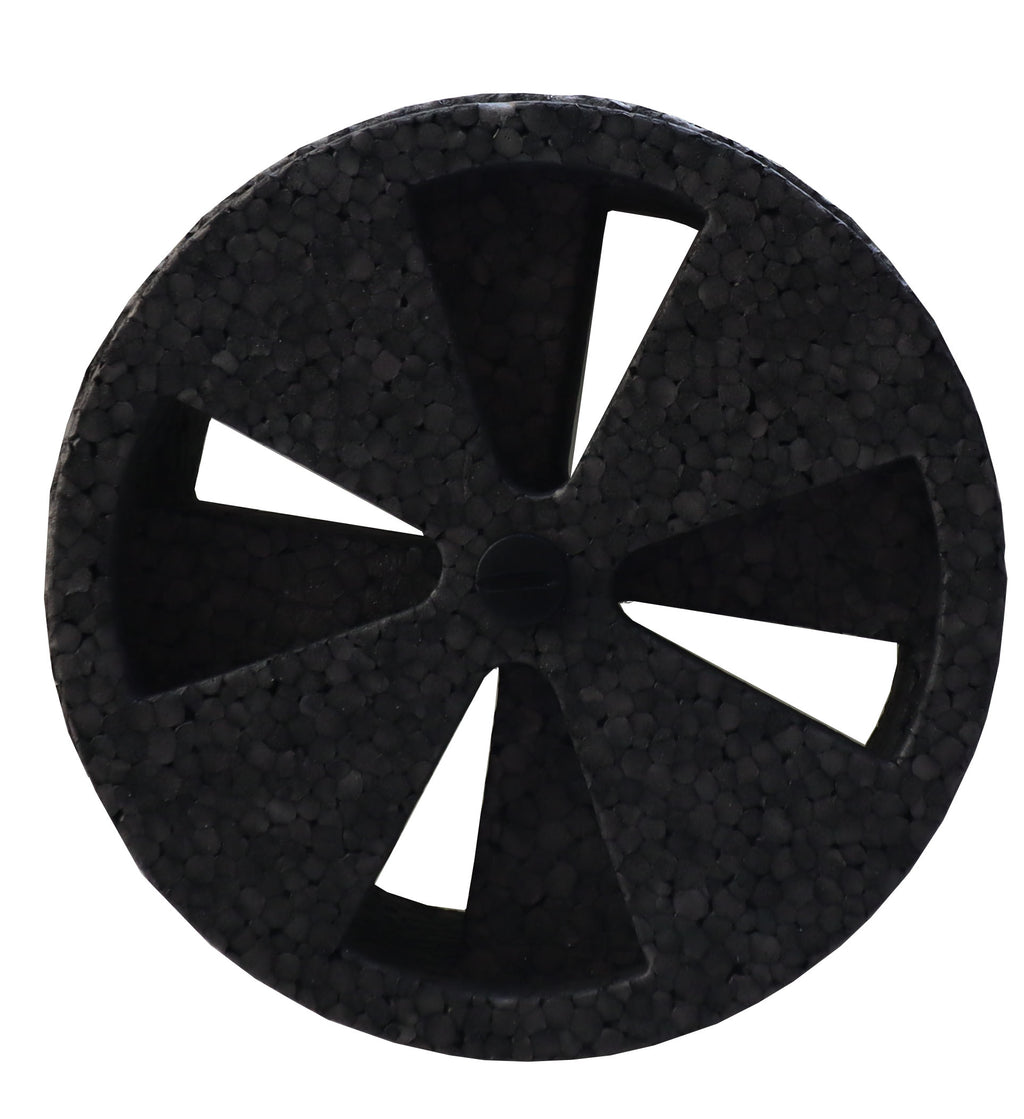

The set includes 12pcs of adjustment dampers to stabilize and silence air flow.

Adjusting these dampers allows you to enjoy an exceptional quiet installation

Foam adjustment damper is an economical damper designed for central ventilation systems with damping properties. It obtains a double role thanks to the construction and the material from which it is made - elastic foam. The throttle slides into a round channel (e.g. before the valve) and then the selected number of factory cut inserts is removed. Several series can be mounted for greater damping

The throttle has very little resistance and adjusts it smoothly

Specifications
