Rekuperacinės vėdinimo sistemos komplektas namui 100–150 m²

Trumpai apie prekę

Prekė: Rekuperacinės vėdinimo sistemos komplektas namui 100–150 m². Kategorija: Dalys.

• Gamintojas: MAX-VENT
• Modelis: MAX-VENT 100-150_75 premium

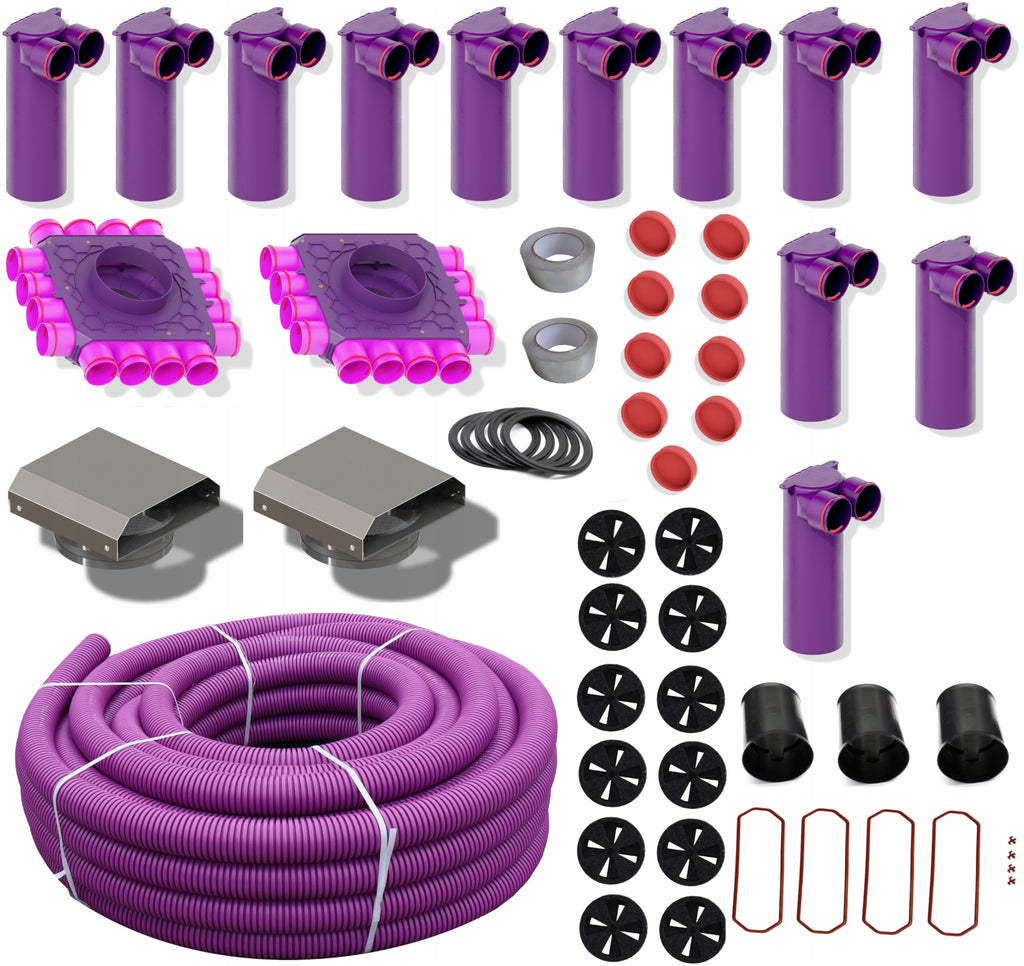

MAX-VENT 100-150 kit

✅ Ventilation pipe with antibacterial coating (30 ppm Ag)

75mm - 200 mb (4 discs)

✅ Distribution box 12x75/200 - 1 pcs.

✅ Distribution box 16x75/200 - 1 pcs.

✅ Expansion box 2x75/125 -12 pcs.

✅ Intake K1 - 1pcs.

✅ Launcher K1 - 1pcs.

✅ Cap - 9 pcs.

✅ Max-Vent Throttle - 12 pcs.

✅ Tape - 1 pcs.

✅ Gaskets - 54 pcs.

✅ Perimeter gaskets for distribution boxes 2 sets

✅ Muffins 3 pcs.

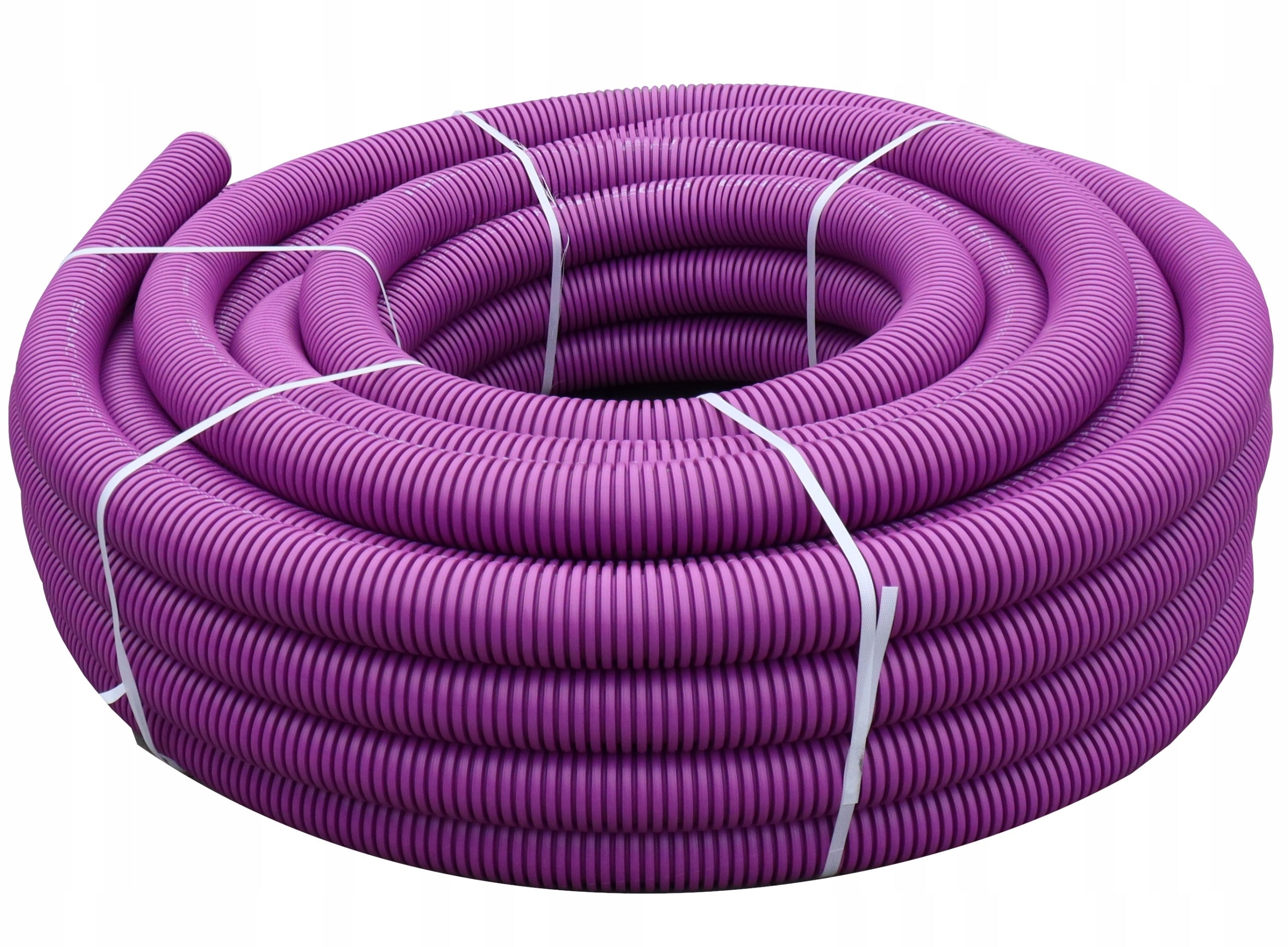

plastic with smooth, antibacterial and antifungal (30 ppm Ag)

outer diameter: Ø75 mm

MAX-VENT flexible ventilation pipe is used for movement, transport of supply and exhaust air in mechanical ventilation systems

Wires are characterized by:

-Large flexibility

-Two-layer construction guarantees high strength and allows e.g. flooding with structural concrete and suppresses noise and insulates thermally.

MAX-WENT double layer pipe has an internal coating antibacterial and fungicidal in the form of active silver particles The inner layer also has an antistatic action, which reduces the settlement and accumulation of dust in the pipes.

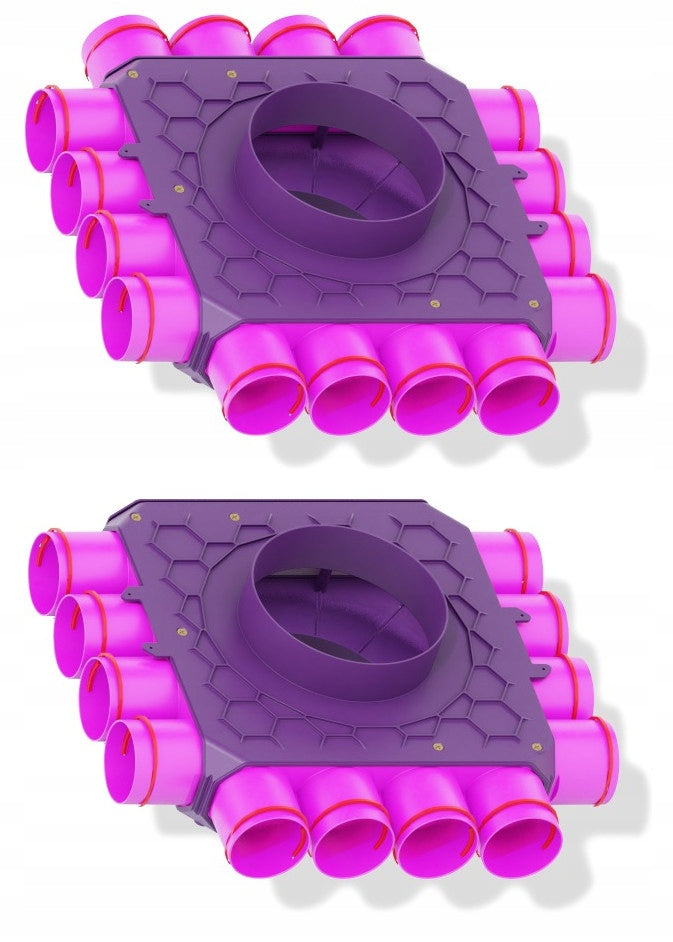

Distribution boxes 200mm

DISTINGUISHING FEATURES OF THE PRODUCT:

• Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)
• External reinforcement increases strength does not interfere with flow
• Extended mounting per channel -75mm (in some cases fastening with rings will be unnecessary)
• The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)
• They are quiet you do not need to suppress them
• They put up a small resistance
• PERIMETER GASKET guaranteeing always tightness (you do not need to use a special expensive disposable knife for cutting ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET)
• They have the addition of silver are antibacterial biocides
• They are antistatic
• Technologies of the twenty-first century NANOMATERIALS were used, which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection

✔ 20 YEARS GWARAN.JI FOR EXPANSION AND DISTRIBUTION BOXES

➡ OUR PRODUCTS HAVE EXCELLENT BIOCIDAL PROPERTIES, CONFIRMED BY APPROPRIATE TESTS ⬅

EXPANSION BOX 75mm / 125mm

Includes clamp for ventilation ducts.

• Diameter of ventilation duct - 75mm
• Diameter of the main channel - 125mm.

The layer of silver particles eliminates odors, is antistatic, antibacterial and biocidal.

Possibility of cutting and shortening the box.

I am suitable for the exhaust and supply side.

DISTINGUISHING FEATURES OF THE PRODUCT:

✔ Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)

✔ External reinforcement increases strength does not interfere with flow

✔ Extended mounting per channel -90mm (in some cases ring fastening will be unnecessary)

✔ The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)

✔ They are quiet you do not need to suppress them

✔ They put up a small resistance

✔ PERIMETER GASKET guaranteeing always tightness (you do not need to use a special expensive disposable knife to cut ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET)

✔ They have the addition of silver are antibacterial biocides

✔ They are antistatic

✔ Twenty-first century technologies NANOMATERIALS were used, which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection

Intake, launcher

• Diameter: Ø 200
• Made of acid-resistant sheet metal
• Quick and easy installation
• High quality workmanship ensures low noise
• Safety net against insects.

ADD DRAINER TO THE LAUNCHER

The set includes 10pcs of adjustment dampers to stabilize and silence air flow.

Adjusting these dampers allows you to enjoy exceptional quiet installation

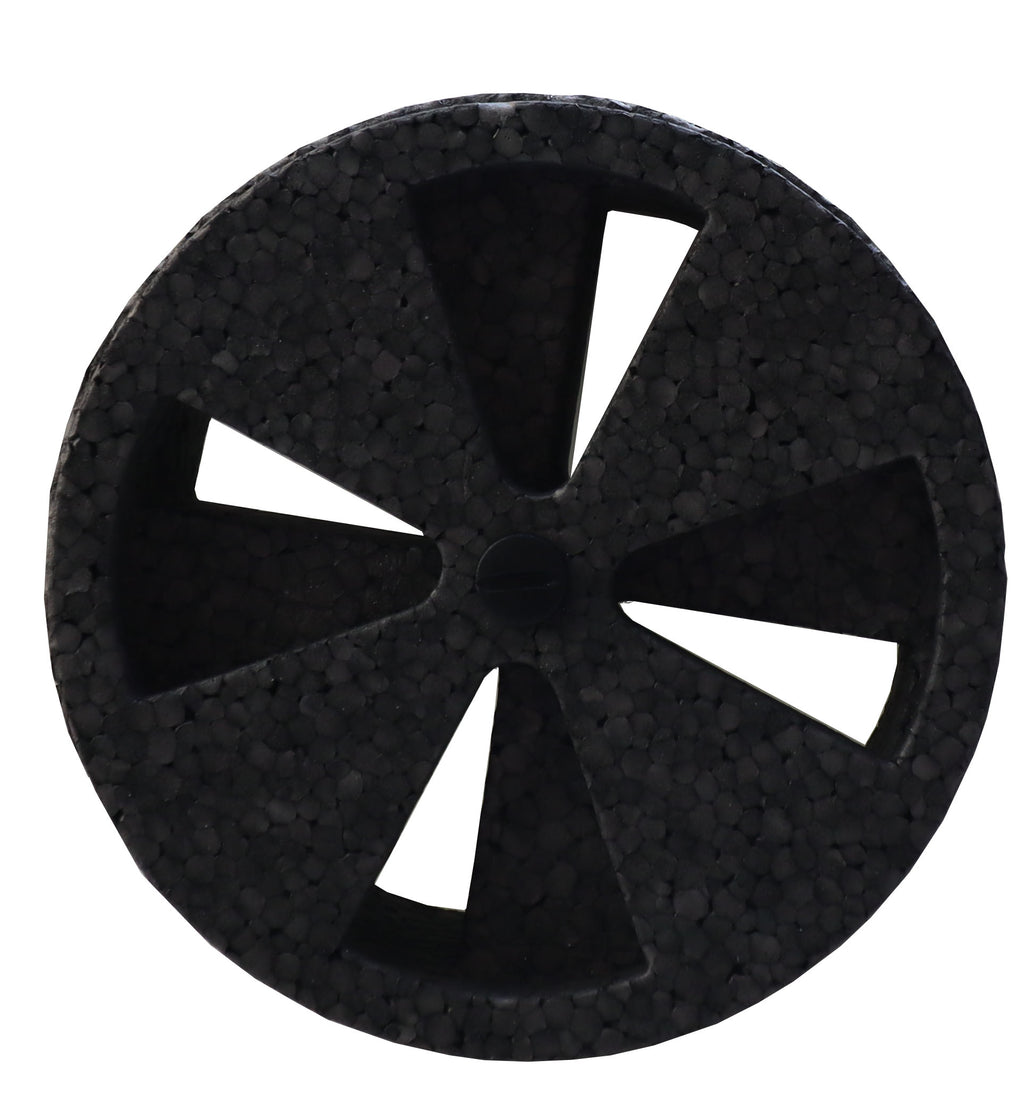

Foam adjustment damper is an economical damper designed for central ventilation systems with damping properties. It obtains a double role thanks to the construction and the material from which it is made - elastic foam. The throttle slides into a round channel (e.g. before the valve) and then the selected number of factory cut inserts is removed. Several series can be mounted for greater damping

The throttle has very little resistance and adjusts it smoothly

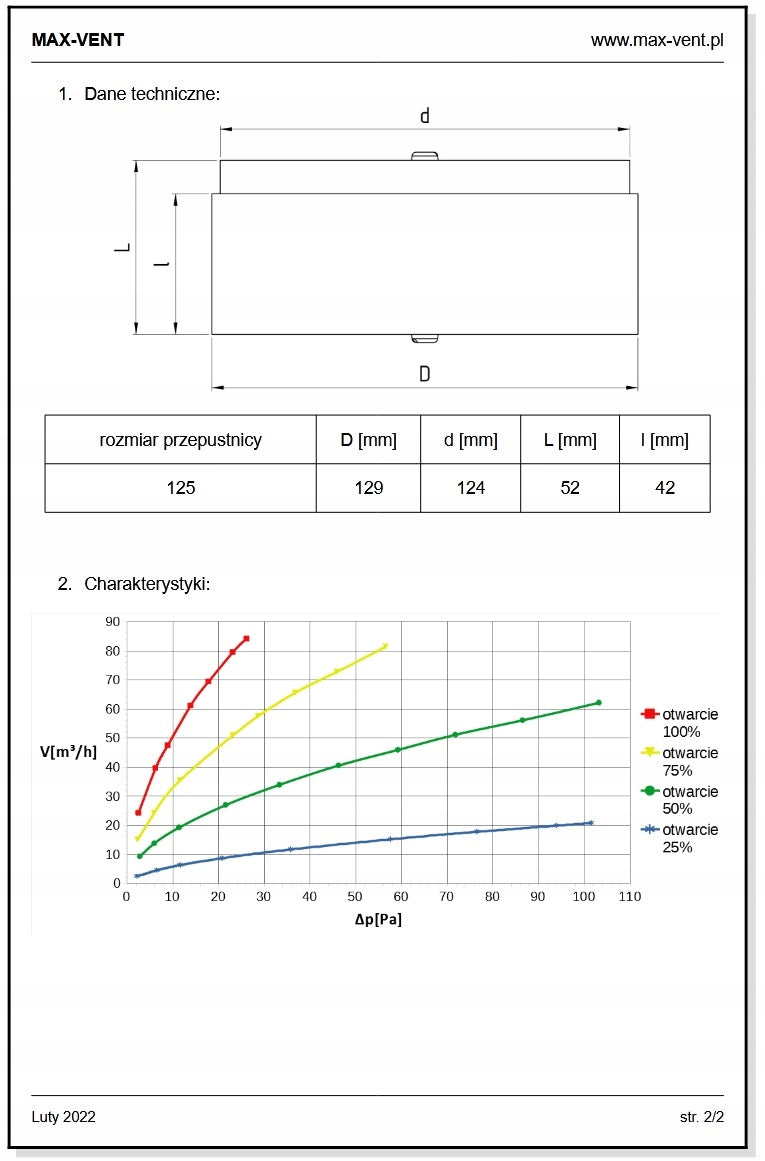

Throttle characteristics

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	MAX-VENT
Parametry	Kind	wires
Parametry	Manufacturer code	MAX-VENT 100-150_75 premium
