Rekuperacinės vėdinimo sistemos projektas

Trumpai apie prekę

Prekė: Rekuperacinės vėdinimo sistemos projektas. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: Projekt Wentylacji Mechanicznej Rekuperacji

Project lead time: 10 working days

Do you want to make sure that your mechanical ventilation will work smoothly and the project will be professionally prepared?

Bet on experience and comprehensive service!

A conceptual design is a preliminary design that aims to convey a vision of the design.

The result is a graphic illustration of the proposed distribution along with a list of materials.

The conceptual design concerns the documentation of NOT stamped.

What does the purchase include?

✅ Individual mechanical ventilation design adapted to your building

✅ Air balance adapted to the type and number of rooms

✅ Installation diagrams clear drawings with location of all elements

✅ Selection of devices – Headquarters and materials tailored to your needs (we can adjust the design to the headquarters of your choice or propose solutions based on the devices of our production or from our suppliers)

✅ Technical description of the installation

✅ List of materials with valuation you will know the exact cost of the entire system

✅ Technical support at the implementation stage

How is the cooperation step by step?

1. Purchase of the project
2. Sending the form – we will send you a message with the form to arrange the details (please prepare building projections, architectural design or sketch with dimensions).
3. Preparation of the project – based on submitted materials and guidelines.
4. Consultation – we agree on details and possible changes.
5. Finalization of the project – sending the finished project in electronic version (PDF) along with the valuation of materials and air balance.

Why is it worth trusting us?

Industry experience – hundreds of completed projects and installations for homes and businesses

Individual approach – we design optimal solutions for each facility

Support after purchase – we help you with questions at the assembly stage

Comprehensive service – we offer a full range of services design, valuation, delivery, installation

Professionalism – Our team performs projects and calculations using professional tools

Who is this project for?

Mechanical ventilation project with heat recovery - for a single-family house up to 270 m² (up to 2 floors).

(We also do projects for larger buildings. )

What will you need to complete the project?

• Building projections (PDF files or scans are enough)
• Information on how to finish the rooms (suspended ceilings, technical spaces available)
• Your expectations for recuperation (e.g. recuperator type, priority for economy, comfort, etc. )

Lead time:

⏳ As a standard, we deliver the project within 10 working days of receiving all necessary materials.

Additional Information:

1. The design will be created in accordance with all building and ventilation standards applicable within the Republic of Polish.

2. To begin work on the documentation, we require described and dimensioned floor plans of the ground floor, upper floor, and attic, as well as a vertical cross-section of the building.

• This means you need to provide an architectural plan with clear dimensions.
• If you do not have an architectural plan, please draw a sketch of the room layout yourself, including the dimensions of all walls, window openings, and door openings. Also, please write down the intended use of each room (e.g., bedroom, kitchen, living room, etc.).
• If you draw the sketch yourself, please send it to us for verification before purchasing the project.)

3. After purchase, we will contact you to jointly select the best solution for your installation. You will receive a form with project-related questions. The form is designed to help streamline our collaboration.

4. Please send files in *.dwg, .pdf format, or high-quality photos or scans via email.

• Additionally, you can provide information helpful for designers to prepare the concept, such as: Location of the recuperator, potential recuperation risers between floors, location of air intakes and outlets.
• Choice of flexible duct system with diameters of 63, 75, or 90 mm, FLAT, or GALVANIZED
• Installation method (e.g., in the ceiling insulation layer, in a suspended ceiling, etc.)

5. We will send the complete project documentation to you via email.

6. This auction is for documentation that is NOT stamped. (For stamped projects, please inquire about details.)

7. After receiving the final ventilation project, any changes will be subject to a fee. Subsequent changes after final customer approval will be charged at a rate of 100 zł net.

8. You can purchase all necessary components included in the project from us.

9. Purchasing a recuperation concept covers the design of one installation. If you are purchasing a concept for a "semi-detached" house, you must purchase a separate concept for each half of the building. The installation for the second half of the building is a separate system and is not a mirror image of the first part.

10. A single project purchase covers the creation of one project by our company (one duct system and one recuperator chosen by you).

When purchasing, please indicate in the message to the seller the e-mail address to which we will contact you in order to obtain materials and to which the project will be sent.

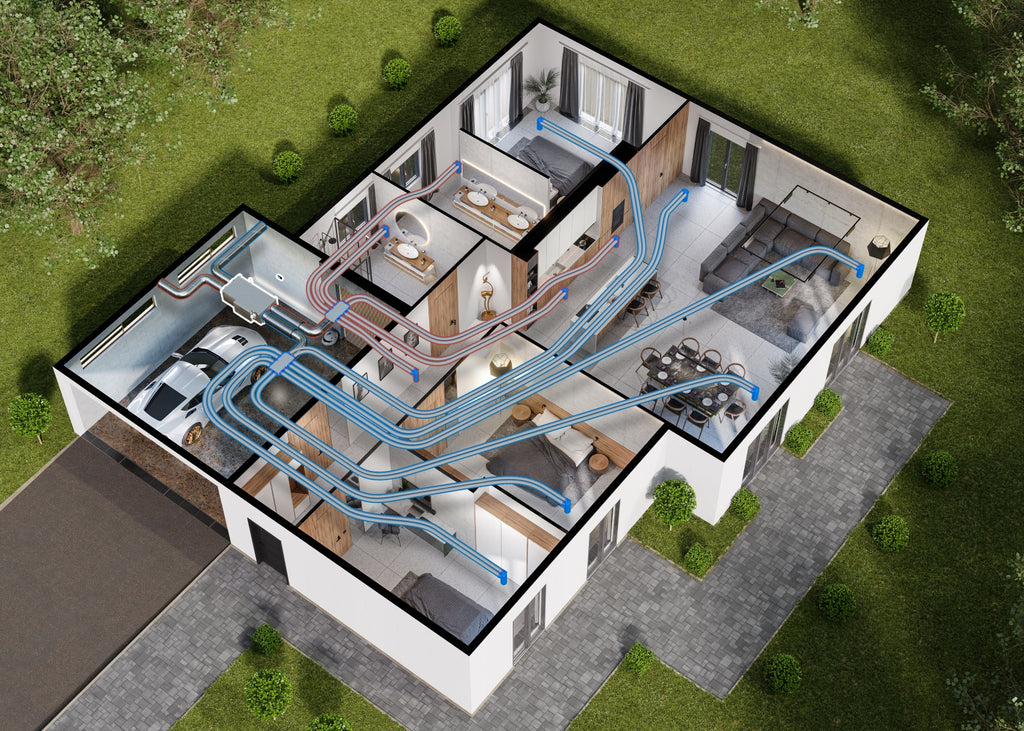

Below is an example of the design and documentation you receive after purchase:
