Rekuperacinės vėdinimo sistemos projektas su ortakių schemos brėžiniu

Trumpai apie prekę

Prekė: Rekuperacinės vėdinimo sistemos projektas su ortakių schemos brėžiniu. Kategorija: Dalys.

• Gamintojas: no brand
• Modelis: projekt z rysunkiem kanałów

Design of mechanical ventilation and recuperation installation for a single-family house, taking into account the valuation of materials directly from the manufacturer based on the MAX-VENT system.

EXAMPLE COST OF INSTALLATION MATERIALS FOR A HOUSE OF 100 m2 FROM PLN 8,000 INCLUDING A VENTILATION UNIT!!!

Mechanical Ventilation Project with Recuperation for Single-Family House (up to 300 m², 2 floors)

ONLY OUR SYSTEMS AS A FEW IN THE WORLD GUARANTEE:

• UNUSUALLY LOW PRICE
• POSSIBILITY OF SELF-ASSEMBLY WITH GUARANTEE
• ATEST HYGIENIC
• FUNGOSTATIC TESTS
• EXAMINATION OF ANTIBACTERIAL PROPERTIES
• ANTIMICROBIAL ACTIVITY ASSESSMENT REPORT
• TIGHTNESS REPORT OF VENTILATION SYSTEM COMPONENTS

THERE IS NO COMPETITION

✅ What do you get after purchase?

• technical description

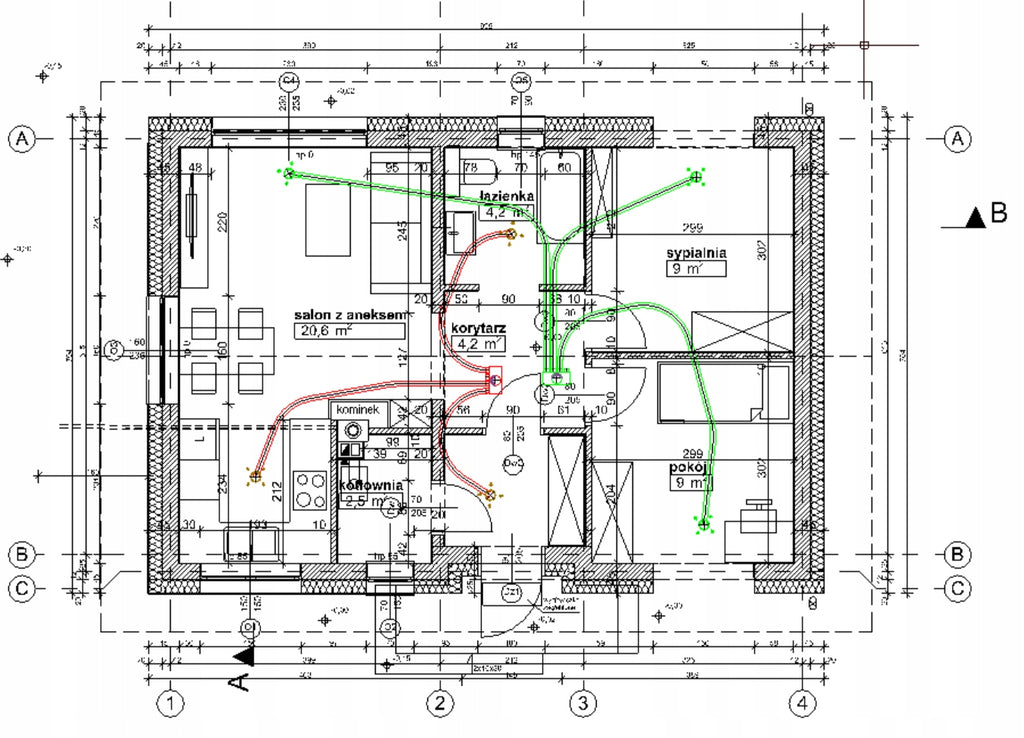

• drawings of installations
• list of materials
• valuation of materials

⚙ What is needed?

1. When purchasing, please provide us with your email address so that we can contact you and get the necessary information.
2. You must send ground floor, floor/attic and high-rise section of the building. The documentation should contain a description of the purpose of the premises and their area in m2. We accept PDF format, good quality pictures, DWG format.
3. The diameter of the channels on which the installation is to be performed should be determined ⌀75, ⌀90
4. You will receive the project within 7 working days (from the payment of the order and delivery of all necessary information, in justified cases this time may be extended).

Additional information:

Invest in comfort and efficiency - our mechanical ventilation design will provide you with fresh, purified air while minimizing heat loss.

• The auction includes documentation without a seal.
• Full project documentation will be sent to your email address.
• All items from the quote can be purchased from us.
• During and after the project we provide advice.

ONLY OUR system has numerous RESEARCH confirming its anti-fungal and anti-bacterial properties.

On our pages for inspection are available:

HYGIENIC CERTIFICATE issued by the NATIONAL INSTITUTE OF PUBLIC HEALTH PZH- National Research Institute

FUNGAL ATHESTHETICS made by the Łukasiewicz Research Network – Institute of Polymer Materials and Dyes Engineering

STUDY OF ANTIBACTERIAL PROPERTIES performed by the Łukasiewicz Research Network – Institute of Polymer Materials and Dyes Engineering

REPORT ON THE ASSESSMENT OF ANTIMICROBIAL ACTIVITY according to ISO 22196

REPORT OF TIGHTNESS OF VENTILATION SYSTEM ELEMENTS according to PN-EN 1507 standard made by Wrocław University of Technology

See the simplicity of installing ventilation in the max-vent system, you will do it in 2-3 days alone

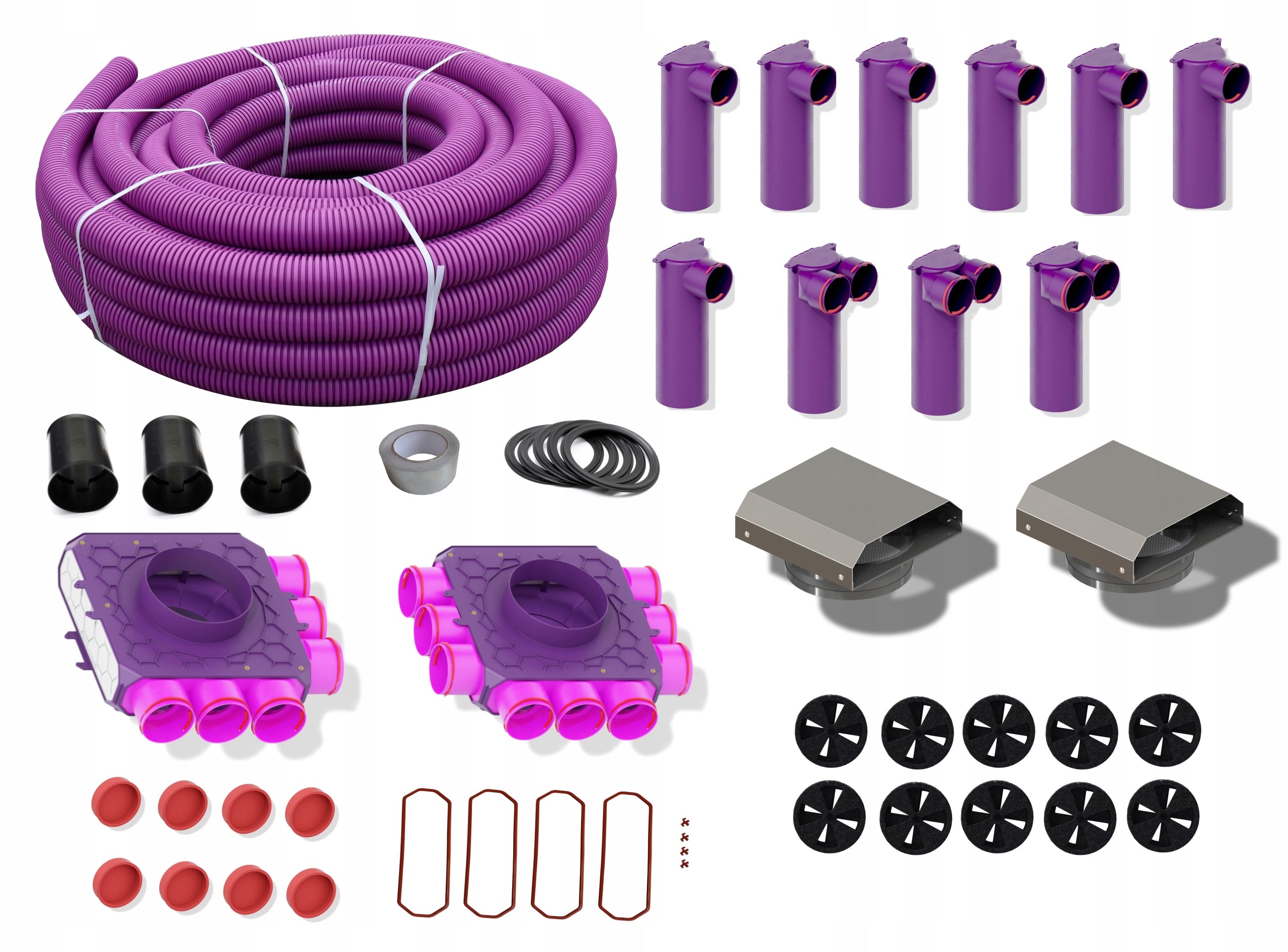

Our products are characterized by:

• Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)
• External reinforcement increases strength does not interfere with flow
• Extended channel mount (in some cases, ring mount will be unnecessary)
• The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces drag, properly directing the air to the appropriate ventilation duct (they fare much better than some products of this class and higher known on the market so far)
• They are quiet no need to dampen them
• They put up a little resistance
• PERIMETER GASKET guaranteeing always tightness (you do not need to use a special expensive disposable knife for cutting ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET)
• They have the addition of silver are antibacterial biocides
• They are antistatic
• Technologies of the twenty-first century NANOMATERIALS were used which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

• System presentation: ▶ https://youtu.be/zwnY-pdrwj8
• Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
• Durability of our products: ▶ https://youtu.be/ZMhyH29QXEY
• How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
• How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0

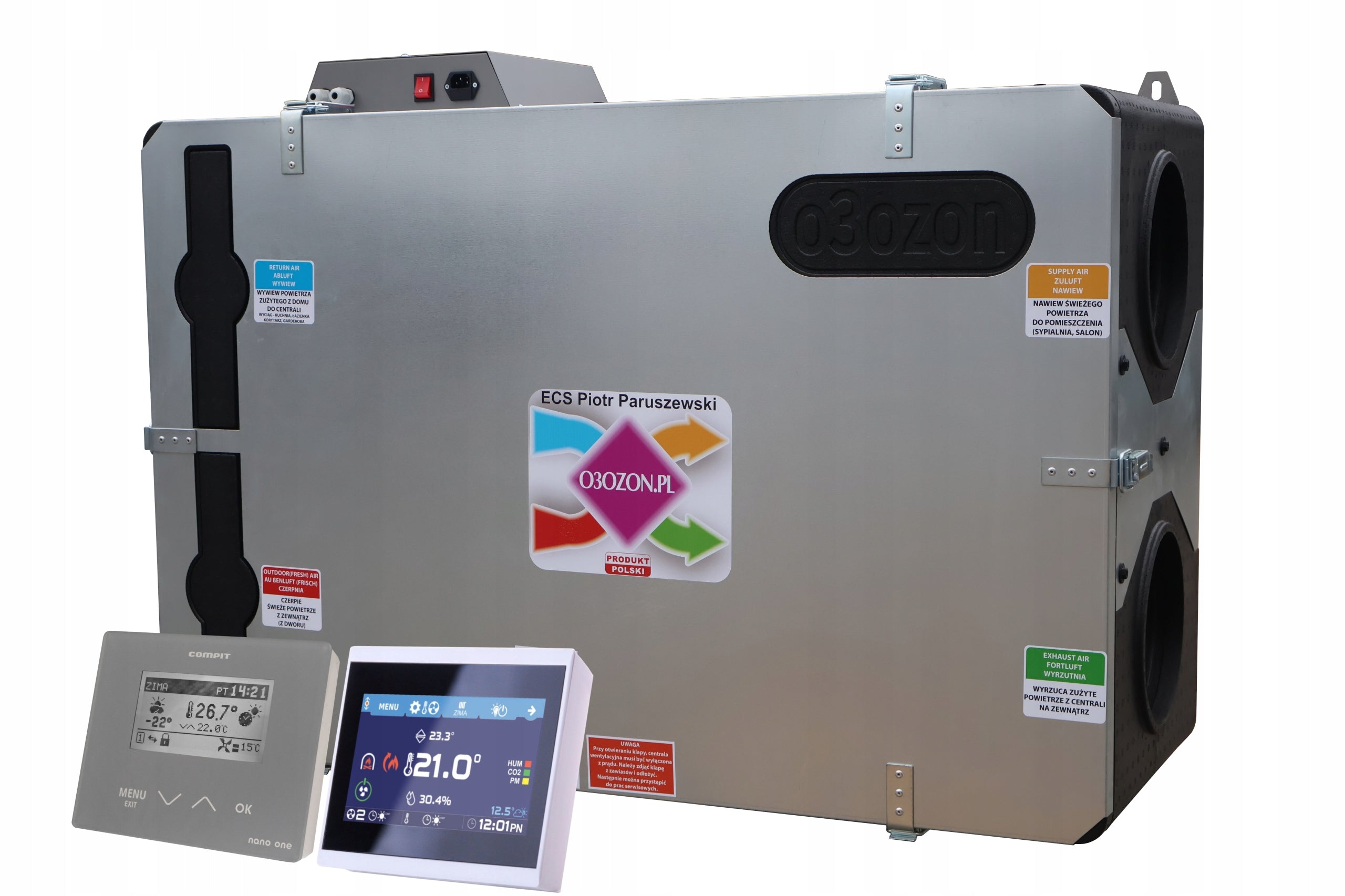

• How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
• Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
• Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
• Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
• Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
• Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
• Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
• Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
• Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU

See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...
