Rekuperacinio vėdinimo komplektas namui 80–110 m²

Trumpai apie prekę

Prekė: Rekuperacinio vėdinimo komplektas namui 80–110 m². Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: MAX-VENT
• Modelis: 5907344501307

50 recuperation system installation course for floors 5cm Styrofoam 10cm floor

▶ https://www.youtube.com/watch?v=GF1mRaIuaEw

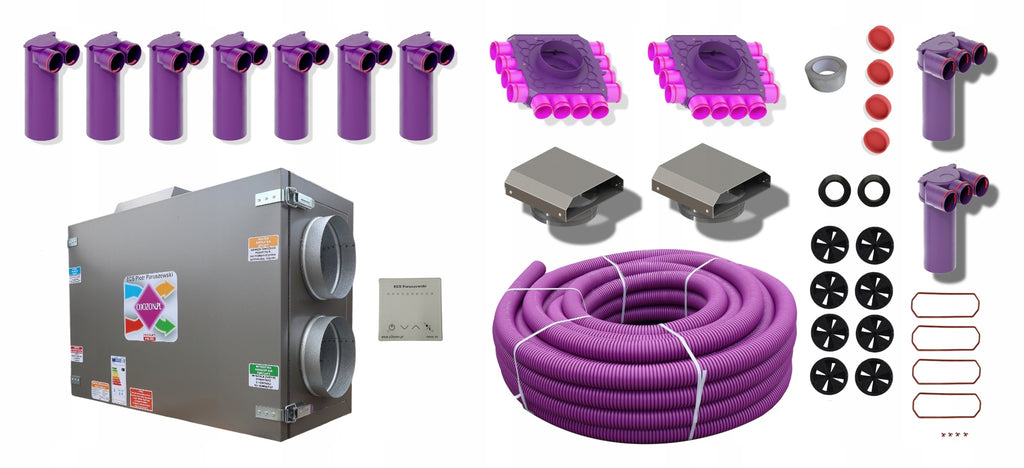

✅ Ventilation pipe with antibacterial coating (30 ppm Ag)

75mm -100 mb (2 discs)

✅ Distribution box 12x75/200 - 2 pcs.

✅ Expansion box 2x75/125 -7pcs

✅ Expansion box 3x75/125 -2 pcs.

✅ Intake K1 - 1pc.

✅ Launcher K1 - 1pc.

✅ Cap - 5 pcs.

✅ Max-Vent Throttle - 10 pcs.

✅ Tape - 1 pc.

✅ CWP 360 recuperator

✅ Gaskets - 40 pcs.

Ventilation unit:

• Center capacity: up to 300 m³/h
• Power: min. 30 W, max. 120 W
• Pressure: to 200 Pa
• Fan capacity: 2x550 m³/h
• Voltage: 230 V, 50 Hz
• Heat recovery efficiency: 65% to 92%
• Engine speed: 2400 rpm
• Noise level: 24-40 dB(A)
• Maximum operating temperature: to 45°C
• Housing: sheet metal
• Insulation: wool 40 mm
• Air supply filter: G4
• Exhaust filter: G4
• Diameter of stubs: 200 mm
• Recuperator efficiency: up to 95%
• Type of recuperator: countercurrent, made of plastic
• Anti-freezing system
• Weight: about 50 kg (compare with other products of this class! )
• Rotary speed controller

plastic with smooth, antibacterial and antifungal (30 ppm Ag)

outer diameter: Ø75 mm

MAX-VENT flexible ventilation pipe is used for movement, transport of supply and exhaust air in mechanical ventilation systems

Wires are characterized by:

-Large flexibility

-Two-layer construction guarantees high strength and allows e.g. flooding with structural concrete and suppresses noise and insulates thermally.

MAX-WENT double layer pipe has an internal coating antibacterial and fungicidal in the form of active silver particles The inner layer also has an antistatic action, which reduces the settlement and accumulation of dust in the pipes.

Distribution boxes 200mm

DISTINGUISHING FEATURES OF THE PRODUCT:

• Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)
• External reinforcement increases strength does not interfere with flow
• Extended mounting per channel -75mm (in some cases, fixing with rings will be unnecessary)
• The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)
• They are quiet you do not need to suppress them
• They put up a small resistance
• PERIPHERAL SEAL guaranteeing always tightness (you do not need to use a special expensive disposable knife to cut ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET )
• They have the addition of silver are antibacterial biocides
• They are antistatic
• Technologies of the twenty-first century NANOMATERIALS were used, which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection

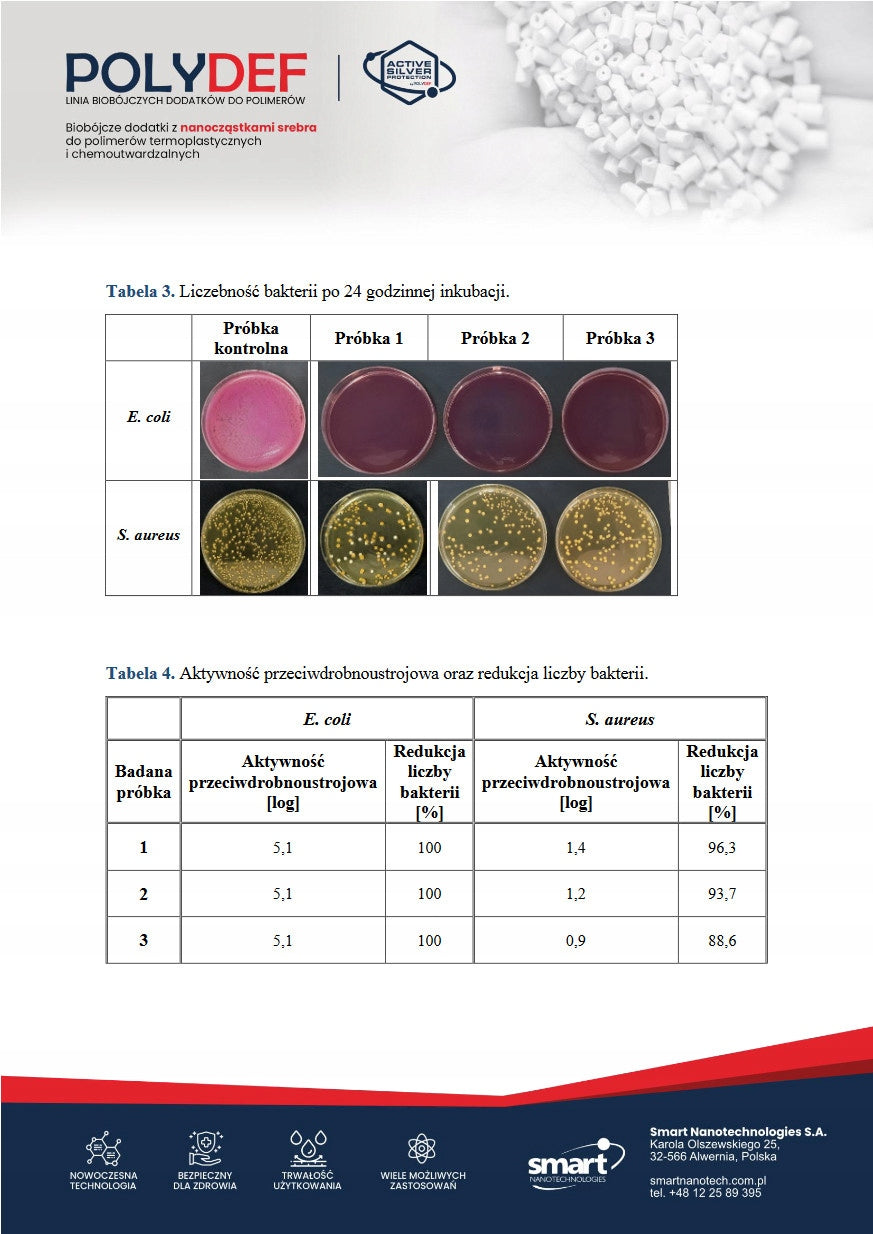

➡ OUR PRODUCTS HAVE EXCELLENT BIOCIDAL PROPERTIES, CONFIRMED BY APPROPRIATE TESTS ⬅

75mm / 125mm EXPANSION BOX

Includes clamp for ventilation ducts.

• Diameter of ventilation duct - 75mm
• Diameter of the main channel - 125mm.

The layer of silver particles eliminates odors, is antistatic, antibacterial and biocidal.

Possibility of cutting and shortening the box.

I am suitable for the exhaust and supply side.

DISTINGUISHING FEATURES OF THE PRODUCT:

✔ Reinforced construction (inspiration taken from nature HONEYCOMB TECHNOLOGY)

✔ External reinforcement increases strength does not interfere with flow

✔ Extended mounting per channel -75mm (in some cases, fastening with rings will be unnecessary)

✔ The shape in the middle of the boxes soundproofs the sound and stabilizes the air flow, reduces resistance, properly directing the air to the appropriate ventilation duct (they perform much better than some products of this class and higher known on the market so far)

✔ They are quiet you do not need to suppress them

✔ They put up a small resistance

✔ PERIMETER GASKET guaranteeing always tightness (you do not need to use a special expensive disposable knife for cutting ventilation ducts (pipes) WE CARE ABOUT THE ENVIRONMENT AND YOUR WALLET )

✔ They have the addition of silver are antibacterial biocides

✔ They are antistatic

✔ Twenty-first century technologies NANOMATERIALS were used, which improves mechanical properties, better visual and structural properties, increases chemical activity, increases antibacterial activity causing less burden on the environment, provides long-term microbiological protection

Intake, launcher

• Diameter: Ø 200
• Made of acid-resistant sheet metal
• Quick and easy installation
• High quality workmanship ensures low noise
• Safety net against insects

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

• System presentation: ▶ https://youtu.be/zwnY-pdrwj8
• Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
• Durability of our products: ▶ https://youtu.be/a3_OZIj2fLI
• See recuperation assembly course: ▶ https://youtu.be/ZMhyH29QXEY
• How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
• How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
• How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
• Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
• Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
• Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
• Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
• Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
• Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
• Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
• Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU

See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...

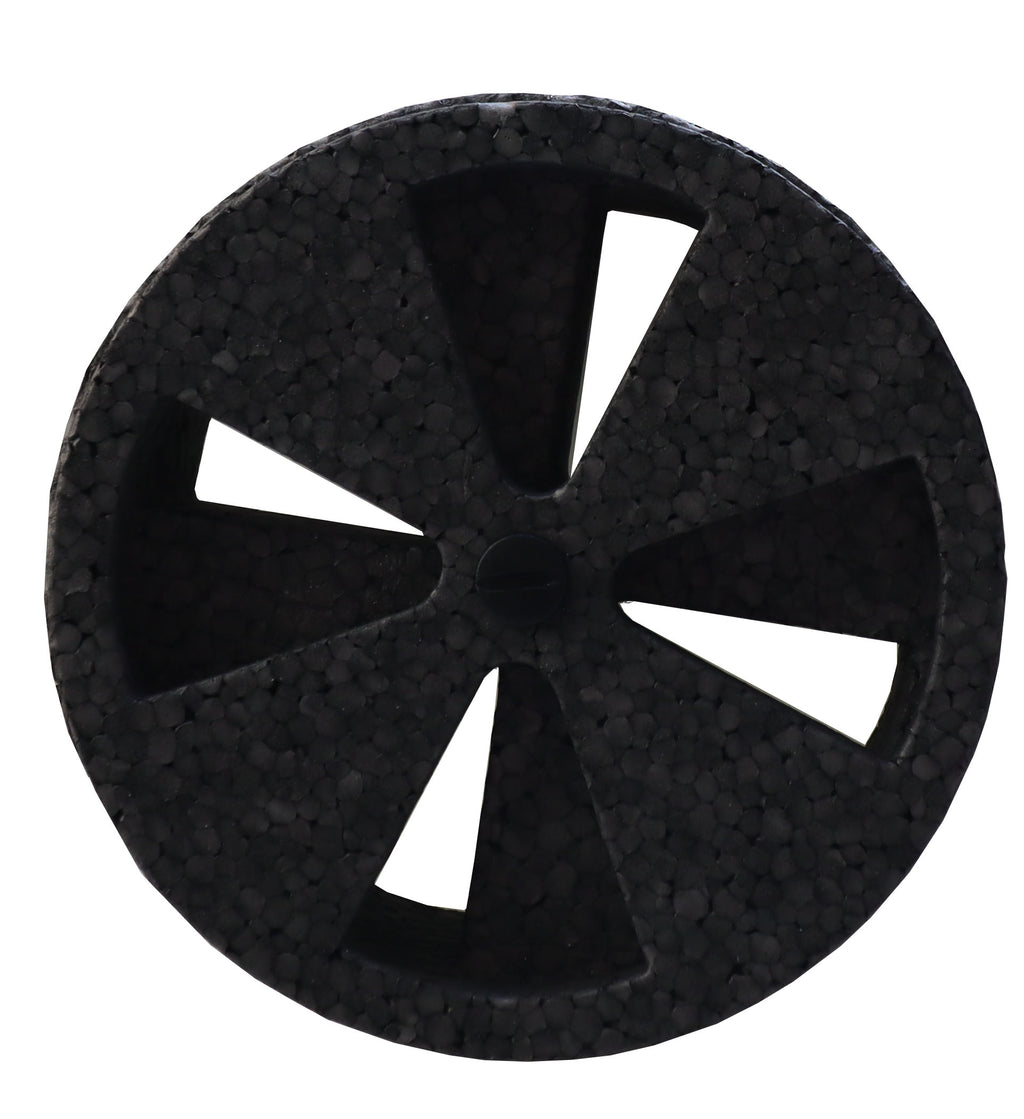

The set includes 10pcs of adjustment dampers to stabilize and silence air flow.

Adjusting these dampers allows you to enjoy an exceptional quiet installation

Foam adjustment damper is an economical damper designed for central ventilation systems with damping properties. It obtains a double role thanks to the construction and the material from which it is made - elastic foam. The throttle slides into a round channel (e.g. before the valve) and then the selected number of factory cut inserts is removed. Several series can be mounted for greater damping

The throttle has very little resistance and adjusts it smoothly

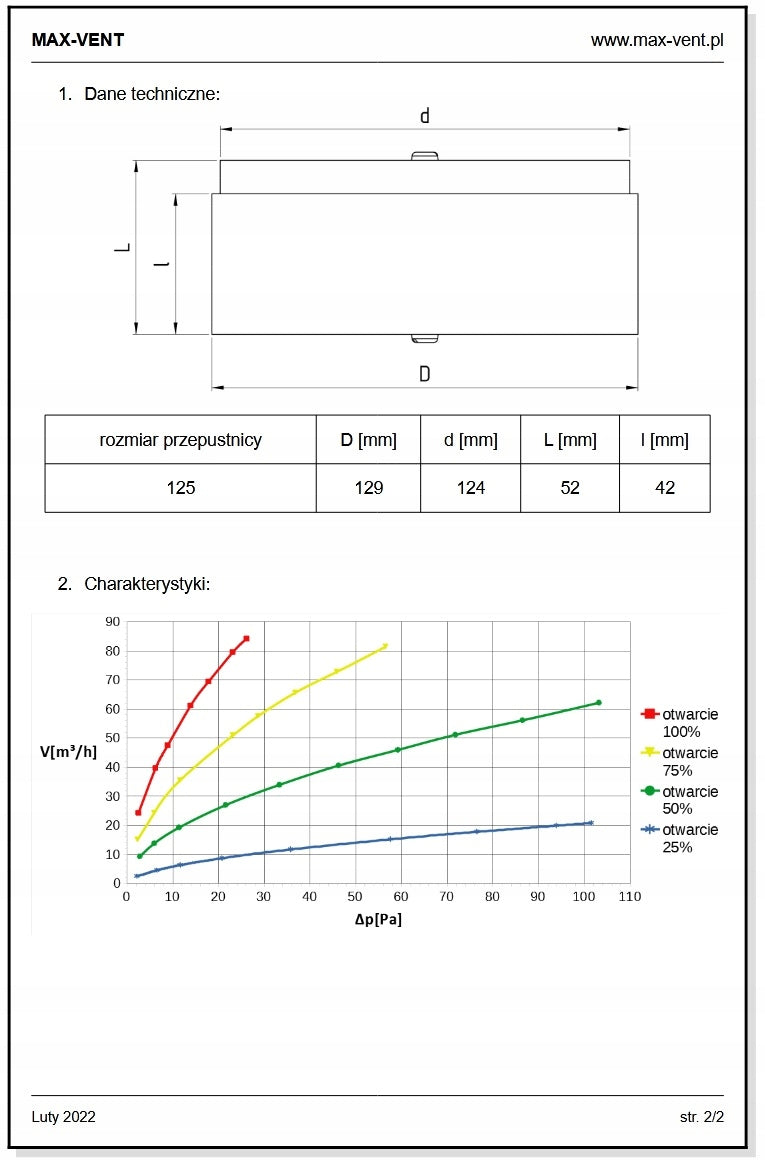

Throttle characteristics

Specifications
