Rekuperacinis įrenginys Alnor HRU-PremAIR-450

Trumpai apie prekę

Prekė: Rekuperacinis įrenginys Alnor HRU-PremAIR-450. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Alnor
• Modelis: HRU-PremAIR-450

Producer: Alnor

Condition: new

Packaging: original

Origin: official distribution

Warranty: manufacturer

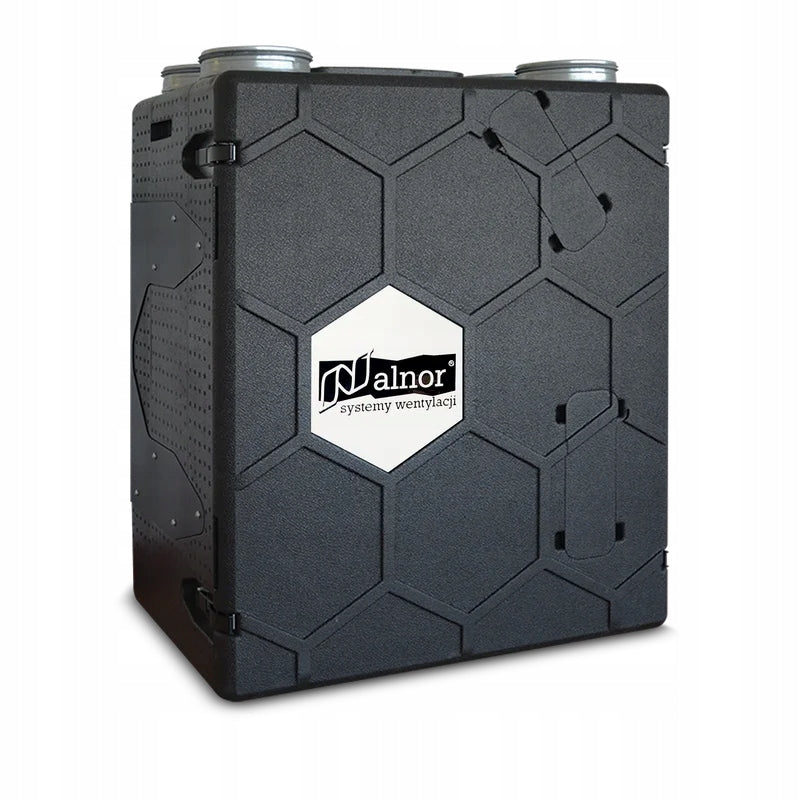

Recuperation unit Alnor HRU-PremAIR-450

Alnor HRU-PremAIR-450 recuperation unit is an efficient device for mechanical ventilation with heat recovery, prepared for single-family houses, commercial premises and modern buildings where stable air exchange, comfort of use and reduction of energy losses count. The Alnor HRU-PremAIR-450 provides an air flow of 450 m³/h at 100 Pa, making it ideal for installations requiring higher efficiency than basic home control panels. It is a solution for investors who expect a constant supply of fresh air, effective moisture removal and high efficiency of heat recovery.

High efficiency of heat recovery

Alnor HRU-PremAIR-450 has been designed to reduce cooling of the building during intensive air exchange. The used air removed from the rooms transfers heat energy to the supply air, which helps maintain a more stable temperature inside the house. In practice, this means better comfort of everyday use and less load on the heating system in the winter season. The recuperator is particularly useful in buildings with good insulation, where controlled ventilation is of great importance for air quality, structural protection and energy-efficient operation.

Thoughtful EPP housing design

The Alnor HRU-PremAIR-450 control panel uses a self-supporting housing made of EPP, i.e. foamed polypropylene. Such material is lightweight, durable and well thermally insulated, while supporting the reduction of sound transmission of the device. The structure has been adapted to the needs of installation in technical rooms, boiler rooms, garages, laundry rooms or other zones intended for domestic installations. The low weight of the device makes it easy to transport, set up and service, and the well-thought-out arrangement of nozzles allows you to conveniently connect the control panel to the duct installation.

Stable ventilation for fresh air in the building

The Alnor HRU-PremAIR-450 recuperator supports constant air exchange without the need for intensive ventilation by opening windows. Thanks to this, fresh, filtered air can enter the interior, and excess moisture, carbon dioxide and pollutants generated during everyday use of the house are removed from the rooms. The control panel works well in installations supporting bedrooms, living room, living rooms, kitchen, bathrooms and dressing rooms. Well-chosen mechanical ventilation helps reduce the risk of condensation of water vapor on windows, reduces the feeling of suffocation and improves the comfort of staying indoors throughout the year.

Automation and convenient control

The Alnor HRU-PremAIR-450 model is equipped with automation enabling convenient management of the control panel. The device can work with controllers and sensors that help adjust the intensity of ventilation to the current conditions in the building. The ability to control through the mobile application after using the appropriate module increases the comfort of use and allows you to control the system in a more flexible way. It is a practical solution for users who expect not only high performance, but also intuitive operation and the ability to adjust ventilation to the rhythm of the household day.

Optional Constant Flow system

The Alnor HRU-PremAIR-450 recuperation unit can be retrofitted with Constant Flow. This feature helps to maintain a constant set air expenditure in the installation, even when the flow resistance changes over time, for example as a result of the gradual contamination of filters. Thanks to this, the ventilation system can work more predictably, and the user gains more control over the amount of air supplied and removed from the building. This is particularly important in installations where stable operation, proper air supply and exhaust balance and high comfort of use are a priority.

Assembly and daily operation

Alnor HRU-PremAIR-450 is prepared for vertical mounting, and the design of the device allows them to be used both as a wall-mounted control panel and set on the floor using appropriate elements. The set includes accessories for easy installation, including a frame, legs, pegs, and a siphon cord. Metal connections with nipple outlet and gasket make it easy to connect to the duct installation. Access to filters and the most important consumables has been planned so that periodic operation is simple and convenient for the user and the installer.

Acoustic comfort and air filtration

In home ventilation systems, not only efficiency is important, but also work culture. The Alnor HRU-PremAIR-450 control panel reaches a maximum sound power level of LWA 48 dB(A), which allows you to design the installation for comfortable everyday use. Standard ISO Coarse 70% filters stop larger contaminants, protecting both users and the internal components of the control panel. Optionally, an ISO filter ePM1 55% can be used, which increases the filtration accuracy of the supply air. Regular replacement of filters helps maintain high efficiency of the device, stable air flow and cleanliness of the entire ventilation system.

Technical data

• Model: Alnor HRU-PremAIR-450
• Device type: recuperation unit with heat recovery
• Airflow: 450 m³/h @ 100 Pa
• Maximum heat recovery: 91,7%
• EU heat recovery 1254/2014: 88,2%
• Exchanger: countercurrent PET
• Rated voltage: 230 V / 50 Hz
• Maximum power consumption: 220 W
• Maximum acoustic power LWA: 48 dB(A)
• Weight: 35 kg
• Standard filters: ISO Coarse 70%
• Optional filter: ISO ePM1 55%
• Built-in RH moisture sensor: yes
• Built-in preheater: not
• Possibility of using an external preheater: yes, 1,5 kW HRQ-PremAIR-HDE-160-1,5
• Optional Constant Flow chip: yes
• Control: automation with the possibility of communication with controllers and sensors
• Mobile control: yes, after connecting to the Internet and using the appropriate module
• Assembly: vertical
• Housing: self-supporting EPP

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Alnor
Parametry	Kind	switchboard
Parametry	Product weight with unit packaging	35 kg
Parametry	Manufacturer code	HRU-PremAIR-450
Parametry	Packaging status	original
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
Parametry	Certificates of conformity	CE
Parametry	Batteries included	yes
