Rekuperacinis įrenginys VANTUBO ECOCOMFORT 100 BASE, 25 m³/h, pagaminta Italijoje

Trumpai apie prekę

Prekė: Rekuperacinis įrenginys VANTUBO ECOCOMFORT 100 BASE, 25 m³/h, pagaminta Italijoje. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vantubo
• Modelis: VANTUBO ECOCOMFORT 100

◀ Compact wall recuperator ▶

⭐⭐⭐⭐⭐

✅ Recovery efficiency up to 90%

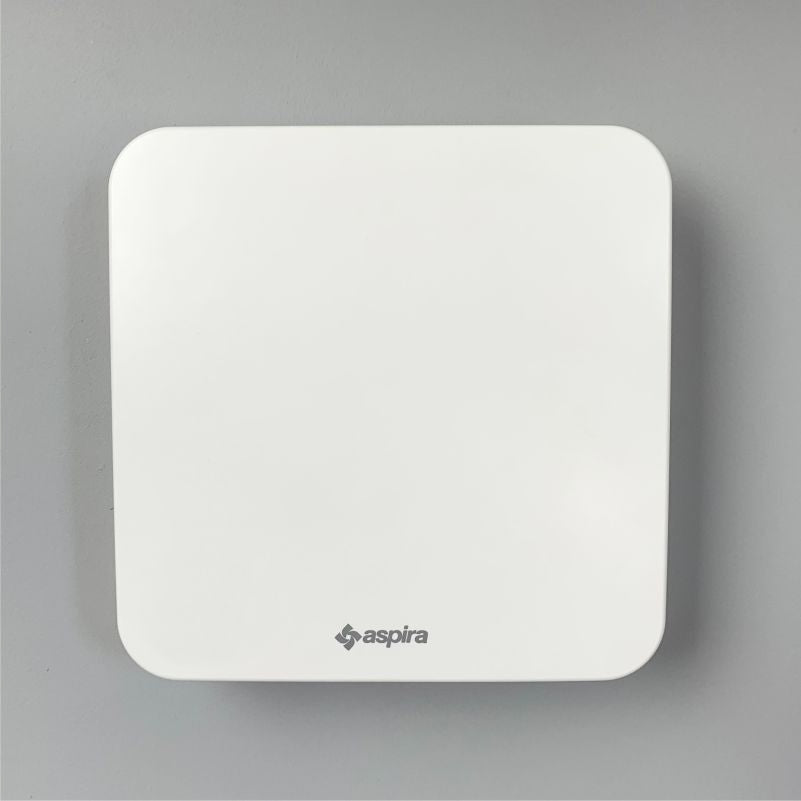

✅ Compact dimension of the front panel: only 18 cm x 18 cm

✅ It does not require the use of a shut-off throttle, designed for continuous operation 24/24h.

✅ Air flow sleep/min/medium/max: 12 / 25 m3/h

✅ Power consumption min / Wed / max: 1,5 / 2 W

✅ Noise level min/medium/max: 21 / 24 dB ( A ) ( 1,5 m )

✅ Power supply 230 V

✅ Voltage 50/60 Hz

✅ Isolation class: IPX4

✅ Diameter 100mm

✅ G3 filtration

✅ Wired regulator wall included.

Option: protection against intense wind / noise.

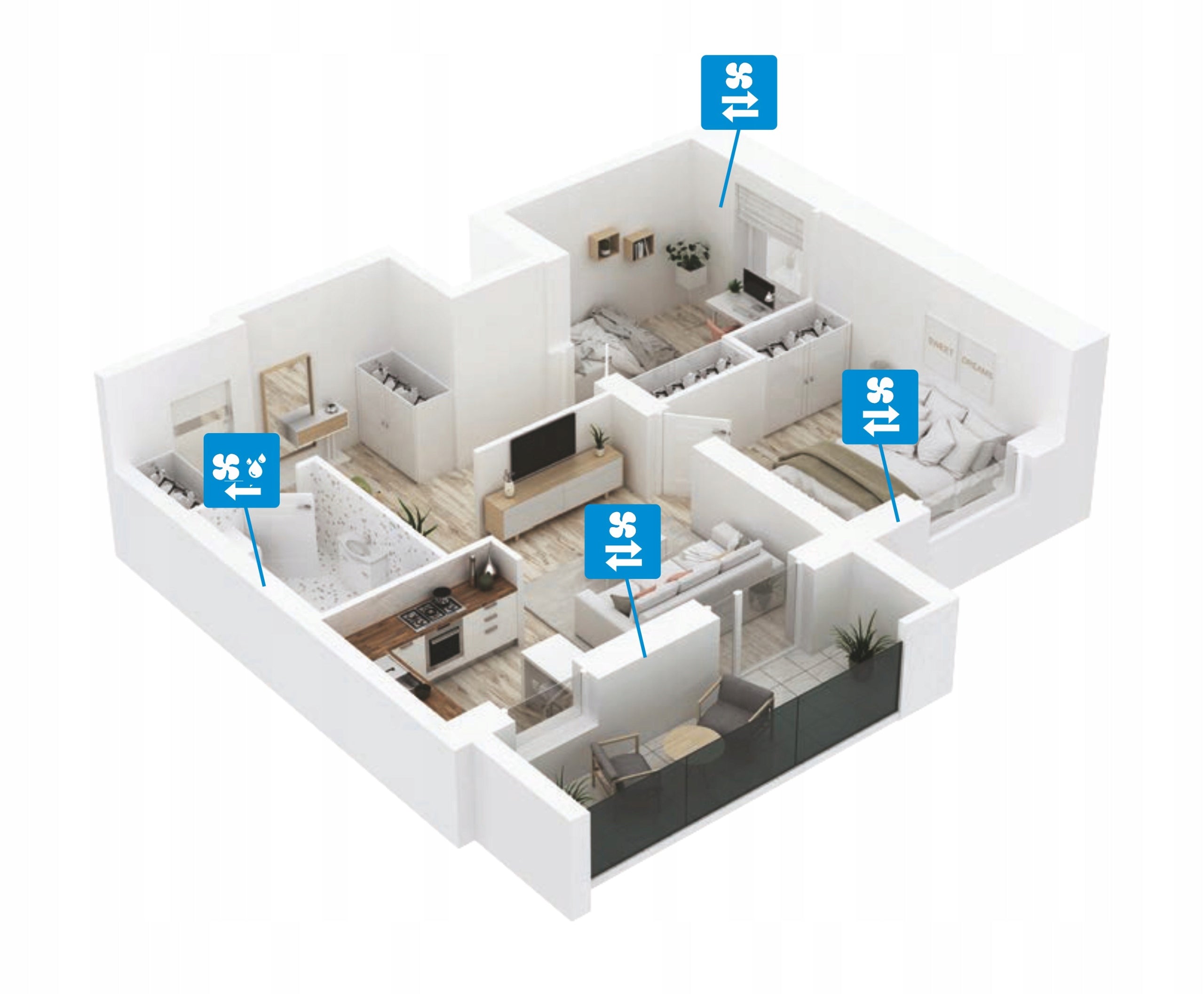

It can operate independently or be part of the ventilation system of the entire building consisting of several devices. The MASTER version works independently or is the basis of a system consisting of subordinate devices in the SAT version.

◀ Functions of the device VANTUBO ECOCOMFORT 100 ▶

✅ 2 fan speeds

✅ Manual mode taking air from the outside.

✅ Manual mode throwing air outside.

✅ AUTO mode with regulation, e.g. inlet 45 seconds / outlet 45 seconds.

✅ Ceramic recuperation system "honeycomb" recovering up to 90% of heat from the ejected air. It draws air from outside the building, introduces it into the room and then ejects the used air outside.

✅ Capacity up to 25 m³/h, is sufficient to ensure adequate indoor air exchange. This device is suitable for living rooms and office spaces.

✅ Washable dust filters (no need to purchase consumables)

✅ Automatically return to the last settings after power resume

✅ Microprocessor controlled, brushless DC motor provides very quiet operation.

✅ Does not require expensive ventilation ducts.

✅ Changes the air in an optimal way.

✅ There is no need to drain the condensate.

✅ Low energy consumption which is confirmed by the excellent energy class.

✅ Easy to clean and maintain

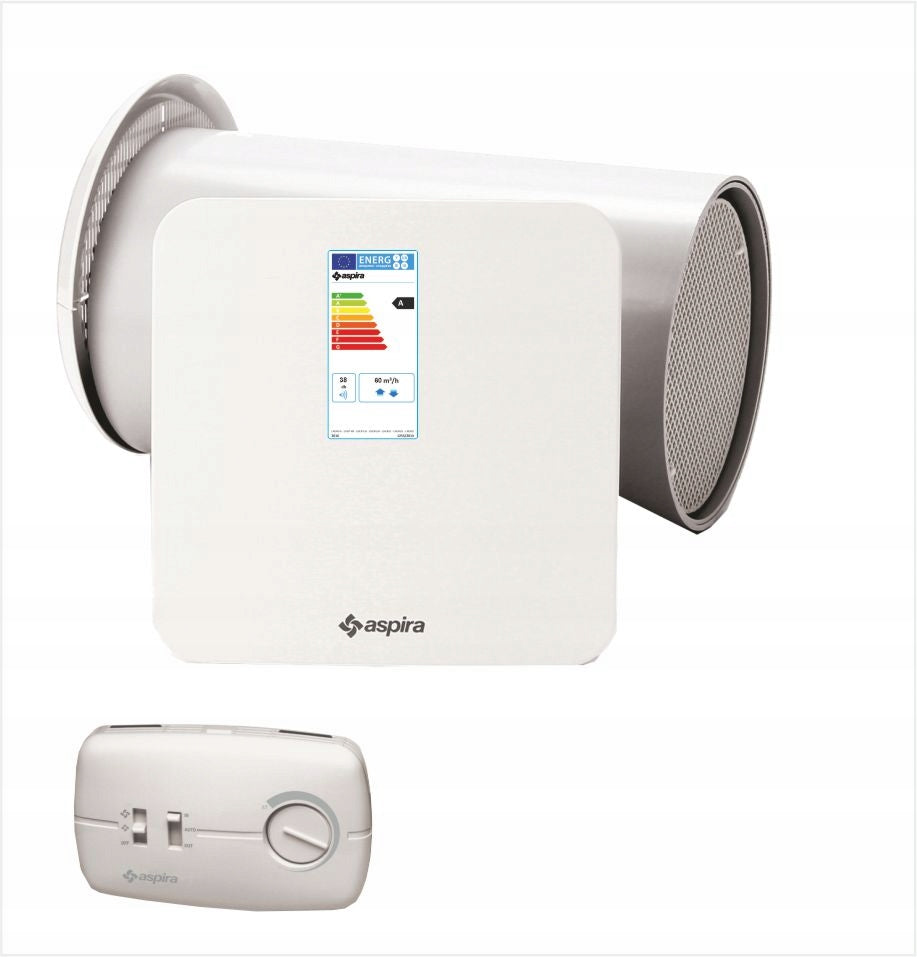

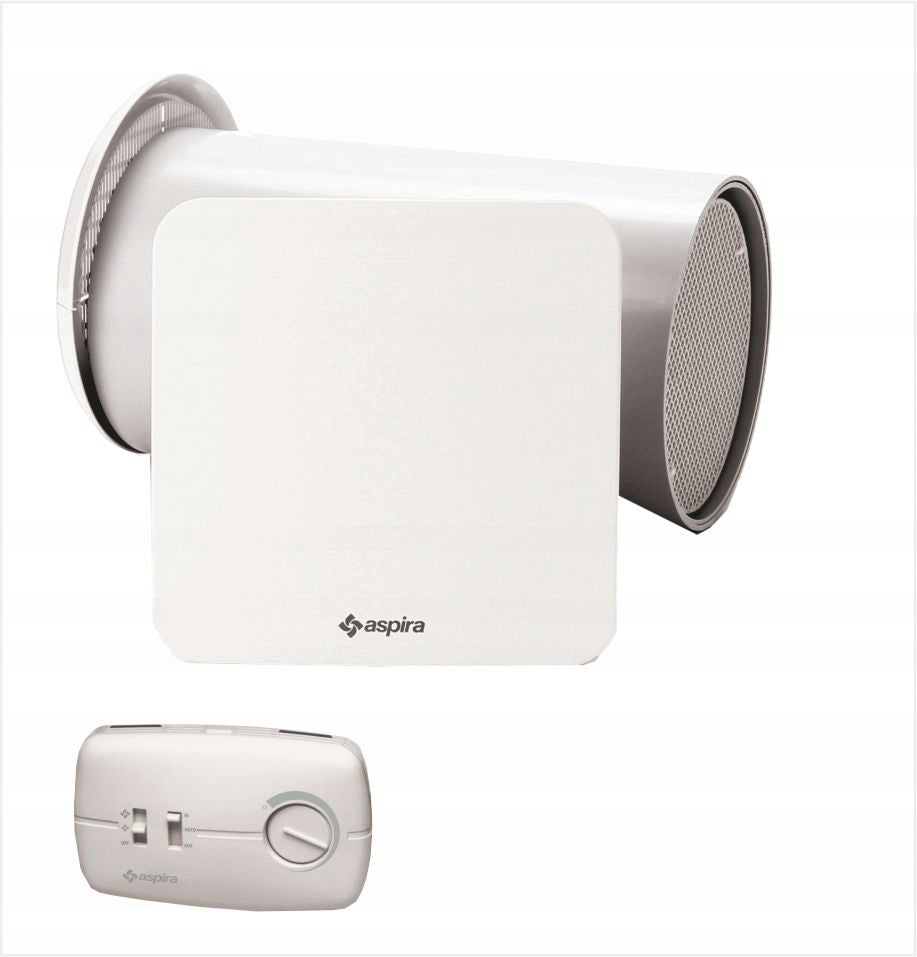

◀ Wall-mounted controller functions ▶

1. Low speed

2. High speed

3. Inlet only mode, Free cooling

4. On off

5. Moisture and Odor Removal Mode

6. Auto mode

7. Time adjustment of inlet/outlet cycles in AUTO mode

◀ Construction of the device ▶

1. Fan with brushless motor

2. Ceramic heat exchanger

3. Grille mounted from the inside

4. Matte white high quality plastic fan cover

5. Washable air purifying filter

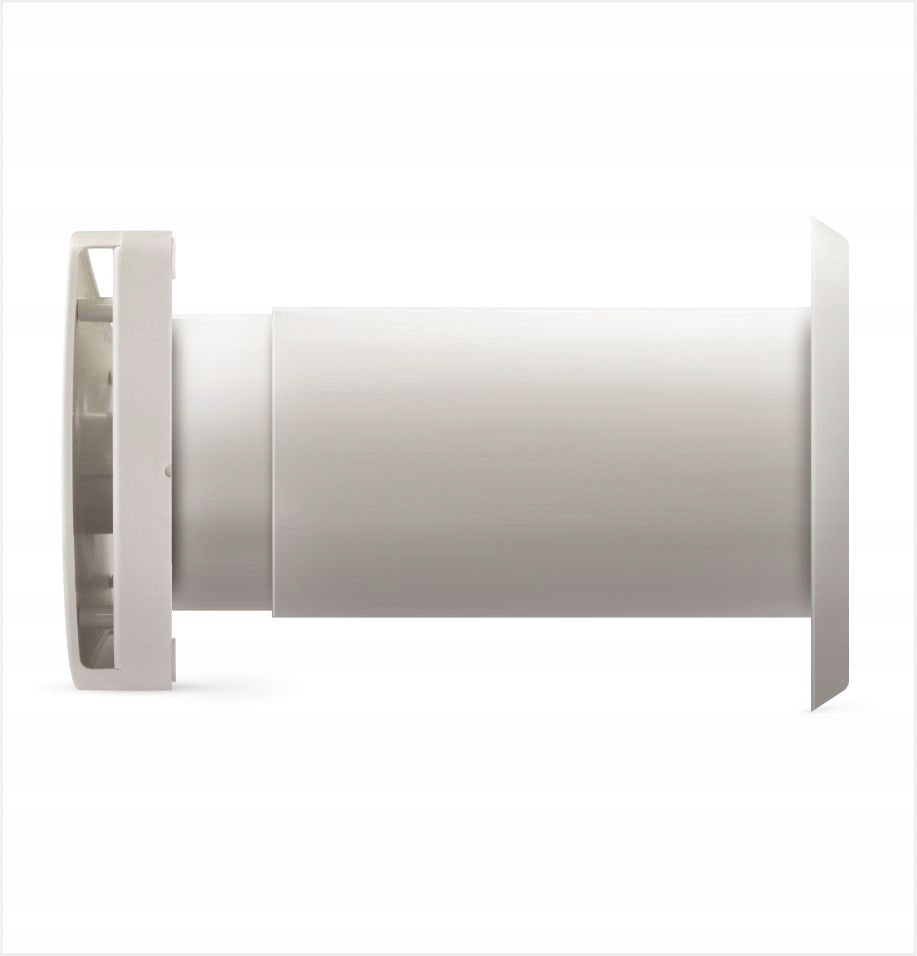

6. Adjustable telescopic channel for wall mounting

1. Air blown into the room 20°C

2. Ceramic recuperator, honeycomb heat exchanger

3. Air in the room 23°C

4. Air taken from outside the building 10°C

◀ VANTUBO ECOCOMFORT ▶

✅ Low cost compared to duct ventilation

✅ Provides oxygen-rich fresh air

✅ Hardens the spread of viruses and bacteria

✅ Removes excess moisture preventing i.a. mold

✅ Removes amount of CO2 and pollutants in the air

✅ Removes allergens and mites

✅ Reduces smoke and bad odors

✅ Minimizes heat loss

The device meets the requirements of for mechanical ventilation systems with heat recovery.

Possibility of financing up to 60% from the Clean air program.

More information in the GUIDE download below.

◀ ASSEMBLY ▶

✅ There is no need to distribute ventilation ducts throughout the building.

✅ The device is mounted on the external wall from the inside.

✅ All you need is one hole with a diameter of 10 cm and a power connection.

✅ Telescopic pipe allows you to adjust its length to the thickness of the wall.

✅ The special design of the ventilation grille allows it to be installed from the inside.
