Rekuperacinis vėdinimo įrenginys Mycond MVS700-DW

Trumpai apie prekę

Prekė: Rekuperacinis vėdinimo įrenginys Mycond MVS700-DW. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Mycond
• Modelis: MVS700-DW

Producer: MyCond

Condition: new

Packaging: original

Origin: official distribution

Warranty: manufacturer

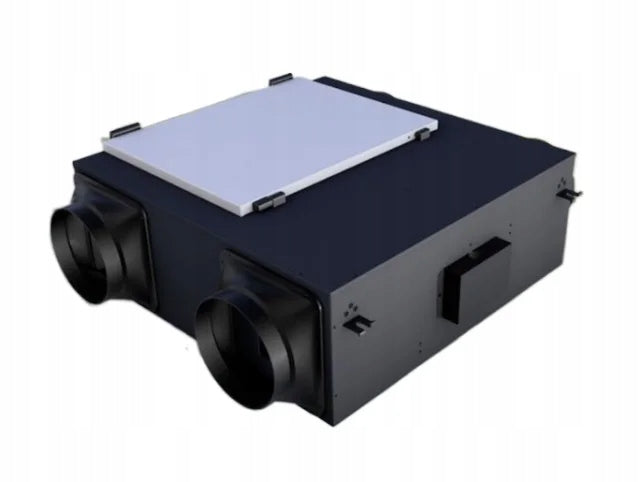

Ventilation unit recuperator Mycond MVS700-DW

MYCOND is a British brand specializing in innovative solutions in the field of air conditioning and ventilation. Devices of this brand are characterized by high energy efficiency and exemplary quality at an affordable price on the market.

The energy-efficient MVS recuperator was created to extract polluted air from rooms, replacing it with clean and heated air. Accurate filtration of the supply air is ensured by specially designed filters that remove impurities. The device works thanks to a modern brushless DC motor, which reduces energy consumption by up to 70%! Despite its high efficiency, the recuperator is also very quiet. This is due to the microperforated anechoic design with excellent aerodynamic properties.

Energy recovery - the device uses a heat exchanger to recover about 70% of energy from the exhaust air, while using it to heat the supply air to the rooms.

Filtering and air purification - air supplied to rooms is filtered and purified using specially designed dedicated filters in an aluminum housing.

By-pass - a special function that allows you to extend the heat life of the exchanger, and allows you to use the free-cooling mode in the autumn-spring period.

Waterproof design and easy maintenance - the connection of the heat exchanger with a molded rail, and sealed with special seals allows for manual removal and maintenance separating the flow of fresh and exhaust air to avoid cross-contamination.

The device can be conveniently controlled using a clear touch panel or optionally using a mobile application (after purchasing an additional WiFi module Mycond).



Characteristics of MVS...-DW devices:

• Brushless motor and heat recovery to reduce energy costs by up to 70%
• Quiet operation thanks to a special housing with aerodynamic properties
• Built-in special filter to purify the supply air from any impurities
• Four temperature sensors
• Intelligent recuperator defrosting system
• Protection against freezing
• Recuperator speed control (10 speeds)
• Free cooling system
• Weekly clock
• Integrity with the building management system
• External control of electric air heater
• Waterproof design and easy maintenance
• By-pass function
• Heat transfer materials are mold-proof and fire-resistant
• heat recovery efficiency up to 82% in winter
• Easy-to-use touch panel controlling the device
• Optionally, the possibility of buying a dedicated WiFi module to control the device using mobile devices, e.g. on a tablet or smartphone

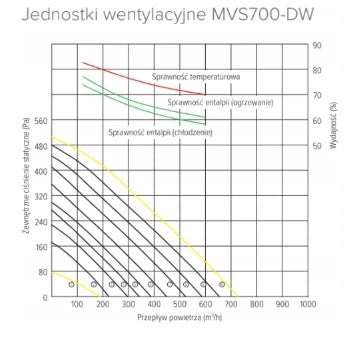

Basic parameters of the MVS7-DW model

• Air flow rate (m3/h) - 600
• External pressure (Pa) - 97
• Enthalpy efficiency, cooling (%) - 59-74
• Enthalpy efficiency, heating (%) - 70-83
• Heat transfer efficiency (%) - 70-83
• Noise level (dB (A)) - 39

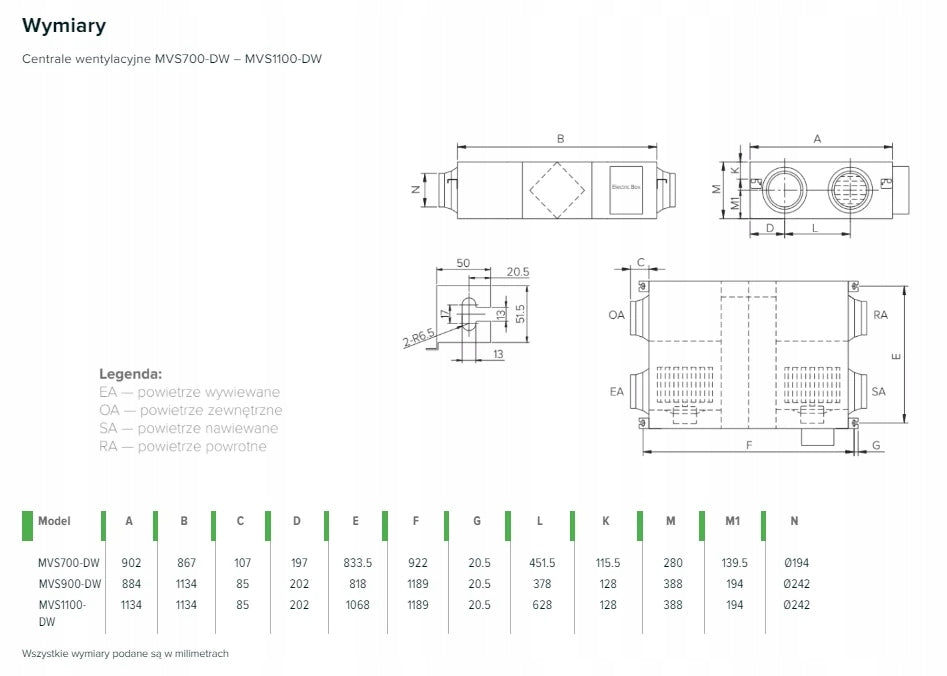

• Dimensions D×S×W (mm): 867×902×280

Optionally, the device can be equipped with: dedicated WiFi module, CO2 sensor, humidity sensor. (all additional items are available in our offer)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Mycond
Parametry	Kind	heat recovery ventilator
Parametry	Manufacturer code	MVS700-DW
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A+
Parametry	Batteries included	yes
