Rekuperatorius Aerauliqa Quantum Next 150

Trumpai apie prekę

Prekė: Rekuperatorius Aerauliqa Quantum Next 150. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: 003015

Recuperation is mechanical ventilation with heat recovery, which exchanges used air for fresh. The air supplied to the rooms is additionally cleaned of dust and smog.

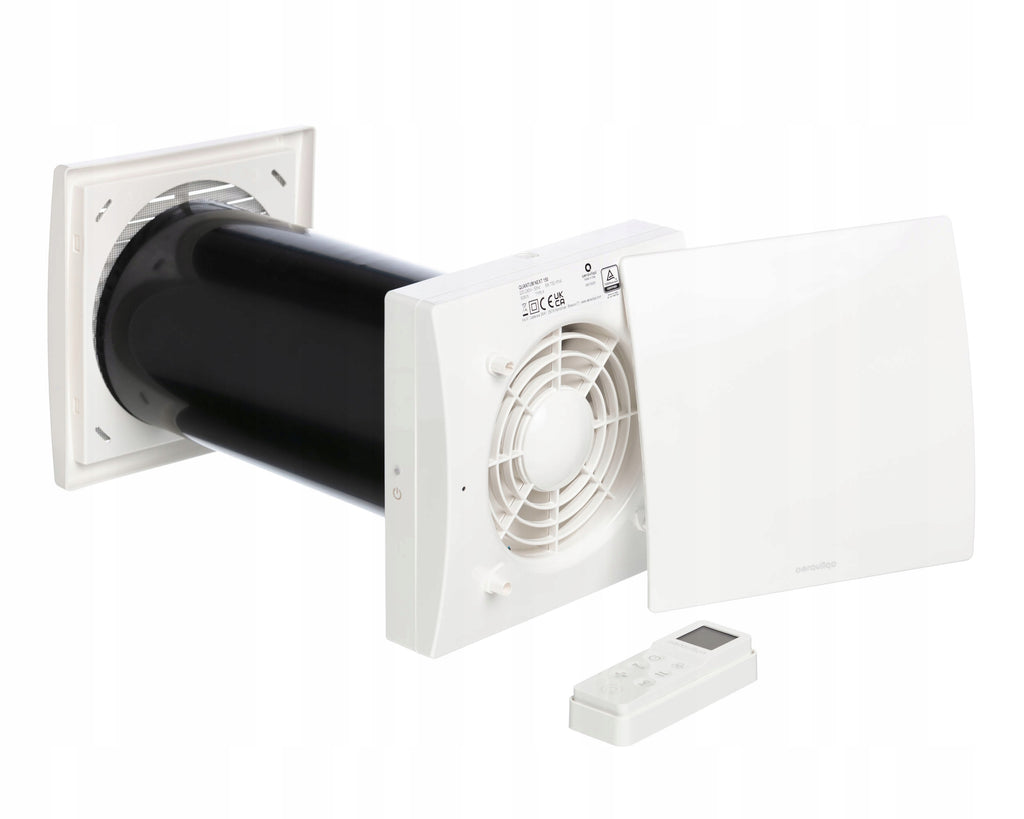

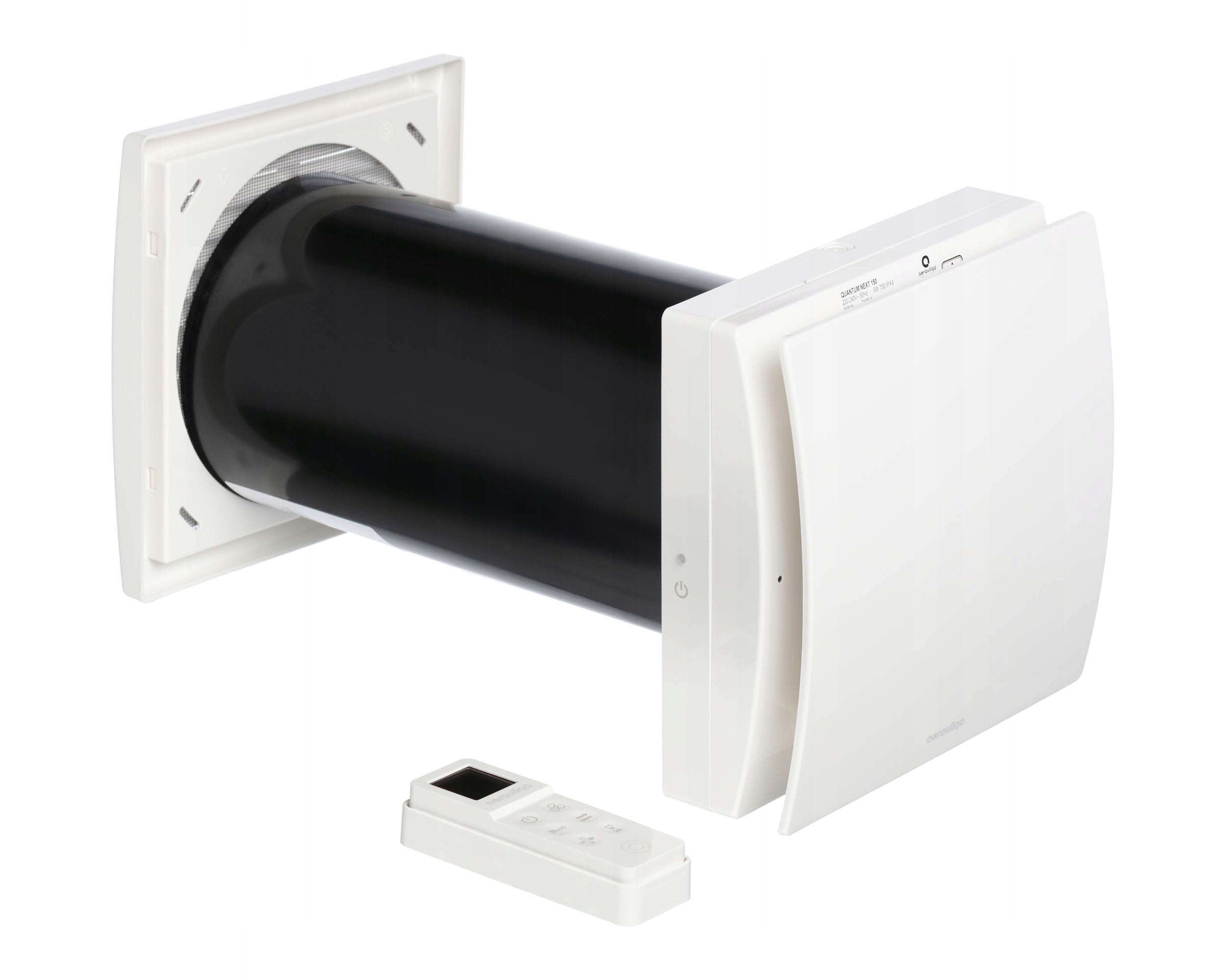

Quantum NEXT 150 recuperator with heat recovery in energy efficiency class "A" with adjustable length wall diffuser (300-560 mm) with protective grille on the exit side.

The list of UTIs is an aid for applicants of the Clean Air Programme in the selection of equipment and materials eligible for funding.

Device ID - WE000588

Name własna - Mechanical ventilation with heat recovery

✅Regulation of work in the range of 20-60 m3/h

✅Telescopic (adjustable) channel with a length of 300-560 mm

✅5 levels of operation - remote control

✅Equipped with a protective grille (against dust).

✅Integrated temperature sensor for automatic inversion time management (comfort mode)

✅Automatic freezing protection to prevent frost buildup on the heat exchanger.

✅Spare button touch on the side of the ventilation unit.

✅Unique rotor blade design provides improved aerodynamic properties, low noise and increased efficiency.

✅High-performance, brushless, energy-saving engine with built-in thermal protection, mounted on sealed, durable high-quality ball bearings. Designed for continuous, alternating operation.

✅Regenerative heat exchanger with ceramic core with high thermal efficiency, equipped with dust filter, reusable.

✅Outdoor grille made of high quality ABS material, with insect screen and condensate cover.

✅The device has double insulation - no ground connection is required.

Thanks to its specification, it is ideal for rooms up to 45 m². Equipped with brushless EC motor with very low power consumption, controlled fan operation using the originally included remote control. The recuperator with integrated automatic humidity control and heat recovery will ensure efficient ventilation of the room reducing the need for our interference with the device.

The device is equipped with an infrared remote control, with a wall mount bracket. The magnet allows you to attach the remote to the holder.

Quantum NEXT 150 recuperator with humidity sensor and remote control:

✅Intelligent humidity control. When the humidity sensor detects rapid changes in the relative humidity level, the rotational speed will automatically increase to the next, higher speed. Intelligent humidity control is active if the direction of air flow is set alternately or is in "exhaust" mode only.

✅ Boost speed. The device operates at Boost max. speed for 15 minutes, in exhaust mode only, then returns to the previously selected mode / speed.

✅Free Cooling. The device operates in "exhaust only" or "air supply only" mode to avoid heat recovery when it is not needed.

✅Filter alarm. Every 3 months, a yellow warning light is activated to indicate that the filter should be cleaned.

✅Antifrost - protection against freezing of the exchanger. Function to prevent frost buildup on the heat exchanger.

✅Sound signal. Every time the setting is transmitted from the remote control to the device, a short beep is emitted. This function can be disabled.

✅Recuperator with humidity sensor + remote control

✅ ⌀ 150mm outlet diameter

✅Regulation of work in the range of 20-60 m3/h

✅Volume from 10 dB(A) - quiet operation

✅Maximum power consumption per level 6W

✅Adjustable size in the range of 300-560 mm

✅5 levels of operation - remote control

✅One remote control can control more units.

✅Equipped with a protective filter (against dust)

✅Ideal for single-family houses and for installation in one room (block).

✅ Power supply 220-240 V - 50 Hz

✅IPX4 rating

Quantum NEXT 150 recuperator is a universal device suitable for installation in both new and traditional construction. The 5 different power levels set with the remote control will make using the product simple and enjoyable. recuperator with five operating modes:

• l Degree - 20 m3 /h (10 dB, power consumption: 2 W)
• ll Degree - 30 m3 /h (14 dB, power consumption: 2,5 W)
• lll Degree - 40 m3 /h (20 dB, power consumption: 3,5 W)
• lV Degree - 50 m3 /h (24 dB, power consumption: 4,5 W)
• V Degree - 60 m3 /h (29 dB, power consumption: 6 W)

The Aerauliqa Quantum NEXT recuperator alternates between air intake and intake functions, with automatically controlled intake and intake periods in comfort mode. These periods are set using the temperature sensor built into the device to provide ventilation with the highest energy efficiency.

☑ Boost speed. The device operates at Boost max. speed for 15 minutes, in exhaust mode only, then returns to the previously selected mode / speed.

☑ Free Cooling. The device operates in "exhaust only" or "air supply only" mode to avoid heat recovery when it is not needed.

☑ Filter alarm. Every 3 months, a yellow warning light is activated to indicate that the filter should be cleaned.

☑ Antifrost - protection against freezing of the exchanger. Function to prevent frost buildup on the heat exchanger.

☑ Sound signal. Every time the setting is transmitted from the remote control to the device, a short beep is emitted. This function can be disabled.

☑ Wall recuperator with humidity sensor + remote control

☑ 5 OPERATING MODES

☑ 5 FAN SPEED LEVELS

☑ Integrated temperature sensor for automatic inversion time management (comfort mode)

☑ Automatic freezing protection to prevent frost build-up on the heat exchanger.

☑ Outlet diameter ⌀ 150mm

☑ Working regulation in the range of 20-60 m3/h

☑ Very quiet operation from 10 dB(A)

☑ Maximum energy consumption per level 6W

☑ Adjustable size in the range of 300-560 mm

☑ One remote control can control more units.

☑ Equipped with a protective filter (against dust)

☑ External grille made of high quality ABS material, with insect screen and condensate protection.

☑ Ideal for single-family houses and for installation in one room (block).

☑ Power supply 220-240 V - 50 Hz

☑ Protection rating IPX4

Direction of air flow:

☑ ALTERNATING (RECUPERATION)- The device operates in exhaust/air mode at the selected speed: the inversion time is automatically determined thanks to the integrated temperature sensor (comfort mode).

☑ EXHAUST - The device operates in exhaust mode only at the selected speed.

☑ AIR SUPPLY - The device operates in air supply mode only at the selected speed

Modes:

☑ COMFORT - Ooptimization of acoustic and thermal comfort. The inversion time changes automatically from 40 ÷ 120 seconds, thanks to the built-in temperature sensor. The first cycle is 70 seconds, then it changes automatically depending on the detected temperature conditions

☑ RECOVERY - optimization of thermal efficiency. The inversion time is set at about 70 seconds.

☑ NIGHT MODE

YOU DO NOT NEED TO CONTROL THE RECUPERATOR - IT WILL ADJUST THE SPEED LEVEL TO THE HUMIDITY LEVEL!

After 10 minutes from the last rapid change in relative humidity, the unit returns to work at the selected speed.

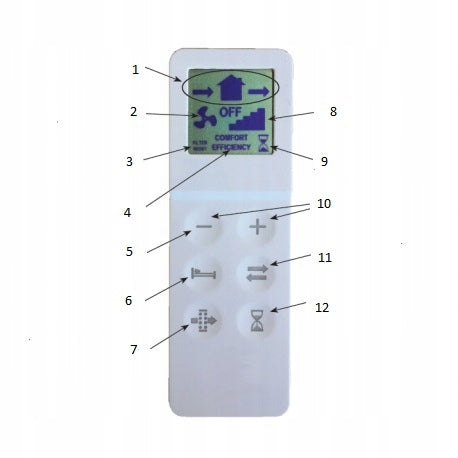

1-WAY FLOW

2-SPEED

3-RESET FILTER

4-TRYB

5-BUTTON ON

6-BUTTON MODE

7-BUTTON FILTER RESET

8-SPEED

9-BOOST

10-BUTTON SPEED SELECTION

11-BUTTON FLOW DIRECTION

12-BUTTON BOOST

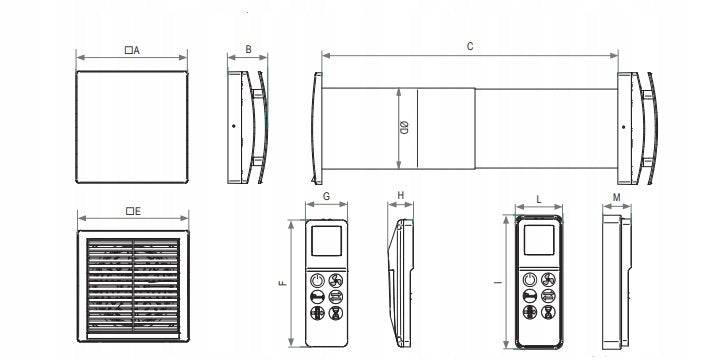

A - 218

B - 77,5

C - from 300 to 570

D - 159

E - 218

F - 117,5

G - 39

H - 23

I - 124

L - 44

M - 26,5

The list of UTIs is an aid for applicants of the Clean Air Programme in the selection of equipment and materials eligible for funding.

Device ID - WE000588

Name własna - Mechanical ventilation with heat recovery

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Kind	heat recovery ventilator
Parametry	Product weight with unit packaging	5.2 kg
Parametry	Manufacturer code	003015
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
Parametry	Certificates of conformity	CE
