Rekuperatorius G-VENT namams iki 120 m² + pilnas X-Premium montavimo rinkinys

Trumpai apie prekę

Prekė: Rekuperatorius G-VENT namams iki 120 m² + pilnas X-Premium montavimo rinkinys. Kategorija: Dalys.

• Gamintojas: no brand
• Modelis: G-vent

G-VENT recuperator 260m3/h + Complete X-Premium Installation Kit for home 120m²

The set is one of the most economical ways to perform recuperation in a single-family house. This solution is prepared for investors who want to perform the installation themselves and reduce the cost of the entire investment.

The G‑VENT 260 m³/h recuperator with a complete X‑Premium installation kit allows you to perform recuperation installation in a house with an area of up to about 100 – 120 m². The set includes a Portuguese recuperator and a set of installation elements produced by polish – distributors, expansion boxes and ventilation ducts.

The installation can be done by yourself, step by step. For the set you get technical support and free air balance, which helps properly arrange air vents and exhausts in the house.

By performing the installation yourself, you will save several thousand zlotys on installation costs compared to a comprehensive installation service.

Which house is this set intended for?

• the house is well insulated,
• the number of inhabitants is small,
• installation includes the most important rooms (living room, bedrooms, kitchen and bathroom).
• best suited for single-family houses with an area of up to approx. 100 m². especially when:

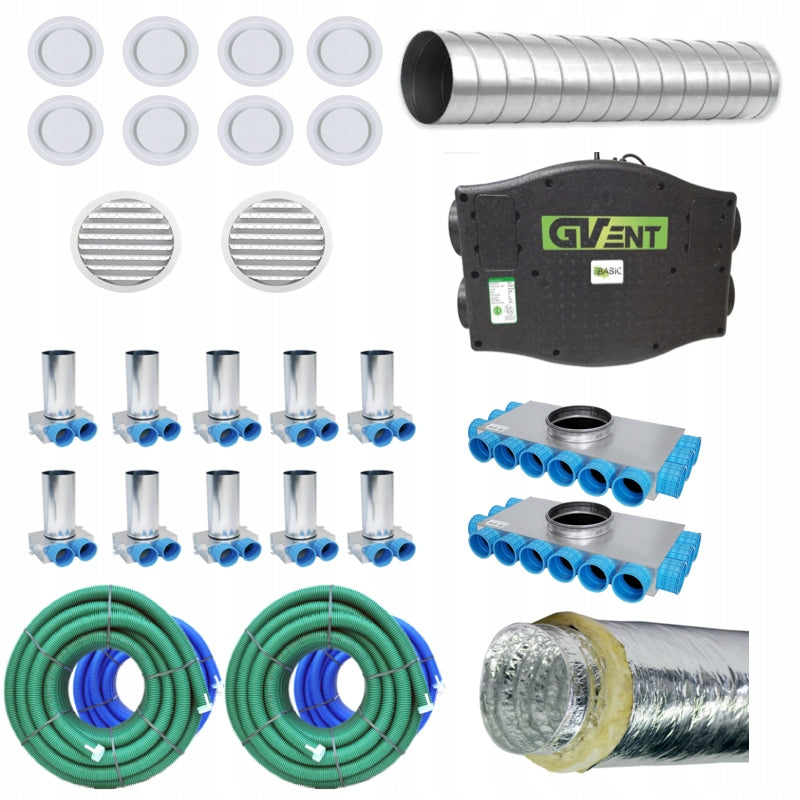

The set includes:

• Recuperator G‑VENT 260 m³/h

  A countercurrent recuperator equipped with branded German ZERN ENGINEERING exchanger and a simple room controller for gear adjustment.

• Angle splitters X‑Premium 12×75/160 – 2 pcs.

  High quality distributors with Ø160 mm input, with seals and internal insulation reducing installation noise.

• X‑Premium expansion boxes – 12 pcs. (2×75 / 125)

  Elements ensuring proper air distribution in the installation. Solid galvanized steel up to 270 g/m².

• Green DN75 ventilation channel – 150 mb (Blue may occur, it depends on delivery)

  Antibacterial and antistatic installation cable for air distribution in the house.

• Cable in insulation 50 mm – 10 m (DN160)

  Isolated ventilation duct reducing heat loss and the risk of condensation.

• Nipple reduction RPCL‑160/125 – 4 pcs.

  Element enabling correct adjustment of ventilation duct diameters.

• Spiro channel DN160 – 1,5 m

  Galvanized steel channel for the main connections of the installation.

• Exhaust anemostats IK125 – 6 pcs.

  Elements enabling regulation of the amount of air exhausted from rooms.

• Air supply anemostats IK125 – 6 pcs.

  They provide even distribution of fresh air in the home.

• External grilles KWO Ø160 – 2 pcs.

  Intake and air launcher for installation on the facade of the building.

• Technical support during assembly

Installing the system yourself can significantly reduce the overall cost of the investment, potentially saving you even tens of thousands of Polish Zloty compared to hiring an installation company.

✔ You save on the cost of professional installation, potentially 5000-7000 PLN

✔ You receive a layout plan for the supply and exhaust vents – valued at 500 PLN

✔ The installation can be done yourself or with the help of a friend, making it much cheaper than a complete professional installation service

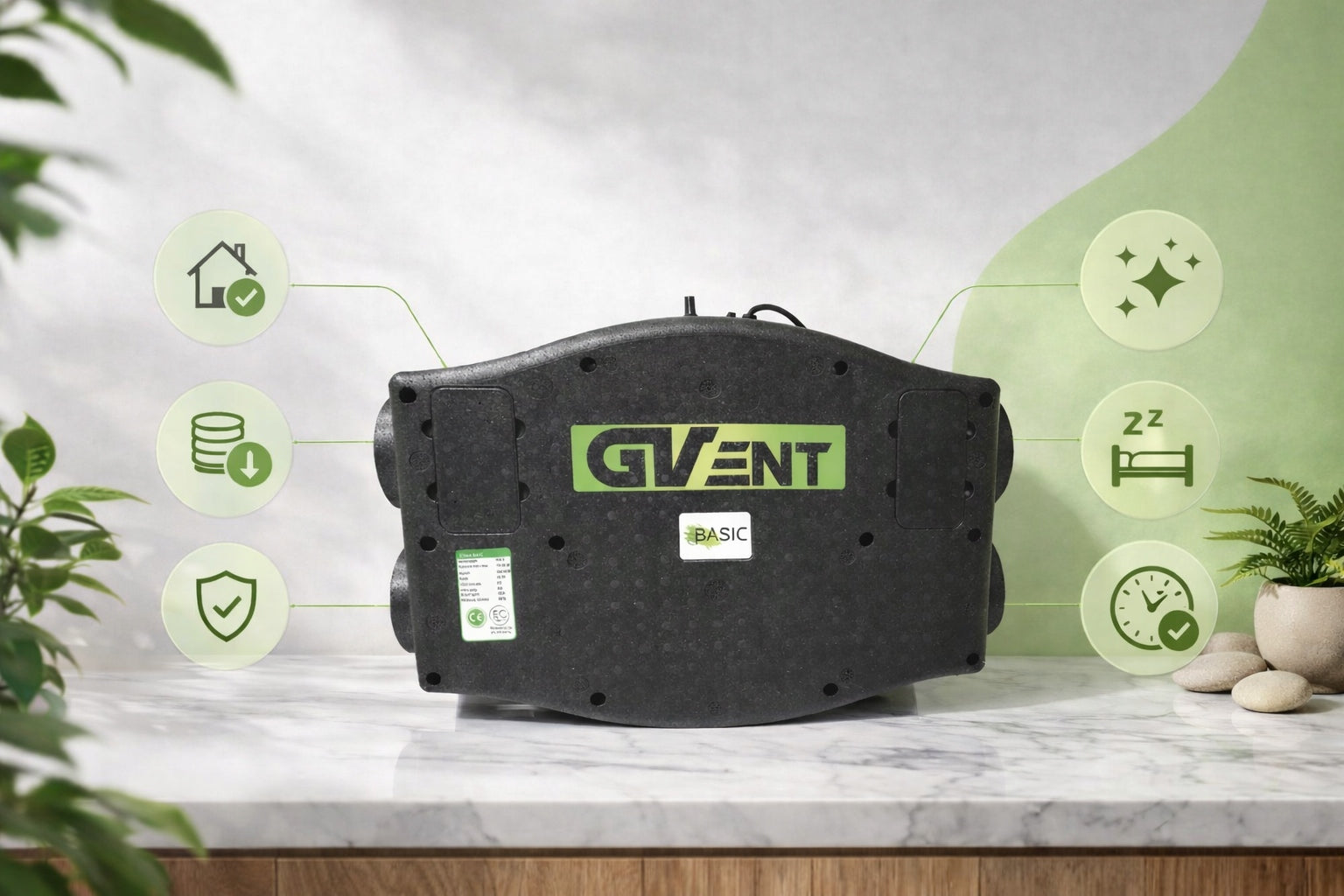

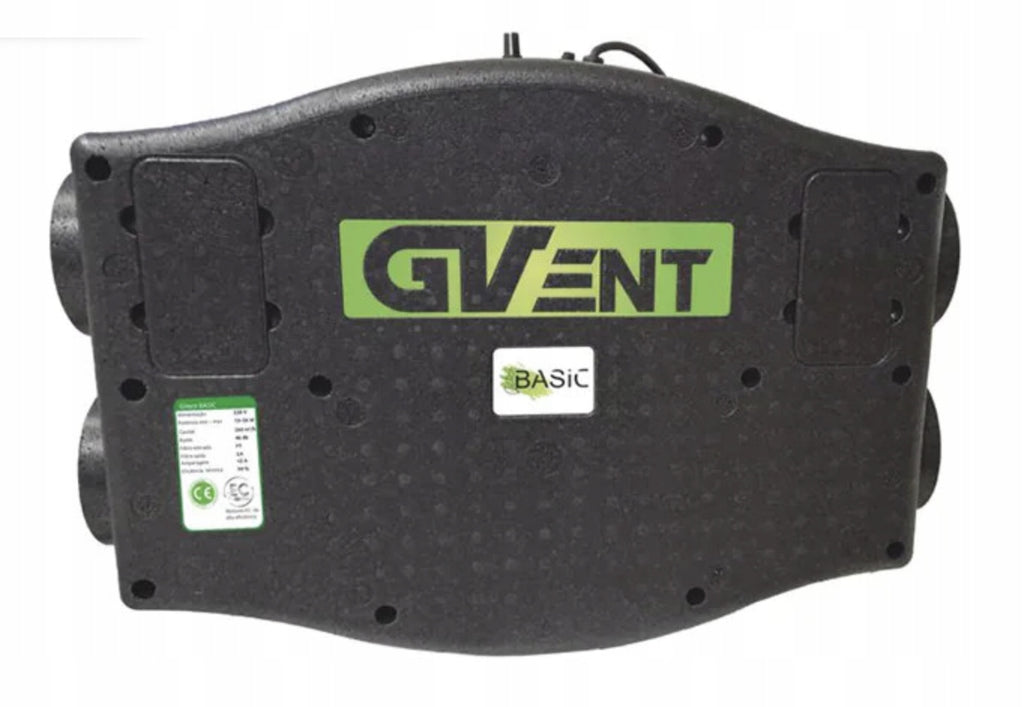

Recuperator G-VENT 260m3/h

Provides efficient air exchange while reducing heat loss. This is an excellent solution for improving air quality in all interiors, reducing moisture levels and reducing heating costs.

Product advantages:

1. Branded German exchanger ZERN ENGINERING
2. EC fans - low power consumption and smooth power regulation!

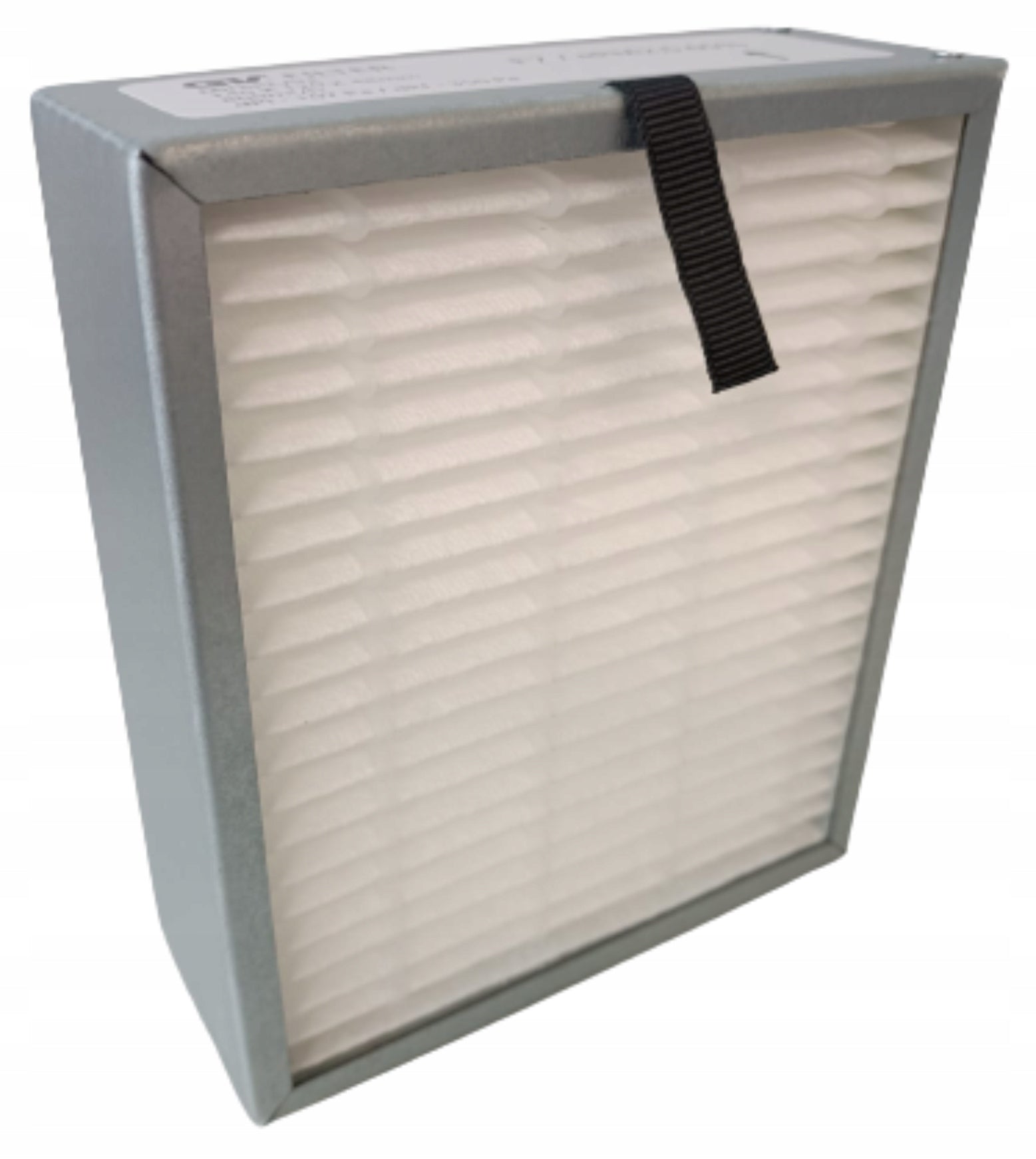

3. 2 x Filter F7 - on the air supply and extractor entrusts
4. Fully insulated.

Ideal for homes, apartments and facilities where air freshness and energy savings are important.

In the price of the set you get an individual air balance, tailored to the layout of your home and the real needs of the household members.

We do not use ready-made schemes from the Internet. The arrangement of vents and exhausts is prepared based on the actual layout of rooms in your home. This is very important because even the best recuperator will not work properly without a well-designed installation.

The set includes:

• individual air balance,

• drawing with the arrangement of points,

• Simple PDF manual with the most important tips.

• Do it yourself – it’s easier than you think. If something surprises you, we are here to help.

Technical parameters of G-Vent 260

1. Voltage: 230 V
2. Supported area: up to 100-120 m²
3. Energy consumption: 13~56 W
4. Inlet filter: F7
5. Exhaust filter: F7
6. Number of potentiometers: 1
7. Electricity: < 2 A
8. Air flow: 260 m³/h
9. Heat efficiency: 94%
10. Noise level: 46 dB
11. Water resistance test: According to IEC 60529 IPX5 standard

Dimensions:

• Height: 490 mm
• Width: 670 mm
• Depth: 180 mm

Quality of installation and proven components

The use of larger diameter of distributors – 160 mm allows to reduce air flow resistance, thanks to which the installation works quieter and more efficiently.

Green DN75 ventilation channels have antibacterial and antistatic properties, which helps keep the installation clean and provides healthy air in the house.

The whole creates a solid and well-thought-out installation kit, which allows you to perform recuperation at home at a reasonable price.

The distributors and expansion boxes used in the set are made of thick galvanized steel up to 270 g/m², which ensures high durability and corrosion resistance.

A reasonable solution for people who want to have recuperation at home without incurring high installation costs.

Economical recuperator G‑VENT: proven design and performance up to 260 m³/h

Complete installation kit: splitters, expansion boxes and ventilation ducts

Self-assembly: a real saving of several thousand zlotys on installation.

Free air balance: help in the correct execution of the installation

Good solution for homes up to approx. 120 m²

Why choose this set?

Solid installation components

Separators and expansion boxes made of thick galvanized steel up to 270 g/m², which ensures durability and corrosion resistance.

Low flow resistance installation

The use of distributors Ø160 mm improves air flow and increases the efficiency of the entire system.

Healthy and clean air in the home

Ventilation channels with antibacterial and antistatic properties help keep the installation clean.

Ecomax is:

• Complete offer of high quality devices – only from reputable, proven manufacturers.
• Professional technical consultancy – we help you choose the best solutions for your needs.
• Professional warranty and post-warranty service – quickly, reliably and with full support.
