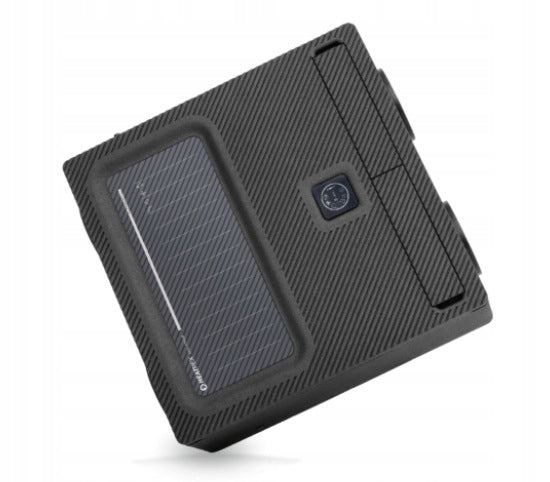

Rekuperatorius HEATPEX ARIA VITALE PLATINUM CF 450

Trumpai apie prekę

Prekė: Rekuperatorius HEATPEX ARIA VITALE PLATINUM CF 450. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Heatpex
• Modelis: 52545113100W

ARIA VITALE PLATINUM EnthalpyCF recuperator equipped with enthalpic exchanger, which provides moisture recovery and temperature, humidity and CO2 sensors, as well as in this model in the constant flow function (CF).

Constant flow function (CF) in the air handling unit refers to how the air flow through the ventilation system in the building is regulated. The CF sensor allows you to maintain a constant stream of air, regardless of changes in internal or external conditions.

In the production of the ARIA VITALE air handling unit, the best components were used, focusing on speed and simplicity of installation. The innovative housing material – expanded polypropylene (EPP), laser-enriched was used. It is thanks to it that the device is light, quiet and provides a aesthetic appearance, while reduces the impact on the environment.

The recuperator is the only one on the market that can be mounted in 6 positions without affecting the efficiency of its operation. Thanks to this, assembly and service is extremely simple. The whole is closed by an intuitive and simple control panel, which does not require specialist technical knowledge.

Product Features:

• Housing made entirely of EPP with a thickness of 50 mm - lightweight, durable and free of thermal bridges
• 6 mounting options
• High air quality thanks to ARIA VITALE PURO ISO ePM1 70% (F7) filters on the air supply and ISO ePM10 50% (M5) filters on the exhaust
• Plug and play - quick and easy installation and service
• Intuitive control via mobile control panel or application for phone and computer
• Temperature, humidity and CO2 sensor and smooth regulation (CF) - ventilation control according to demand

Content of the package:

• Ventilation unit with heat recovery ARIA VITALE – 1 pc.
• Glass touch control panel with wireless communication module – 1 pc.
• Power cord – 1 pc.
• Feet for floor mounting – 4 pcs.
• Wall/floor mounting slings with built-in levels – 2 pcs.
• TORX service wrench set (filter cap) – 4 pcs.
• Note marker for washable board on recuperator (filter cap) – 1 pc.
• Condensate drain connector – 1 pc.

  Documentation: product card, first commissioning protocol, quick assembly instructions – complete

• Template for hanging the device on the back of the carton – 1 pc.

Technical data:

• Nominal air flow 450 m3/h
• Enthalpic Countercurrent Heat Exchanger
• Compress at nominal flux 165 Pa
• Energy class A
• Maximum power of fans 190 W
• Preheater power 2000 W
• Power supply 230 V/50 Hz
• Diameter of air nozzles 200 mm
• Condensate drain diameter 32 mm
• Height 900 mm
• Width 937 mm
• Depth 365 mm
• Weight 29,9 kg
• Temperature, humidity and CO2 sensors, constant flow (CF)
• Air flow regulation automatic regulation and balancing of air flows
• Wi-Fi/ wireless connection YES
