Rekuperatorius Hyundai HRS-200 su kryžminiu šilumokaičiu

Trumpai apie prekę

Prekė: Rekuperatorius Hyundai HRS-200 su kryžminiu šilumokaičiu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Hyundai
• Modelis: HRS-200

Producer: Hyundai

Condition: new

Packaging: original

Origin: official distribution

Warranty: manufacturer

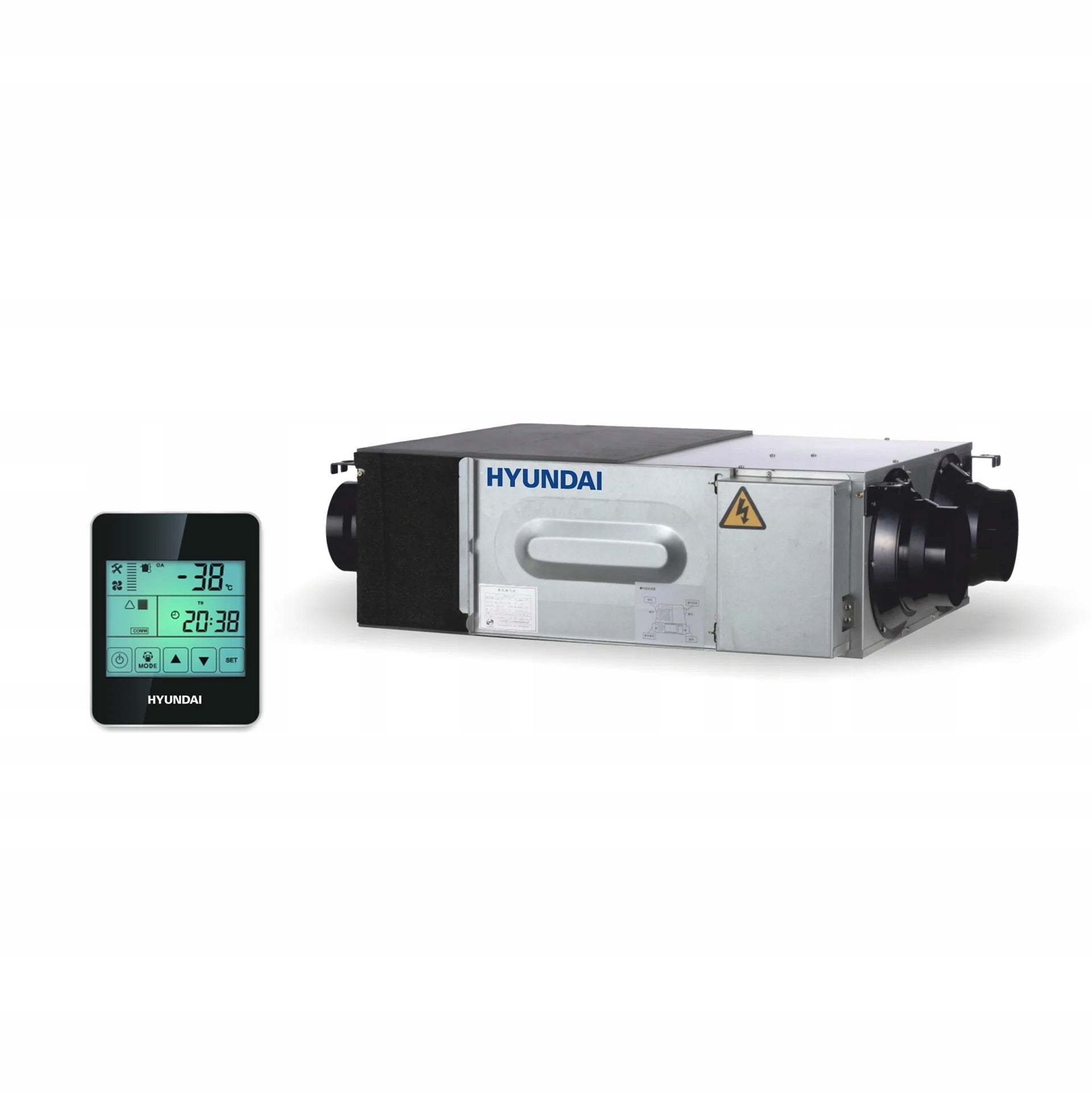

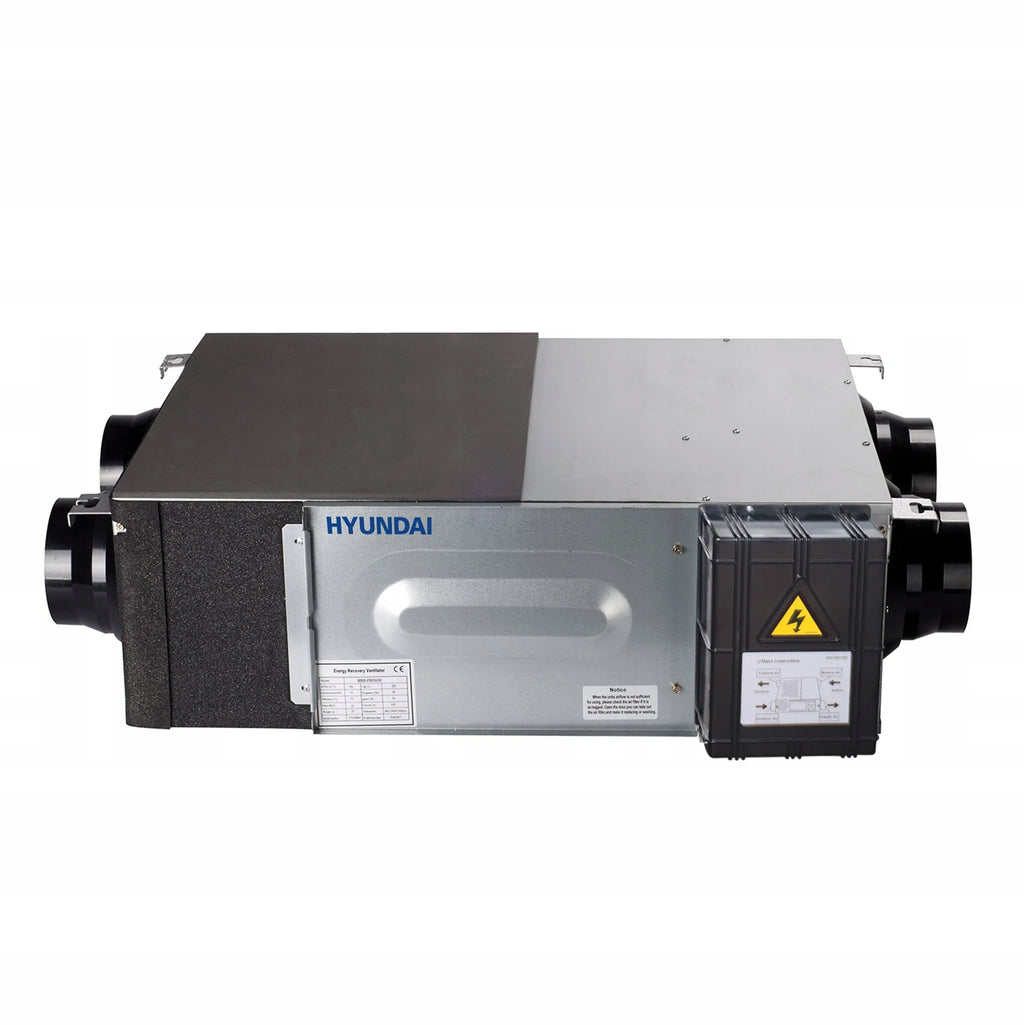

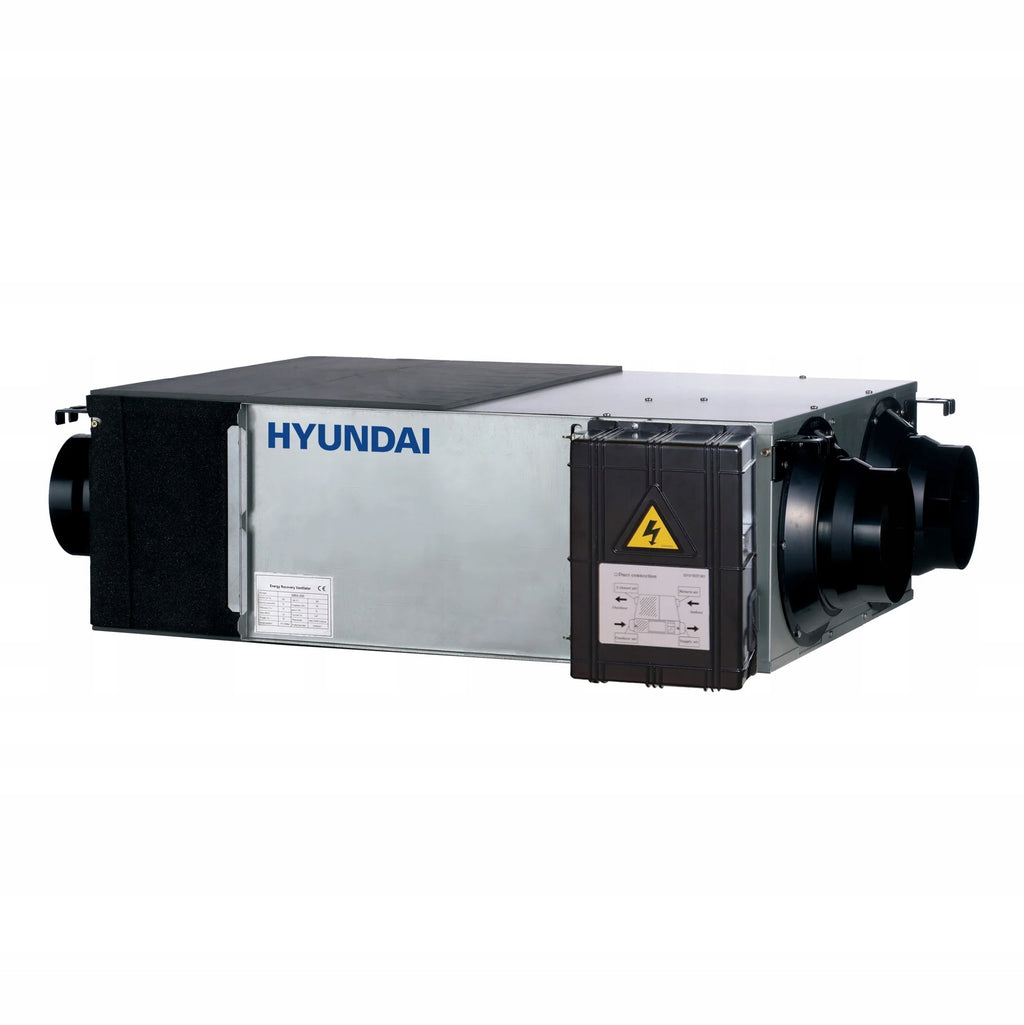

Hyundai HRS-200 recuperator with cross-exchanger

The Hyundai HRS-200 recuperator with cross-exchanger is a compact ventilation unit designed for mechanical air exchange with heat recovery. The Hyundai HRS-200 model will work well in smaller homes, apartments, service premises, offices and rooms where it is important to maintain a constant supply of fresh air while reducing energy losses. The device operates with a capacity of up to 200 m³/h, which is why it is a good choice where effective, but at the same time quiet and energy-efficient ventilation is needed.

Hyundai HRS-200 has been equipped with a cross-exchanger, whose task is to transfer energy from the exhaust air to the supply air. Thanks to this, fresh air can be pre-heated in winter, and in summer the system helps to reduce unwanted heating of rooms. Recuperation allows you to improve the comfort of everyday use of the building, reduce the problem of puffiness, moisture and unpleasant odors, and at the same time supports more economical operation of the heating or cooling system.

Advantages of Hyundai HRS-200 with cross-exchanger

Compact air handling unit for smaller installations

The Hyundai HRS-200 model is distinguished by its small dimensions of 580 × 264 × 666 mm, which facilitates installation in technical spaces, above suspended ceilings, in utility rooms or other places where space saving is important. Duct connections with a diameter of 150 mm allow for convenient integration of the device into the ventilation system with typical cross-sections used in homes and commercial premises.

The device offers three degrees of fan operation: low, medium and high. This allows you to adjust the intensity of ventilation to the current needs of users. The lower gear will work well during everyday, quiet work, while the higher one can be used when there are more people in the rooms or when faster air exchange is needed.

Quiet operation and high comfort of use

The Hyundai HRS-200 recuperator is designed for quiet operation. The volume level ranges from 22 to 27 dB(A), depending on the selected gear. Such parameters are particularly important in residential buildings, where the ventilation unit should operate stably, but without annoying noise. The muted housing design and high-efficiency centrifugal fans support comfortable operation of the device throughout the year.

Hyundai HRS-200 uses energy-efficient solutions, and its power consumption is 105 W. Energy class A confirms that the device fits well into modern ventilation systems aimed at reducing energy consumption. The control panel can work continuously, ensuring regular air exchange without the need to open windows, which is especially important in winter, with outside noise or with increased air dust.

Temperature recovery and by-pass function

One of the most important components of the Hyundai HRS-200 is effective temperature recovery. Temperature recovery efficiency is up to 75% on low gear and 70% on medium and high gear. This means that the control panel helps to use energy from the air removed from the building, reducing heat losses typical of traditional gravity ventilation.

The recuperator has a by-pass function, i.e. the ability to bypass the cross-exchanger depending on the air parameters. This is a practical solution especially during transition periods and in summer, when the user wants to use cooler outdoor air without additional heat recovery. This feature increases the flexibility of the installation and allows you to better adjust the ventilation operation to the current conditions.

Control and possibility of expansion of the installation

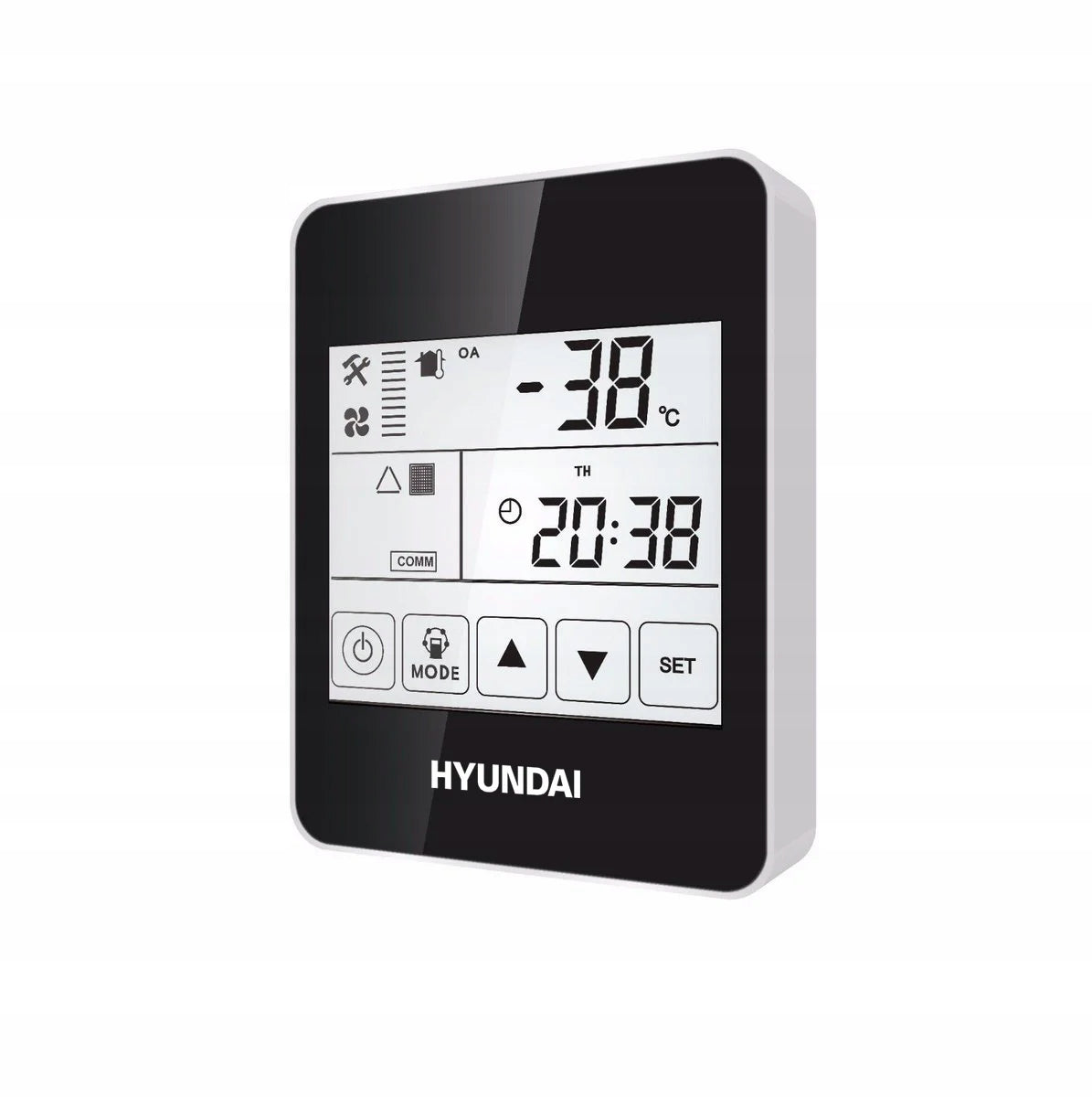

In the Hyundai standard, the HRS-200 works with a touch controller that allows convenient operation of the control panel. The control allows you to control the operation of the device and adjust the ventilation to the needs of users. The control panel also offers the possibility of cooperation with additional elements of the installation, such as a humidity sensor, CO2 sensor or channel heater. Thanks to this, the Hyundai HRS-200 recuperator can be used both in simpler ventilation systems and in more complex installations requiring additional automation.

The possibility of connecting a heater or radiator means that the device can become part of a more comprehensive system for improving air comfort in the building. It is a practical solution for users who expect not only air exchange, but also greater control over the air supply temperature.

Technical data

• Make and model: Hyundai HRS-200
• Device type: recuperator with cross-exchanger
• Airflow L/M/H: 150 / 200 / 200 m³/h
• Air compressor L/M/H: 60 / 70 / 75 Pa
• Temperature recovery efficiency L/M/H: 75 / 70 / 70%
• Enthalpy — cooling L/M/H: 60 / 55 / 55%
• Enthalpy — heating L/M/H: 63 / 59 / 59%
• Volume L/M/H: 22 / 25 / 27 dB(A)
• Power supply: 230 V
• Current: 0,5 A
• Power Consumption: 105 W
• Energy class: A
• Net weight: 23 kg
• Device dimensions D × W × G: 580 × 264 × 666 mm
• Channel dimensions: 150 mm
• Fan speed control: 3 degrees — low, medium, high
• Controller: touch wall-mounted controller as standard
• By-pass function: yes
• Expandable: humidity sensor, CO2 sensor, central controller, channel heater

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Hyundai
Parametry	Kind	heat recovery ventilator
Parametry	Manufacturer code	HRS-200
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
Parametry	Batteries included	yes
