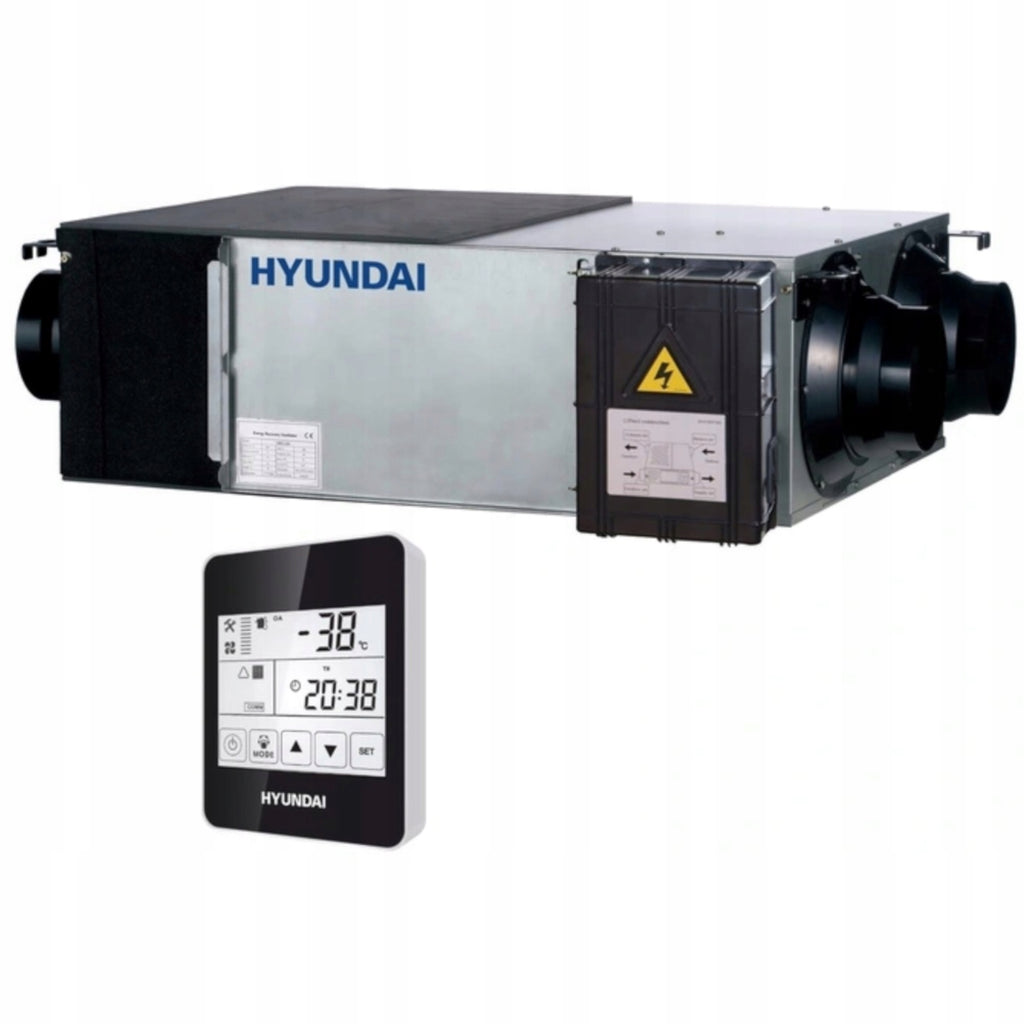

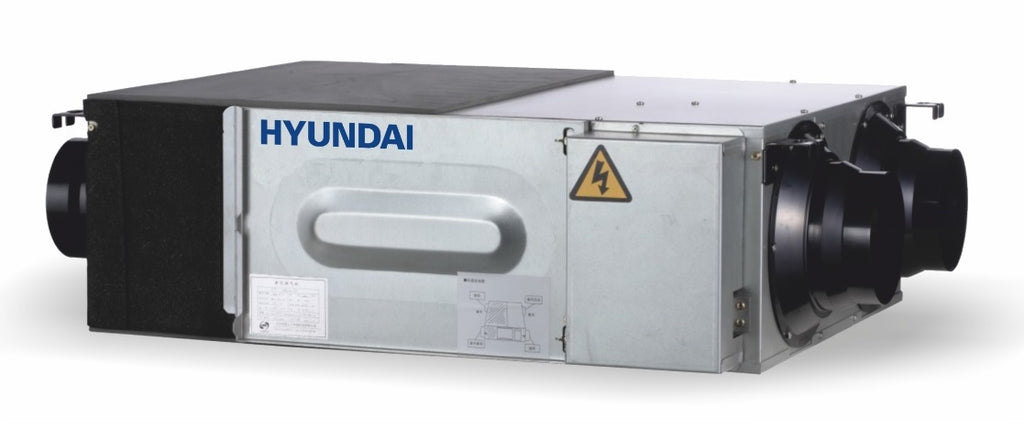

Rekuperatorius Hyundai HRS-400

Trumpai apie prekę

Prekė: Rekuperatorius Hyundai HRS-400. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Hyundai
• Modelis: HRS-400

QUALITY IS IMPORTANT

ADVANTAGES OF THE CONTROL PANEL:

✔ Original enthalpic heat exchanger ensures high efficiency of heat recovery even in cold weather

✔ By-Pass function allows you to bypass the cross-exchanger depending on the air parameters

✔ 3-stage air regulation: Low, Medium, High

✔ Fans ensure high efficiency and low energy consumption

✔ The cellulose exchanger has been chemically treated so that it allows for high efficiency of heat recovery and ensures low resistance

✔ The housing design has been muted

✔ Control is carried out using a wall-mounted touch controller, which has BMS functions,

✔ Possibility to connect the heater and radiator to the recuperator (optional)

✔ Touch controller as standard

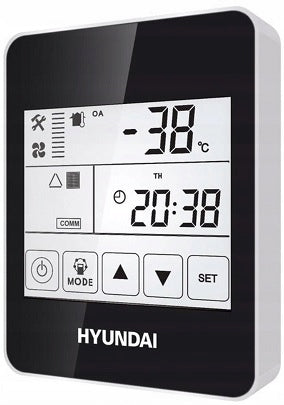

TOUCH CONTROLLER LH-10705

Changing and setting fan speed, weekly timer,automatic "bypass", external on/off,temperature control, defrosting, CO2 control (option after purchasing the sensor),humidity control (option after purchasing the sensor) filter alarm,failure alarm, settings memory, passive cooling, BMS integration,defrost control, monitoring of device operation,display of air temperature:external, rooms, supplied, discarded.

TECHNICAL DATA:

➢ Max capacity: 400 m3/h

➢ Compress max: 88 Pa

➢ Power supply: 230V/50Hz

➢ Power consumption: 150 W

➢ Current: 0,72 A

➢ Device volume max: 32 dB(A)

➢ Dimensions (W) x H x L ): 804 mm x 270 mm x 744 mm

➢ Channel dimensions (diameter): 150 mm

➢ Temperature recovery efficiency: 69-74%

➢ Energy class: A
