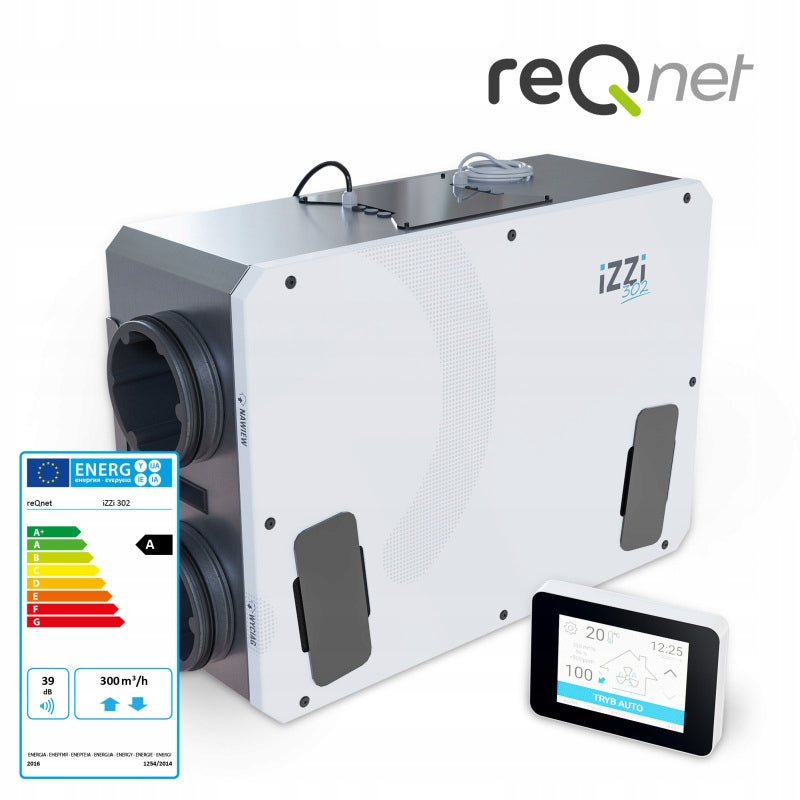

Rekuperatorius iZZi H.302 ERV STANDARD, kairinis

Trumpai apie prekę

Prekė: Rekuperatorius iZZi H.302 ERV STANDARD, kairinis. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: iZZi H.302 ERV STANDARD wersja LEWA

The auction concerns the iZZi H.302 ERV STANDARD recuperator in the LEFT version with a control panel.

Features of recuperator:

• enthalpic countercurrent exchanger with moisture recovery,
• lack of condensate outflow,
• operation at negative external temperatures without additional preheater,
• universal installation in several positions,
• color touch panel as standard,
• energy-efficient direct current fans with FlowGrid (with reduced noise emission),
• compact housing made of stainless steel,
• possibility of self-assembly with a dedicated constant pressure module (recommended especially in the case of self-assembly),
• automatic operation based on air quality in the house (with an additional module with carbon dioxide and humidity sensor),
• PE foam insulation with excellent acoustic properties,
• convenient mounting console included.

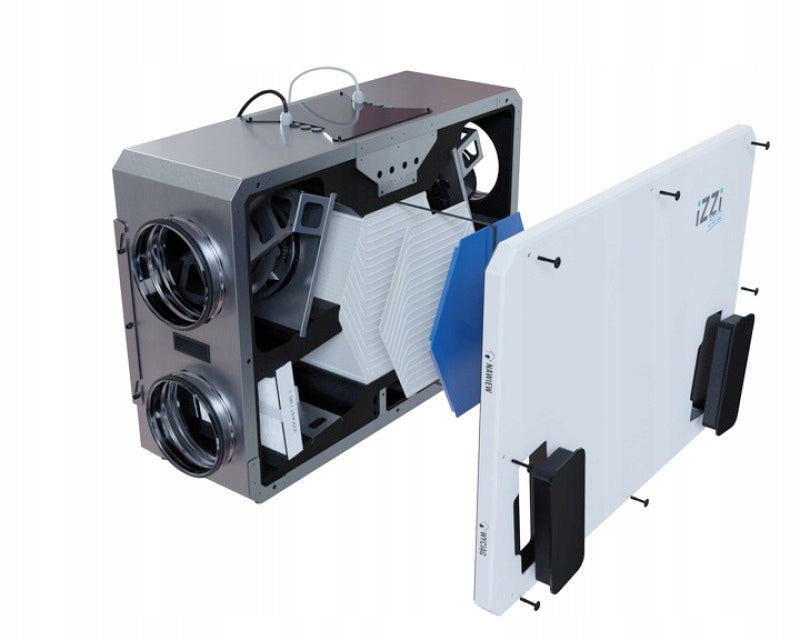

Enthalpic countercurrent exchanger with moisture recovery - the heart of the recuperator.

The heat exchanger is the most important part of the recuperator. The iZZi H.302 ERV STANDARD model uses an enthalpic heat exchanger with the following advantages:

• maintaining the optimal level of humidity in the house,
• no condensate outflow in the recuperator,
• less likelihood of freezing and the need for defrosting,
• antibacterial - resistance to mold and bacteria,
• possibility of cleaning with water,
• long service life,
• no penetration of contaminants.

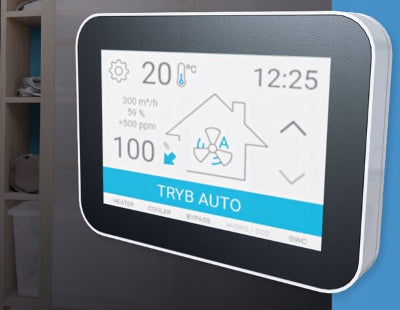

Touch panel and extensive automation in the iZZi H.302 ERV standard.

Controlling the device has never been easier, thanks to a modern control panel equipped with a number of functionalities:

• 3.2" touch and color display
• performance control with 3 programmable gears
• control based on the schedule
• ground heat exchanger (GWC) control
• cooperation with the CO2/higro module and automatic operation
• preview of temperatures on the intake, launcher, air supply and extractor
• heater/cooler control
• automatic by-pass control
• cooperation with the constant flow module
• function ventilation, outside the house, fireplace
• possibility of flush-mounted installation
• multilingual menu

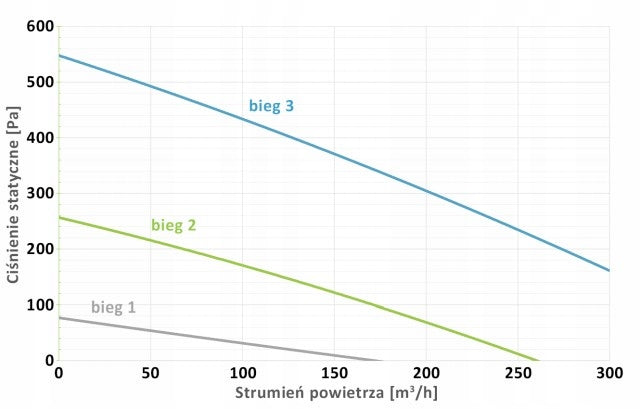

Flow characteristics:

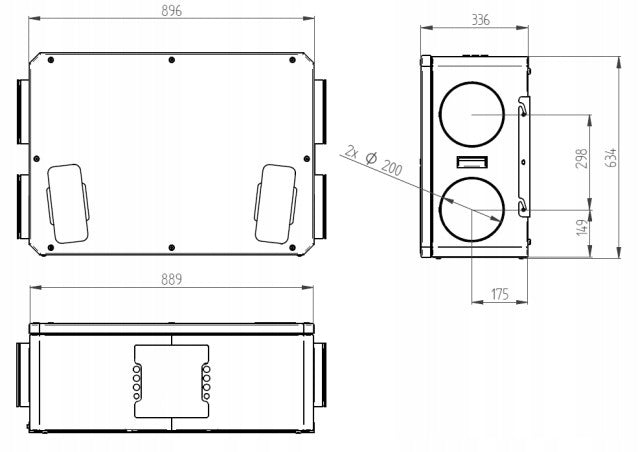

Dimensions:

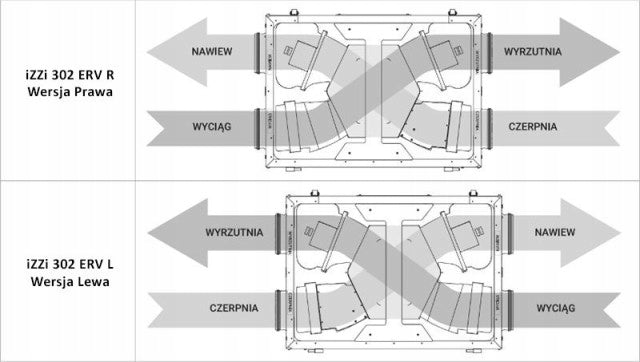

Description of stubs:

On other auctions you will find modules that extend functionality, compatible with the iZZi H.302 ERV STANDARD recuperator:

Constant flow module - a device used for automatic balancing of supply and exhaust flow in the ventilation system. The module adjusts the operation of fans to the current resistance of the installation on the supply and exhaust side.

CO2/higro measuring module - a device that automates the control of recuperator performance based on the air quality in the house. The module measures the concentration of carbon dioxide and humidity in the building and allows for automatic operation of the recuperator based on the air quality in the house.

The manufacturer reserves the right to make technical changes to the described products.

The colors of the products may differ slightly from those shown in the pictures, which results from m.in. from monitor settings. In addition, the actual appearance of the product may slightly differ from the one presented in the photos due to differences in production batches or minor changes in the production process.

Specifications
