Aprašymas
Trumpai apie prekę

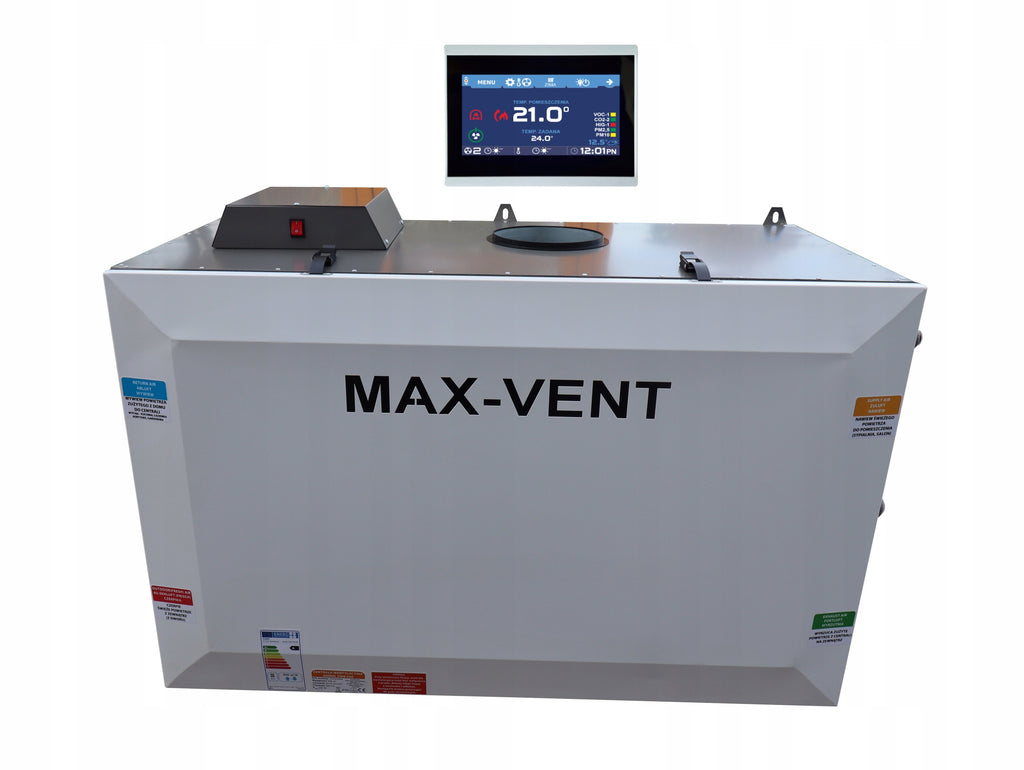

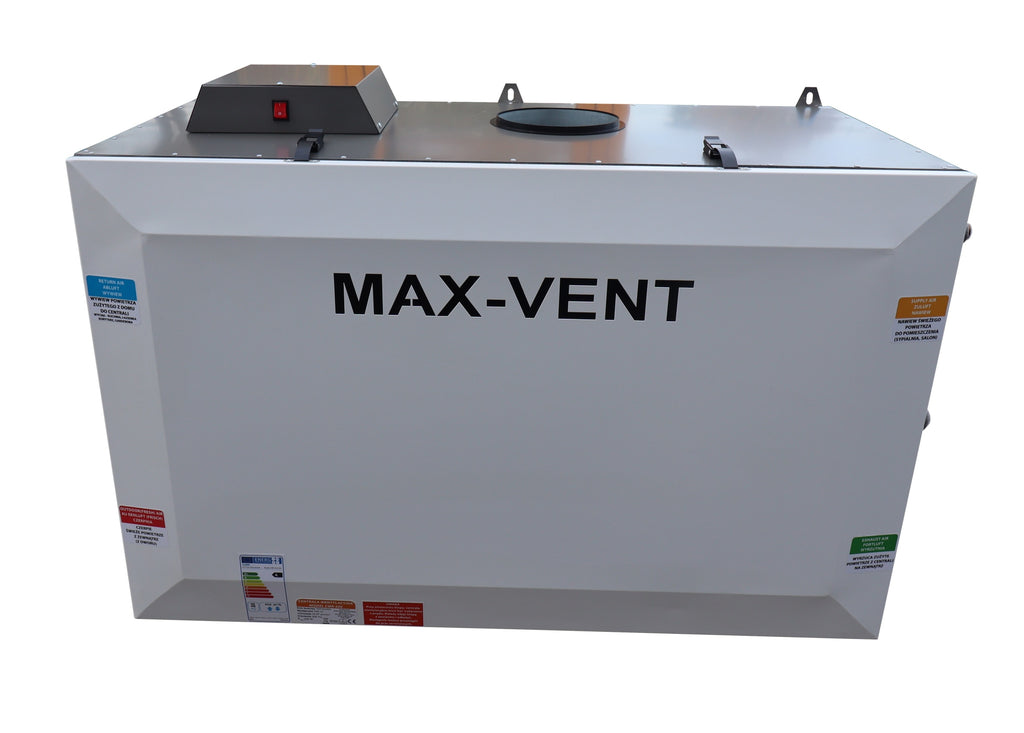

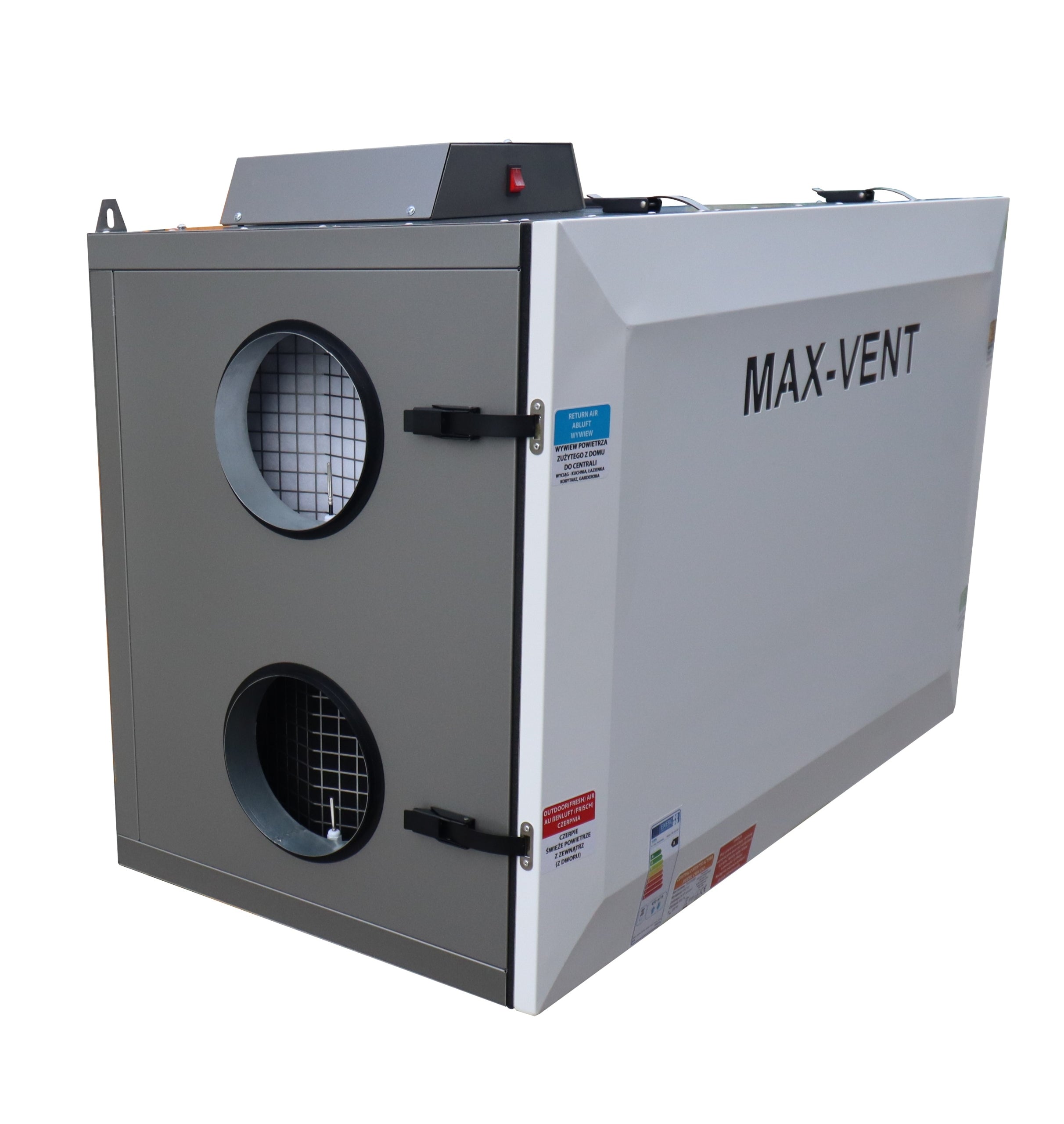

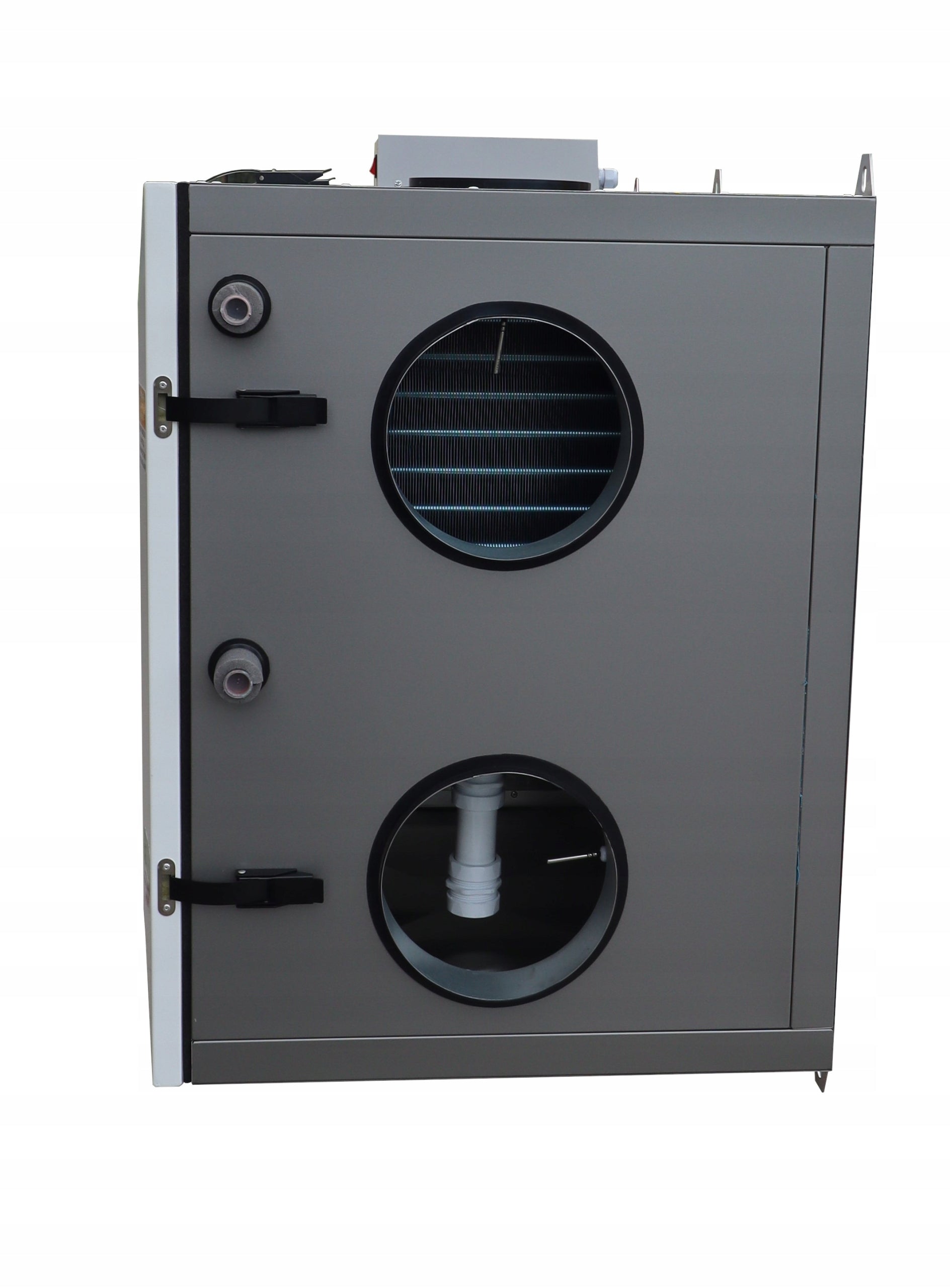

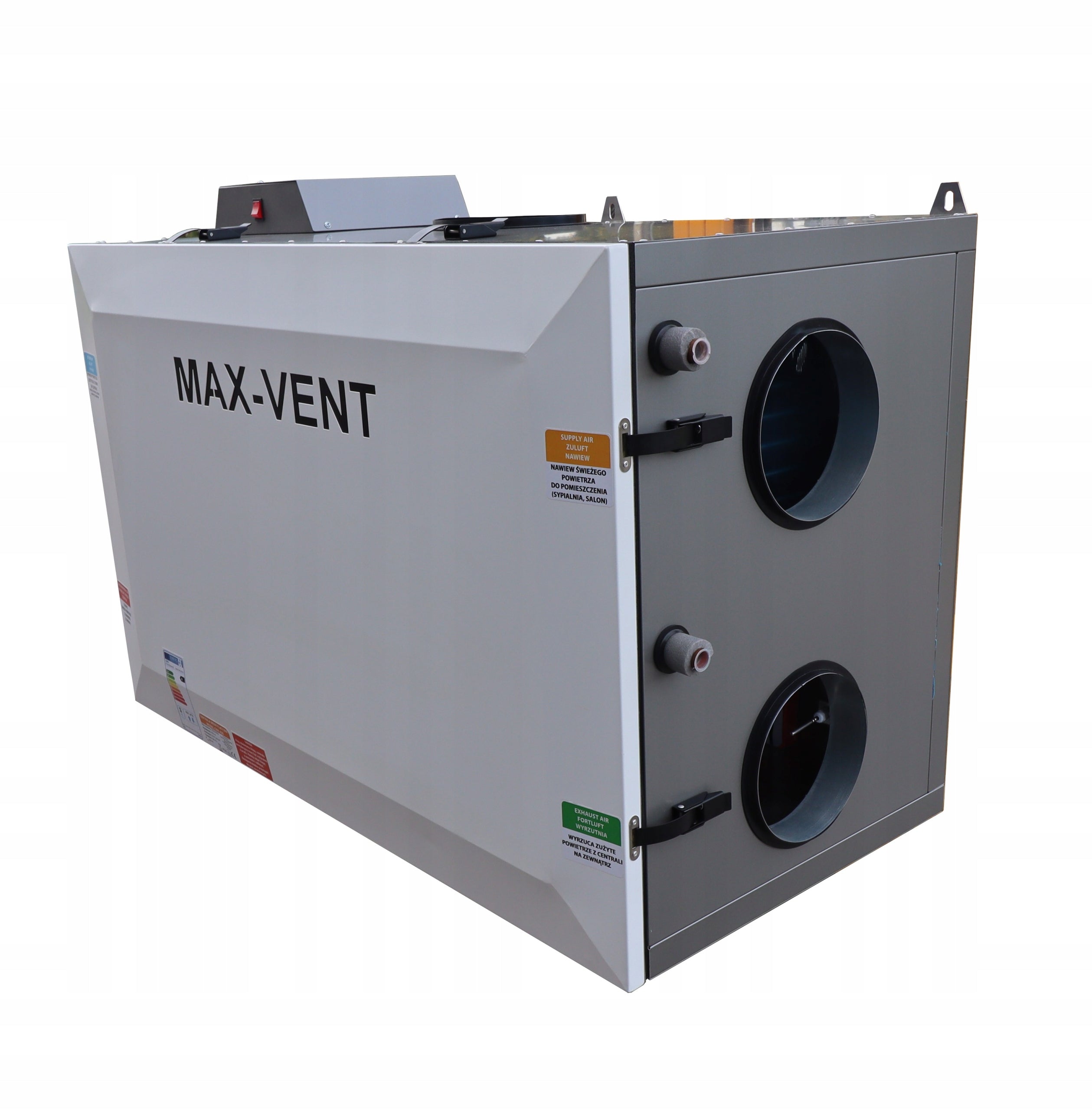

Prekė: Rekuperatorius Janek 450/200 su integruotu oro kondicionieriumi. Kategorija: Rekuperacinės vėdinimo sistemos.
- Gamintojas: no brand
- Modelis: Janek 450//200
Ventilation unit recuperator + controller + air conditioning cooler + recirculating fan + zone control
Janek 450/200 jon16
The headquarters meets the requirements of WFOŚiGW regarding the Clean Air program.
PROFESSIONAL EXECUTION
THE CONTROL PANEL CONTAINS
- FAN "EC" WITH MAX CAPACITY UP TO 950m3/h GERMAN COMPANY
- BUILT-IN IONIZER, Negative ions help:
Kill bacteria, viruses and fungi
Facilitate breathing
Clean and refresh the air
Accelerate rest
Increases concentration
Helps in learning
Improves fitness
- DIAMETER OF THE STUB 200 mm
- BUILT-IN RECIRCULATION FAN WITH A CAPACITY OF 900m3/h
- BUILT-IN GLYCOL OR,, FREON COOLER AS REQUIRED (ABOUT 5KW)
- AUTOMATIC TEMPERATURE CONTROL. AIR CONDITIONING ETC...
- BUILT-IN AUTOMATIC RECIRCULATION THROTTLE (self regulates the recirculating flow)
- RPM MAX 2400 rpm
- CLASS G4 FILTERS

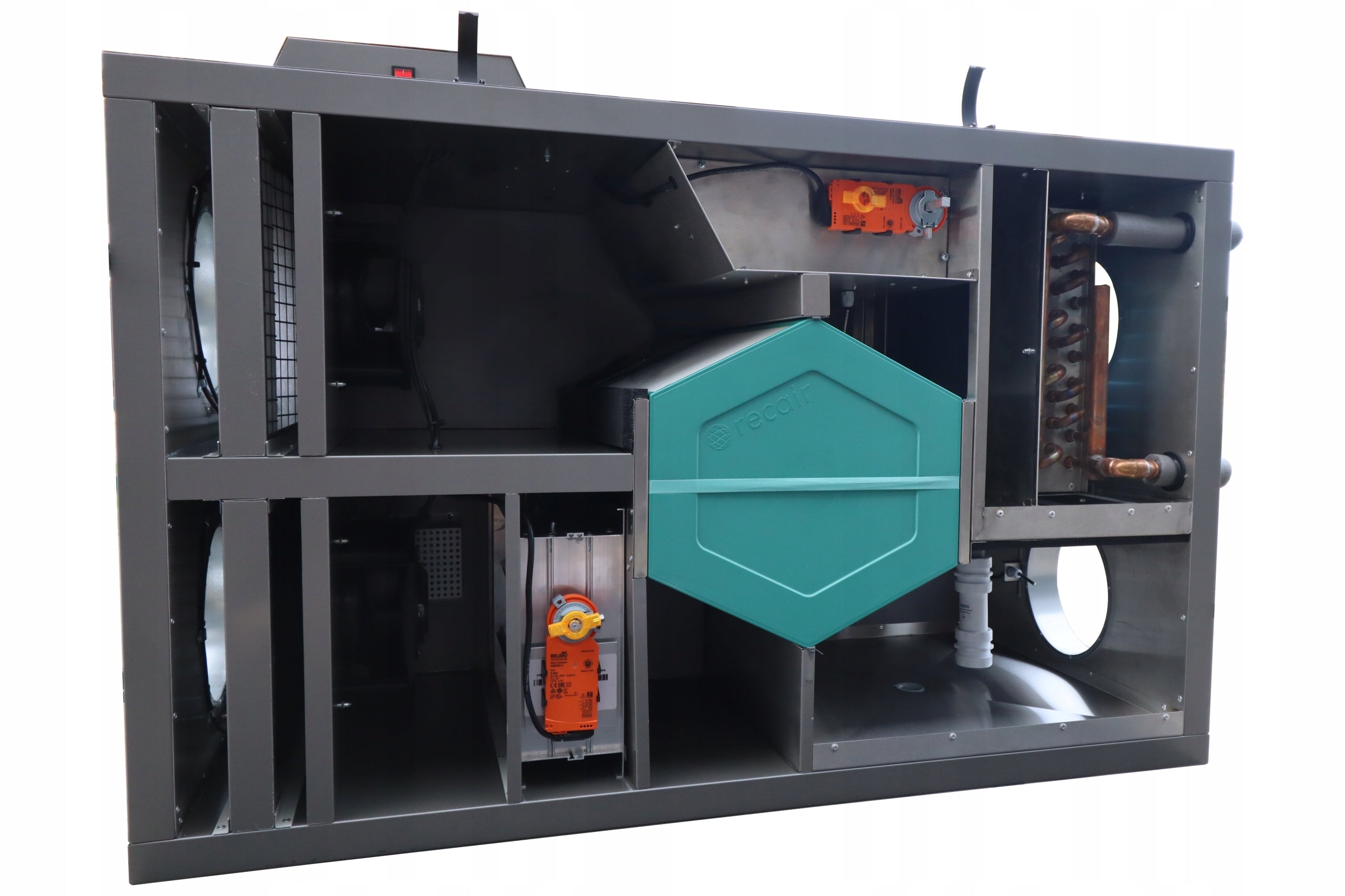

- COUNTERCURRENT RECUPERATOR PULL-OUT EASY TO WASH
- RECUPERATOR EFFICIENCY FROM 65% to 92% (parameter depends on the difference temp.przepływu )
- POWER OF THE DEVICE FROM 150 TO 510W
- BUILT-IN AIR PURIFIER SYSTEM (MICRO PARTICLES)
- ANTI-ELECTROSTATIC SYSTEM
- HOUSING MADE OF SHEET METAL 0,7 mm ALUM-ZINC
- INSULATION THICKNESS 40 mm=4cm
- SOUND INSULATION
- FIREPLACE THERMAL INSULATION RESISTANT TO HIGH TEMPERATURES. WITH ALUMINIUM JACKET
- DRAINAGE OF LIQUEFIED WATER
- VERY GOOD VALUE FOR MONEY
- SPEED CONTROLLER
- OPERATING TEMPERATURE -25 to 50°C

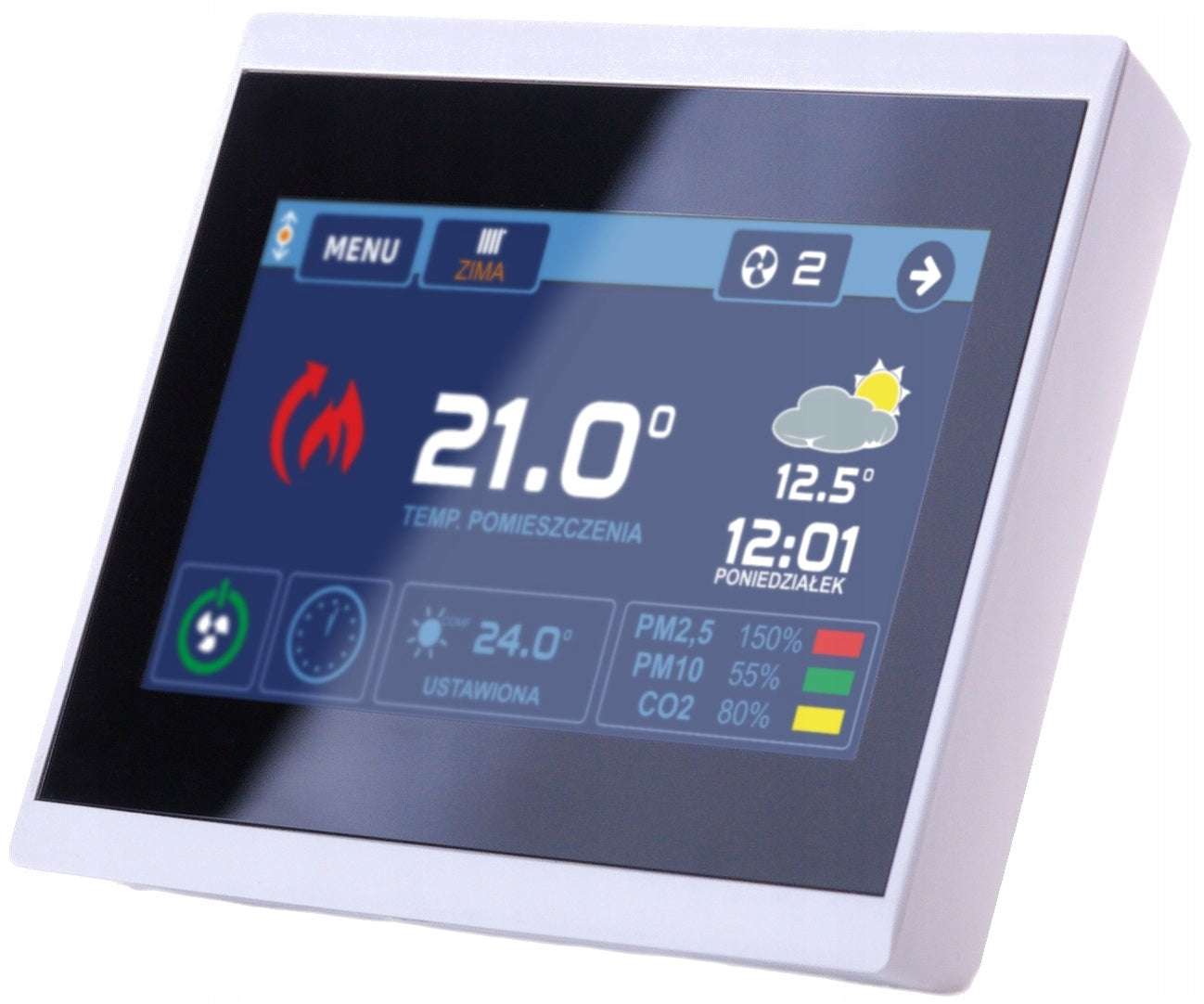

- TOUCH PANEL CONTROLLER
- CARBON DIOXIDE SENSOR
- HUMIDITY SENSOR
- FIREPLACE OPERATION MODE
- AUTOMATIC TEMPORARY DEHUMIDIFICATION OF THE EXCHANGER
- INTEGRATION WITH THE CONTROL PANEL AND AUTOMATION SYSTEMS
- PROGRAMMABLE CLOCK ZONES

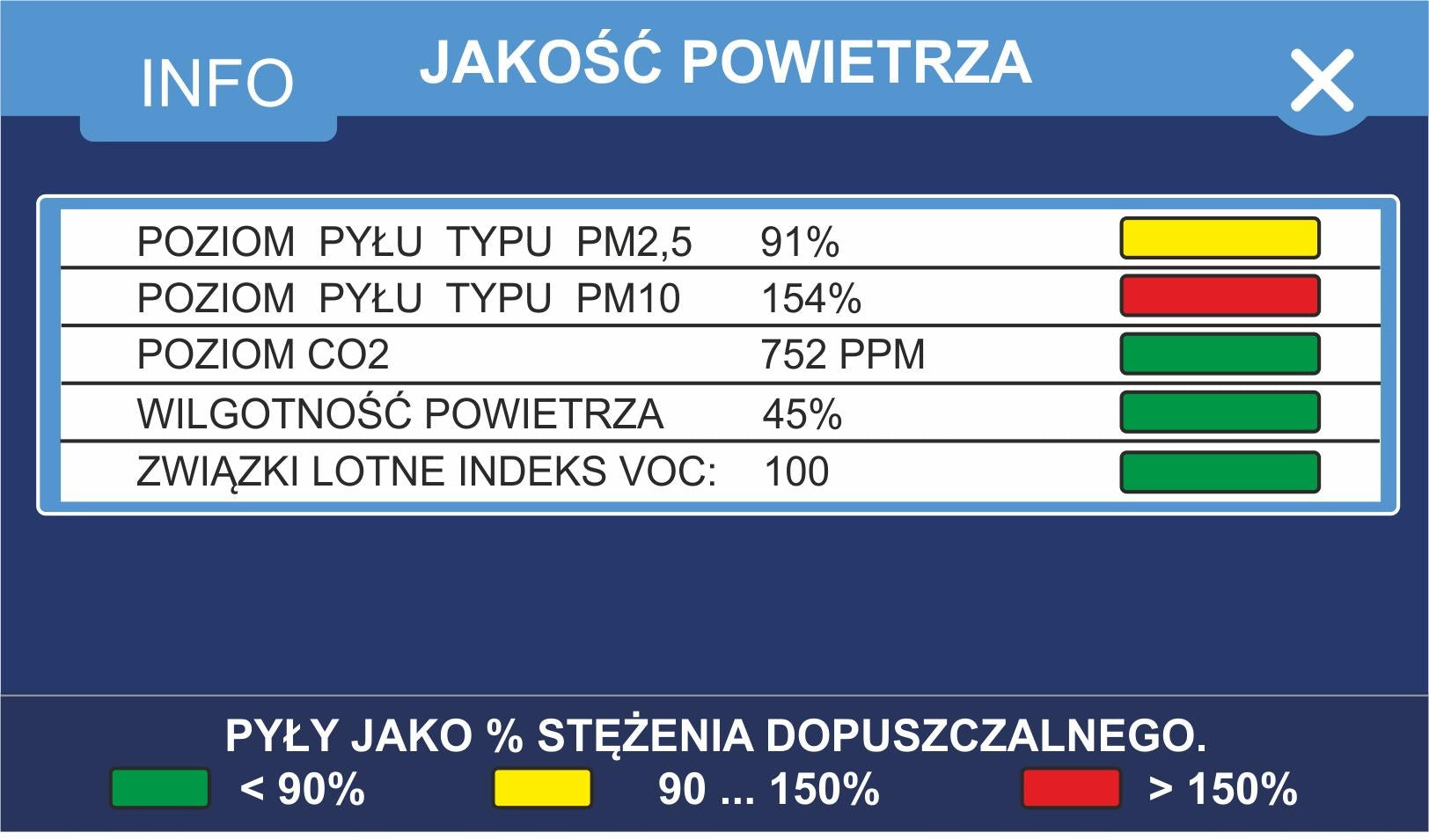

- INTUITIVE AIR QUALITY CONTROL
- AUTOMATIC ADJUSTMENT OF AIR QUALITY TO THE FACILITY
- BY-MECHANICAL BELT 100%
- BY-MECHANICAL BELT FOR AUTOMATIC RECIRCULATION
- CHANNEL AIR CONDITIONING CONTROL - based on a heat pump with an ice water cooler, or the possibility of using a freon cooler
WE ADD A CONTROLLER TO EACH CONTROL PANEL
PRODUCT Polish
Filter- cartridge made as G4 class nonwoven fabric You do not have to buy expensive filters!!! . You can combine several filters eg G4+F9+H14 ps smog will be reduced in 80-90%
- Nonwoven fabric G4 (exhaust and supply)
- A very cheap filter, it is possible to replace just the non-woven fabric for PLN 2-4
- Possibility to configure any filter from G1 to U15 (filters used in the operating room)
- Possibility to combine several filters at the same time
- Industrial work
Built-in Humidity Sensor:
Allows you to adjust the operation of the control panel depending on the air humidity
Specification:
- capacity 450m3/h depending on the filter used
- capacity of the control panel 450 m3/h
- power min 150W max 510W
- pressure up to 400Pa
- efficiency of fans "EC" 3x950m3/h WITH RECIRCULATION FAN
- Voltage 230 V 50 Hz
- heat recovery efficiency from 65% to 92%
- engine speed 2400 rpm
- noise level db/(A)3m 24-40
- maximum operating speed up to 45C
- housing material alumcynk sheet 0,7mm
- 40mm wool
- G4 air supply filter
- filter extractor G4
- diameter of the stubs 200 mm
- recuperator efficiency up to max 95%
- COUNTERCURRENT recuperator
- recuperator PLASTIC
- anti-freeze system
- diameter of the stubs 200 mm
- weight about 100 kg QUALITY MUST WEIGH COMPARE WITH OTHER PRODUCTS OF THIS CLASS
- dimensions 1167x617x525 mm
- TOUCH PANEL
- The controller allows:
- temperature measurement
- regulation of the supply force
- by-pass control
- setting a schedule
- heater control
- GWC control switching
- Configuration of secondary radiator control
- switching on the preheater
- choice of background color
- indication of soiled filter
- control of heater, freon radiator - possibility of connecting air conditioning
- e.t.c......
- ZONAL CONTROL
DUCT AIR CONDITIONING
Note channel air conditioning lowers the temperature in summer. in rooms with 4-7c In winter, it heats rooms to temp, 20-22c if outside temp. will not fall below 2, -2c and is well made So objects with duct air conditioning require alternative heating, but it is profitable to install it because
-assembly costs are much lower than GWC,
-Efficiency is several times higher than GWC
-operation and cleaning is very easy, compared to GWC
-very low heating costs of the facility, return on investment 2-3 seasons
-low operating costs
-no indoor air conditioning units in the facility
-very simple installation (external unit + freon cooler)
-e.t.c....
AIR CONDITIONING CONTROL SYSTEM POSSIBLE WITH THE CWK 450/200 CONTROL PANEL
▶ see video presenting canal air conditioning mounted on the construction site
https://youtu.be/Q7dLoz2SoaM
Distinguishing features of Janek 450 control panels
- BUILT-IN RECIRCULATION FAN WITH A CAPACITY OF 900m3/h
- BUILT-IN GLYCOL OR,, FREON COOLER AS REQUIRED (ABOUT 5KW)
- AUTOMATIC TEMPERATURE CONTROL. AIR CONDITIONING ETC...
- BUILT-IN AUTOMATIC RECIRCULATION THROTTLE (self regulates the recirculating flow)
- AIR CONDITIONING SERVICE
- BEST GERMAN FANS
- BEST CONTROL FOR DUCT AIR CONDITIONING
- REPUTABLE COMPANY EXCHANGER
- 2 DRIP TRAYS
- SUPPORT FOR ZONE CONTROL, ETC. .
- HIGH EFFICIENCY OF HEATING AND COOLING WITH THIS CONTROL PANEL
- VERY LOW MAINTENANCE COSTS
- SIMPLICITY OF CONSTRUCTION
- STANDARDIZATION OF PARTS (EVERYTHING GOES TO FIT)
TECHNOLOGICALLY, IT IS A COMPLETELY AUTOMATIC CONTROL PANEL FOR HEATING AND COOLING, WITH THE USE OF RECIRCULATION, THE EFFICIENCY OF THE VENTILATION SYSTEM INCREASES TO 98%
WATCH THE VIDEO HOW TO CONNECT THE https://youtu.be/L0PUH96hosY CONTROL PANELS YOURSELF
SEE THE VIDEO PRESENTATION OF CWK cf CONTROL PANEL: https://youtu.be/iYwzvr_gPno
See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself
- System presentation: ▶ https://youtu.be/zwnY-pdrwj8
- Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
- Durability of our products: ▶ https://youtu.be/ZMhyH29QXEY
- How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
- How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
- How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
- Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
- Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
- Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
- Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
- Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
- Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
- Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
- Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU
See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | Without VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Kind | heat recovery ventilator |
| Parametry | Manufacturer code | Janek 450//200 |
| Parametry | Range of energy efficiency classes | A+ - G |
| Parametry | Energy efficiency class | A |
| Parametry | Batteries included | no |
