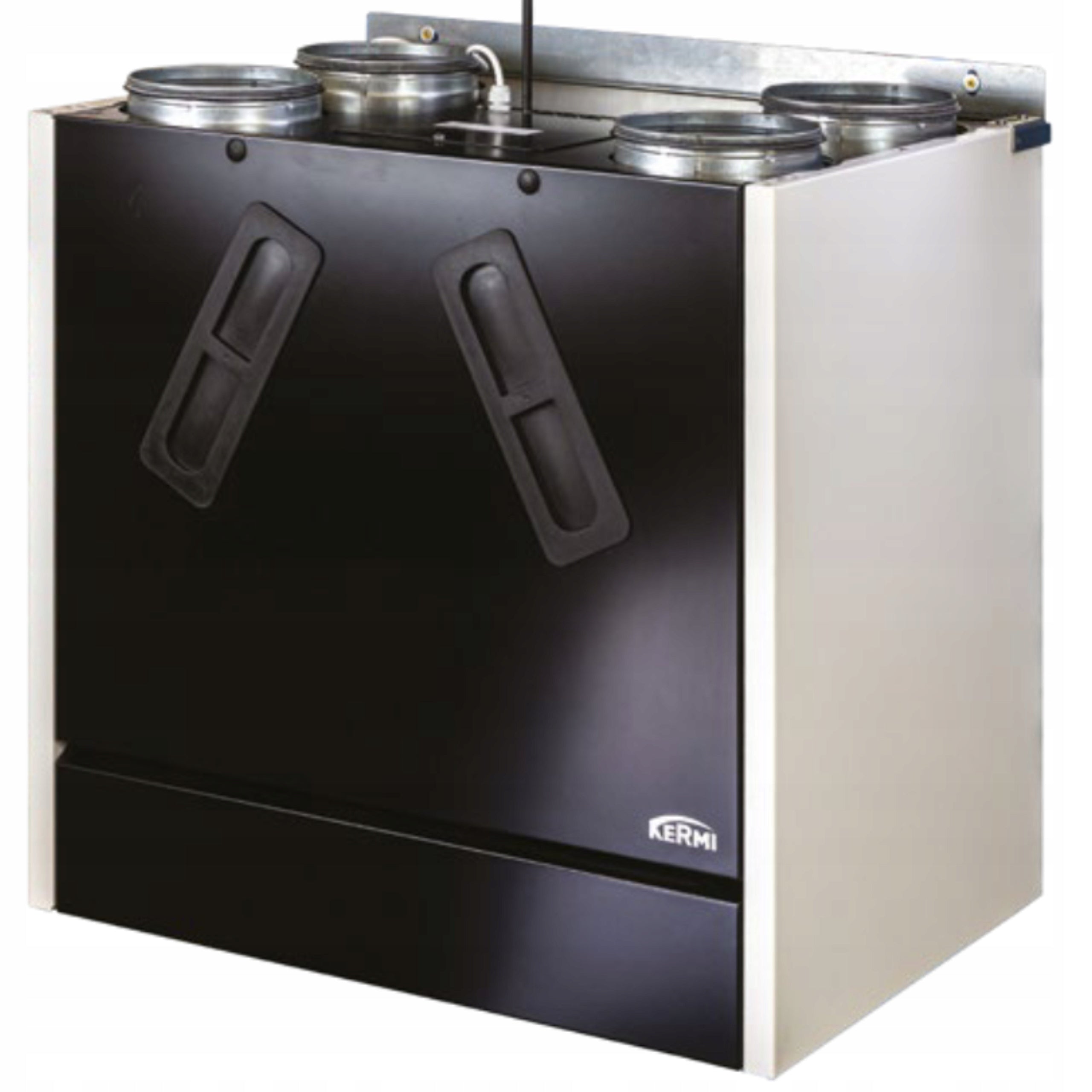

Rekuperatorius KERMI Boost E 350 su entalpiniu šilumokaičiu ir WiFi

Trumpai apie prekę

Prekė: Rekuperatorius KERMI Boost E 350 su entalpiniu šilumokaičiu ir WiFi. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Kermi
• Modelis: Y110435001501K

Heat recovery ventilation unit designed for single-family houses, ensuring constant, energy-efficient air exchange throughout the building. Suitable for vertical wall mounting, it works with the channel and anemostat system, improving comfort and air quality.

Key features and functions:

• compact, aesthetic housing made of powder coated steel
• tight internal construction with EPP (foamed polypropylene) – good thermal and acoustic insulation
• flexible installation: channel connections from the top or bottom, the possibility of selecting the connection side (left/right)
• high-efficiency heat exchanger (optionally enthalpic version "E", also recovering moisture)
• energy-efficient DC fans with rear-bent blades
• Constant Flow system – automatic maintenance of constant air flow regardless of installation resistance
• automatic bypass 100% – supports night cooling in summer and heating during transition periods
• built-in humidity sensor – intelligent regulation of ventilation intensity
• seffective air filtration: F7 air supply (ePM1 55%), G4 exhaust (COARSE 65%)
• convenient control: RF gear switch and WiFi module for mobile application operation
• dry membrane siphon included

Technical data:

• Dimensions: 724 × 764 × 560 mm
• Weight: 41,7 kg (with packaging 51,0 kg)
• Power supply: 230 V AC
• Max. Flow rate: 350 m³/h
• Max. compressor: 175 Pa
• Efficiency EN13141-7: 78,4%
• Efficiency EN308:

  84% (350 m³/h)

  76% (249 m³/h)

  87% (250 m³/h)

• Power consumption: 2 × 83 W
• Energy class: A
• Housing noise: 47,5 dB(A)
• Air supply: 57,5 dB(A)
• Exhaust: 46,0 dB(A)
• Moisture recovery: 63,4%

RF gear switch (wireless)

The KERMI Boost recuperators are supplied with a wireless RF gear switch. With its help, you can switch 3 gears and turn on time ventilation (speed 3 for 30 minutes).

In the middle of the switch is an LED notifying about the correct operation, or periodically about the need to replace air filters, as well as about the occurrence of failure in the operation of the device.

The RF gear switch also allows you to adjust the amount of air exchange for the highest gear.

Additional RF gear switches can be logged into the KERMI recuperator control system, as well as other control devices – humidity increase sensors and CO2 concentration control in internal air (a total of 20 controllers can be logged in the system).

Control of the recuperator with CO2 concentration level sensors and humidity increase enables fully automatic ventilation operation tailored to real needs.

Boost recuperators come with a gateway to connect the recuperator to the Internet and control the application installed on smartphones.

The KERMI WiFi gateway is connected with the supplied network cable to the home internet router, and then after installing the application on the smartphone, the recuperator is connected to the gateway by radio.

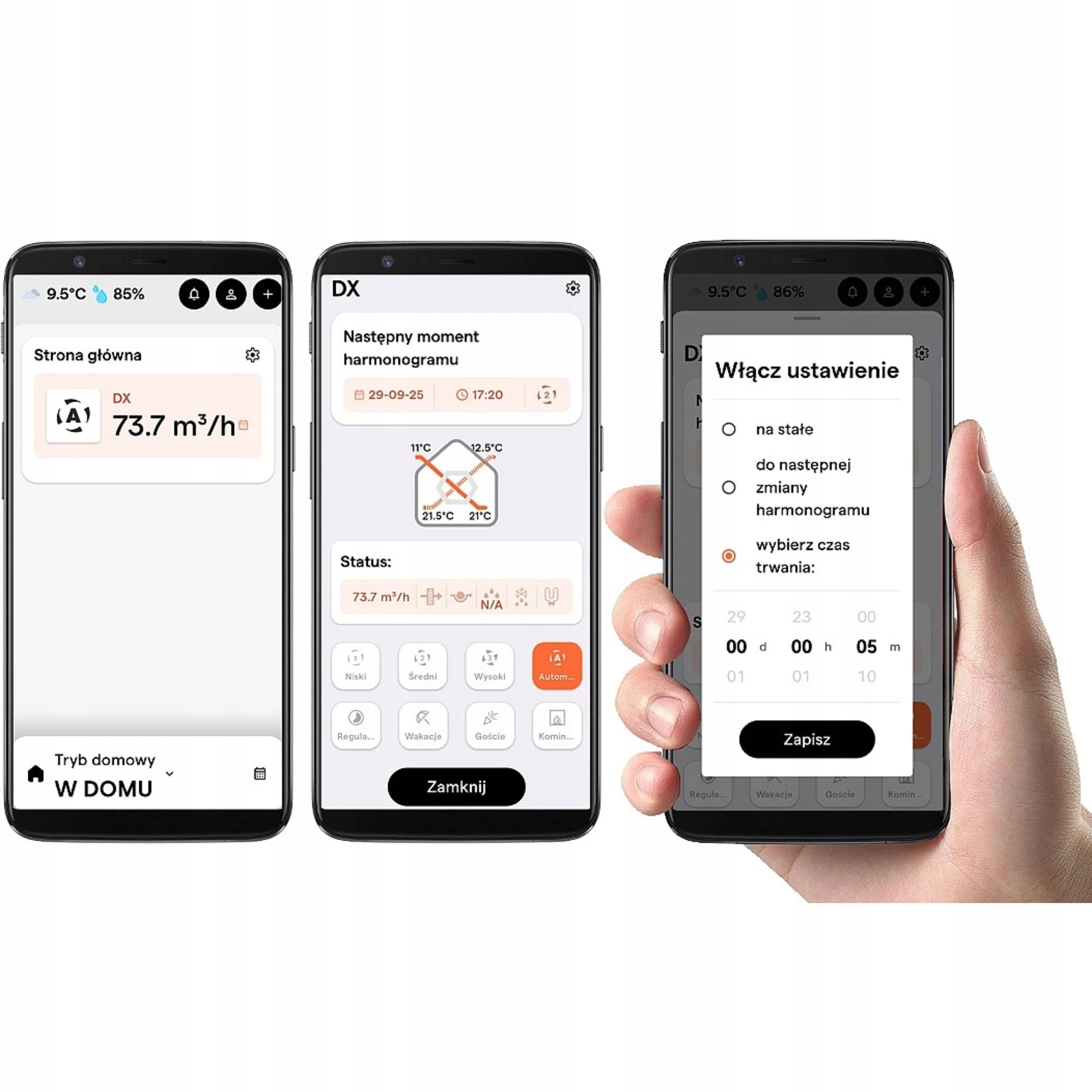

The application on the user's smartphone allows comprehensive control of the device and home ventilation system. The connection is made via Internet access, and thanks to this, the control on the smartphone also works outside the home within the reach of digital data.

Functions of smartphone apps:

• 5 gears for better adjustment of ventilation performance. Gears 1-2-3 identical to those available from the RF switch, additional gears "absence" - below gear 1, "guests" - intermediate between gears 2 and 3.
• The ability to modify the current work of the recuperator from anywhere (necessary data transmission).
• Weekly gear programmer with the possibility of setting periods with automatic mode (in the case of optional humidity and CO2 increase sensors).
• Preview of current operating parameters (temperature, exhaust air humidity, switching on defrost mode, heater, bypass).
• Activation of the temporary hood/fireplace function (abolition of the balance sheet by increasing the air supply for a specified period).
• Settings: the ability to modify the amount of air for all gears, bypass and heater activation points.

Specifications
