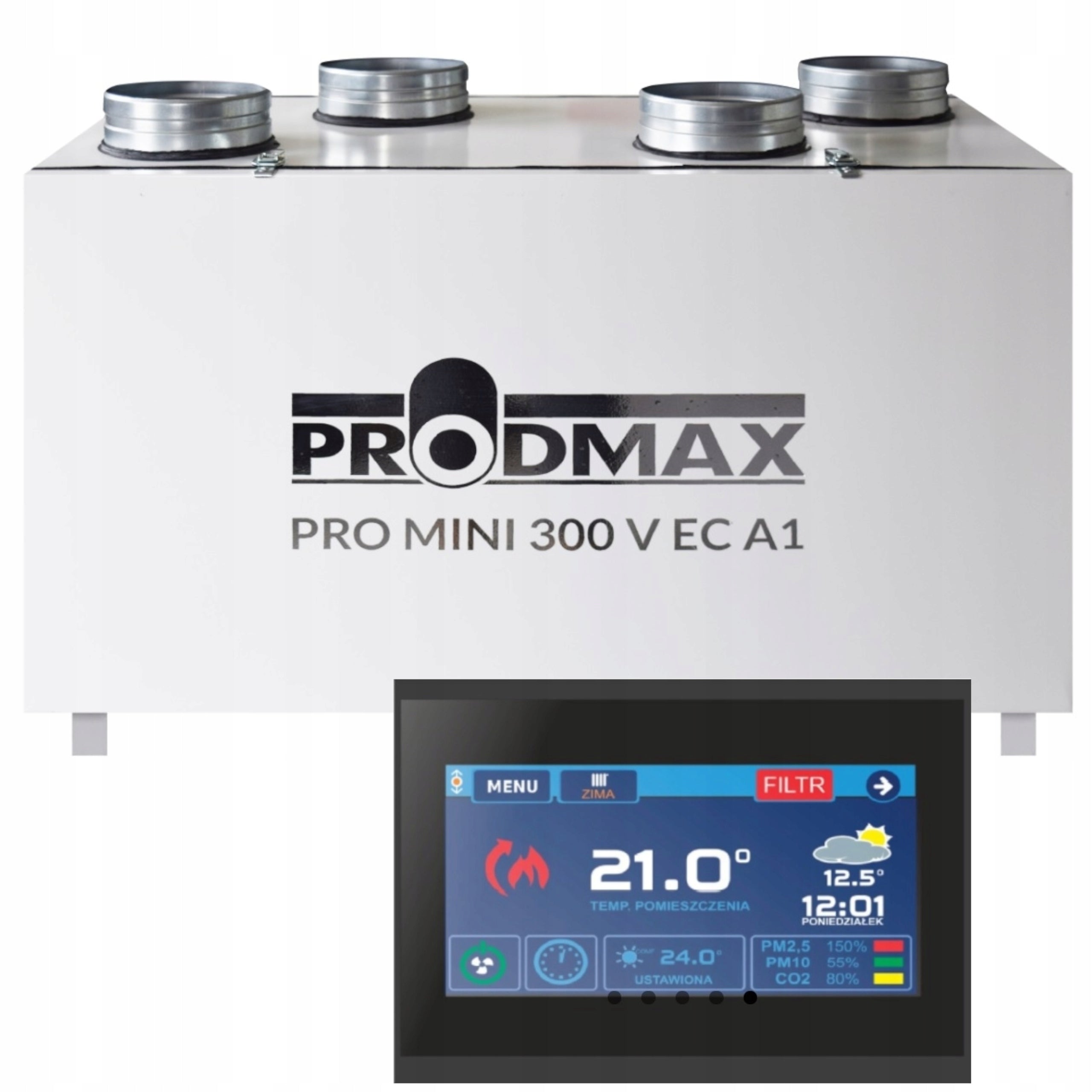

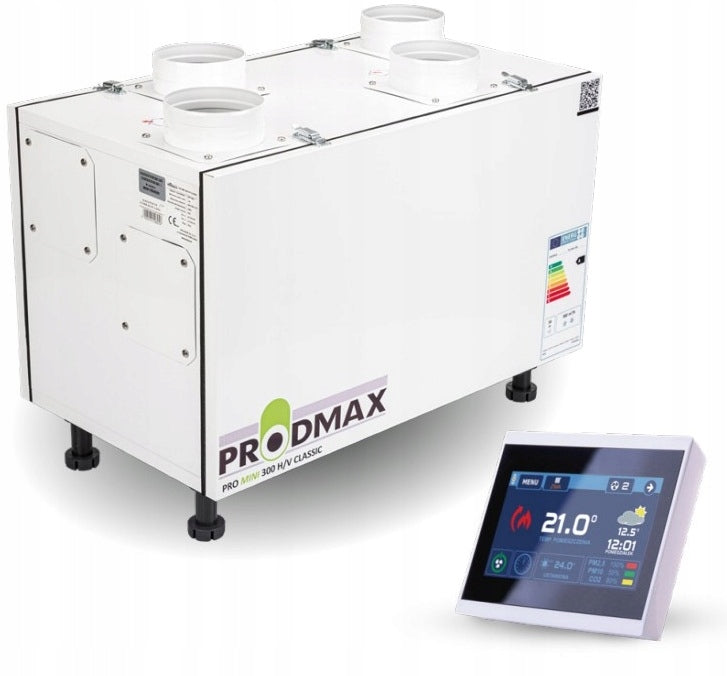

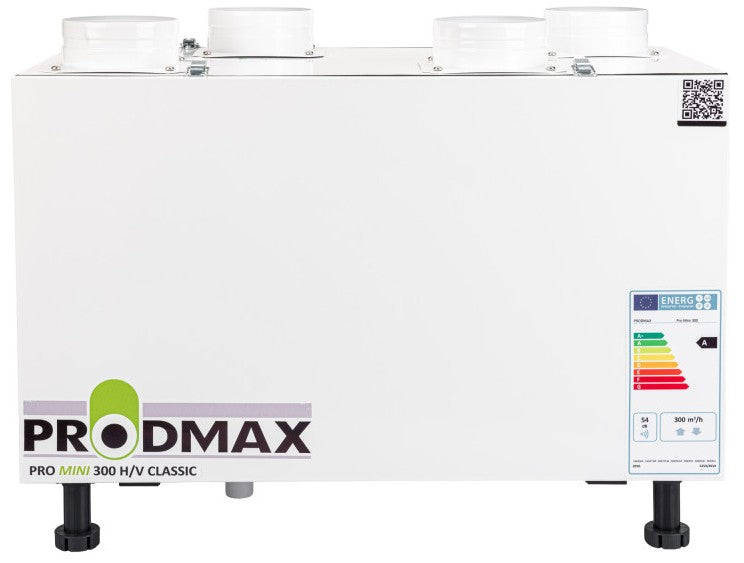

Rekuperatorius Prodmax Pro Mini 300V/H

Trumpai apie prekę

Prekė: Rekuperatorius Prodmax Pro Mini 300V/H. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Prodmax
• Modelis: Pro Mini 300 V

On other auctions also available version of Basic without preheater

and manual bypass as well as Premium version with enthalpic exchanger

Core, preheater and automatic bypass.

ADVANTAGES OF THE CONTROL PANEL:

✔ UNIVERSAL INSTALLATION

Universal installation – left or right

✔ FLEXIBLE CONFIGURATION

Possibility to change the connection nozzle TOP - BOK

✔ HEAT EXCHANGER

reliable cross-current aluminum exchanger with high efficiency heat exchange - efficiency up to 90% - reputable company Recutech with many years of experience.

✔ MODERN CONTROLLER

advanced automation allows you to precisely adjust the parameters of the control panel for the current installation and prevailing weather conditions.

✔ FAN

direct current EC electro-commutator motors were used

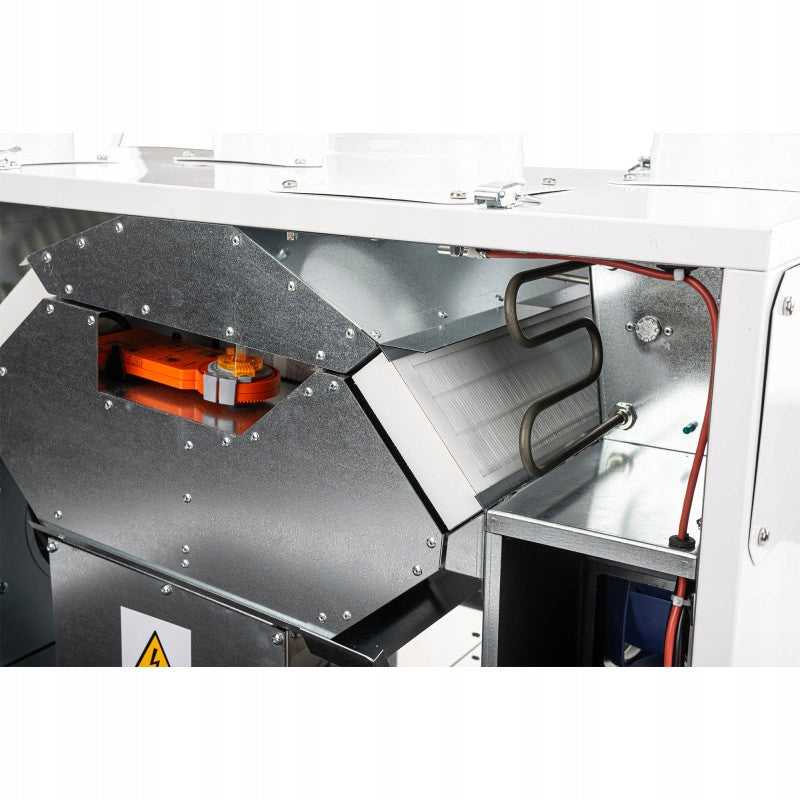

✔ AUTOMATIC PREHEATER

prevents the exchanger from freezing, power 0,5 KW.

✔ AUTOMATIC BYPASS

offered control panels are equipped with 100% by-pass, providing, if necessary, the possibility of cooling the room thanks to the direct supply of cool air to the rooms from the outside in the summer without the need to replace the exchanger with summer cassettes, which in retrospect and operation is quite burdensome in operation.

✔ ENCLOSURE

made entirely of powder coated steel, sound-absorbing insulation gr. 20 mm is characterized by excellent vibration damping properties, noise.

✔ FILTRATION F7

in the intake chamber and filtration G4 in the exhaust chamber

BASIC FUNCTIONS OF CONTROL PANEL AUTOMATION:

✔ GWC control

✔ pre-heater/secondary control

✔ bypass control

✔ setting a weekly schedule

✔ filter contamination indicator

✔ control of the heating system

✔ Online control (optional)

✔ reading of all temperatures

PROMINI

is a series of economical and compact control panels

PLUG&PLAY ventilation, which are the main

element of mechanical ventilation system.

Their main task is to replace and process air.

PROMINI control panels are high-class supply and exhaust devices

with heat recovery, which is carried out by means of

high-efficiency cross-current exchangers.

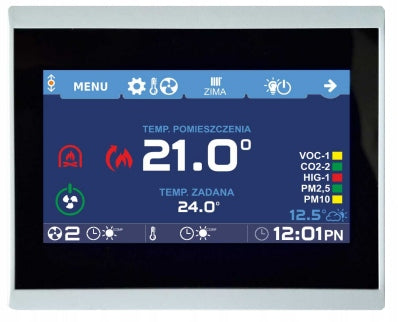

CONTROL – TOUCH CONTROL PANEL

✔ Large, easy-to-read, touch color display

✔ Modern clear user interface

✔ GWC control

✔ Reading all temperatures

✔ Filter contamination indicator

✔ Operation control of the heating system

✔ Weekly schedule

✔ On-line control (optional)

✔ By-pass control

✔ Smooth fan speed control

✔ Pre/secondary/cooler heater control

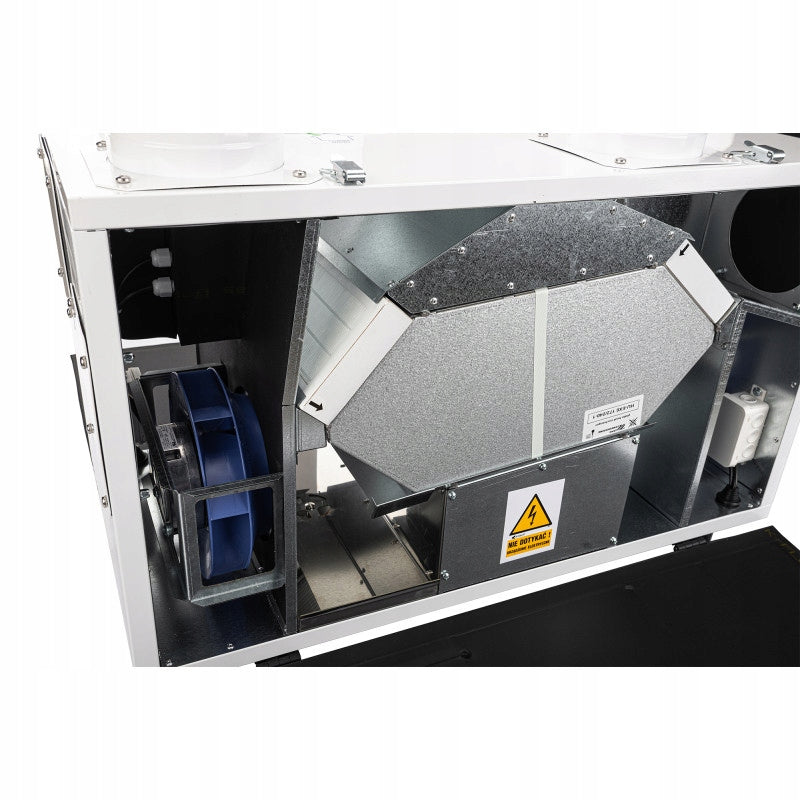

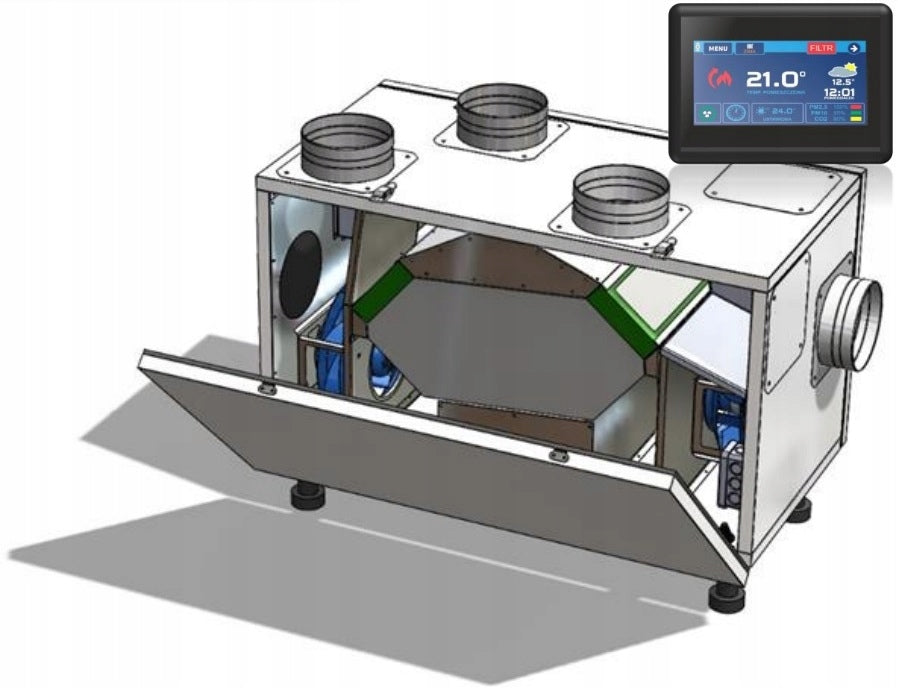

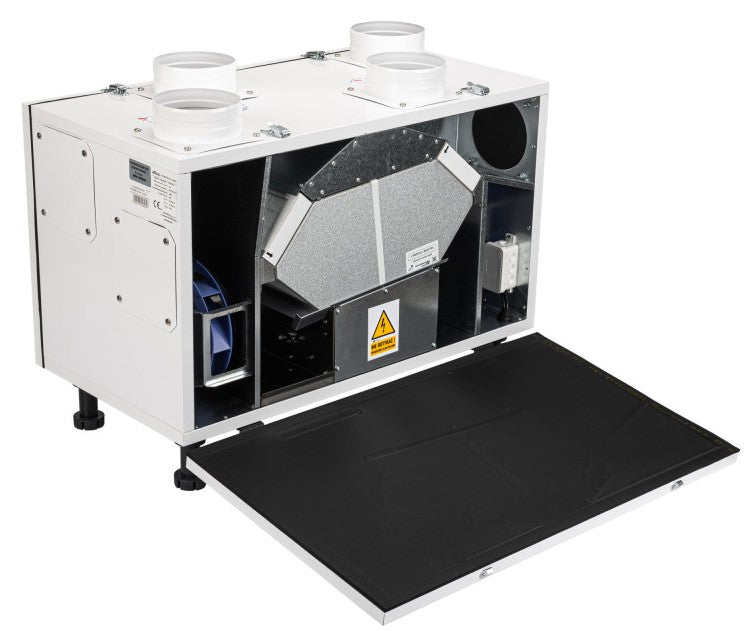

CONSTRUCTION:

1 - Fans EC radial

2 - Recutech heat exchanger with cross, countercurrent design

3 - Flaps, opening both front and back

4 - Connection connections to the 4 x Ø125 system

5 - Legs height adjustable

6 - Preheater in the intake chamber

7 - Filter F7, in the intake chamber, filter G4 in the exhaust chamber

8 - Drain Tray

9 - Control: AREO_3.43 – Compit + Internet module

10 - Bypass controlled by electric actuator Belimo

11 - Housing made of galvanized sheet, powder coated

PARAMETERS:

➢ Maximum flow rate at 100 Pa : 290 m3/h ver. V, 280 m3/h ver. H,

➢ Preheater power : 500 W

➢ Temperature efficiency according to EU 1254/2014, dT=13°C, SWM : 84,4 %

TECHNICAL DATA:

➢ Voltage: 230 V

➢ Maximum fan power: 2 pcs x 170 W

➢ Maximum fan current consumption: 2 x 1,75 A

➢ Preheater power: 0,5 kW

➢ Preheater current consumption: 2,17 A

➢ Total power of the device: 0,84 kW

➢ Total power consumption of the device: 3,8 A

➢ Rotation: 4000/min

➢ Maximum temp. Pressed air: -20 to +50°C

➢ Exchanger material: aluminium

➢ Housing material: powder coated steel

➢ Insulation: 20 mm, mineral wool

➢ Intake filter: F7

➢ Extract filter: G4 (F7* option)

➢ Diameter of air connection connectors: Ø125 mm

➢ Air flow at 100Pa: 290 m3/h ver. V, 280 m3/h ver. H

➢ Dimensions [length x width x height]: 725x245x585 mm

➢ Heat exchanger: cross-current RECUTECH

➢ Maximum Exchanger Efficiency: up to 90 %

➢ Heat exchanger: enthalpic CORE (optional)

➢ Fans: DC EC

➢ Internet module: optional

➢ Bypass: so automatic
