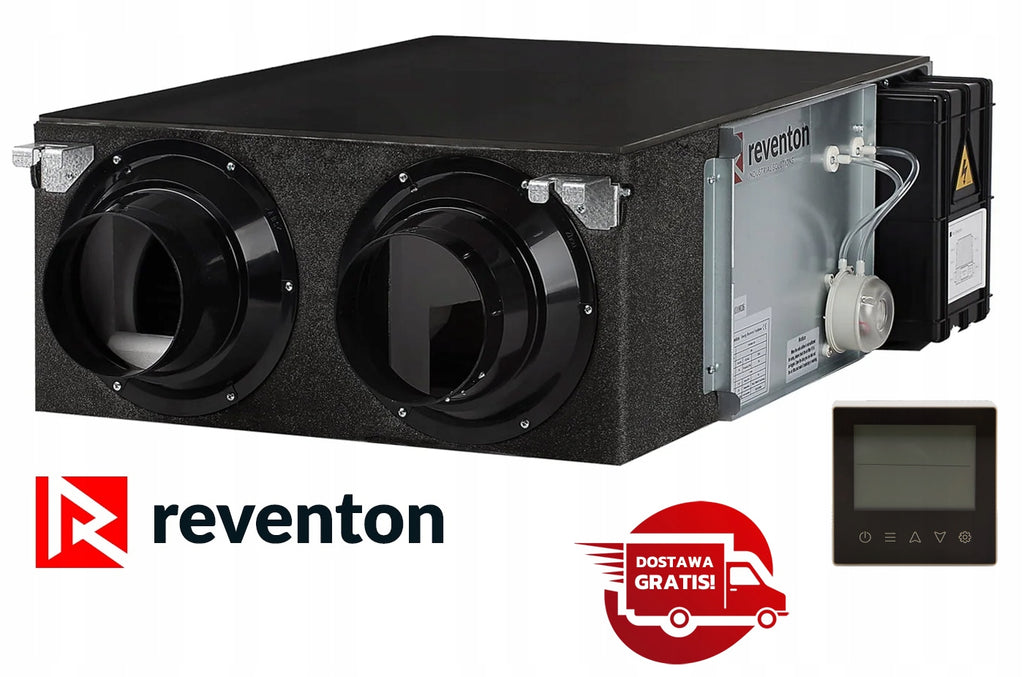

Rekuperatorius Reventon INSPIRO 150 su valdikliu, oro srautas 150 m³/val.

Trumpai apie prekę

Prekė: Rekuperatorius Reventon INSPIRO 150 su valdikliu, oro srautas 150 m³/val.. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Reventon
• Modelis: INSPIRO 150 + sterownik

Reventon INSPIRO 150 recuperator with enthalpic cross-exchanger, touch controller and differential pressure switch included.

Nominal capacity: 150 m3/h (70 Pa)

The main advantages:

• Recuperator with enthalpic heat exchanger is designed for ventilation systems as a modern element enabling energy recovery – heat and moisture.
• Heat recovery allows for a significant reduction in the operating costs of the building. The enthalpic exchanger placed in the device is responsible for additional humidification / dehumidification of air supplied to the rooms. This technological solution results in the lack of the need to perform a condensate drainage system and minimizes the risk of frosting.
• 10-speed EC fans - energy-saving fans allow for wide regulation of air supply and exhaust required amount of air. The G3 pre-filters used protect the exchanger against quick dirt.
• Filters air preliminary G3 protect the exchanger against quick dirt, and the F9 air supply filter guarantees the purity of the supplied air.
• Differential pressure switch: measuring and comparing the pressure behind and before the air filter, F9 informs about the need to replace the filter, triggering an alarm of filter contamination.
• Communication and control of the device is carried out via the SMART control panel.

The recuperator is designed for ventilation of residential buildings: single-family and multi-family houses and other facilities where mechanical air exchange with heat and moisture recovery is needed, e.g. halls, warehouses, service premises, shops, commercial facilities, workshops, health clinics, fitness rooms, gyms.

Available performance of Reventon recuperators from the INSPIRO series in our offer:

• 150 m3/h
• 250 m3/h
• 350 m3/h
• 500 m3/h
• 650 m3/h
• 800 m3/h
• 1000 m3/h
• 1300 m3/h

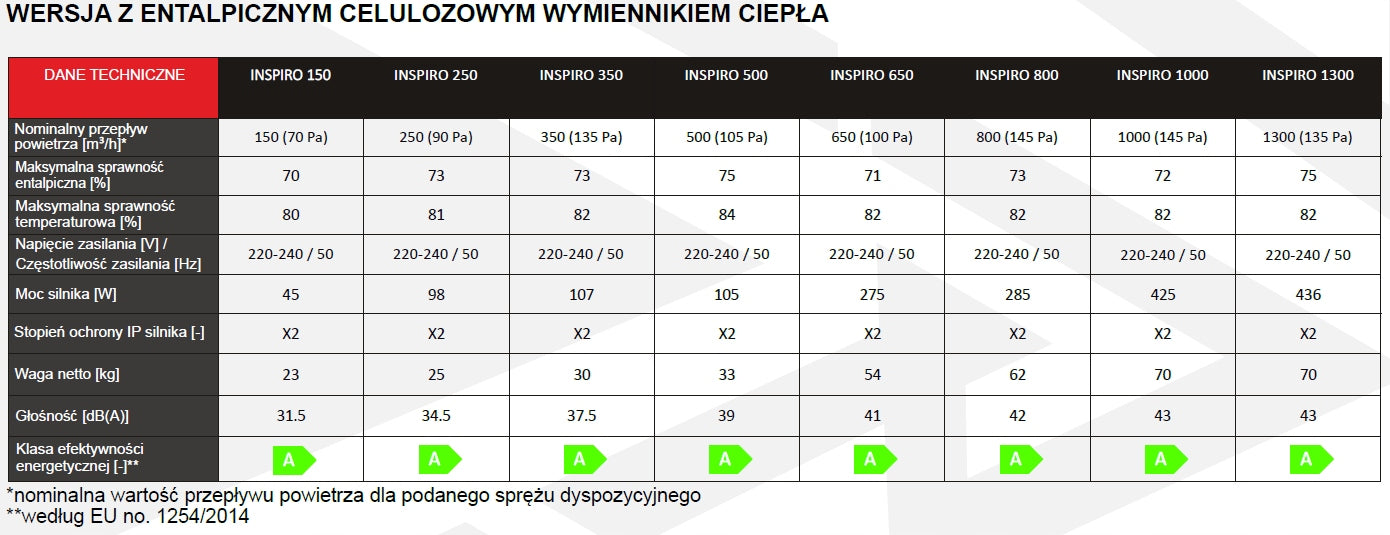

Model: INSPIRO 150

• Nominal airflow: 150 m3/h (spring. dispositional 70 Pa)
• Power supply: 230V/1ph/50Hz
• Energy class: A
• SMART smart touch controller included
• 2 fans with EC motors
• 10-speed fan speed control (air flow regulation every 10% from 10% to 100%)
• Engine power consumption: 45 W
• Max. temperature recovery efficiency: 80%
• Maximum enthalpic efficiency (moisture recovery): 70%
• Cross heat exchanger with heat and moisture recovery
• Max. Volume: 31,5 dB(A) (according to EU no. 1254/2014)
• G3 pre-air filters + F9 air supply filter, (efficiency over 96% for particulate filtering from 2,5 µm to 10 µm)
• Differential pressure switch informing about soiling of the F9 filter
• Automatic By-Pass Function
• DEFROST function - defrosted with exhaust air or electric heater (optional if connected)
• Weekly work schedule
• Fire switch
• Autorestart function
• BMS communication
• Weight: 23 kg
• Dimensions: L. 756 mm x W 580 mm x H 264 mm
• Channel dimensions (diameter): 150 mm

Additional accessories for recuperator in our offer:

• Dedicated channel electric preheater or secondary
• Original dedicated replacement air filters class G3 and F9
• Premium smart touch control panel
• Dedicated CO2 sensor
• Dedicated RH humidity sensor
• Dedicated WiFi module (the ability to control the recuperator from the application on the phone)

Please contact us by phone or e-mail: phone 888*055*347 or sell@ogwent . pl to confirm the availability of the device's storage capacity.

Free dos tawa in PL.

We help in choosing the right device.

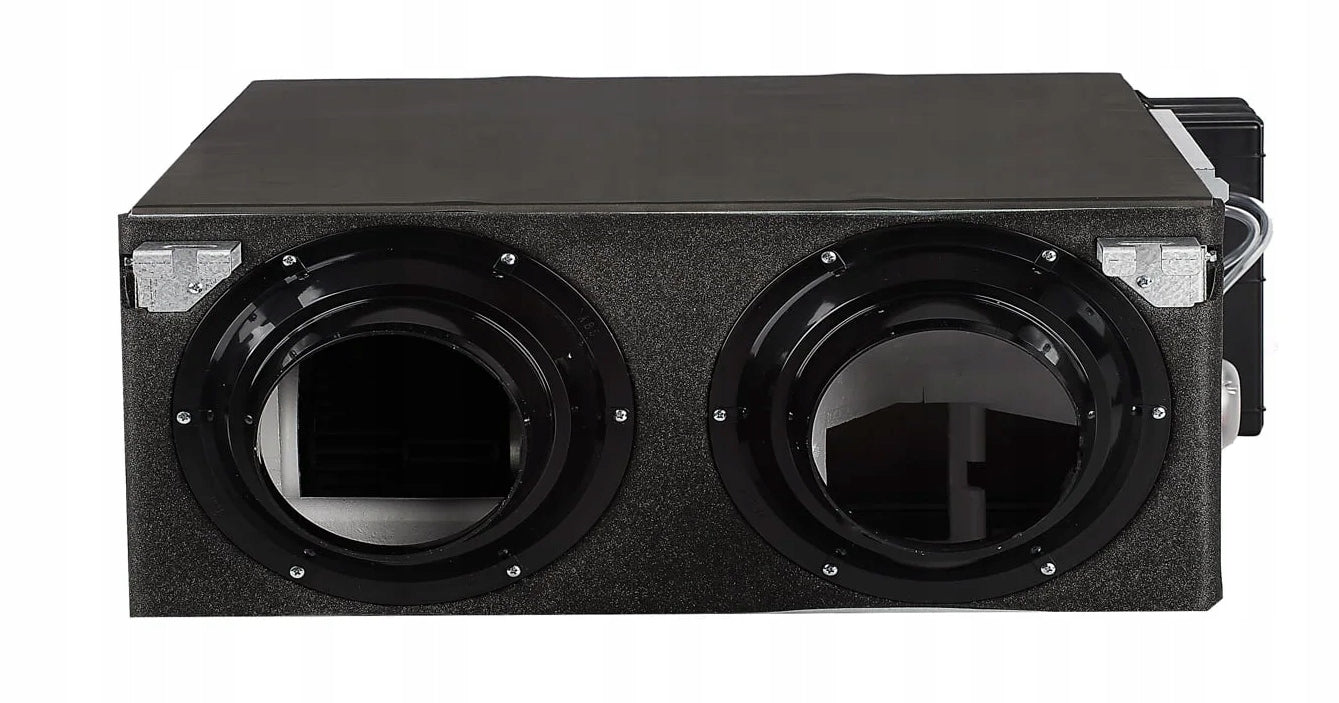

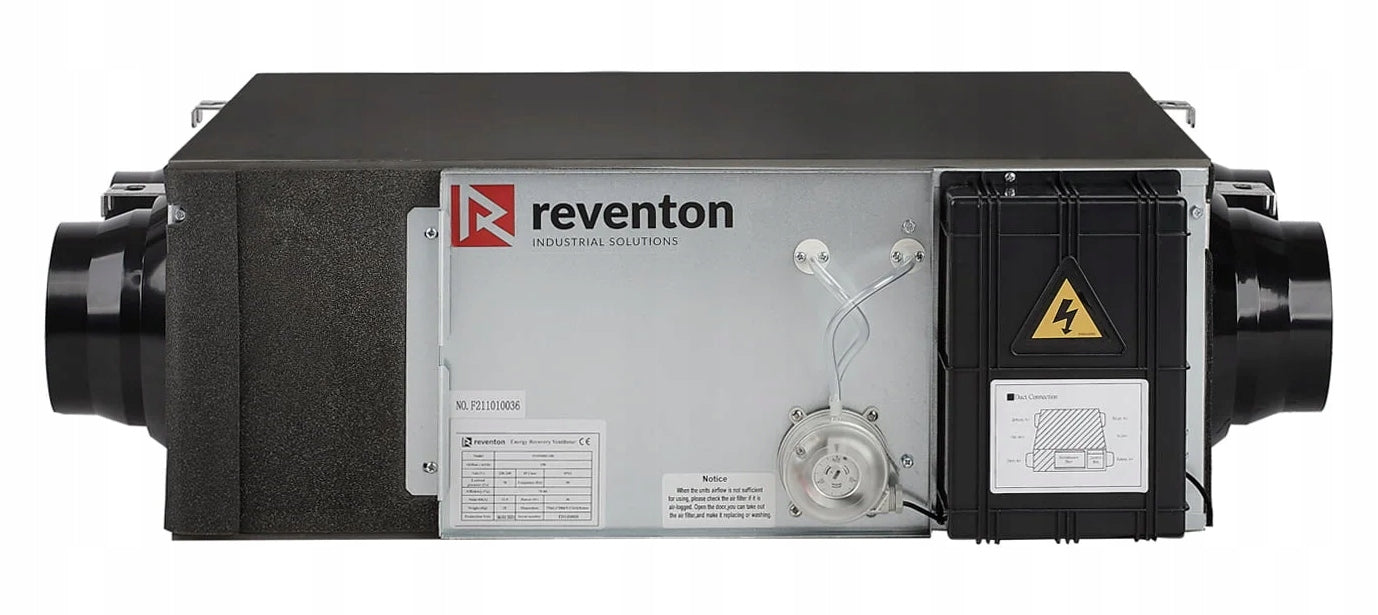

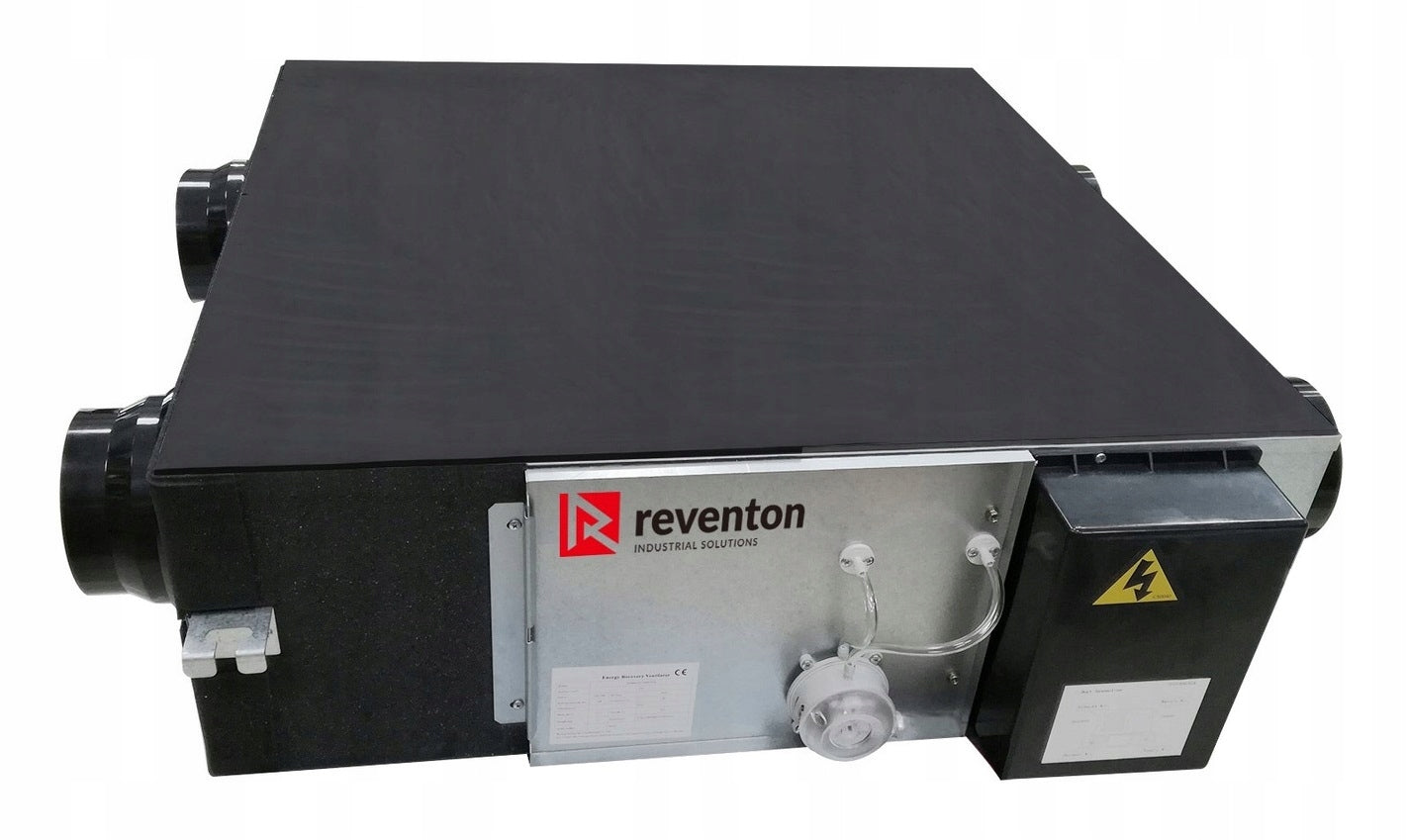

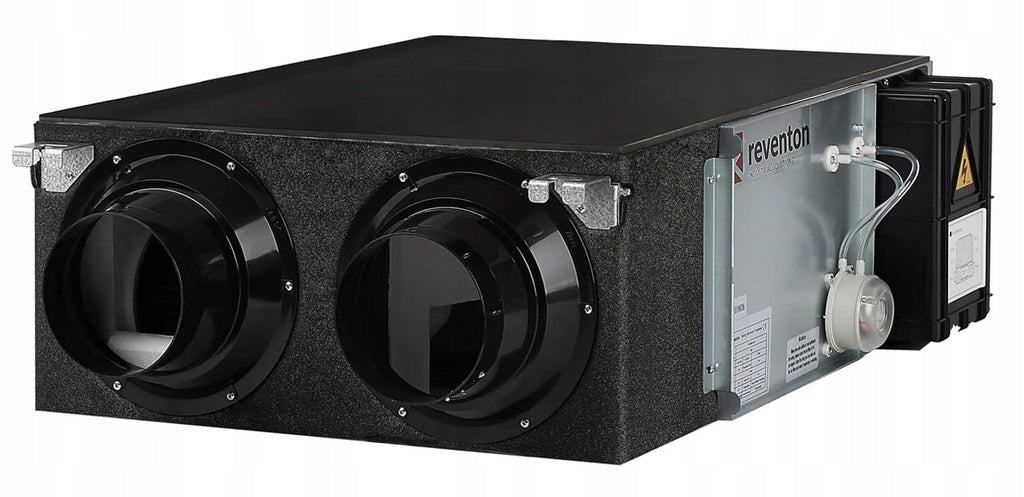

Housing:

Made of galvanized steel, additionally covered with insulating material improving its acoustic and thermal properties. It has convenient handles for easy installation of the device. Connectors made of ABS plastic adapted to ventilation ducts. The housing includes a inspection door that allows for easy access to filters and an exchanger.

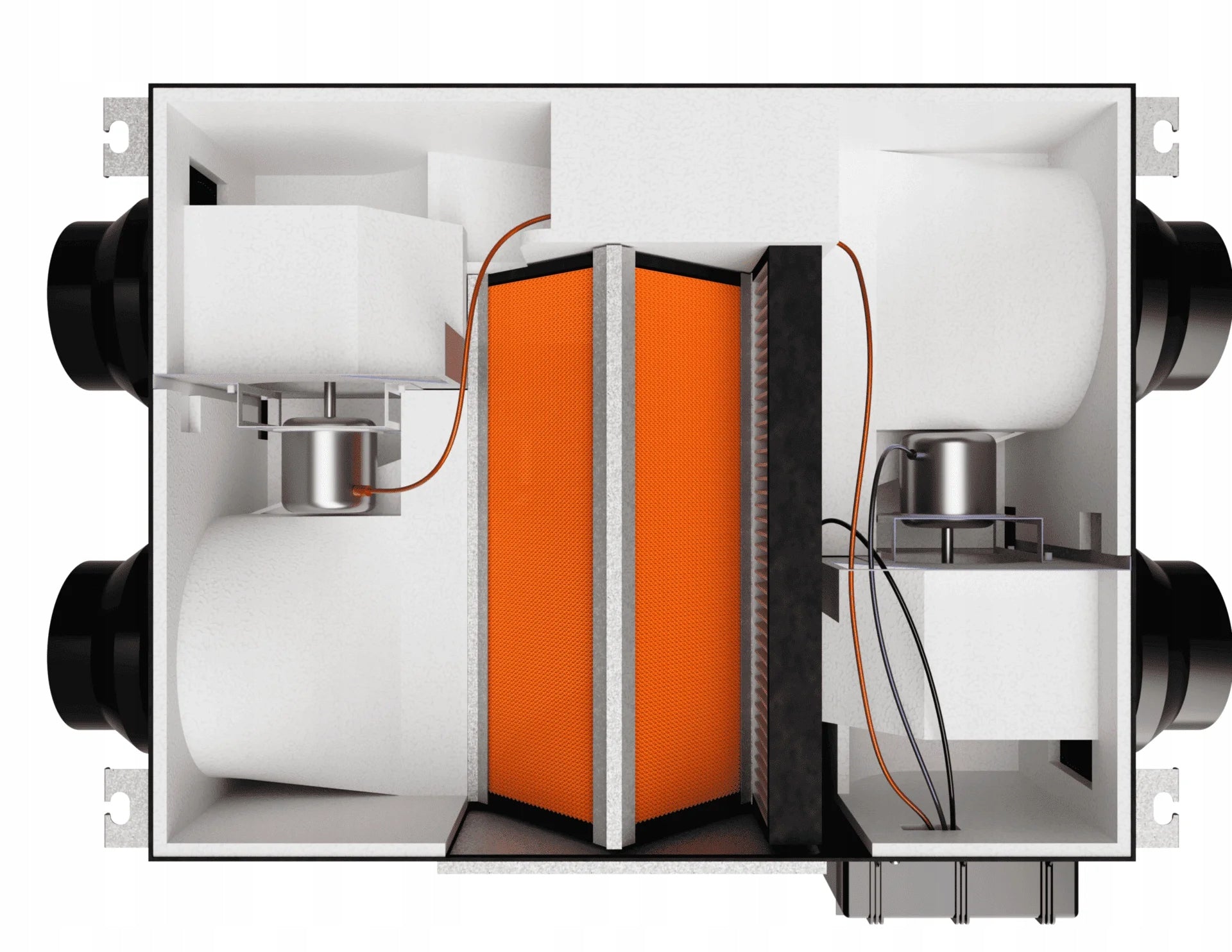

Enthalpic Heat Exchanger:

Made of a special material enabling high-efficiency recovery of heat and moisture from the air exhausted from the rooms (enthalpic efficiency above 70%! ). Thanks to moisture recovery, in many cases you can give up an additional humidifier.

Air filters:

The device has a set of air filters - a set of G3 pre-filters and an F9 air supply filter. Filters guarantee proper cleanliness of the air supplied to the rooms.

Differential pressure switch:

The device has a pressure switch that measures and compares the pressure behind and before the F9 air filter informs about the need to replace the filter, triggering an alarm of filter dirt.

Supply and exhaust fan:

Energy-efficient 10 speed EC fans for airflow through the exchanger and further through the ventilation ducts. They have as many as 10 predefined rotational speeds, allowing you to adjust the operation of the device in a very wide range.

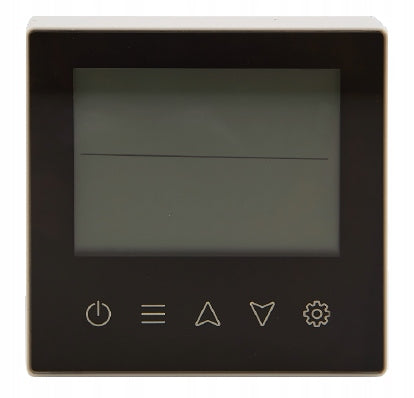

SMART control panel

• It has a liquid crystal LCD screen.
• A 5 m long cable is attached to the controller.
• If necessary, the cable can be extended up to a maximum of 15 meters using a shielded cable.

Example of installation layout with recuperator:

Please contact us by phone or e-mail 888*055*347 or sell@ogwent . pl to confirm the availability of the device's storage capacity.

Specifications
