Rekuperatorius sieninis PILOT, Ø100 mm, 50 m³/val.

Trumpai apie prekę

Prekė: Rekuperatorius sieninis PILOT, Ø100 mm, 50 m³/val.. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Prodmax
• Modelis: RARH100

➡ THE DEVICE MEETS THE REQUIREMENTS OF THE CLEAN AIR PROGRAM AND IS ON THE ZUM LIST!!!

⭐ ⭐ ⭐ ⭐ ⭐

✅ADVANTAGES AND FEATURES:

• High efficiency - 20 ÷ 50 m3/h
• Diameter of ventilation duct - 100 mm
• noise level: from 13 to 30 dB(A) / 3m
• heat recovery efficiency - up to 90%
• supply voltage - 230V / 50Hz
• for installation in rooms such as rooms, living rooms and bedrooms
• Includes remote control
• ceramic, hygroscopic (capable of absorbing water vapour and water - no condensation effect), accumulative heat exchanger

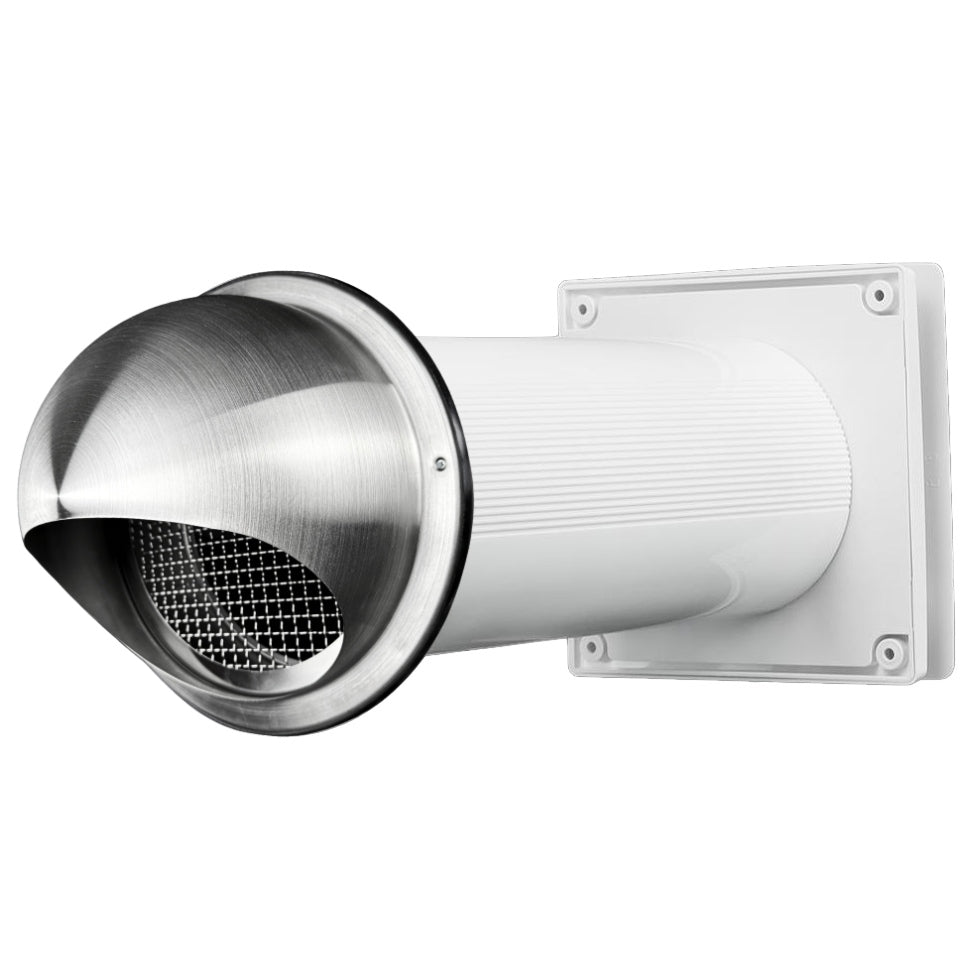

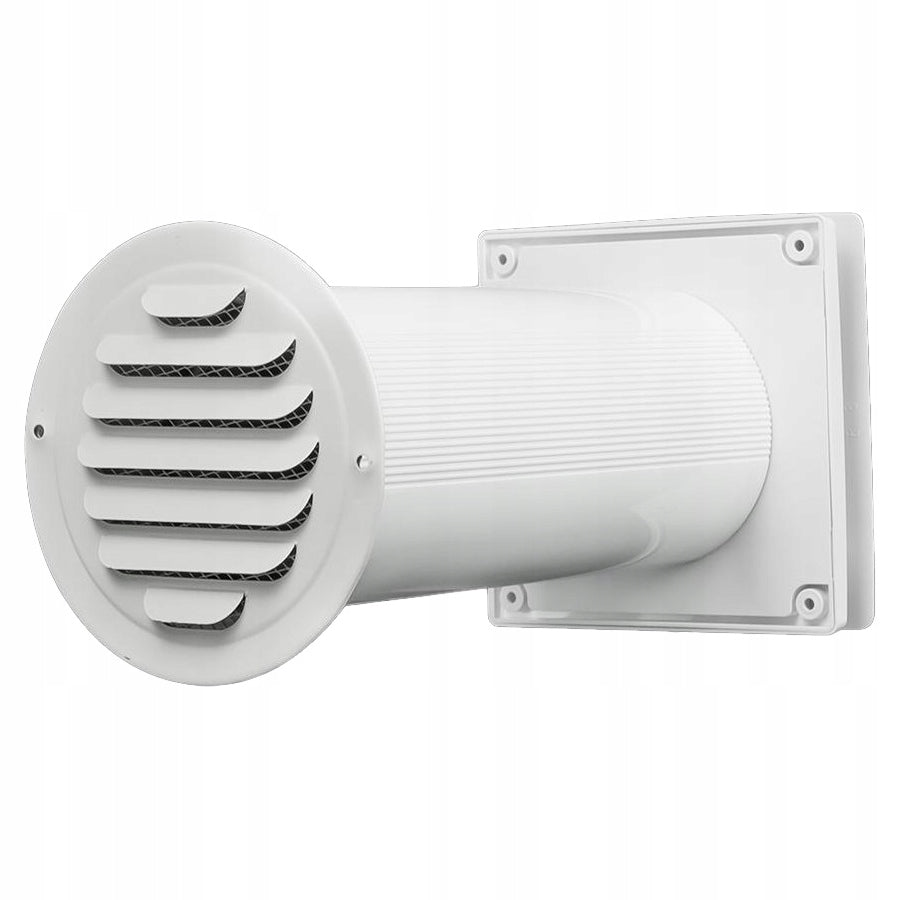

• Choose from an outdoor steel launch in white or stainless steel canopy launcher
• Energy efficiency class - A
• The device is designed to work indoors under the following conditions: outdoor air temperature from -20 °C to +50 °C
• Installation possible for walls with a thickness from 27 cm to 49 cm
• Possibility of extension of the channel in the case of a thicker wall (wall) than 50 cm - using a channel with the symbol 150-4 (see above on Order in one shipment) - The connector is unnecessary, this additional pipe overlaps the one that is included with the device. After insertion, the pipe should be cut so that the whole has the required length for installation.
• reputable manufacturer - PRODMAX

IMPORTANT: when buying, please provide information for the seller which launcher we should send, white powder coated, or stainless steel with a visor

✅ The Air Saver Basic wall recuperator is equipped with a ceramic exchanger, fan and filters. The accumulation exchanger retains heat energy from the exhaust air, and then heats the air supplied to the room. This system ensures that air streams do not mix.

Air Saver Basic devices are perfect for single-family and multi-family residential buildings, when there is no space in your building for the installation of centralized recuperation or when we rent a room in the building and want to ensure clean and healthy air, while reducing heating expenses.

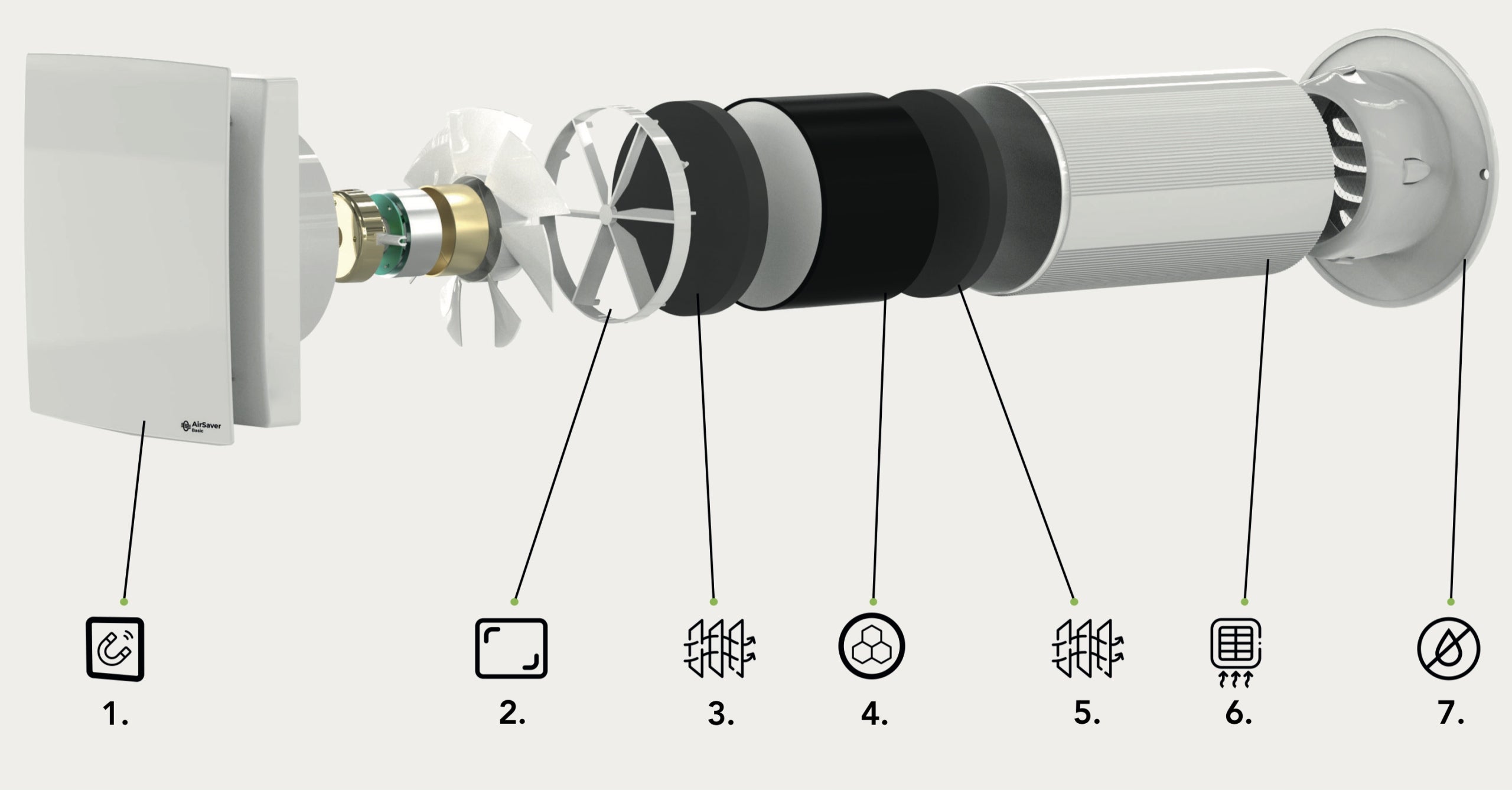

✅SCHEME OF CONSTRUCTION

1. Decorative indoor panel with energy-saving fan with EC motor
2. Separating frame
3. Pre-filter class G3
4. Ceramic heat exchanger
5. Pre-filter class G3
6. Telescopic ventilation duct
7. External intake/ launcher

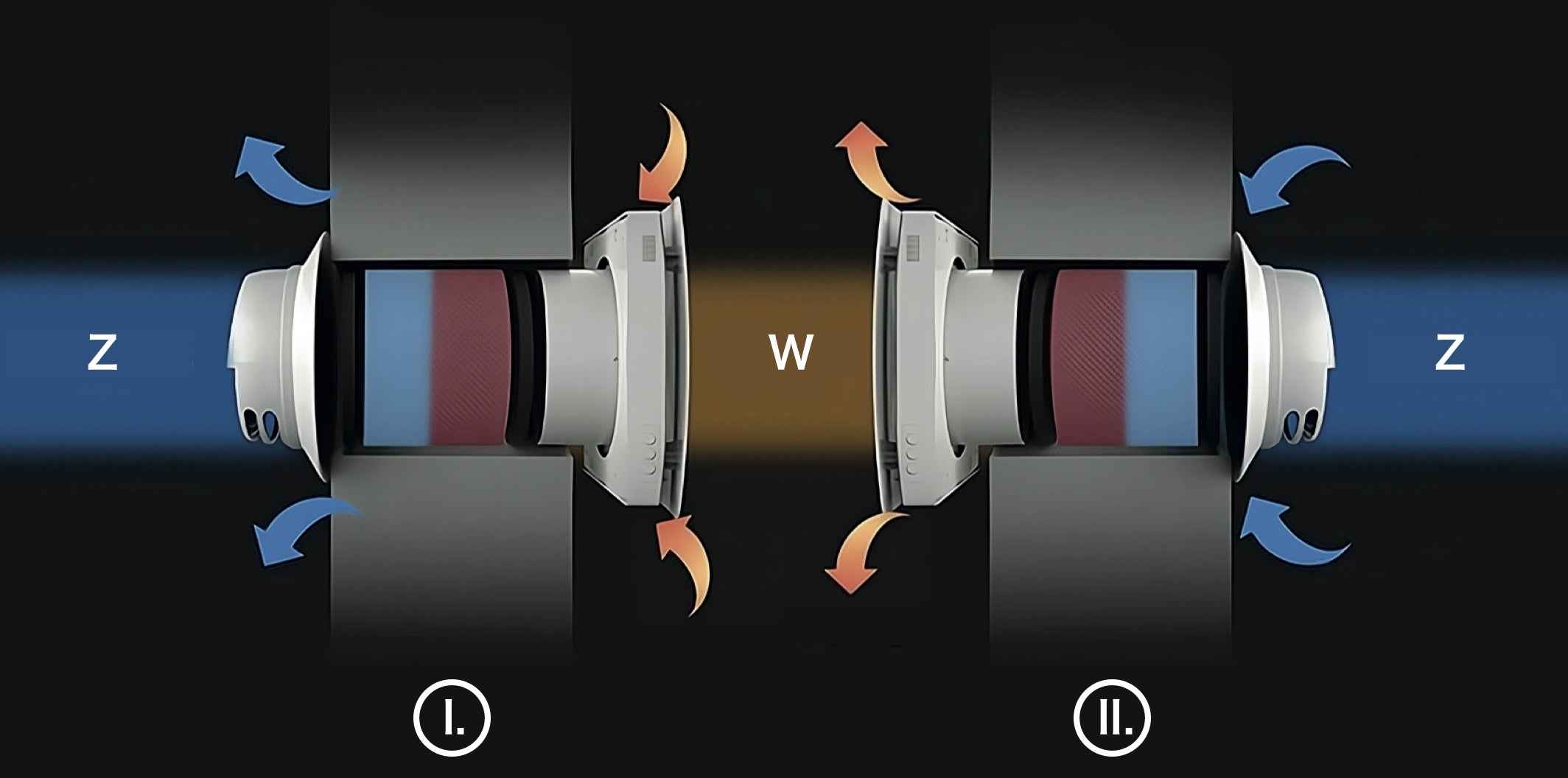

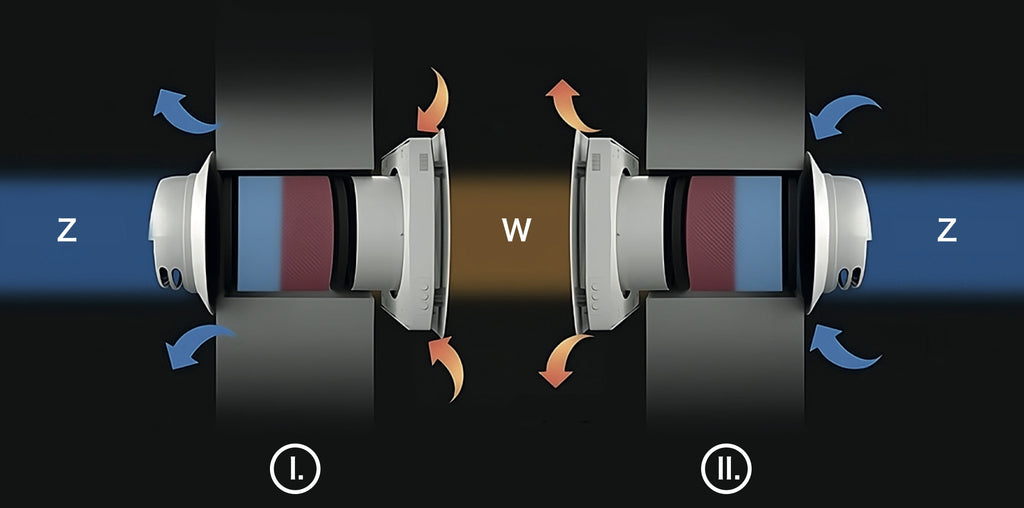

✅PRINCIPLE OF ACTION

I. - EXHAUST CYCLE (65s) - removal of used air - during this cycle lasting 65 seconds, the device extracts used air from the room (W), which flows through the ceramic exchanger leaving part of the thermal energy in it

II. - AIR SUPPLY CYCLE (65s) - fresh air supply - during this cycle lasting 65 seconds, the device draws fresh air from the outside (Z), which flows through the ceramic exchanger and recovers some of the thermal energy left in it during the previous cycle

✅ADDITIONAL FUNCTIONS

1. Cable with power plug - makes it easy to connect the device to the electrical network yourself
2. Control with the included remote control

⚙ TECHNICAL DATA

Basic technical parameters:

• supply voltage - 100 ÷ 240V 50/60 Hz
• efficiency of the exchanger - up to 90 %
• temp. air - from -20°C to +50°C

The device can work in 4 modes, in which it will have different parameters:

1. NIGHT MODE

• capacity - 20 m3/h
• noise level - 13 dB(A)/3m
• Fan power - 2,5 W
• fan speed - 1000 rpm /min.

2. RUN AND

• capacity - 30 m3/h
• noise level - 22 dB(A)/3m
• Fan power - 3,0 W
• fan speed - 1500 rpm /min.

3. RUNNING II

• capacity - 44 m3/h
• noise level - 25 dB(A)/3m
• Fan power - 3,5 W
• fan speed - 2000 rpm /min.

4. RUN III

• capacity - 50 m3/h
• noise level - 30 dB(A)/3m
• Fan power - 3,8 W
• fan speed - 2500 rpm /min

📏Dimensions of the device [mm]

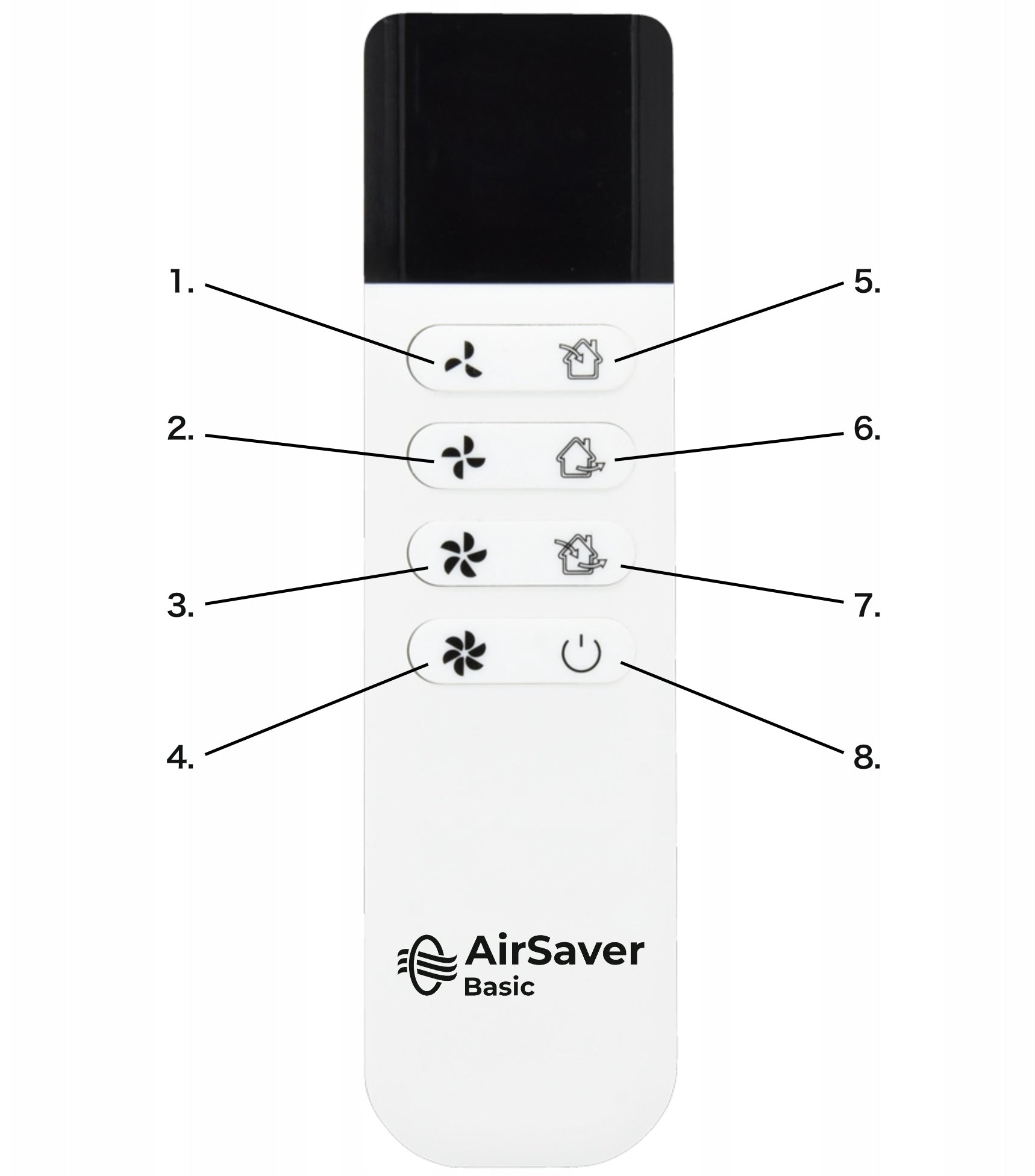

✳ REMOTE CONTROL

1. Standby speed (night mode)
2. Low speed
3. Average speed
4. High speed
5. Fresh air mode
6. Exhaust mode
7. Air exchange cycle mode
8. Enable/Disable

✳ IMPORTANT: when buying, please provide information for the seller which launcher to send, white powder coated, or stainless steel with a visor
