Rekuperatorius su entalpiniu šilumokaičiu Reventon INSPIRO BASIC 600 ir valdymo pultu

Trumpai apie prekę

Prekė: Rekuperatorius su entalpiniu šilumokaičiu Reventon INSPIRO BASIC 600 ir valdymo pultu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Reventon
• Modelis: INSPIRO-BASIC600-2025

Producer: Reventon

Condition: new

Packaging: original

Origin: official distribution

Warranty: manufacturer

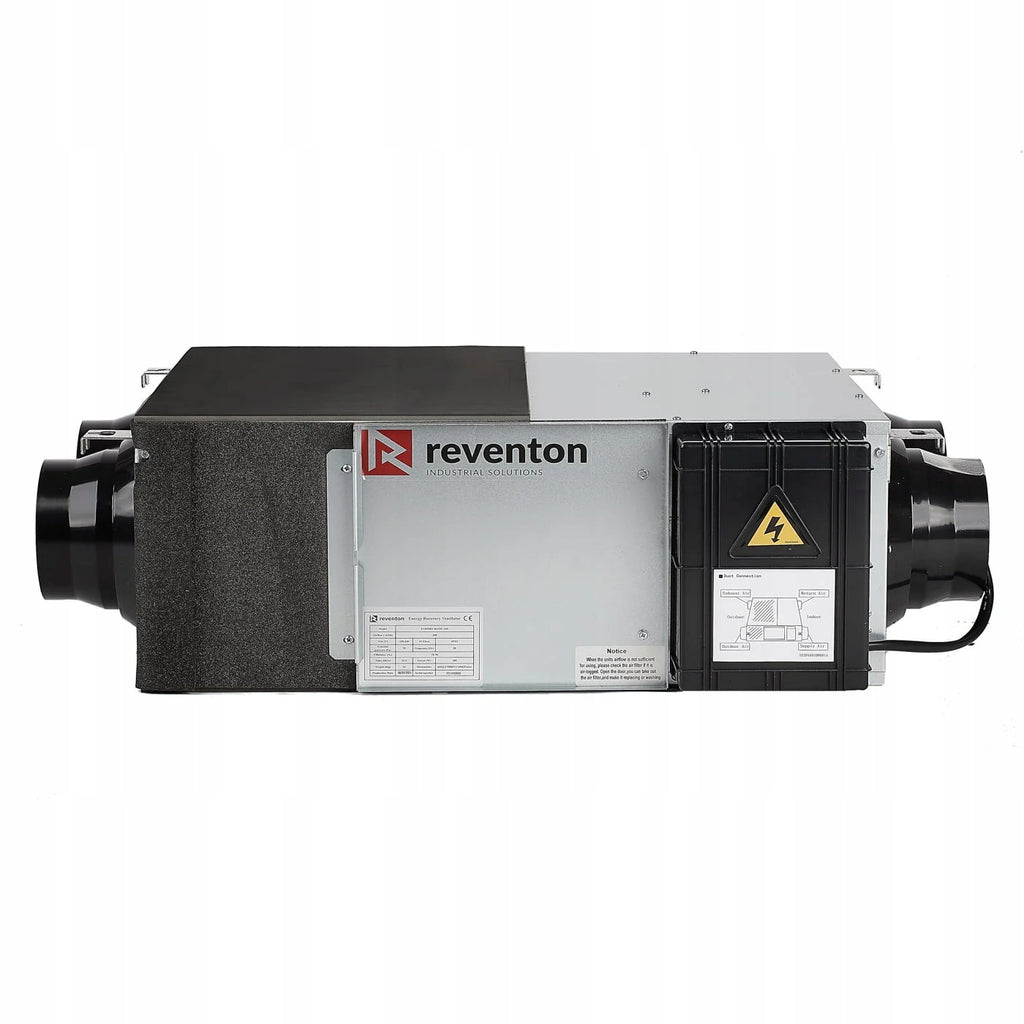

Reventon INSPIRO BASIC 600 heat recovery unit with enthalpy exchanger + BASIC control panel

The INSPIRO BASIC heat recovery unit with an enthalpy exchanger is a ventilation unit with a simplified design, optimized for costs, enabling energy recovery – heat and humidity. Designed for use inside residential buildings, halls, warehouses, service rooms or workshops. They can be equipped with a cellulose or polyethylene exchanger.

Characteristics:

• Air flow capacity from 200 m³/h to 1300 m³/h
• Cross-flow heat exchanger with heat and moisture recovery
• Maximum moisture recovery efficiency: 67%
• Maximum heat recovery efficiency: 76%
• 2 fans with AC induction motors
• 3-speed fan speed control
• Manual bypass
• G3 Pre-Filters
• BASIC driver included
• Weekly work schedule
• Filter contamination indication
• Energy class "A"



Solid construction and easy filter replacement

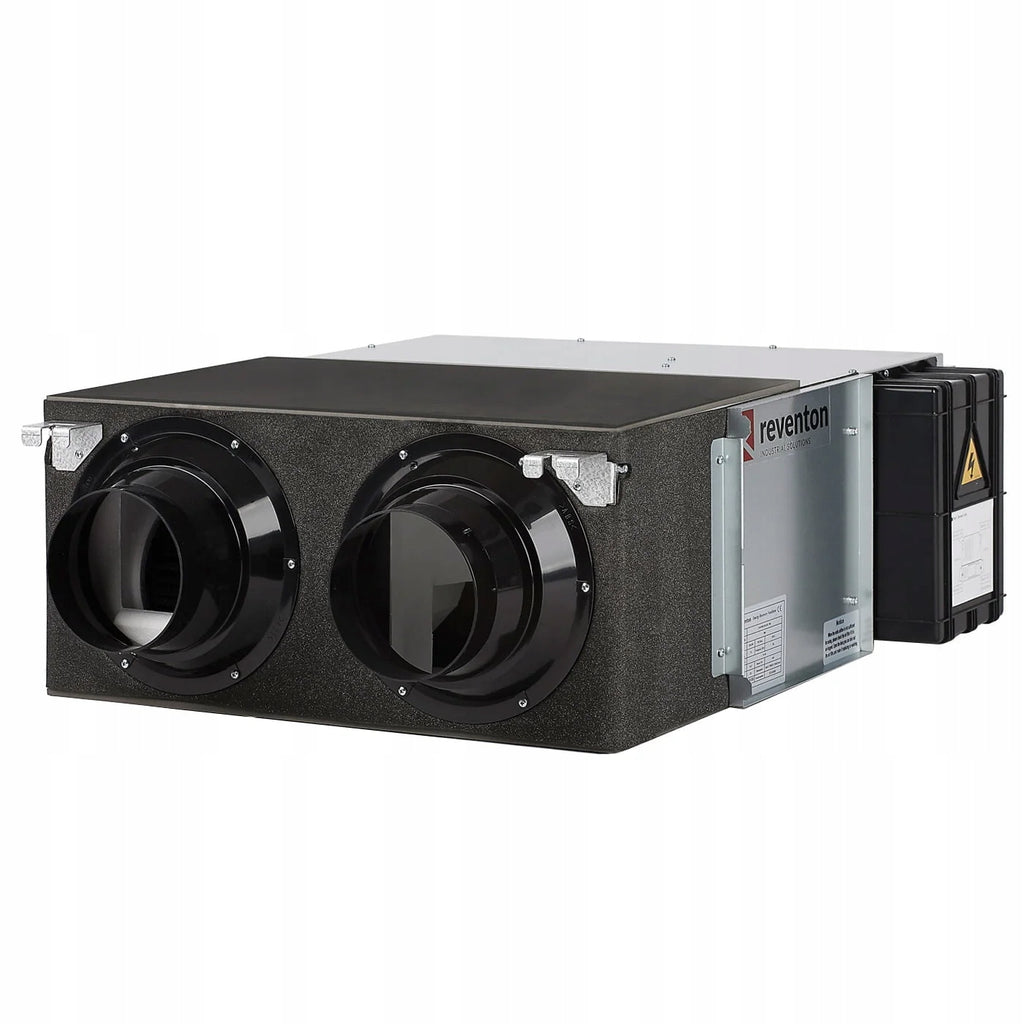

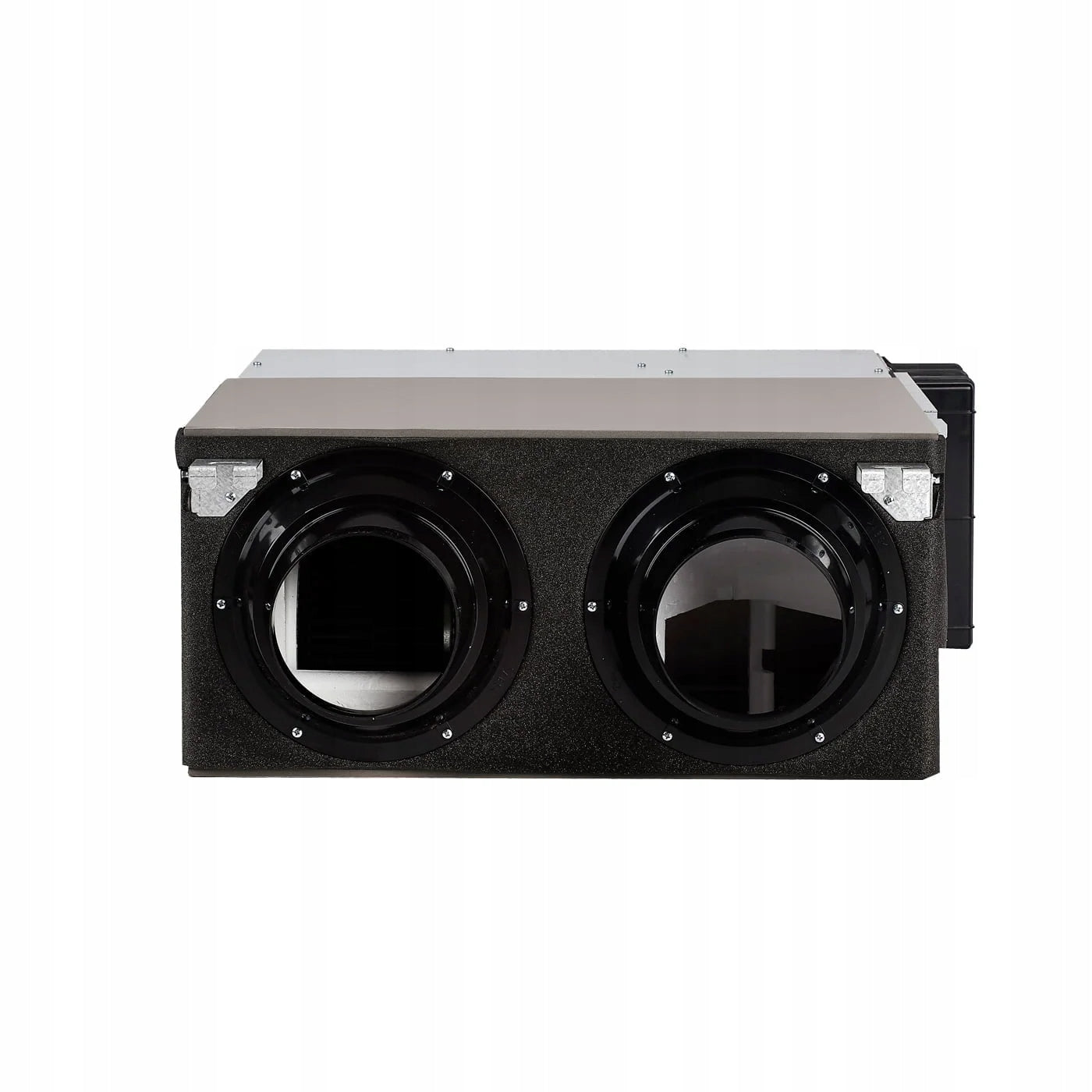

The housing of the INSPIRO BASIC heat recovery unit is made of galvanized steel. It has comfortable handles that allow for easy installation of the device, and the plastic connectors have diameters adapted to the most popular sizes of ventilation ducts.

The housing has an inspection door that allows for trouble-free access.

access to filters and exchanger.

Intelligent recuperator control

The devices have 3-speed AC fans and are controlled by a BASIC panel. Additionally, it is possible to set a weekly schedule for the heat recovery unit operation and to set the air supply function in bypass mode (bypassing the heat exchanger).

After a total of over 1000 hours of operation, an alarm appears on the panel reminding you to clean the G3 filter.

Filter set for the INSPIRO BASIC recuperator

Ensure the efficient and hygienic operation of your recuperator with appropriate filters. We offer dedicated G3 pre-filters for each INSPIRO BASIC recuperator model.

As standard, the G3 pre-filter offers a protection level of ISO coarse >= 50%, sufficient for most spaces.

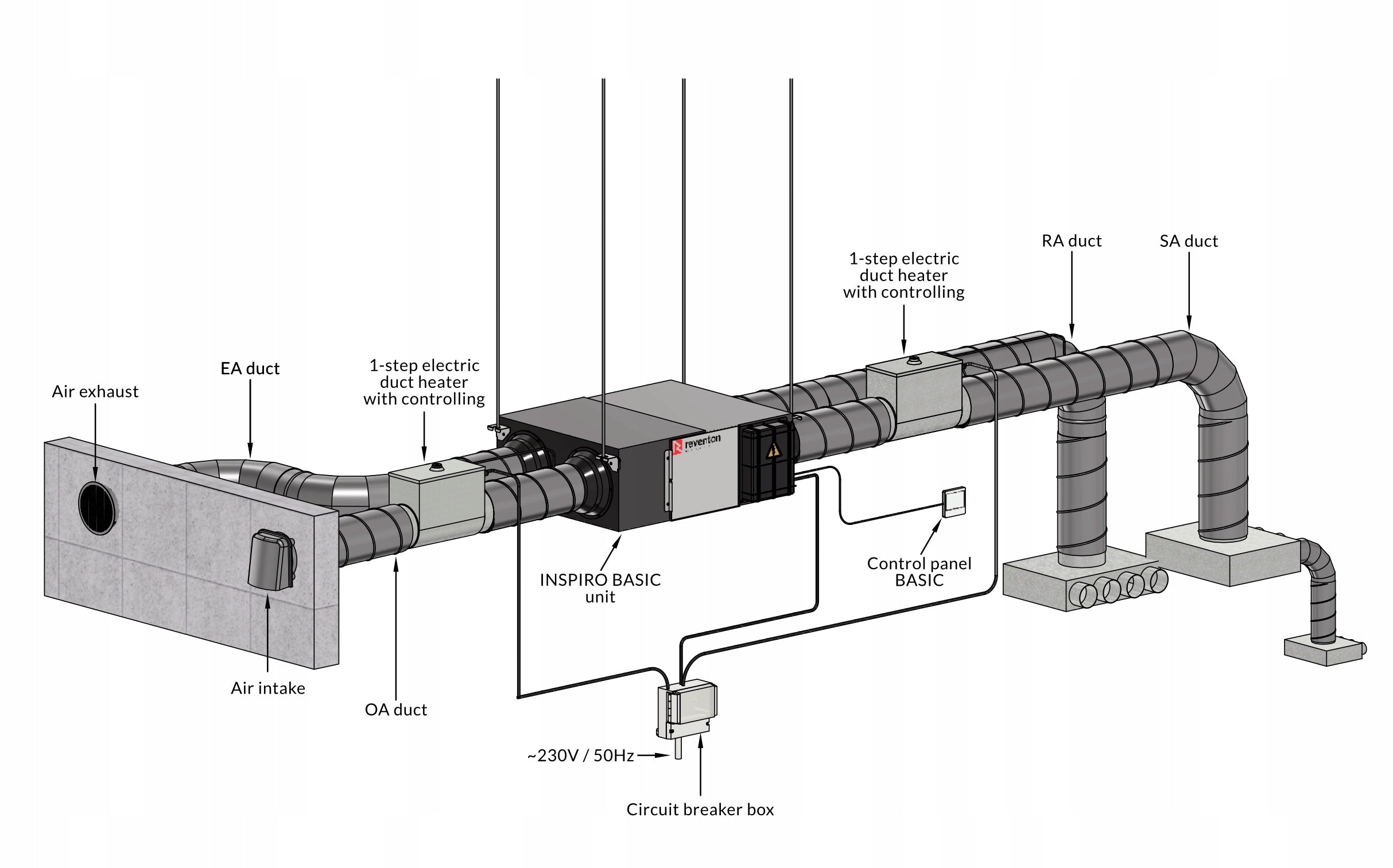

Duct heater (optional)

To ensure the highest efficiency of the recuperator, it is recommended to use an additional pre-heater with control. This is very important when temperatures drop below -9 degrees to avoid freezing of the exchanger. Especially during winter periods.

The pre-heater heats the air entering the device, increasing the efficiency of heat recovery and reducing the risk of damage to the exchanger.

NOTE: The heater is not included in the set! You can find a dedicated heater in our store, or contact our sales representative who will select the appropriate device.

Technical data

INSPIRO BASIC 200 INSPIRO BASIC 300 INSPIRO BASIC 400 INSPIRO BASIC 600 INSPIRO BASIC 800 INSPIRO BASIC 1000 INSPIRO BASIC 1300 Product code INSPIRO-BASIC-200-2022 INSPIRO-BASIC-300-2023 INSPIRO-BASIC-400-2024 INSPIRO-BASIC-600-2025 INSPIRO-BASIC-800-2026 INSPIRO-BASIC-1000-2028 INSPIRO-BASIC-1300-2027 Nominal air flow [m3/h] 200 300 400 600 800 1000 1300 Maximum enthalpic efficiency [%] 63 65 65 67 63 64 62 Maximum temperature efficiency [%] 75 73 74 76 74 76 76 Supply voltage/frequency [V/Hz] 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 Motor power [W] 105 117 150 200 355 440 710 Motor protection class X2 X2 X2 X2 X2 X2 Net weight [kg] 23 25 31 36 60 70 79 Noise level [dB] 31.5 34.5 37.5 39 41 42 43 Energy efficiency class AAAAAAA



INSPIRO BASIC 200 POLY INSPIRO BASIC 300 POLY INSPIRO BASIC 400 POLY INSPIRO BASIC 600 POLY INSPIRO BASIC 800 POLY INSPIRO BASIC 1000 POLY INSPIRO BASIC 1300 POLY Product code INSPIRO-BASIC

200POLY-2306

INSPIRO-BASIC

300POLY-2307

INSPIRO-BASIC

400POLY-2308

INSPIRO-BASIC

600POLY-2309

INSPIRO-BASIC

800POLY-2310

INSPIRO-BASIC

1000POLY-2311

INSPIRO-BASIC

1300POLY-2312

Nominal air flow [m3/h] 200 300 400 600 800 1000 1300 Maximum enthalpic efficiency [%] 63 65 65 67 63 64 62 Maximum temperature efficiency [%] 75 73 74 76 74 76 76 Supply voltage/frequency [V/Hz] 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 220-240/50 Motor power [W] 105 117 150 200 355 440 710 Motor protection class X2 X2 X2 X2 X2 X2 X2 Weight net [kg] 23 25 31 36 60 70 79 Noise level [dB] 31.5 34.5 37.5 39 41 42 43 Energy efficiency class AAAAAAA

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Reventon
Parametry	Kind	heat recovery ventilator
Parametry	Manufacturer code	INSPIRO-BASIC600-2025
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
Parametry	Batteries included	no
