Rekuperatorius Thessla AirPack 4 500H Energy++ montavimas

Trumpai apie prekę

Prekė: Rekuperatorius Thessla AirPack 4 500H Energy++ montavimas. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Thesslagreen
• Modelis: AirPack4 500h Energy++

The subject of this offer is a recuperator with assembly (at a VAT rate of 8%) for a previously made complete installation with all media and connections to the control panel.

At the customer’s request, we can also make a full ventilation system.

AirPacka4 can be installed in an unheated room where the temperature drops to -15°C in winter.

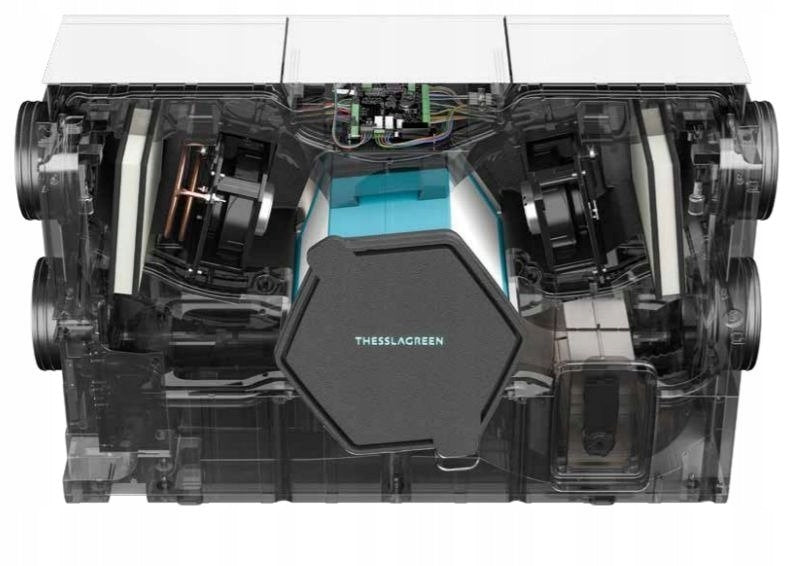

AirPack4 operates at high efficiency even at low ambient temperatures. Thanks to this, it can be installed in non-utility rooms, saving valuable space of the building. The recuperator will not lose its efficiency and there will be no risk of moisture condensation on the surfaces of its housing. All this is possible thanks to the unique concept of the FULLSHELL housing made of foamed polypropylene with a thickness of 50 mm devoid of fasteners and other thermal bridges.

Quiet operation

The AirPack4 has an InFlow system, which reduces noise emissions to the supply duct at nominal efficiency by up to 10 dB(A). In the control panel, the fans are located in front of the heat exchanger in the direction of air flow. Thanks to this, the acoustic wave generated in the supply fan before it reaches the supply duct must pass through thousands of channels of the heat exchanger, while undergoing significant dispersion. In addition, the recuperator is entirely made of material that does not reflect the sound wave. Thanks to this design, with nominal efficiency, the AirPack4 will emit an acoustic power of 50 to 58 dB(A) into the supply duct, and 60 to 65 dB(A) to the exhaust duct.

The offer includes:

• device - recuperator
• transport and access within a radius of 100km from the company’s headquarters (Brzesko, małopolska)
• installation
• connection of the device to the existing ventilation system
• first activation
• measurements based on the recuperation project of the entire installation with a professional TESTO anemometer

The offer does not include:

• connection elements and mounting materials
• driver

Conditions of order performance:

• assembly date to be determined, after the previous contack
• installation at a distance of up to 100km from the company’s headquarters
• In the case of installation in the attic, the dimension of the manhole should be given.
• the price of the device in the gross amount using 8% VAT rate only for individual customers, for residential purposes who have a usable area below 300 m2, meeting the requirements set out in Article 41 sec. 1 of the Act on the Protection of Human Rights. 12 b of the VAT Act

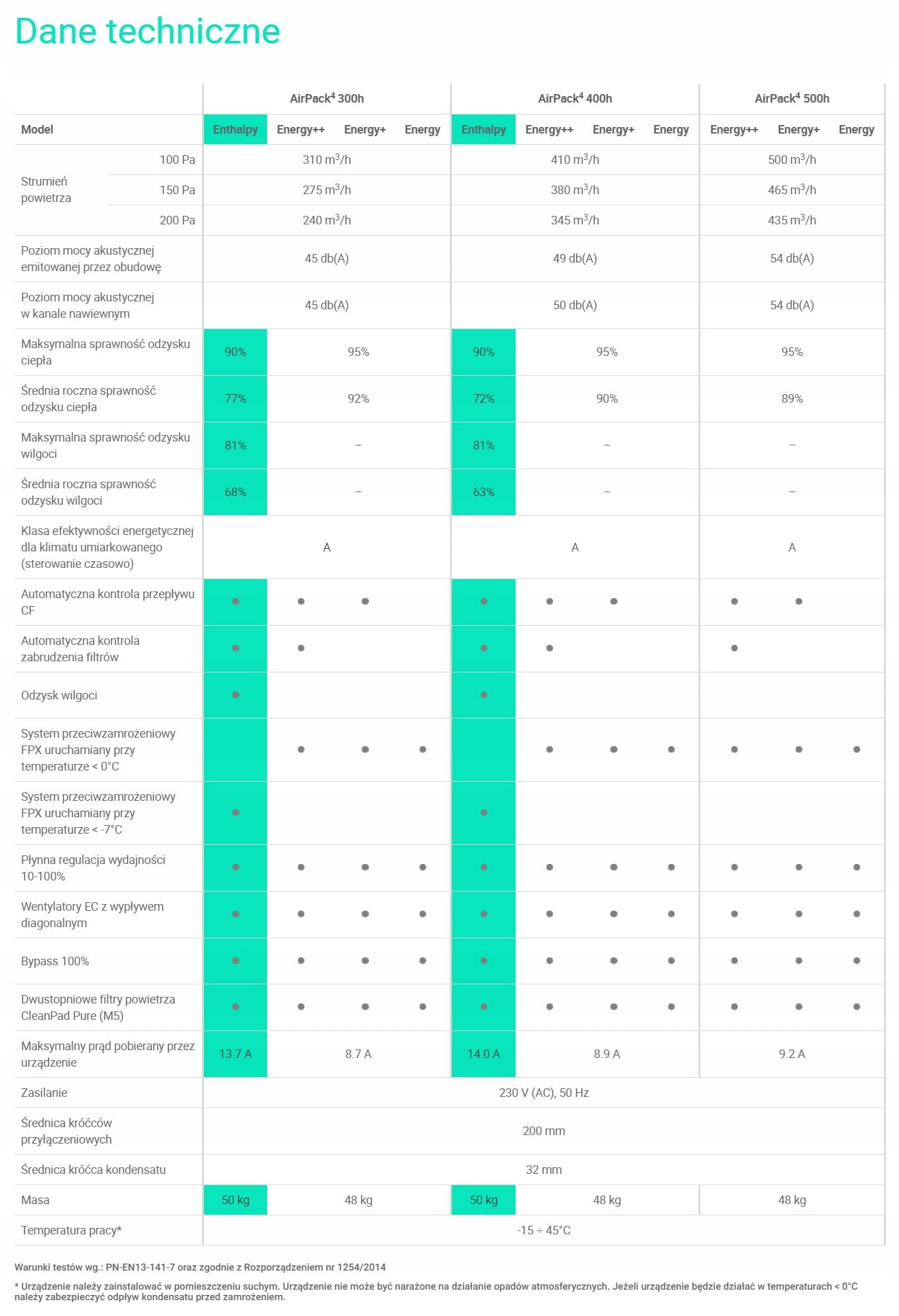

Specifications
