Rekuperatorius THESSLA GREEN AIRPack4, 400V, su entalpiniu šilumokaičiu ir montavimo priedais

Trumpai apie prekę

Prekė: Rekuperatorius THESSLA GREEN AIRPack4, 400V, su entalpiniu šilumokaičiu ir montavimo priedais. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Thesslagreen
• Modelis: 005C0020

• A recuperator that you can install in an unheated room.

The subject of this offer is a product with assembly, it is the price of the product itself in the case of assembly. (at a VAT rate of 8%)For a previously completed installation with all media and connections to the control panel.

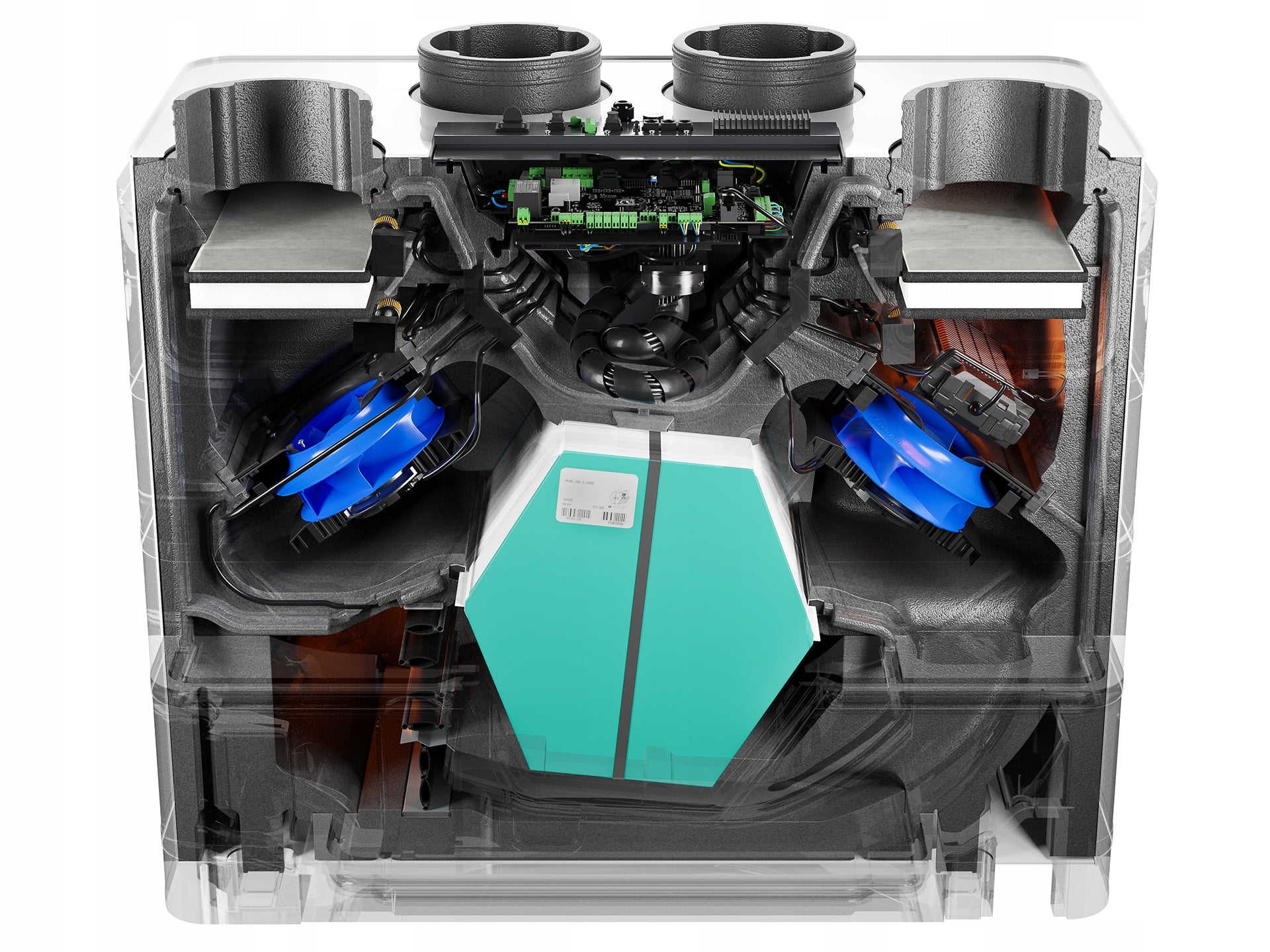

In the ventilation system, the noise emitted to the supply duct is the most troublesome, because it brings air to the bedroom and living room. It is with this noise that AirPack4 copes perfectly. AirPack4 reduces noise thanks to the flow system concept and housing design. The concept of the flow system in which the supply fan was located in front of the heat exchanger allows the use of several thousand channels of the heat exchanger to dissipate the acoustic energy generated by the fan rotor.

• AirPacka4 can be installed in an unheated room where the temperature drops to -15°C in winter.

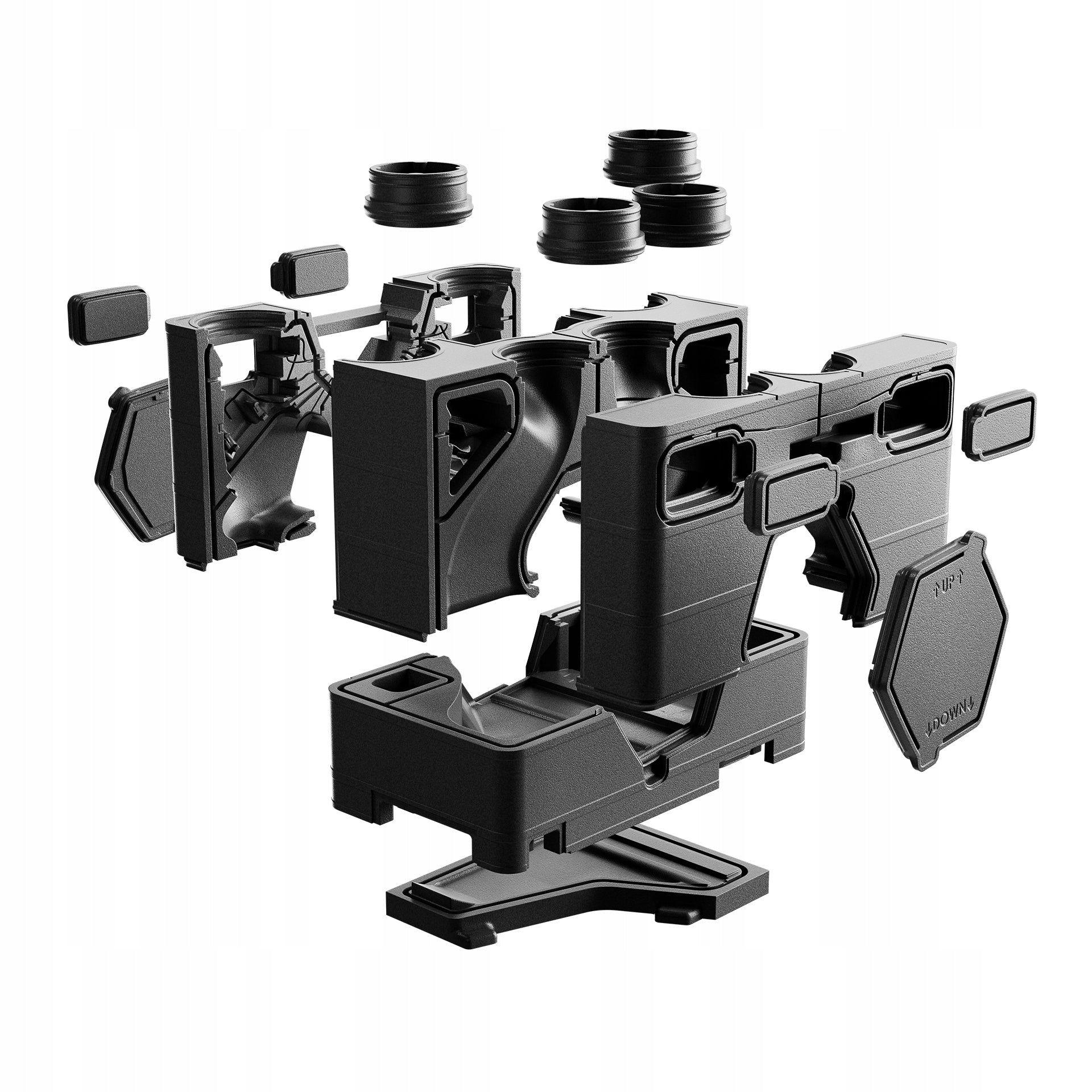

AirPack4 operates at high efficiency even at low ambient temperatures. Thanks to this, it can be installed in non-utility rooms, saving valuable space of the building. The recuperator will not lose its efficiency and there will be no risk of moisture condensation on the surfaces of its housing. All this is possible thanks to the unique FULLSHELL housing concept made of 50 mm thick foamed polypropylene without fasteners and other thermal bridges.

• AirPack4 is a new, simple way to connect sensors and peripherals.

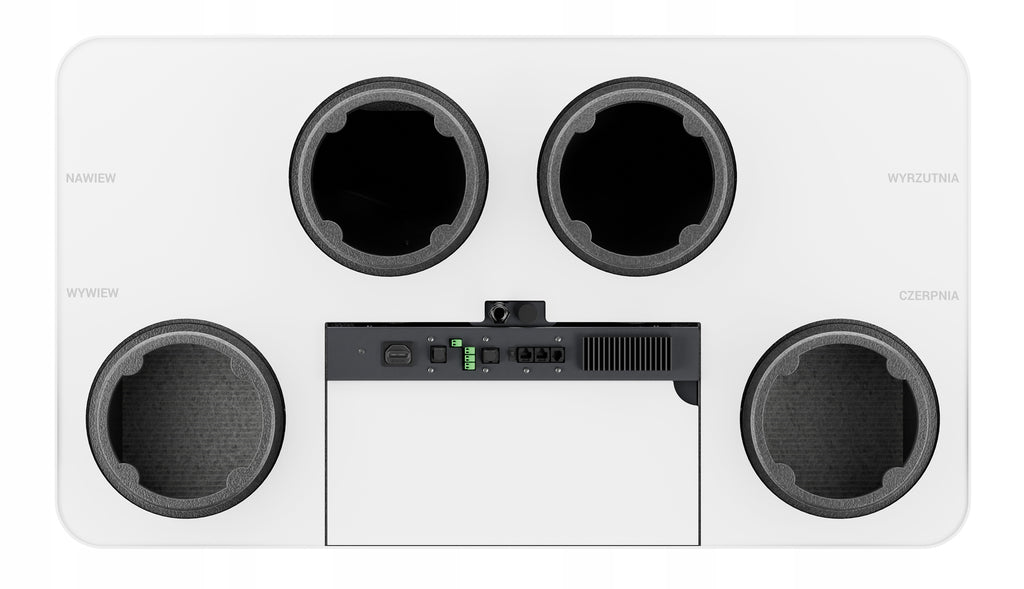

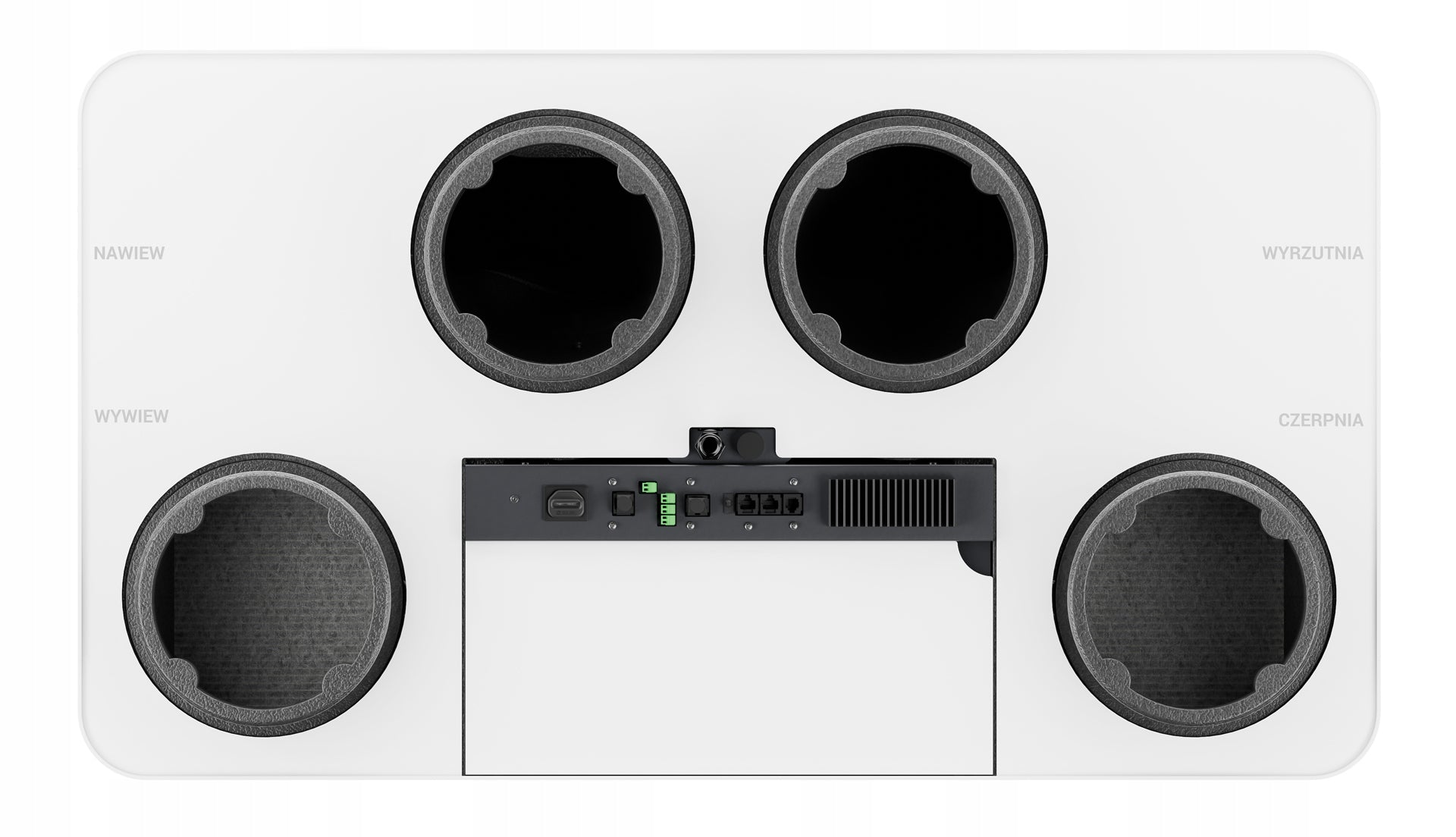

In the new AirPack4, sensors, control panels and a mobile system are connected via a port located on the housing. The expansion module is now outside and connects to the AirPack4 plug without using screwdrivers and opening the automation case.

• AirPack4 with AFC option, informs you on an ongoing basis about the degree of contamination of each filter.

• Technical data:

Air flow: 400 m3/h

Sound power level emitted by the enclosure*: 51 db(A)

Sound power level emitted to the supply duct*: 53 db(A)

Maximum heat recovery efficiency: 93%

Heat recovery efficiency*: 78%

Maximum moisture recovery efficiency: 86%

Moisture recovery efficiency*: 74%

Energy efficiency class for temperate climate* – time control CRS=0.95: A

Maximum power consumption of electric heaters: 2450 W

Maximum power consumption of fans: 200 W

Power supply: 230 V (AC), 50 Hz

Connection connectors: ∅ 200 mm

Condensate connector: ∅ 32 mm

Weight: 51 kg:

Operating temperature**: permissible conditions: -15°C ÷ +45°C recommended conditions: +0°C ÷ +45°C
