Rekuperatorius Vallox 145 MV, 558 m³/h, iki 250 m²

Trumpai apie prekę

Prekė: Rekuperatorius Vallox 145 MV, 558 m³/h, iki 250 m². Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vallox
• Modelis: 145MV

Recuperator Vallox 145 MV 558 m3/h to 250 m2

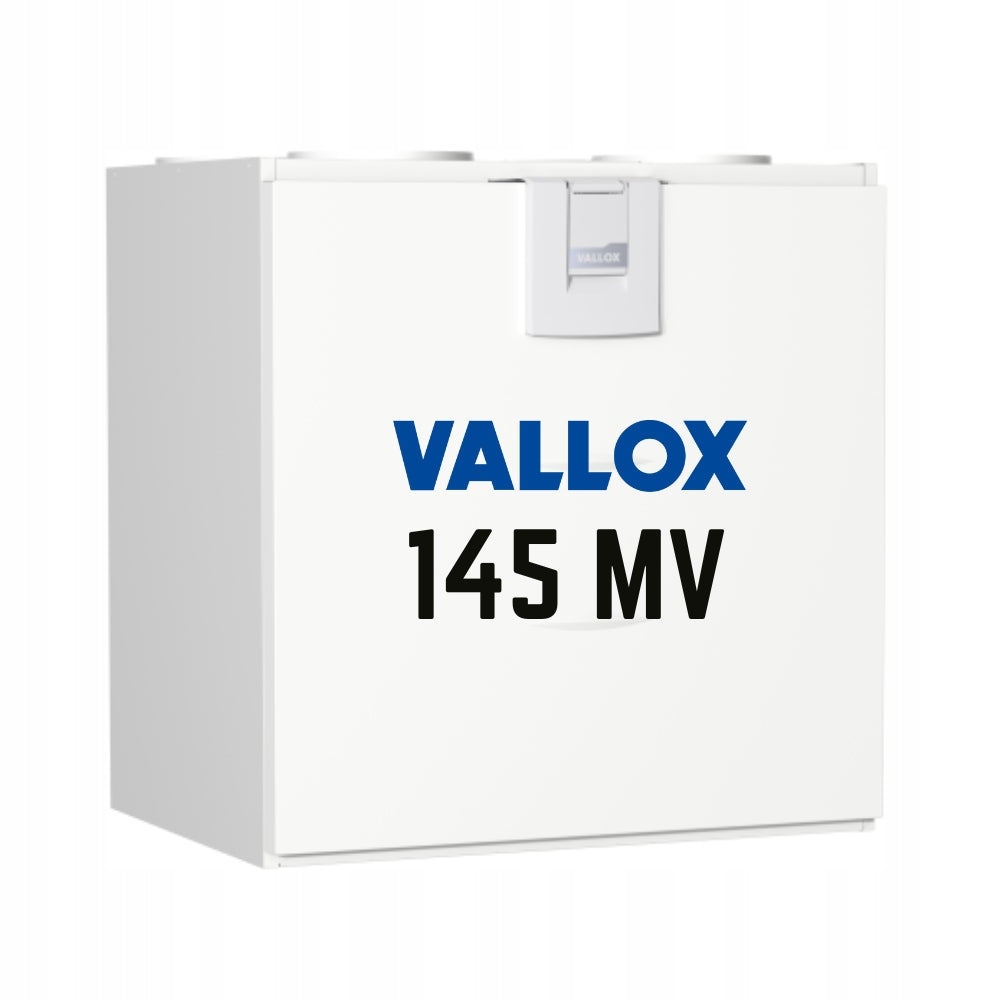

RECUPERATOR VALLOX 145 MV VENTILATION UNIT 558 m3/h to 250 m2

Recuperator available in two variants of the exchanger used:

– Standard

Enthalpic (Metalpic)

The price with assembly is valid only for MALMO Students:

includes the location of the unit in the indicated and properly prepared place, additional works will be valued on the basis of previously sent photos of the prepared installation, and carried out on Malmo RES assembly materials. It is not possible to install the unit into an unfinished installation.

The price also applies to people who are not Malmo Students only in the case of our installation of the entire installation together with the recuperator.

Features VALLOX 145 MV

Vallox 145 MV heat recovery unit is an efficient solution for buildings up to 250 m². Equipped with energy-efficient EC fans, it provides a maximum airflow of 558 m³/h, guaranteeing effective ventilation and comfort of use.

The recuperation system offers four modes of operation: At home, Outside the house, Booster and Custom, which can be freely configured. The intuitive weekly programmer allows you to precisely manage your ventilation schedule.

The device monitors five temperatures: air supply, exhaust, intake, launcher and temperature behind the exchanger, as well as analyzes data from humidity and carbon dioxide sensors. The recuperator operates fully automatically, ensuring optimal air flow.

Thanks to the Internet connection, it is possible to remotely read parameters and monitor the operation of the control unit. The system has a self-diagnostic function and allows software updates both automatically and manually. For control, you can use the standard MyVallox Control graphic panel or the MyVallox Touch touch panel.

MV or MyVallox system

The MyVallox system enables remote control of recuperation using MyVallox Cloud, providing access to unit parameters from the computer, tablet or smartphone. Supports the connection of external sensors and switches, such as a kitchen hood, central vacuum cleaner or alarm system.

The system allows you to control external peripheral devices, including a radiator, water heater, air conditioning and ground heat exchanger. In addition, additional sensors for carbon dioxide, humidity and volatile organic compounds can be connected, which allows for even greater automation of the unit.

Integration with intelligent building systems takes place via the MODBUS interface, and optionally also KNX. The system provides access to statistics and history of recuperator measurements, enabling the export of data to an Excel file.

The recuperator operates fully automatically throughout the year, adapting to ambient conditions. It informs the user about the need to replace air filters and enables remote service and self-diagnosis of the device.

• Exchanger: Standard

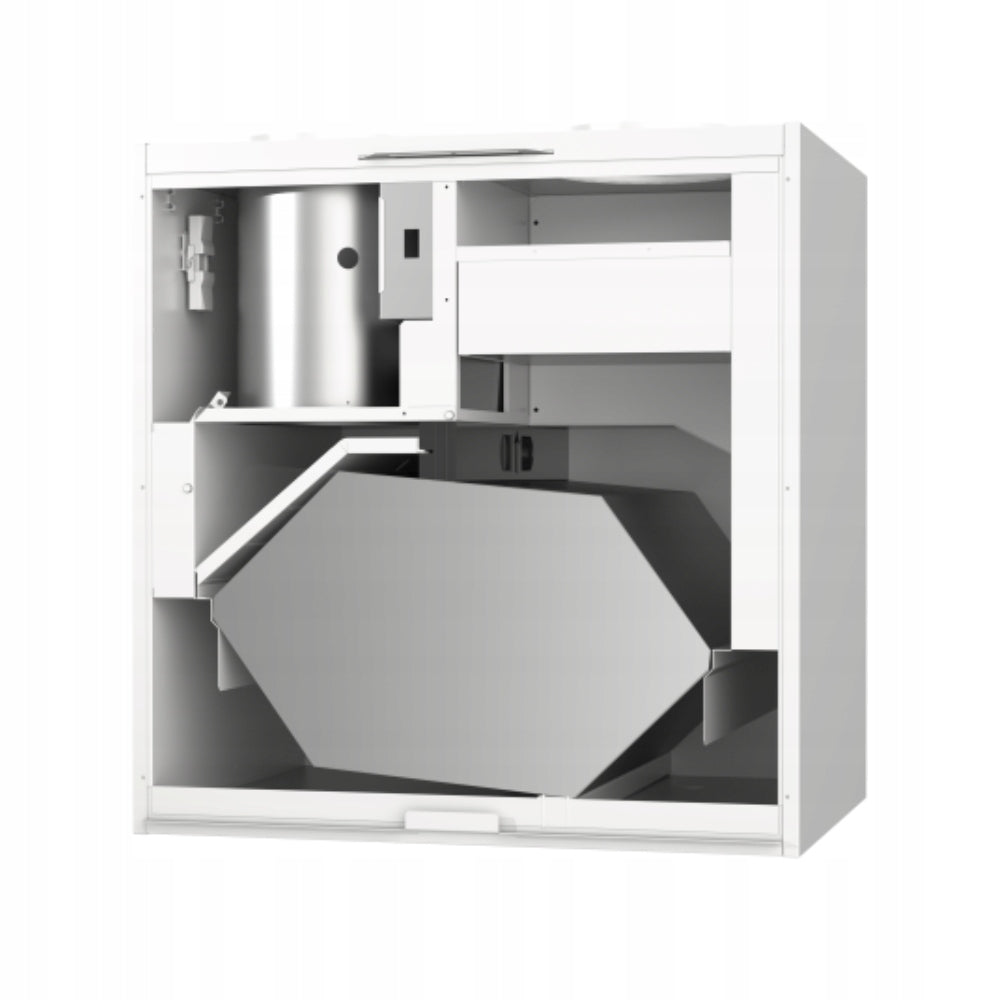

Vallox heat recovery systems are advanced solutions that ensure energy efficiency and comfort. Thanks to METALPIC technology, combining an aluminum HRV and a polymer ERV exchanger, heat recovery reaches 90% and moisture recovery reaches 75% . The modulated bypass automatically maintains the comfort temperature during transition periods, and connected to the internet control panels receive automatic updates.

The design includes a wall-mounted mounting plate, an unscented Silent Click siphon, and energy-efficient EC DC fans for quiet and efficient operation.

Recuperator available in two variants of the exchanger used:

– Standard

– Enthalpic

Specifications
