Rekuperatorius Veko Premium Enthalpic Prodmax, 250 m³/h

Trumpai apie prekę

Prekė: Rekuperatorius Veko Premium Enthalpic Prodmax, 250 m³/h. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Prodmax
• Modelis: BG-250VEKO-P

ADVANTAGES:

✅ Standing or hanging control panel

✅ Enthalpic exchanger

✅ Robust and durable construction – galvanized painted sheet

✅ Sound and thermal insulation – 6 mm thick rubber mat

✅ Equipped with G4 filters (air supply, exhaust)

✅ Possibility of cooperation with SHC sensor (measurement of indoor CO2 concentration)

BASIC FUNCTIONS OF CONTROL PANEL AUTOMATION:

✅ GWC control

✅ pre-heater/secondary control

✅ setting a weekly schedule

✅ filter contamination indicator

✅ control of the heating system

✅ Online control (optional)

VEKO

is a series of economical and compact control panels

PLUG&PLAY ventilation, which are the main

element of mechanical ventilation system.

Their main task is to replace and process air.

VEKO control panels are high-quality supply and exhaust devices

with heat recovery, which is carried out by means of

high-efficiency enthalpic exchangers

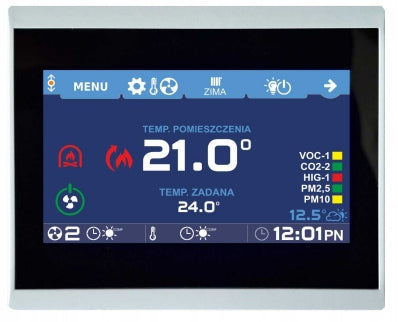

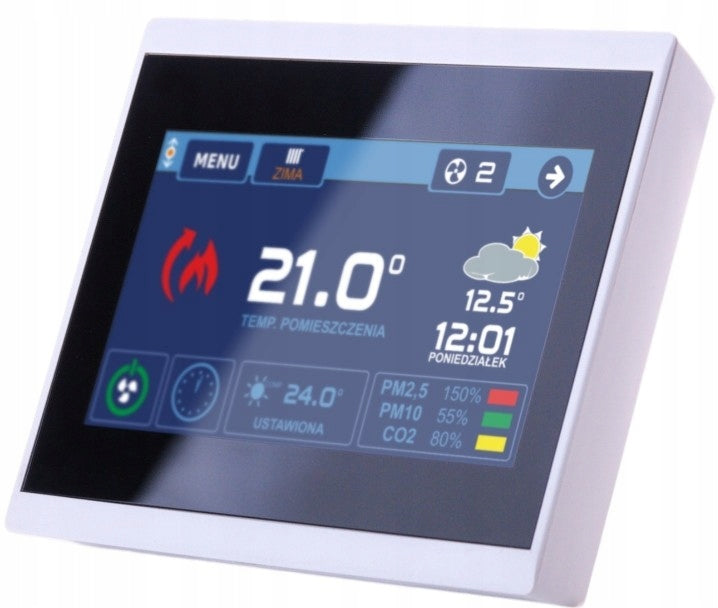

CONTROL – TOUCH CONTROL PANEL

✅ Large, easy-to-read, touch color display

✅ Modern clear user interface

✅ GWC control

✅ Reading all temperatures

✅ Filter contamination indicator

✅ Operation control of the heating system

✅ Weekly Schedule

✅ On-line control (optional)

✅ Smooth fan speed control

✅ Control of pre/secondary/cooler heater

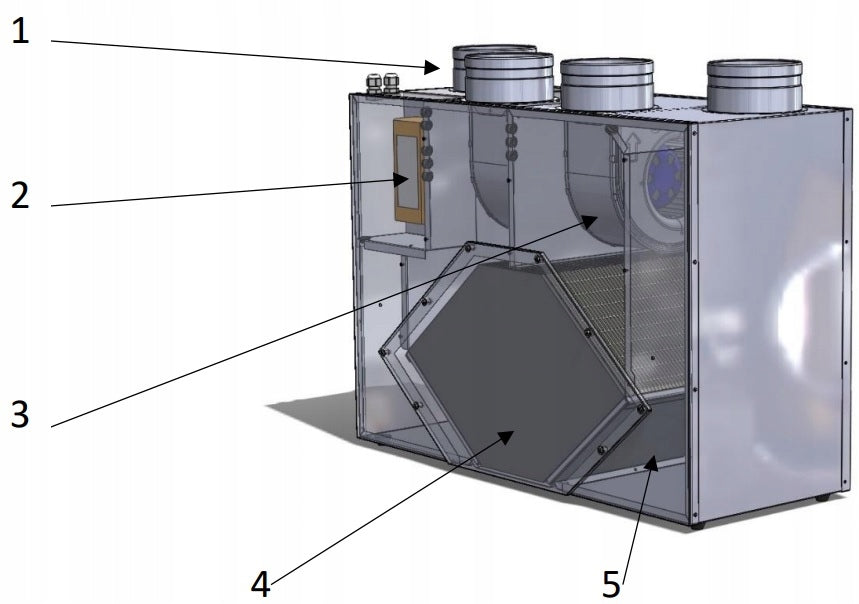

CONSTRUCTION:

1 - Recuperation system connections 4 x Ø100

2 - Control COMPIT AERO 4

3 - DC fans EC Ziehl-Abegg

4 - Heat exchanger, enthalpic

5 - G4 filters to protect the exchanger

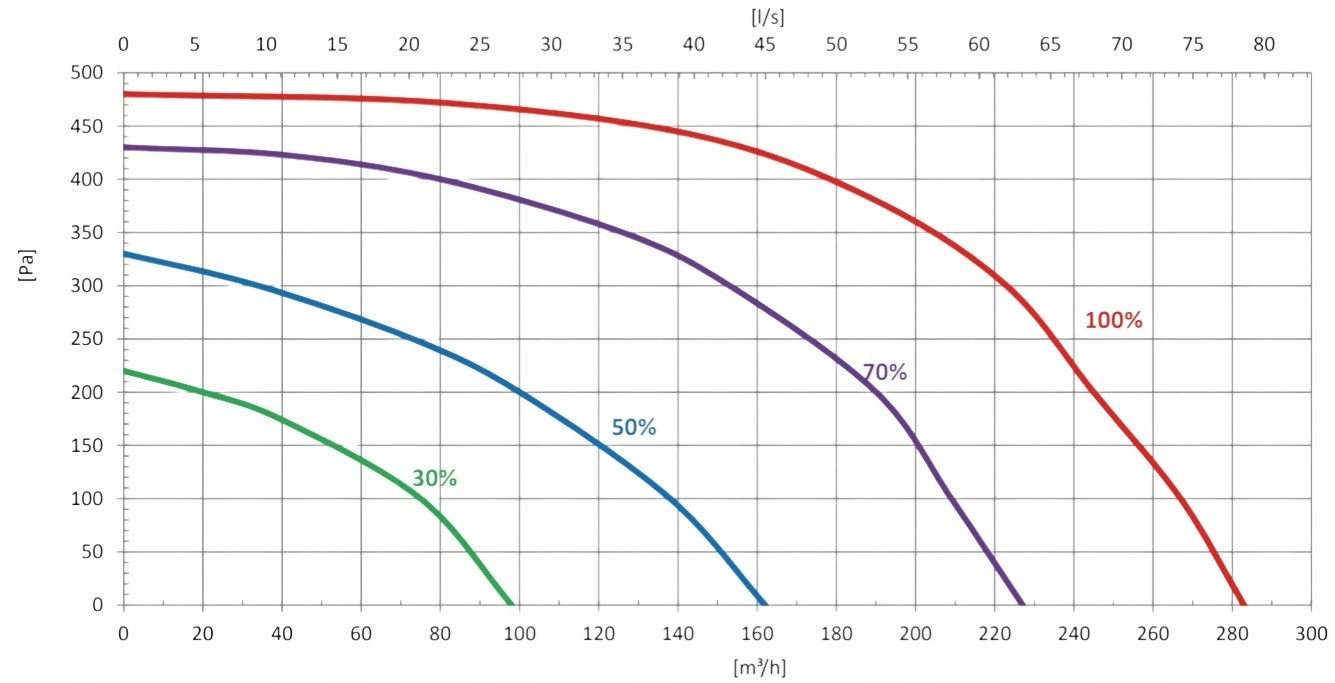

PARAMETERS:

➡ Maximum flow rate at 100 Pa : 270 m3/h

TECHNICAL DATA:

➡ Voltage: 230 V

➡ Fan: 2 x radial with EC motor Zhiel-Abegg

➡ Maximum fan power: 2 x 90 W

➡ Maximum fan current consumption: 2 x 0,39 A

➡ Fan speed: 4230 rpm

➡ Maximum temperature of compressed air: - 20 to + 50°C

➡ Exchanger type: enthalpic

➡ Maximum efficiency of the exchanger: up to 90%

➡ Exchanger material: polystyrene

➡ Housing material: galvanized steel painted

➡ Insulation: rubber mat 6 mm

➡ Intake filter: G4

➡ Extract filter: G4

➡ Diameter of air connection connectors: 100 mm

➡ Weight: 16,3 kg

➡ Capacity for 100Pa: 270 m3/h

➡ Type of driver: Aero 4

➡ Room module: Nano Color

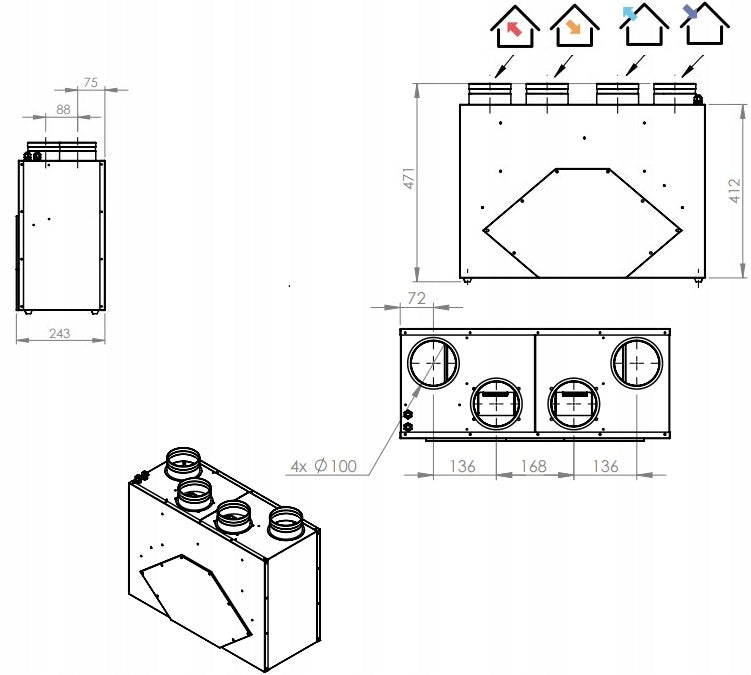

➡ Dimensions (length x width x height): 583 mm x 243 mm x 471 mm

➡ Noise level: 42 dB

➡ Energy class: A

➡ Total power of the device: 0,18 kW

➡ Total current consumption of the device: 0,8 A
