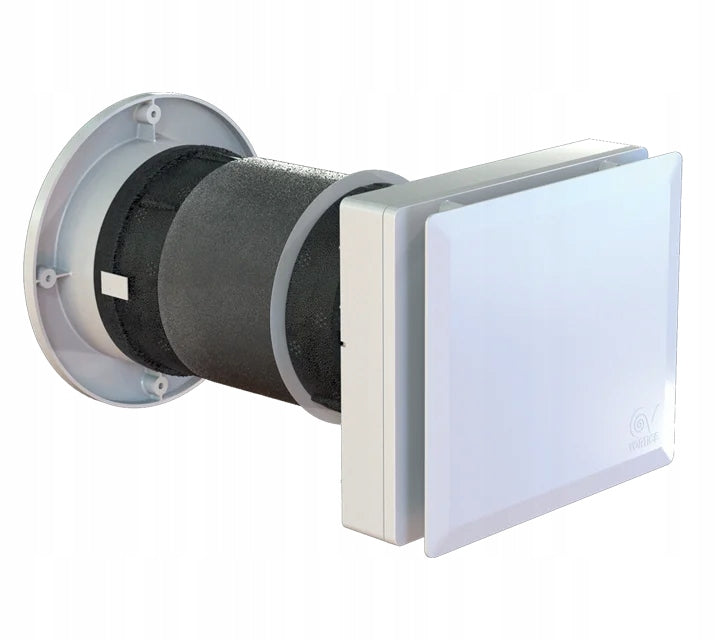

Rekuperatorius Vortice VORT HRW 60 MONO EVO HCS WIFI

Trumpai apie prekę

Prekė: Rekuperatorius Vortice VORT HRW 60 MONO EVO HCS WIFI. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Vortice
• Modelis: 12432

Producer: Vortice

Want to know what a wall-mounted heat recovery unit is used for? It's simple: it ensures exceptional air quality in your environment.

The wall-mounted heat recovery unit, in this case a product from the renowned Italian brand Vortice, is more than just a device. It's a key to fresh, clean, and dry air in your home, office, or other space. Thanks to its advanced design and technology, the heat recovery unit eliminates pollutants and removes moisture, helping to prevent problems with mold and condensation.

The application of a wall-mounted heat recovery unit is versatile - it can be installed in various types of buildings, ensuring comfort and health for you and your loved ones. It's also a way to save energy by recovering heat, which can lower your heating bills.

If you care about air quality and comfort, the Vortice wall-mounted heat recovery unit is the ideal solution. Let us take care of your comfort and health - take advantage of its application today.

VORT HRW 60 MONO EVO HCS Wi-Fi

With remote control and sensors for relative humidity, temperature, and light

• Energy consumption class: A+
• Max. airflow: 60 m3/h
• Max. power: 7 W
• Sound pressure: from 12.7 dB(A)/3m
• Mounting hole diameter: 160mm
• Voltage: 220-240 V
• Frequency: 50-60 Hz
• Airflow: 10/25/35/45/60 m3/h
• Maximum thermal efficiency: 90%
• Weight: 3.3 kg
• Place of production: Italy
• Manufacturer: VORTICE

BENEFITS FOR THE USER:

• Clean air in all rooms in an economical and intelligent way.
• Easy connection of devices thanks to the Wi-Fi module, which works based on the MESH network, eliminating the need for a router or an internet provider agreement.
• Introduction of fresh and filtered air from the outside and removal of stale air from the inside.
• Energy recovery from the exhaust air thanks to the high-efficiency heat exchanger, which translates into savings.
• Elegant and harmonious design that blends beautifully with any interior.
• High performance, achieving 90% heat exchange efficiency with minimal noise.
• Quiet operation, comparable to a whisper at a distance of 1 meter.
• Low energy consumption, less than 7 W at maximum flow rate.

BENEFITS FOR THE INSTALLER

Easy installation

Low weight: 3.10 kg - 3.30 kg.

Universal connection diameters fi 160 mm.

Possibility of mounting on perimeter walls with a thickness of 260 mm to 700 mm.

No condensate drainage required.

No wired connection required when installing multiple devices.

Easy-to-use manual closing system with machine closing indicator (red lever).

Easy maintenance

Easy access to internal components.

We provide full support in selecting a heat recovery unit for your room.

HCS models are equipped with a control panel with an LCD display.

By default, the recovery functions and the auto comfort, auto HR% and auto night modes are active. The humidity threshold is set to the maximum value (90%) and the fan is set to the maximum speed to achieve maximum flow. The remote control panel transmits its default state to the product and updates the device status accordingly. If the device status does not synchronize with the remote control status, point the remote control at the device and press the button on the remote control to activate synchronization.

AUTO NIGHT

The ambient light sensor detects the presence or absence of light in the environment. Therefore, if it is night and no daylight is detected, the product will operate at the minimum speed and will not be able to exceed the minimum speed. Once the presence of daylight is detected again, the product returns to operation at the previously set speed, and switching to higher speeds is possible using the remote control panel or the HR% sensor.

AUTO HR%

If the humidity exceeds the alarm threshold (60%, 75% or 90% - default value is 75%), the exhaust mode is automatically selected at the maximum speed.

AUTO COMFORT

In heat recovery mode, the time that determines the reverse direction of the fans' rotation is determined by the temperature of the air released into the environment: if the temperature is too low, the cycle time is shortened.

A - VENTILATION SPEED

B - RECOVERY

C - INTAKE

D - EXHAUST

E - NATURAL VENTILATION

F - AUTO COMFORT

G - AUTO HR

H - TIMED BOOST

I - AUTO NIGHT

DEVICE COMPLIANT WITH THE "CLEAN AIR" PROGRAM

Thanks to this technology, we optimize the energy efficiency of the buildings in which we live and reduce heating and air conditioning costs, but above all, we guarantee well-being and living comfort. In addition, through proper ventilation and air exchange, we significantly reduce the risk of airborne infections, protecting our health.
