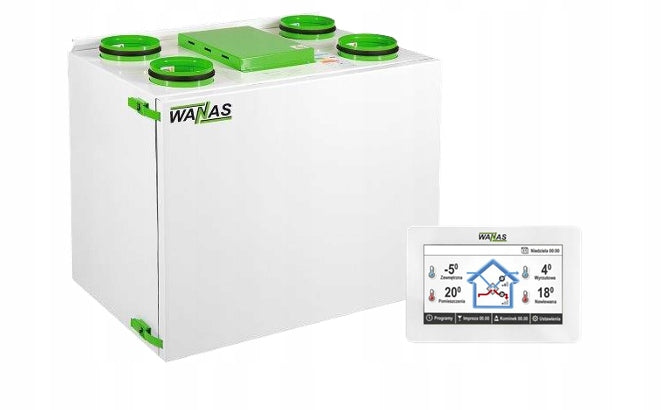

Rekuperatorius WANAS CLASSIC 355 V_XF su WiFi

Trumpai apie prekę

Prekė: Rekuperatorius WANAS CLASSIC 355 V_XF su WiFi. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Wanas
• Modelis: 355V XF

Possibility of mounting the purchased device by our company.

INTELLIGENT CONTROL AND COMFORT AT THE HIGHEST LEVEL

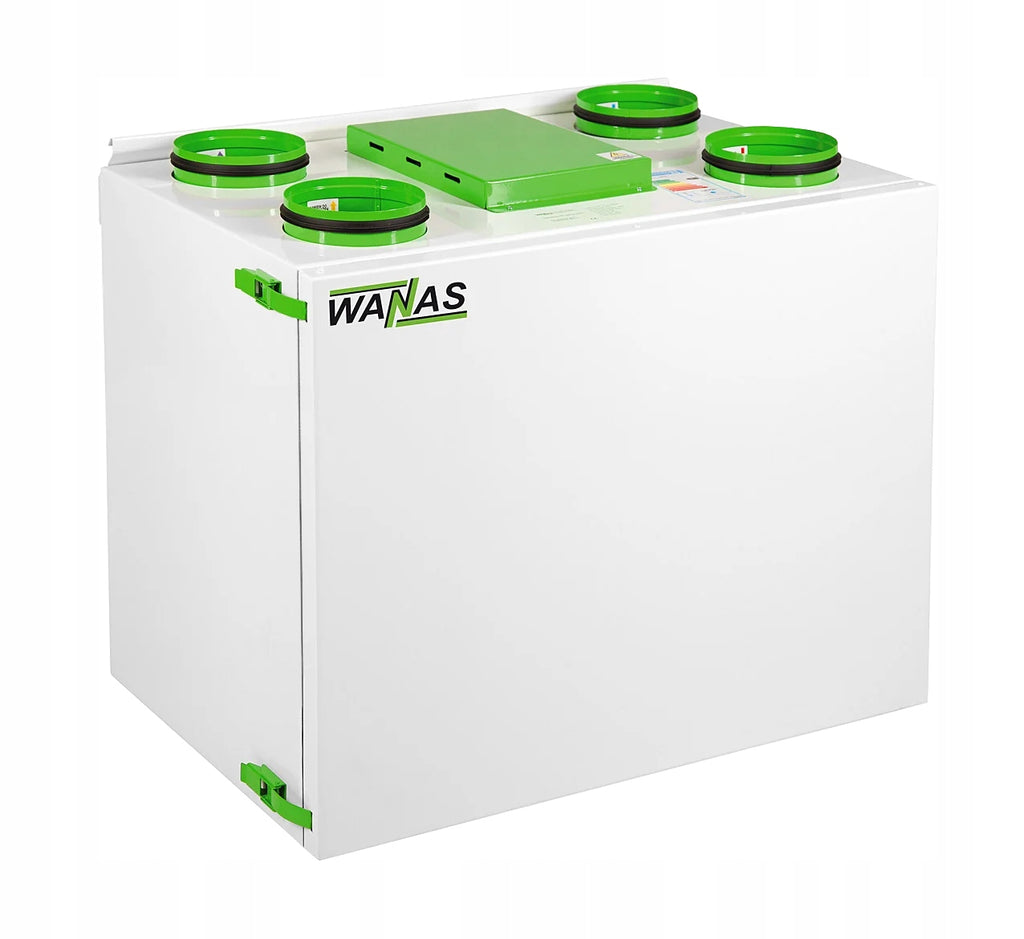

The Wanas 355 V_XF recuperator is designed for ventilation of single-family houses or service facilities. The Wanas control panel is characterized by extremely quiet operation and low energy consumption. The clear and intuitive controller allows you to control the device in an easy and simple way. The Wanas 355 V_XF version is equipped with the XF automatic flow balancing system, which continuously measures the current flow of supply and exhaust air. What’s more, the user has the option of setting the expense in m3/h. It is designed to ventilate rooms with an area of up to 200 m2. The XF system provides greater energy savings. The compact design combined with the XF automatic flow balancing system guarantees efficiency and comfort of use.

The recuperator as standard has a touch controller with a glass panel. In addition, the device can be expanded with an Internet module and controlled from anywhere in the world through the application.

ADVANTAGES OF THE DEVICE:

✅ Aluminum countercurrent heat exchanger largest in the class of control panels 350

✅ Automatic flow balancing system - XF

✅ Possibility to order a control panel with an enthalpic exchanger (optional)

✅ Very low power consumption 16-178 W

✅ MODBUS RTU communication protocol for connecting the recuperator to the smart home system

✅ Smooth performance adjustment 1-100 %

✅ Preview of current expenditure in m3/h

✅ 3 algorithms to protect the exchanger from freezing

✅ SMART HEATER automatic preheater – included in the price of the device

✅ Automatic 100 % Bypass – included in the price

✅ Touch, easy-to-use controller – included in the price of the device

✅ Solid, non-flammable construction – no polystyrene elements

✅ Energy-efficient EC fans of the latest generation

✅ Possibility to control the ventilation unit via the Internet (optional)

TECHNICAL PARAMETERS WANAS 355 V_XF:

• Maximum air flow rate: 420 m³/h
• Compress at 350 m³/h: 234 Pa
• Range of energy consumption: 16 – 178 W
• Preheater power: 500 W
• Power supply: 230 V / 50 Hz
• Diameter of stubs: 160 mm
• Dimensions (H) x W x D. ): 634 x 840 x 550 mm
• Weight of the device: 61,5 kg
• Filter class: ISO COARSE 75% / ePM 10 50%
• Maximum area of ventilated building: up to 200 m²
• Layout of stubs: levels
• Annual electricity consumption: 3,04 kWh/m²/year
• Annual savings in heating – temperate climate: 44,21 kWh/m²
• Annual savings in heating – cool climate: 86,49 kWh/m²
• Annual savings in heating – warm climate: 19,99 kWh/m²
• JZE – temperate climate: -37,3 kWh/(m²/year)
• JZE – cold climate: -74,21 kWh/(m²/year)
• JZE – warm climate: -13,53 kWh/(m²/year)
• Energy Efficiency Class (JZE): A
• Declared type: bidirectional
• Drive: stepless fan speed adjustment
• Type of heat recovery: diaphragm
• EU recovery efficiency 1254/2014 (ΔT = 13°C): 82,3%
• Power consumption by fans: max. 170 W
• Sound power level: 48 dB(A)
• Air flow reference value: 0,081 m³/s
• Pressure difference reference value: 50 Pa
• Unit power consumption: 0,28 W/(m³/h)
• Control type: 0,85 – control panels controlled according to demand
• Maximum degree of internal air leaks: 1,3%
• Maximum degree of external air leakage: 2,7%
• Warning about the need to replace the filter on the device: YES
• Warning about the need to replace the filter in the manual: YES

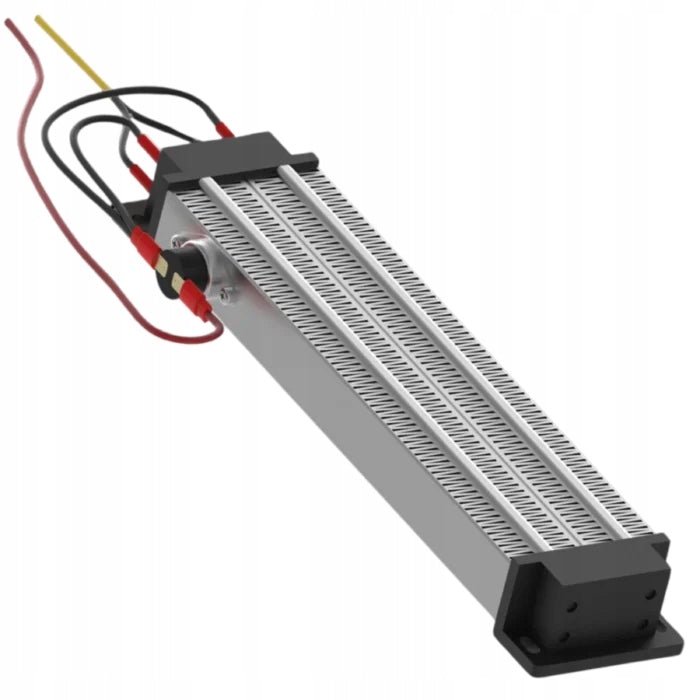

SMART HEATER

The WANAS Classic 355V XF recuperator is equipped with a smart heater, which automatically adjusts its heating power to the current conditions, i.e. external temperature and air flow. Thanks to automatic adjustment, the device provides optimal protection for the exchanger. The device has a heater with a maximum power of only 500 W, and this is its consumption in extremely unfavorable external conditions, because the power of the heater is modulated. In most working hours, the power will be much lower.

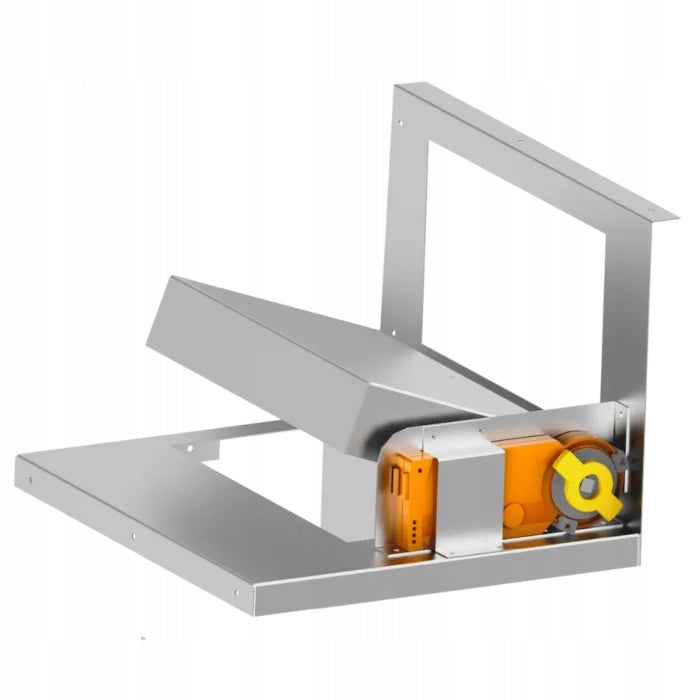

INTELLIGENT BYPASS IN RECUPERATOR

The ventilation unit is equipped with BYPASS, which manages air flow, enabling cooling of rooms in the summer by bypassing the heat recovery process. Thanks to this, the system can direct cooler air from the outside directly to the interior of the building, which is aimed at naturally lowering the temperature of rooms on cold nights or less hot days. The automatic bypass operates maintenance-free – the system independently assesses weather conditions and adjusts the operating mode to ensure user comfort and minimize energy consumption. What distinguishes our solution from others available on the market is that we can automatically have a higher control panel expenditure set up when the bypass is opened to improve the comfort in the building faster. E.g. The control panel operates at a minimum expenditure and when it is outside cooler, the bypass opens and the device increases efficiency by 100%.

AIR ALWAYS UNDER CONTROL

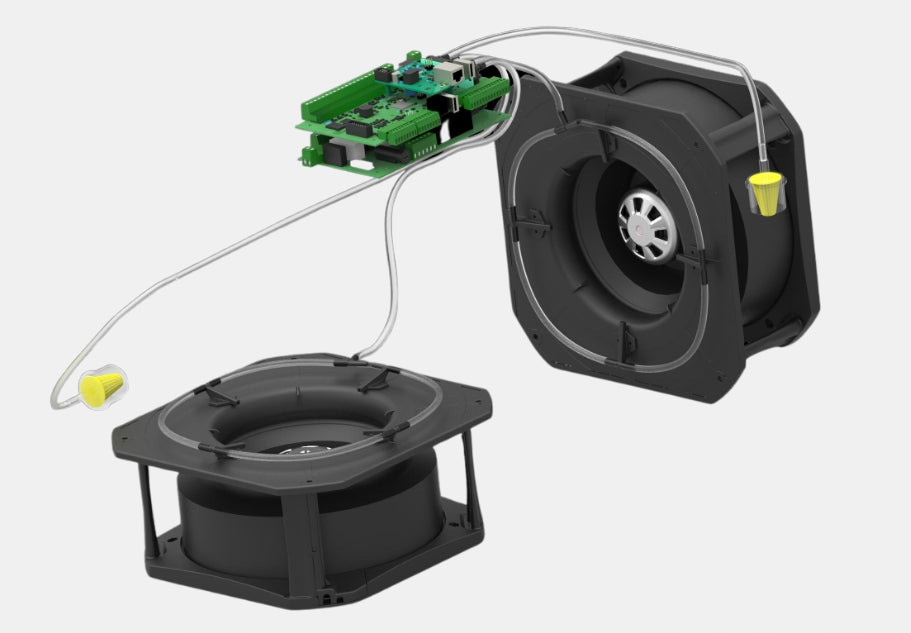

The XF system ensures precise balancing of air flows in the ventilation system. The system monitors and automatically adjusts the operation of supply and exhaust fans in real time to ensure a balance of air flows in the installation. As many as 4 measuring nozzles are installed on the fan, which guarantees very precise measurement quality than it is when one nozzle is installed. What distinguishes the system is that on the V2 controller the user can see the current measured air flow on two fans and not set as in the case of some competitive products.

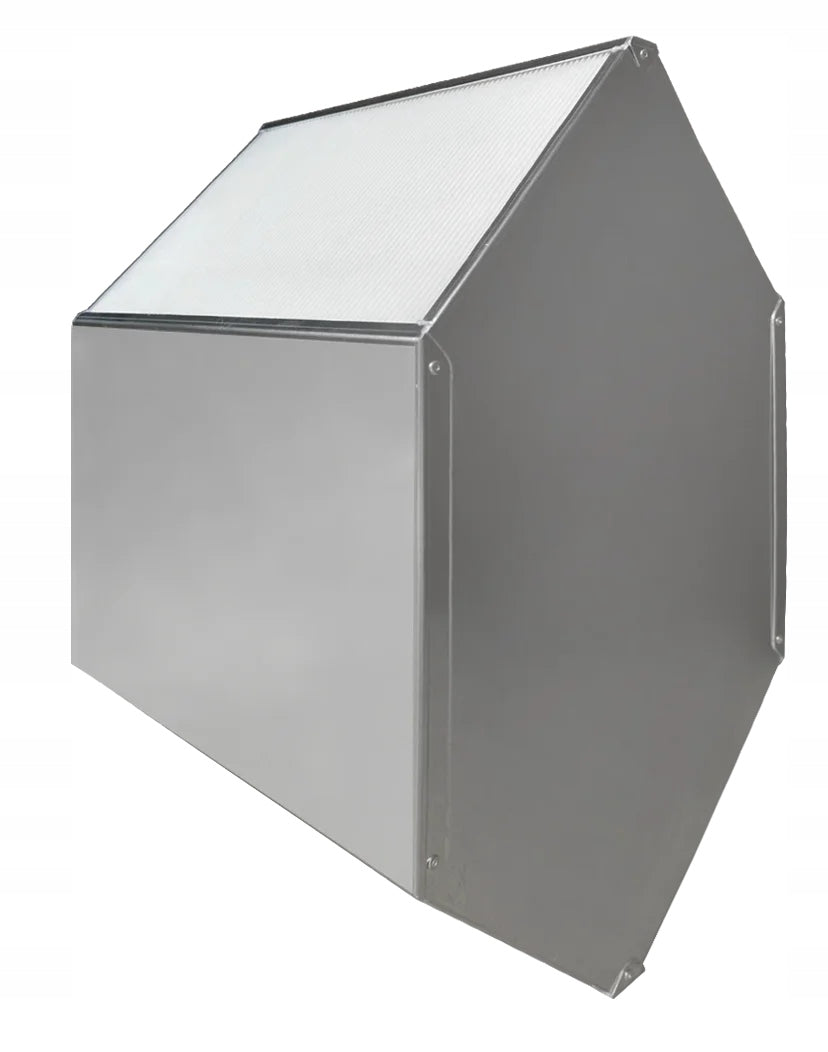

HIGH EFFICIENCY ALUMINIUM EXCHANGER

WANAS recuperators equipped with a high-efficiency aluminum exchanger are a solution dedicated to people looking for effective and durable mechanical ventilation with heat recovery. The cross-current design allows for optimal use of thermal energy, which translates into lower demand for supply air heating. The exchanger in the control panel is located vertically, which allows gravitational drainage of condensate into the drip tray. This guarantees high thermal efficiency throughout the entire working period, and no need for the so-called. "blowing the exchanger" to get rid of water from it as it is in the case of horizontal positioning.

FUNCTIONS OF RECUPERATOR WANAS 555 H_XF:

✅TOUCH CONTROLLER – intuitive control of the device using a modern, surface-mounted touch panel with a color display (Display V2, 5”).

✅AUTOMATIC BYPASS – built-in bypass with accidental switch-on protection function.

✅SMART HEATER – automatic preheater with a maximum power of 500 W, adapting the power to external conditions to protect the exchanger and save energy.

✅WEEKLY PROGRAMMER – the possibility of planning the operation of the headquarters in a weekly cycle, adapted to the lifestyle of household members.

✅EVENT MODE – increased performance for a specified period of time, e.g. during social gatherings or greater demand for ventilation.

✅FIREPLACE MODE – supports the work of the fireplace by producing overpressure, preventing the reversal of smoke when adding fuel.

✅ HOLIDAY MODE – reduction of the control panel’s operation during the absence, reducing energy consumption while maintaining ventilation.

✅FILTER REPLACEMENT REMINDER – an automatic message reminding you to replace filters, ensuring proper operation of the system.

✅COOPERATION WITH GWC – possibility of connecting a ground heat exchanger.

✅SMOOTH PERFORMANCE ADJUSTMENT – stepless fan power adjustment allows precise adjustment of the control panel operation to current needs.

✅SUPPORT FOR RADIATOR AND SECONDARY HEATER – the device can control additional components, e.g. radiator or secondary heater.

✅SENSOR AUTOMATION – compatibility with CO₂ sensors, humidity and bathroom switches, the recuperator automatically adjusts performance.

✅INTEGRATION WITH HOME ALARM – the possibility of connecting the control panel to the alarm system, which allows you to automatically switch to the minimum efficiency mode after leaving the house.

✅GAS BOILER CONTROL – the recuperator controller can act as a thermostat, managing the operation of the gas boiler.

✅ANTI-FREEZING SYSTEM 3IN1 – unique on the market three-stage protection of the exchanger against freezing, to be chosen by the user or installer.

✅INTERNET CONTROL (optional) – the ability to remotely manage the device via smartphone or computer after purchasing the WANAS MOBILE CONTROL W-15 or W-19 Wi-Fi module.

✅MOUNTING KIT INCLUDED – the device comes with a wall mount bracket, RJ12 connector, siphon and mounting pins.

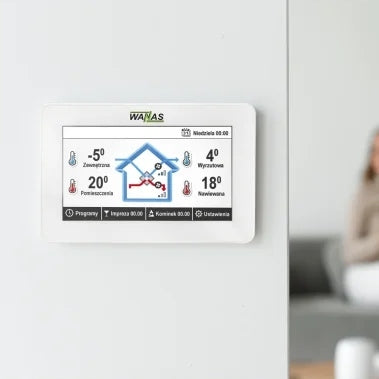

MODERN CONTROL

The price of the device includes a modern, touch-sensitive Display V2 wall controller. The 5,0-inch panel, made of elegant glass, is distinguished by intuitive operation and fits perfectly into any interior style, combining functionality with aesthetic design. The panel is additionally equipped with radio communication thanks to which we can connect the MaxiControl or RCO2 Control humidity sensor to it. From the controller panel we can control GWC, humidifier, radiator, water or freon heater. Display V2 combined with the recuperator motherboard is the most feature-rich controller on the market, which is standard equipment of the recuperator.
