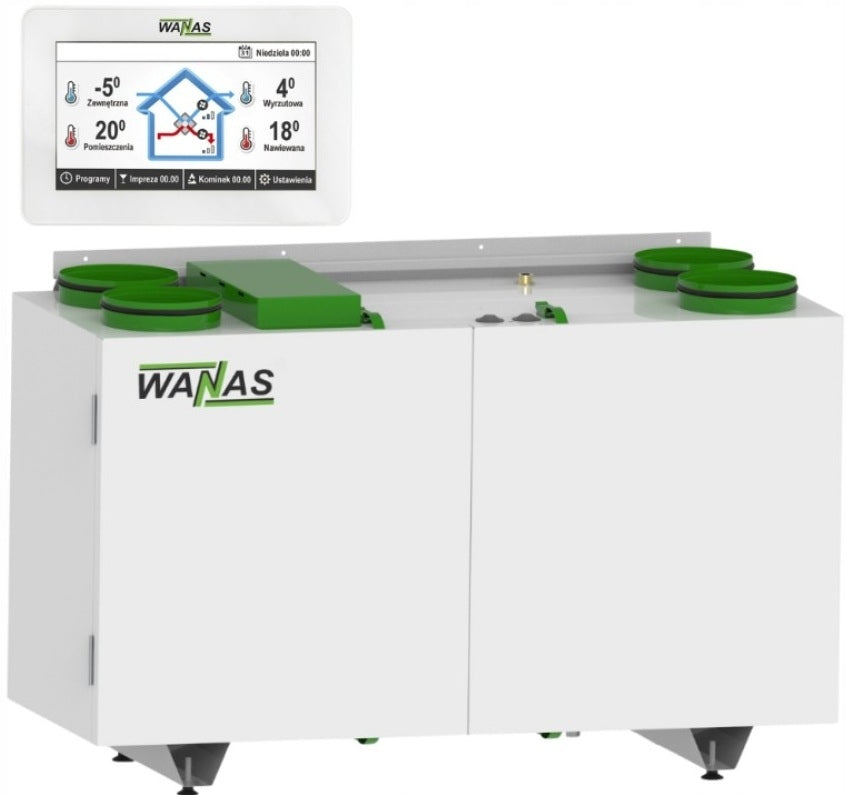

Rekuperatorius Wanas Combo 430 V XF, kairinis modelis

Trumpai apie prekę

Prekė: Rekuperatorius Wanas Combo 430 V XF, kairinis modelis. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Wanas
• Modelis: Combo 430 V

The WANAS COMBO 430 V recuperator is a technologically advanced device that combines four key functions ventilation, humidification and optionallycooling or heating, offering comprehensive control over the microclimate in the building.

The included maxiControl humidity sensor automatically adjusts the operating parameters to the current conditions, ensuring optimal air quality throughout the year.

Intuitive touch control panel DISPLAY V2 allows easy operation of all functions of the device, and thanks to the possibility of using the WANAS MOBILE CONTROL module, it is possible to manage the system remotely using a mobile application.

The user gains full control over ventilation, humidity level, airflow temperature and heating or cooling function, regardless of where he is located.

PRODUCT ADVANTAGES

✔ Built-in evaporative humidifier

✔ Wireless maxiControl humidity sensor included

✔ Automatic balancing system for installation flows - XF SYSTEM

✔ Aluminum cross-current heat exchanger

✔ 3 algorithms to protect the exchanger from freezing

✔ Automatic preheater SMART HEATER

✔ Automatic 100% Bypass

✔ Touchable, easy-to-use controller

✔ Painted interior with polyester paint

✔ Solid, non-flammable construction - no polystyrene elements

✔ Energy-efficient fans of the latest generation

✔ Possibility to control the ventilation unit via the Internet

✔ Expandable recuperator with water or freon heater (optional)

✔ EVAPORATIVE HUMIDIFIER

Evaporative humidifier in recuperator WANAS Combo 430V is an innovative solution that ensures optimal humidity levels in rooms, while improving air quality.

The evaporative humidifier uses a natural process of evaporation of water (evaporation), which is the healthiest and most effective way to humidify the air.

Water is distributed on a special evaporative mat through which air flows. During this process, water evaporates, increasing air humidity without the risk of oversaturation with moisture.

✔ WIRELESS MOISTURE CONTROL

The maxiControl sensor is a modern, wireless device for measuring humidity and temperature in the room.

It allows you to automatically control the operation of the Umecto humidifier and adjust the mode of operation of the ventilation unit depending on the humidity level. By installing the sensor in the bathroom, we can automatically excite the control panel on the third gear in case of exceeding the expected humidity and dry the room faster.

Thanks to radio communication with the Display V2 controller, the sensor can be installed at any time anywhere without the need for wires. Compact dimensions and classic design make maxiControl discreetly fit into any interior.

✔ AIR UNDER CONTROL

The XF system ensures precise balancing of air flows in the ventilation system. It monitors and automatically adjusts the operation of supply and exhaust fans in real time to maintain the balance of air flows in the system.

As many as four measuring points are installed on the fan, which guarantees a very precise quality of air flow measurement. Our system stands out from the competition with the ability to display air flow in m³/h in real time.

✔ ALUMINIUM EXCHANGER

High-performance aluminum cross-current heat exchanger is an ideal solution for both single-family houses and commercial buildings, ensuring optimal thermal comfort and reducing energy costs. It is a choice for people who appreciate modern and durable technologies in ventilation.

✔ HEAT WISELY

Intelligent modulated heater SMART HEATER is a modern solution in ventilation systems. Its main purpose is to maintain a stable supply air temperature, even under changing external conditions.

Such modulation avoids sudden temperature spikes, which increases the comfort of users. And its modulated operation eliminates energy losses by precisely adjusting the heating power to the current demand.

✔ BYPASS

Bypass is an advanced feature in ventilation systems that allows you to bypass the heat exchanger under certain conditions. Thanks to this solution, fresh air from the outside is introduced directly into the rooms, without heating it in the exchanger.

This allows you to effectively cool the interiors in a natural and energy-efficient way. The bypass function works fully automatically, using data from temperature and humidity sensors, it will provide maximum comfortable conditions without user intervention.

✔ MODERN CONTROL

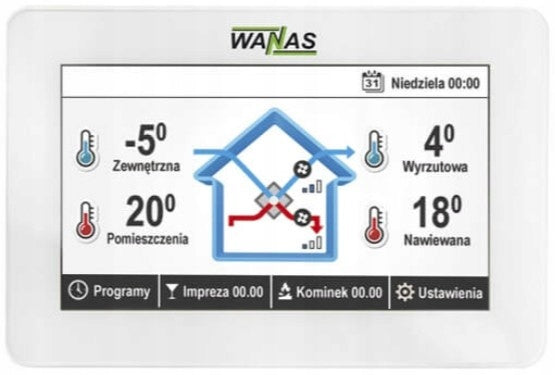

Wanas Combo is equipped with a modern, touch-sensitive Display V2 wall controller. It is an elegant panel with a 5-inch display made of glass, which combines intuitive operation with an aesthetic design that fits into any interior.

The controller has built-in radio communication, which allows you to easily connect additional accessories – for example, MaxiControl humidity sensor or RCO2 Control sensor. This gives you full control over the air quality in your home.

✔ MODBUS RTU

MODBUS RTU is a reliable, most universal, serial communication protocol that enables data exchange between the recuperator and external control systems.

Its use allows us to integrate our device with any intelligent external systems used for building management, e.g. Sinum, Lexon, Grenton, etc. We can control the work of the recuperator from an external system.

A. Air taken from outside the building

B. Air taken from rooms

C. Air supplied to rooms

D. Air ejected outside the building

E. Water connection connector for humidifier

F. Freon or water exchanger connection connectors (optional)

TECHNICAL PARAMETERS WANAS COMBO 430V XF:

▶ Energy Efficiency Class (JZE): A

▶ JZE – temperate climate: –37,37 kWh/(m²/year)

▶ JZE – cold climate: –73,89 kWh/(m²/year)

▶ JZE – warm climate: –13,82 kWh/(m²/year)

▶ Maximum air flow rate (100 Pa): 432 m³/h

▶ Compress at 256 m³/h: 100 Pa

▶ Range of energy consumption: 30 – 155 W

▶ Nominal water consumption: 2,8 l/h

▶ Humidifier energy consumption range: 2-18 W

▶ Power of secondary preheater: 1000 W

▶ Power of SMART HEATER preheater: 1000 W

▶ Power supply: 230 V / 50 Hz

▶ Diameter of stubs: 200 mm

▶ Dimensions (H) x W x D. ): 840 × 1300 × 545 mm

▶ Weight of the device: 94 kg

▶ Filter class: ISO COARSE 75% + ePM10 50%

▶ Maximum efficiency according to EU 1254/2014 (ΔT = 13°C, SWM): 80,8%

▶ Sound power level (for gear I/according to EU 1254/2014): 39/48 dB(A)

▶ Diameter of water connection nozzles: 3/4 inch

▶ Device Type: Two-Way

▶ Type of heat recovery: countercurrent

▶ Drive: energy-efficient EC fans

▶ Layout of stubs: vertical (V)

▶ Filter replacement warning: YES

▶ The recuperator is equipped with 2 condensate siphons

Optional expandable recuperator and customized to your needs

✔ SMART HOME WITH INTERNET MODULE (optional)

The WANAS Mobile Control W-25 Wi-Fi Internet module is a solution that allows remote control of WANAS recuperators using a smartphone, tablet or computer.

The module allows for ongoing management of recuperator operation – changing operating modes, adjusting ventilation intensity and setting operating schedules.

The user also has access to key information such as air flow, temperature, humidity level and filter status, which makes it easier to control indoor air quality.

The modules send notifications about the need to replace filters, irregularities in the operation of the system or the need to carry out service, which increases the reliability of the installation.

✔ SINUM BY TECH (optional)

Optionally, instead of an Internet module, you can install Tech’s Sinum control panel and control your recuperator and your entire home from a single panel placed on the wall or from an application on your phone.

The Sinum control panel allows you to create the so-called. Intelligent building from one platform can manage lighting, energy, heating, ventilation.

Thanks to this, your home will function according to the rules you set, of course you can change them at any time because the system is simple enough that you can do it, e.g. from a mobile phone.

✔ CO2 Always under control (optional)

When installing a Co2Control sensor in your home, you always have carbon dioxide at the right level.

The radio sensor connects to the V2 controller and when necessary turns on the control panels for the right gear to ensure the highest possible comfort for the user.

Using Co2Control sensors, perform extensive zone ventilation, which works on the basis of CO2 measured in the room, your recuperator as needed will increase efficiency, and when it is not there, the control panel will work on the lowest gear to make the system as energy-efficient as possible.

✔ WATER HEATER (optional)

Thanks to the option of enriching the WANAS COMBO recuperator with a water heater, it is possible to use energy more efficiently.

✔ AGGREGATE (optional)

Thanks to the option of equipping the WANAS COMBO recuperator with a heating and cooling unit, which significantly extends its functionality through a freon exchanger, adding the possibility of effective temperature management in rooms. The unit acts as an additional source of heat or cold, providing optimal temperature control, especially in extreme weather conditions. Integration with the ventilation system allows you to quickly adapt to changing conditions, ensuring comfort and energy savings throughout the year.
