Rekuperatorius Zephyr 600GT su lubų montavimo rinkiniu Galmet

Trumpai apie prekę

Prekė: Rekuperatorius Zephyr 600GT su lubų montavimo rinkiniu Galmet. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Galmet
• Modelis: 12-000004

QUALITY MATTERS ➡ POLISH PRODUCT

Galmet Zephyr 600 GT Premium recuperator

Mechanical ventilation with heat recovery

For new and modernized buildings

with the possibility of installation in unheated rooms

ZEPHYR RECUPERATORS

This is a proven way to create a comfortable atmosphere in your home. For fresh, purified and heated air every day. They not only provide a constant supply of fresh air and drainage of used air, but also recover heat, remove impurities, odors and excessive moisture from the building. All these elements make up the most modern system, ensuring full balanced ventilation of new and modernized buildings and maximum climate comfort of its inhabitants.

ADVANTAGES:

✔ Highest efficiency class – recovery up to 95% of energy

✔ Excellent sound and heat insulation – MaxiWarm housing

✔ InstalSilent - quiet operation of the internal installation - fans from the intake and launcher side

✔ Can be installed in rooms with negative temperatures

✔ Installation in any position (two drip trays)

✔ Anti-freeze system - automatic anti-freeze exchanger system.

✔ Built-in, filtered 100% by-pass supply air controlled by an actuator.

✔ Economical filtration system - reusable cassettes

✔ Performance 530 m3/h - (250 Pa), 600 m3/h - (100 Pa), 650 m3/h - (0 Pa)

✔ Colour touch panel + complete online control

ZEPHYR

It is mechanical ventilation with heat recovery, which can be installed in unheated rooms. It is an essential and effective piece of equipment for every conscious, environmentally conscious investor who values high comfort of life and modern, energy-efficient solutions. With each air exchange cycle, Zephyr recovers most of the heat from the air exhausted from the building. However, the key advantage of the new Galmet recuperator is that it provides purified air with the right temperature and humidity.

ZEPHYR

It can be installed in virtually any building – its special design allows for installation in any position. Zephyr recuperators are: improving air quality, energy saving, comfort and ecology.

Combined with the latest Airmax 3 air heat pump. generation creates the most efficient ecological hybrid heating system.

Zephyr has been refined in every detail, it is a premium product and its appearance is also appreciated by both architects and users.

ZEPHYR RECUPERATORS

are equipped with the Anti-freeze system - automatic anti-freeze system of the exchanger. The preheater protects the heat exchanger especially in winter. Prevents its icing and damage. Thus, it guarantees effective work of the recuperator throughout the year.

Zephyr significantly increases the energy efficiency of the building. Mechanical ventilation allows you to recover up to 95% of the heat contained in the exhaust air, which has a significant impact on the economic calculation during the operation of the house. This makes heating your home more efficient and eco-friendly.

The use of a filter system with replaceable cartridges also has a significant impact on the economic use of the ventilation system with Zephyr recuperators. Innovative reusable filter cartridges allow the use of economical filters of any class of filter mats.

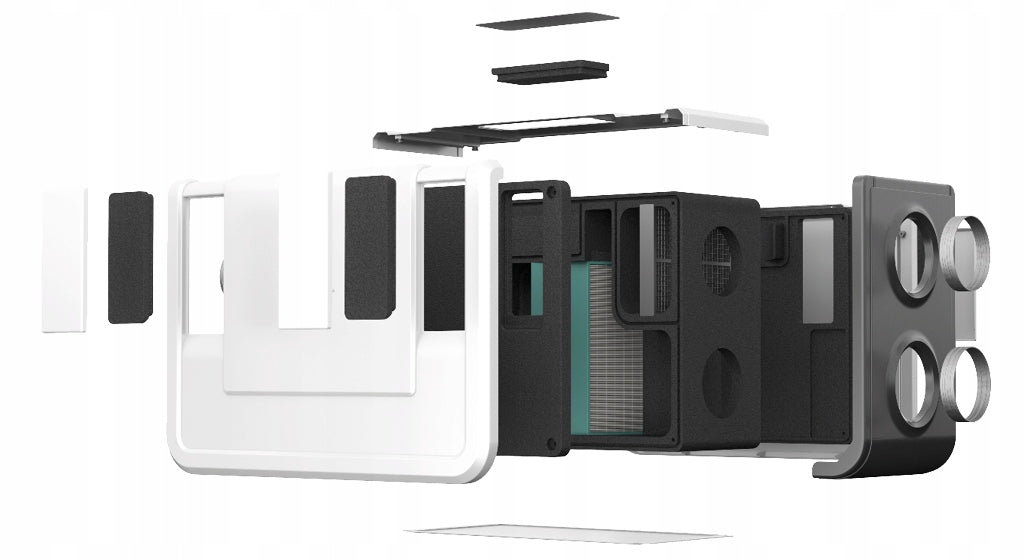

PROVEN DESIGN MaxiWarm

The housing of the Zephyr 400 and 600 GT recuperators is made in MaxiWarm technology from expanded polypropylene (EPP). Maximum tightness and uniform thickness of the walls of the housing without thermal bridges provides excellent sound and thermal insulation of the recuperator. Additional silencing of the recuperator operation is ensured by the use of InstalSilent technology. Both fans are designed from the intake and launcher side. With a properly performed installation, the volume does not exceed 25-30 dB, so that even at night and without reducing performance, they are inaudible to resting household members.

The EPP housing ensures no condensation of water vapor on the housing and corrosion resistance. The recuperator body is resistant to mechanical damage and deformation.

Excellent thermal parameters allow the installation of Zephyr recuperators in unheated rooms with negative temperatures.

✔ High tightness

✔ Uniform wall thickness

✔ No thermal bridges

✔ Reduction of heat loss

✔ Excellent sound and heat insulation

✔ Can be installed in rooms with negative temperatures

HIGH HEAT RECOVERY

The Zephyr 400 and 600 GT recuperators are characterized by the highest efficiency in their class. They allow you to recover up to 95% of energy. They are equipped with energy-efficient EC fans with high compression, which ensure efficient air exchange. In addition, the built-in filtered 100% by-pass supply air is controlled by an actuator, which gives even greater control over the air flow. It allows you to push, filter and refresh up to 480 m3/h (100 Pa) in the case of Zephyr 400GT and up to 600 m3/h (100 Pa) in the case of Zephyr 600GT.

✔ Cross-current exchangers.

✔ High efficiency of the exchanger.

✔ Large heat transfer area.

✔ No mixing of air streams.

✔ Corrosion resistance.

✔ High resistance to mechanical damage and deformation

SIMPLE AND CONVENIENT INSTALLATION

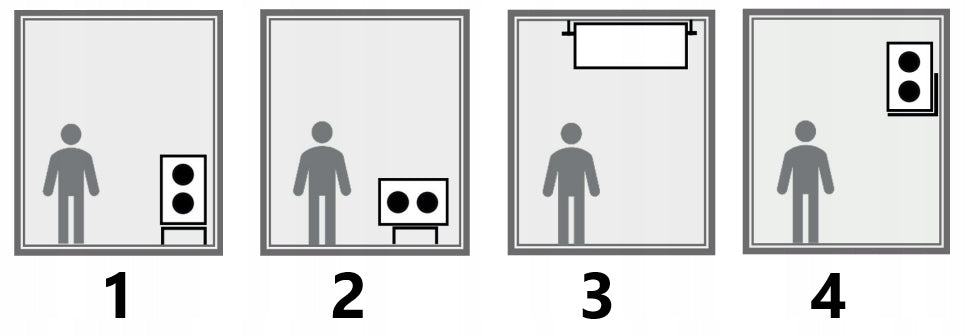

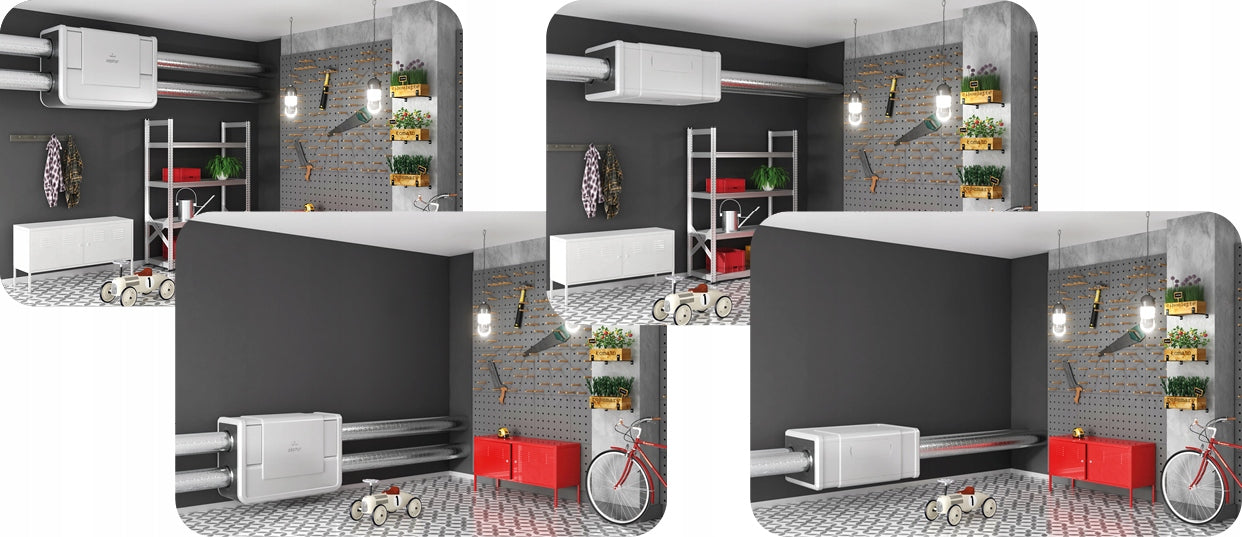

The use of MaxiWarm housing technology and two drip trays makes the installation of the Zephyr recuperator intuitive, simple and quick. Each device can be mounted in virtually any mounting position. Vertical or horizontal, on the wall, or directly under the ceiling or on the floor (left and right versions in one device). The Zephyr recuperator is not only the highest comfort of use, but also installation. In accordance with these principles, a filter replacement system for filter cartridges was also developed. Their replacement is carried out without tools, it is extremely simple and fast.

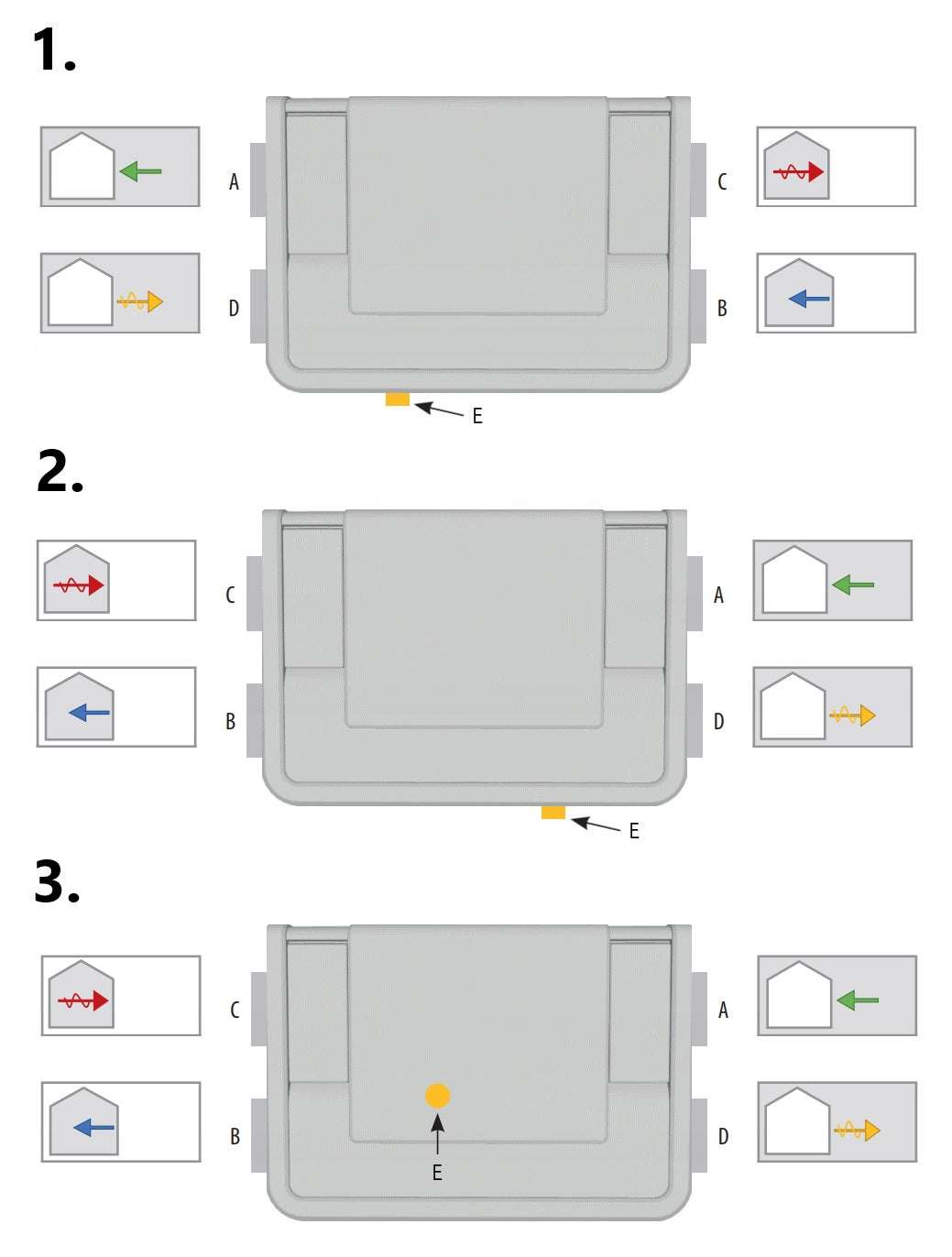

DESCRIPTION AND PURPOSE OF THE DEVICE

1 - VERTICAL VERSION LEFT

2 - VERTICAL VERSION OF THE LAW

3 - HORIZONTAL VERSION

A: ENNOBLEMENT

B: AIR SUPPLY

C: EXHAUST

D: LAUNCHER

E: CONDENSATE DRAIN

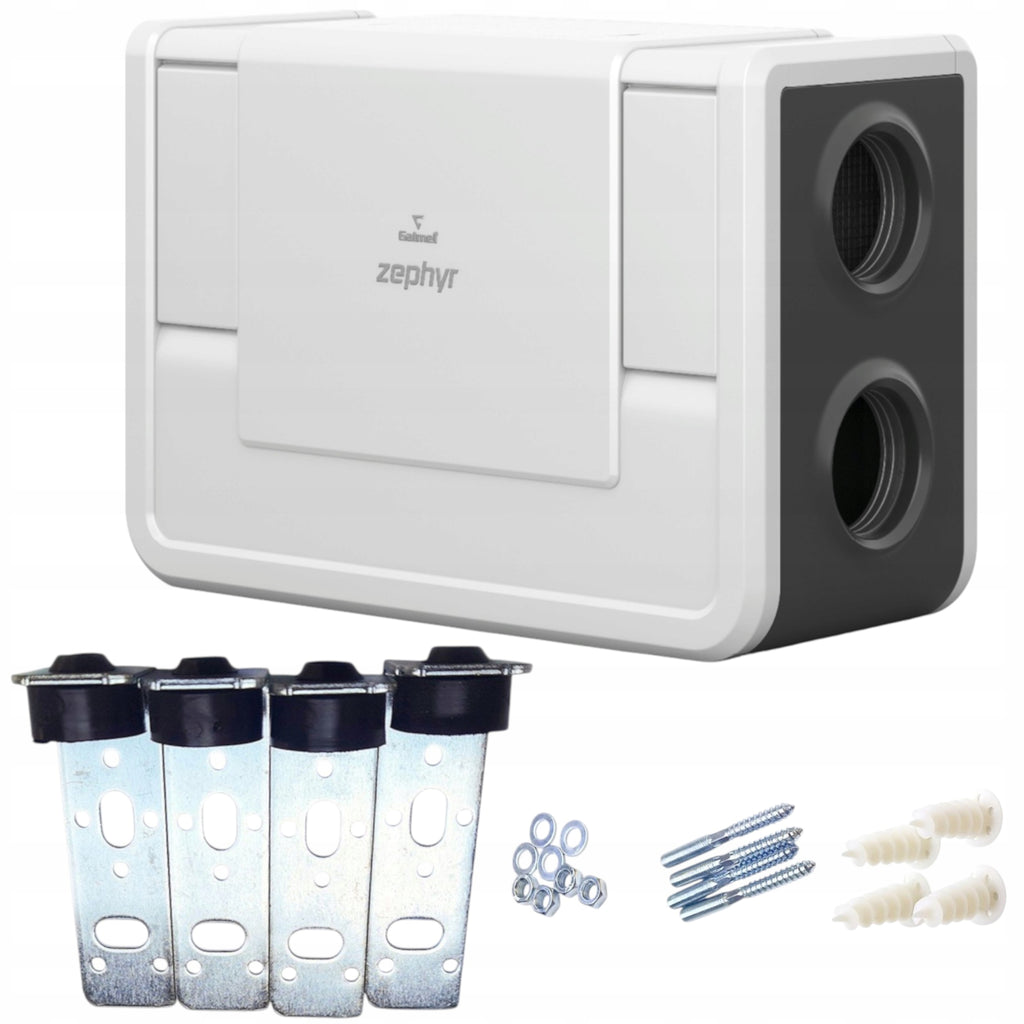

12-100003 - BRACKETS FOR HANGING (CEILING MOUNT)

The dedicated mounting system includes ventilation slings with L-type shock absorber and 24 x 50 mm mounting pins and double-sided pins with M8 x 80 mm thread.

CLEAN AIR IN THE HIGHEST CLASS

The Zephyr recuperator has been designed to make controlling it as intuitive as possible and optimally suited to the requirements of users. It is therefore possible to control on the basis of a weekly schedule set by the user with an indication of the recuperator’s operating hours. The second way is to choose a fully automatic mode in combination with CO2 and humidity sensors. In this mode, the recuperator takes care of providing clean and fresh air in the house throughout the day. The use of this mode allows you to achieve the highest efficiency and efficiency class A+ and take full advantage of the Zephyr recuperator.

COMPREHENSIVE ONLINE CONTROL

✔ Large Color Touch Panel 5 in.

✔ Programming work based on the weekly schedule or as needed - CO2 sensor, humidity sensor.

✔ Complete online control via application and web browser - as standard (Wi-Fi module).

✔ Cooperation with heat pumps, humidity and CO2 sensors, heating and cooling module.

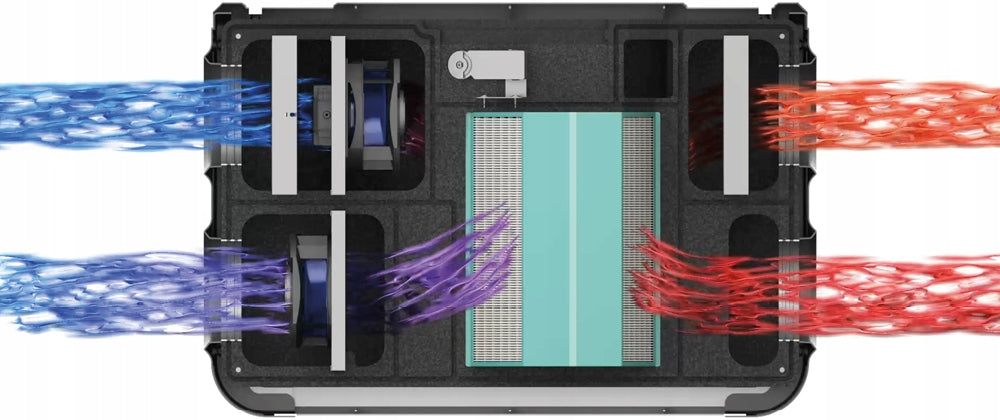

CONSTRUCTION OF THE DEVICE:

1 - Supply fan

2 - PTC preheater

3 - Filter cartridge on the air supply side

4 - 100% by-pass actuator controlled

5 - Exhaust fan

6 - Filter cartridge on the exhaust side

7 - Cross-current heat exchanger

8 - EPP recuperator body

TECHNICAL DATA OF THE ZEPHYR RECUPERATOR

➢ catalogue number: 12-000004

➢ capacity at 100 Pa: 600 m3/h

➢ maximum capacity (at 0 Pa): 650 m3/h

➢ ErP energy efficiency class:

➢ work in schedule mode : A

➢ operation in automatic mode : A+ (this is an option, separately for purchase M-015681, M-015680 - with CO2 sensor and humidity sensor)

➢ sound power level emitted by the housing: 63 dB

➢ supply voltage: 230V AC / 50 Hz

➢ fan (power): 170W

➢ fan (type) - EC

➢ maximum heat recovery efficiency: 95,3%

➢ control panel dimensions: 810 x 1200 x 520 mm (H x width x D. )

➢ weight: 43 kg

➢ diameter of connection connectors: 200 mm

➢ condensate drainage: DN 32

➢ recuperator body material / thickness: mm EPP / 40 mm

➢ anti-freeze system: modulated preheater PTC

➢ exchanger type: cross-current (heat recovery)

➢ exchanger material: polystyrene

➢ temperature of compressed air: 20°C ÷ +50°C

➢ type of filters: start

➢ air supply filter: G4 ISO Coarse ≥ 65%

➢ exhaust filter: G4 ISO Coarse ≥ 65%

➢ by-pass: 100%, automatic

➢ air flow stabilization system: smooth balancing of supply air streams

➢ fan location: from the intake and launcher side

HEAT RECOVERY EFFICIENCY OF THE ZEPHYR 600GT RECUPERATOR

• % - efficiency
• m3/h - air flow

ZEPHYR 600GT RECUPERATOR PERFORMANCE

• Pa - dispositional compression
• m3/h - air flow
