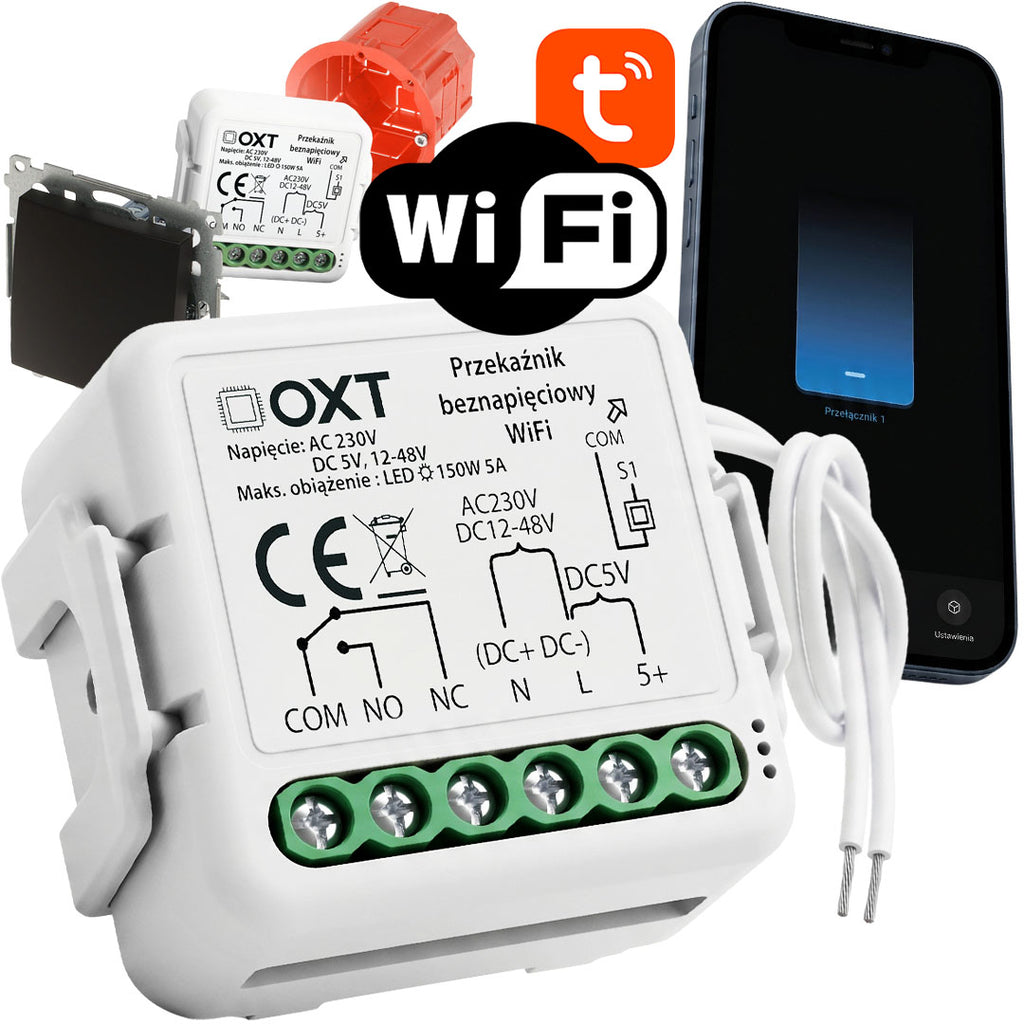

Relės modulis OXT Mini, WiFi TUYA, 5V, 12–48V DC, 230V AC, be įtampos

Trumpai apie prekę

Prekė: Relės modulis OXT Mini, WiFi TUYA, 5V, 12–48V DC, 230V AC, be įtampos. Kategorija: Automatizavimo moduliai.

• Gamintojas: OXT
• Modelis: T210DC

OXT Mini Module | 5V DC / 12-48V DC / 230V AC | WiFi | TUYA

• ✅ Voltage-free contact (NO/NC): Secure control of gates, furnaces and IT systems.

• ✅ Hybrid power supply: Support 5V, 12-48V DC and 230V AC voltages in one device.

• ✅ TUYA / WiFi control: Remote operation, schedules and pulse mode (monostable).

• ✅ Mini Size: Effortless installation in a flush-mounted box.

▶ Control and automation

• Remote control from anywhere in the world using the TUYA Smart / Smart Life app

• In-app modes: monostable (bell), bistable or bistable with button synchronization

• Creating advanced scenarios and automations depending on weather, time, sunrise/sunset

• Timers and schedules for automatically turning devices on/off

• Voice control with Amazon Alexa and Google Assistant

• Possibility to control lighting, gates, actuators, computer, access control, heating furnace and 230 V devices

▶ Power supply and relay ports

• Power variant selection: AC 230V, DC 12-48V or DC 5V

• Relay ports: NC (normally closed), COM (common), NO (normally open)

• Behavior after power outage: turn on/off/remember status

▶ Design and installation

• Compact dimensions – fits in the can under the switch

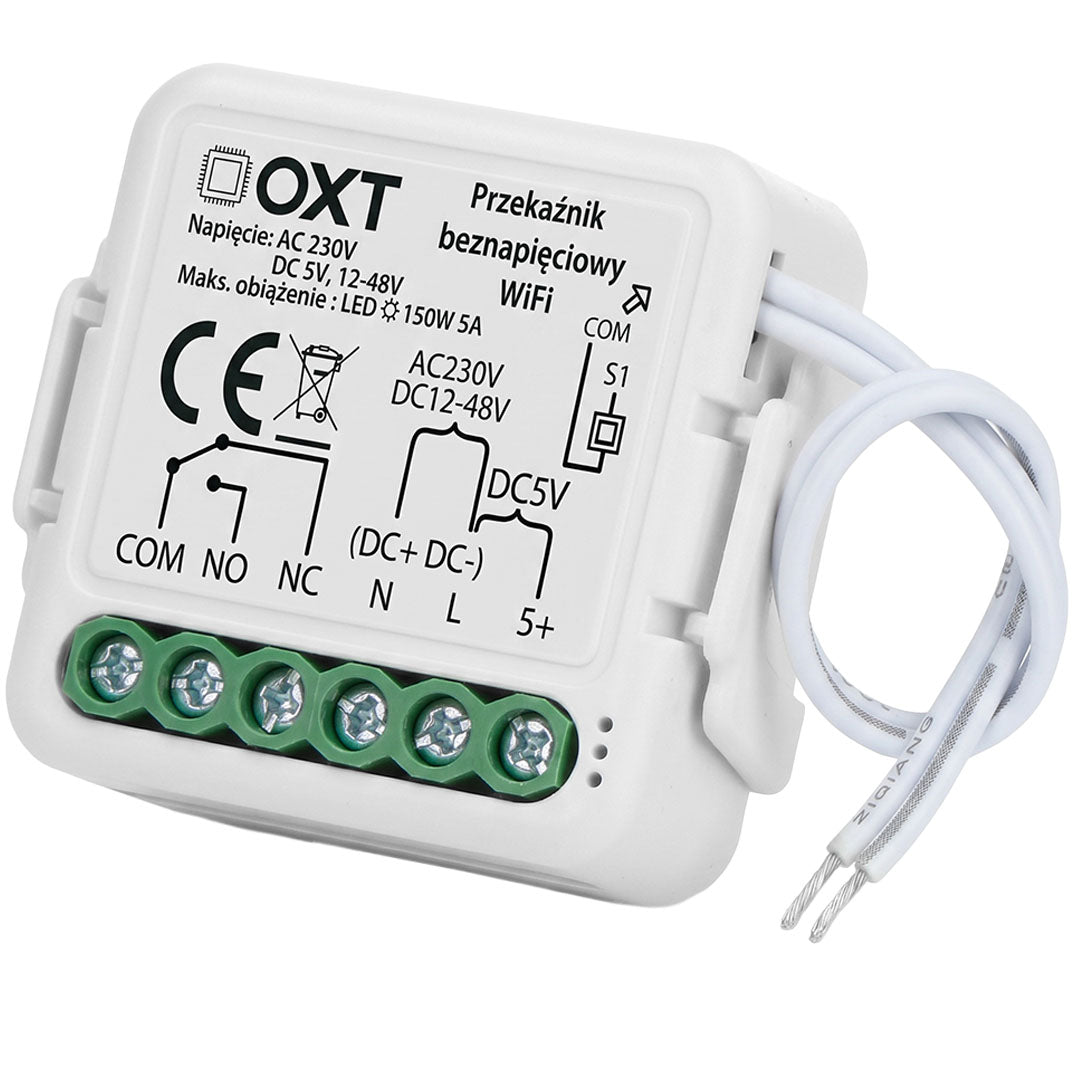

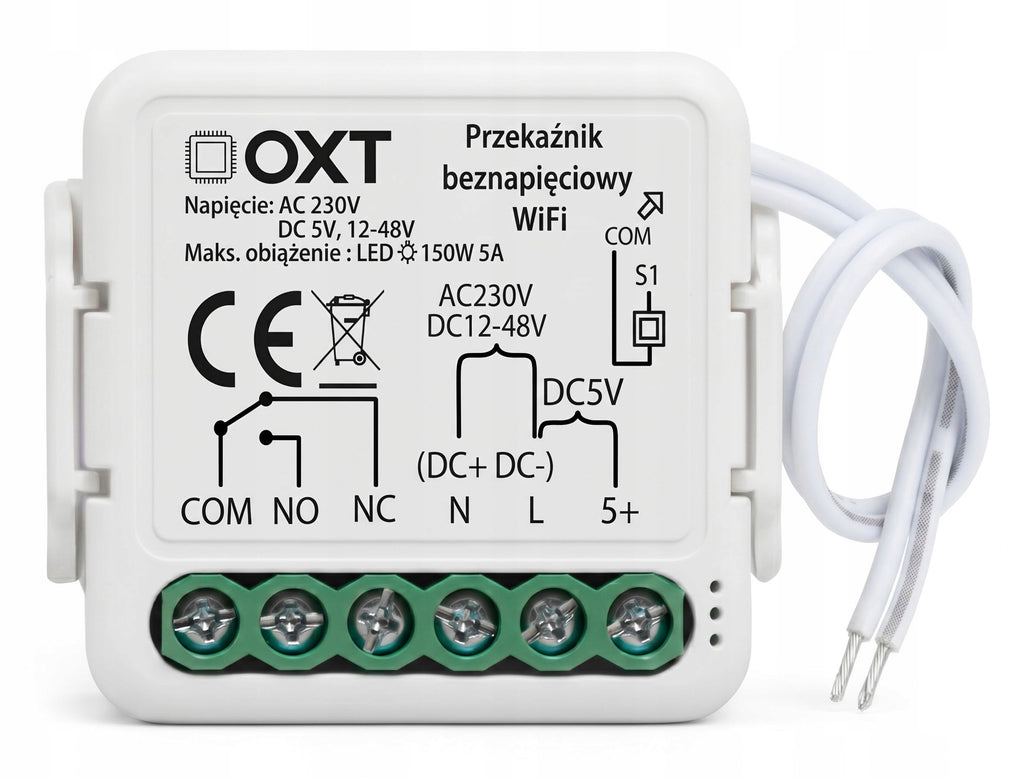

ℹ Module connection diagram

• 230V: Blue (N) Neutral, Brown (L) Phased

• 12 - 48V DC: Red "+" to N, Black "-" to L

• 5V DC: Red "+" to 5+, Black "-" to L

ℹ Specification:

Basic information

• Device type: Mini WiFi Voltage-Free Relay
• Application: TUYA Smart / Smart Life
• Certificates: CE, ROHS

Power supply and electrical parameters

• Power supply: AC 100-240 V (50/60 Hz), DC 5 V, DC 12-48 V
• Max. load current: 5 A
• Max. power for LED: 150 W

Connectivity and communication

• Protocol: WiFi IEEE 802.11 b/g/n
• Working frequency: 2.412 GHz - 2.484 GHz
• Range: < 100 m

Construction and working conditions

• Dimensions: 39.2 x 39.2 x 18 mm
• Degree of protection: IP20
• Working temperature: -10°C to +40°C

ℹ Included:

• Module OXT Mini Voltage Free Relay 12-48V DC 230V WiFi TUYA

• Fastening clip

• User manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	control panel
Parametry	Series	mini sterownik rolet
Parametry	Communication	WiFi
Parametry	Brand	OXT
Parametry	Number of communication channels	1
Parametry	Additional features	WiFi connection
Parametry	Manufacturer code	T210DC
Parametry	EAN (GTIN)	5906203622085
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
