Rėmų frezavimo staklės MAFELL NFU 50, 2300 W

Trumpai apie prekę

Prekė: Rėmų frezavimo staklės MAFELL NFU 50, 2300 W. Kategorija: Frezavimo staklės.

• Gamintojas: Mafell
• Modelis: 918701

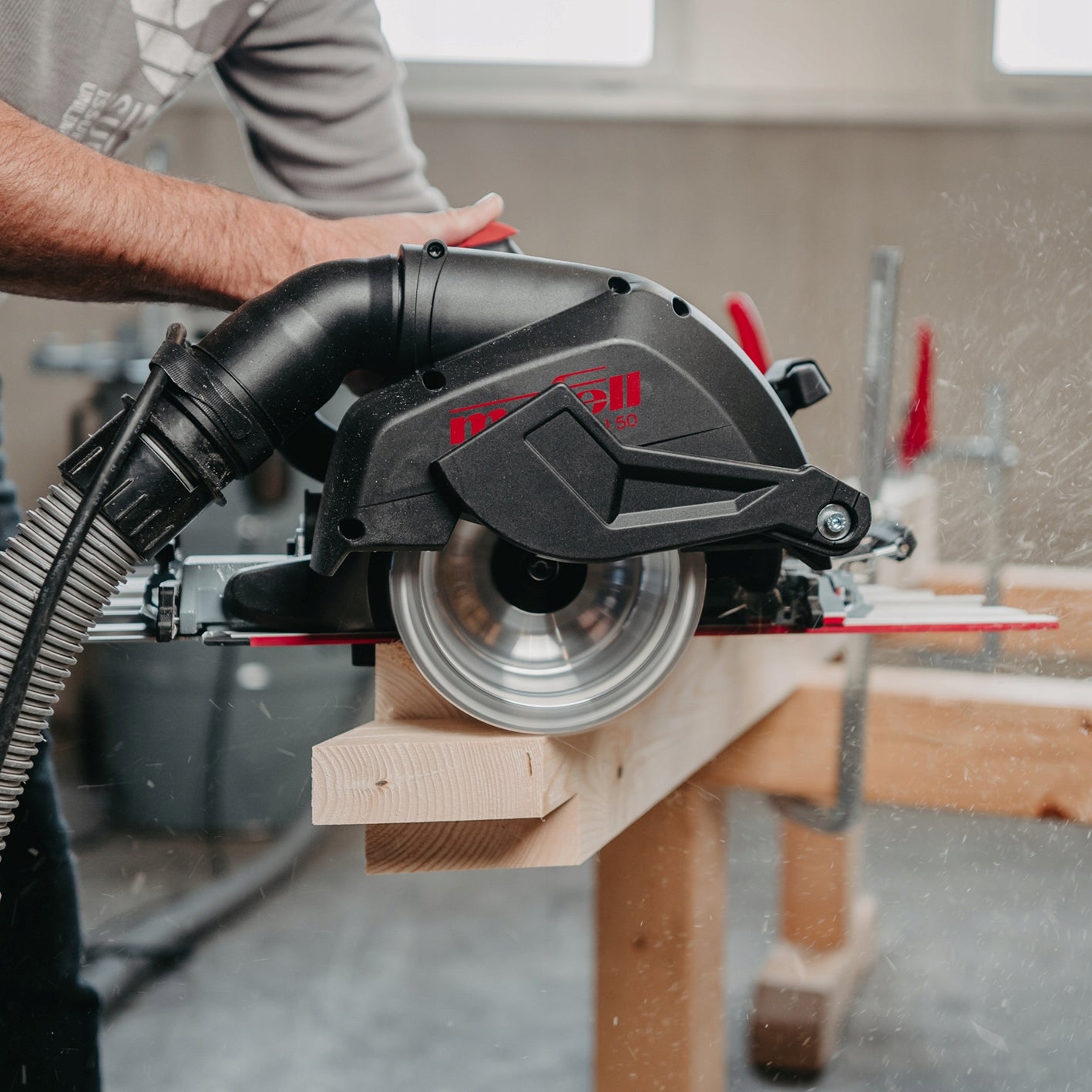

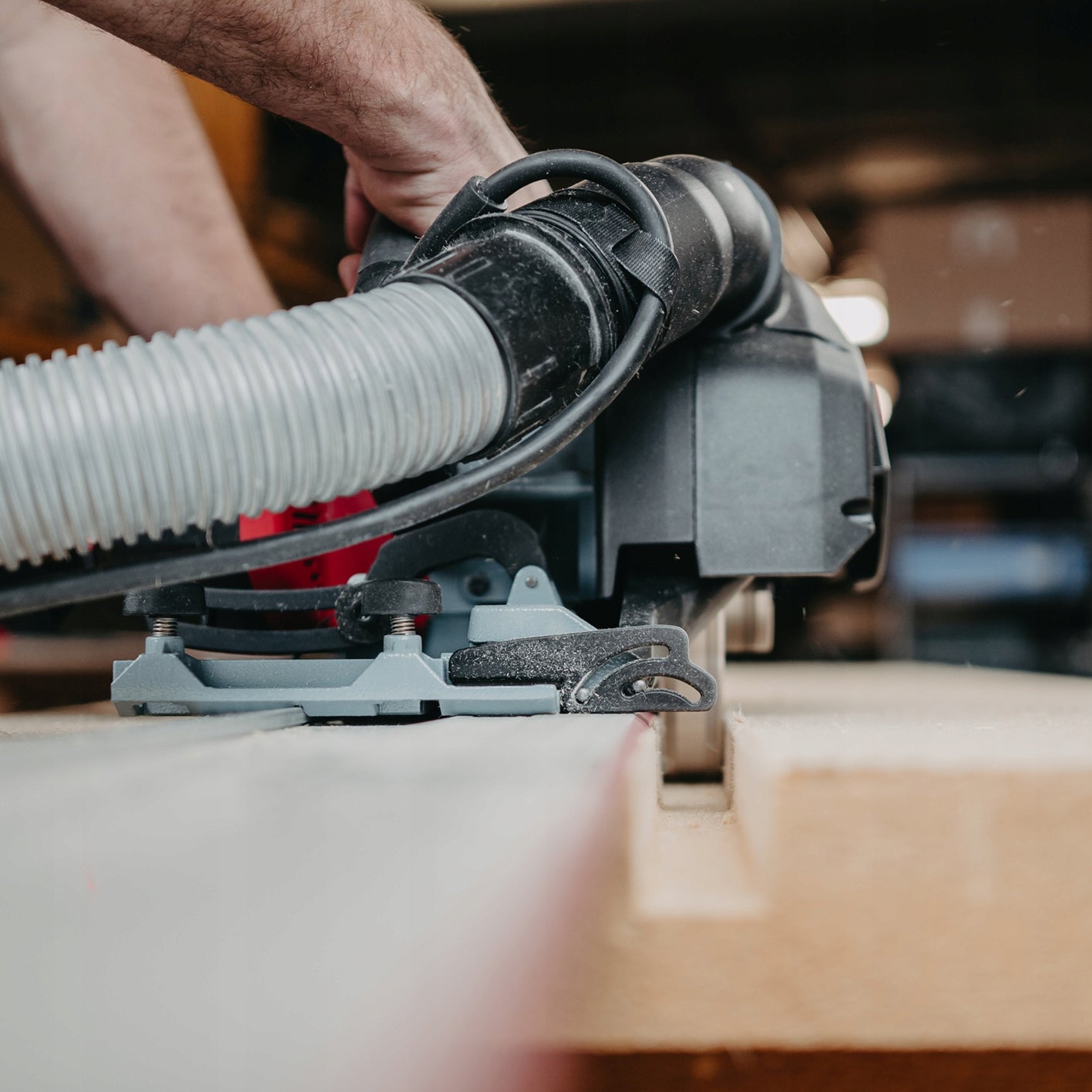

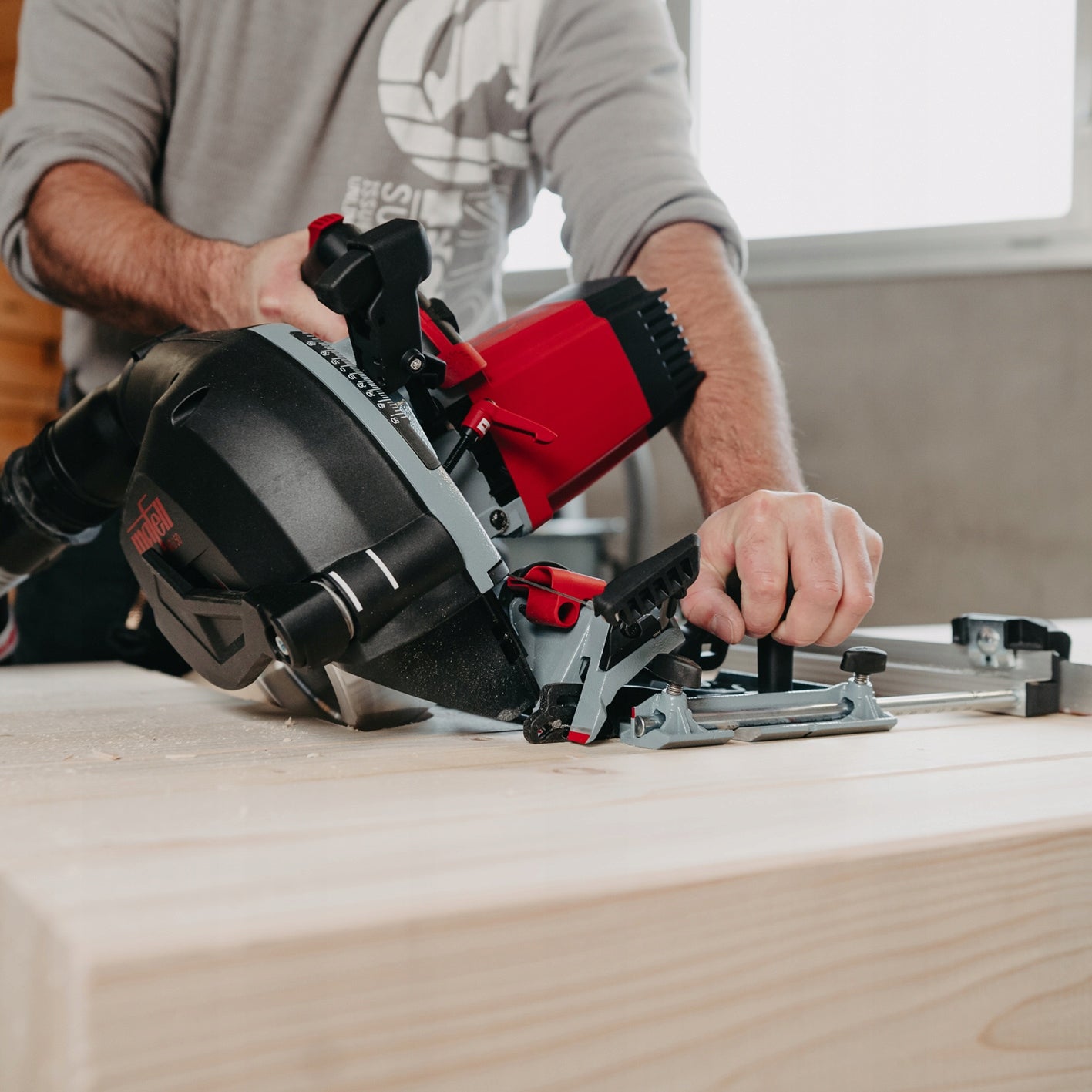

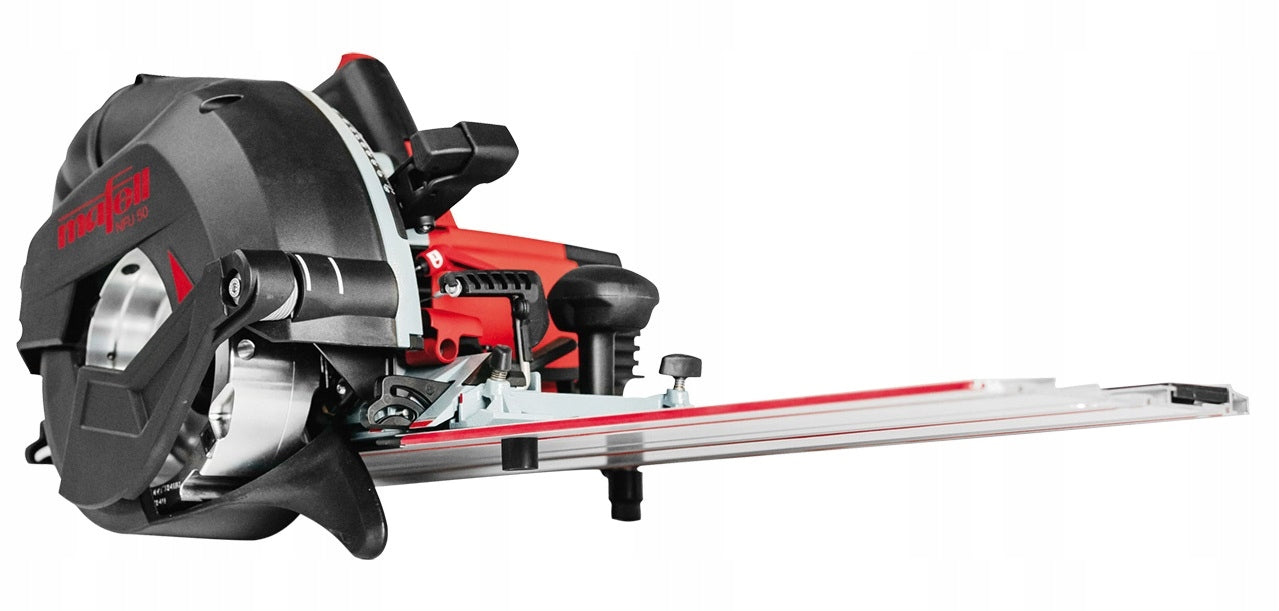

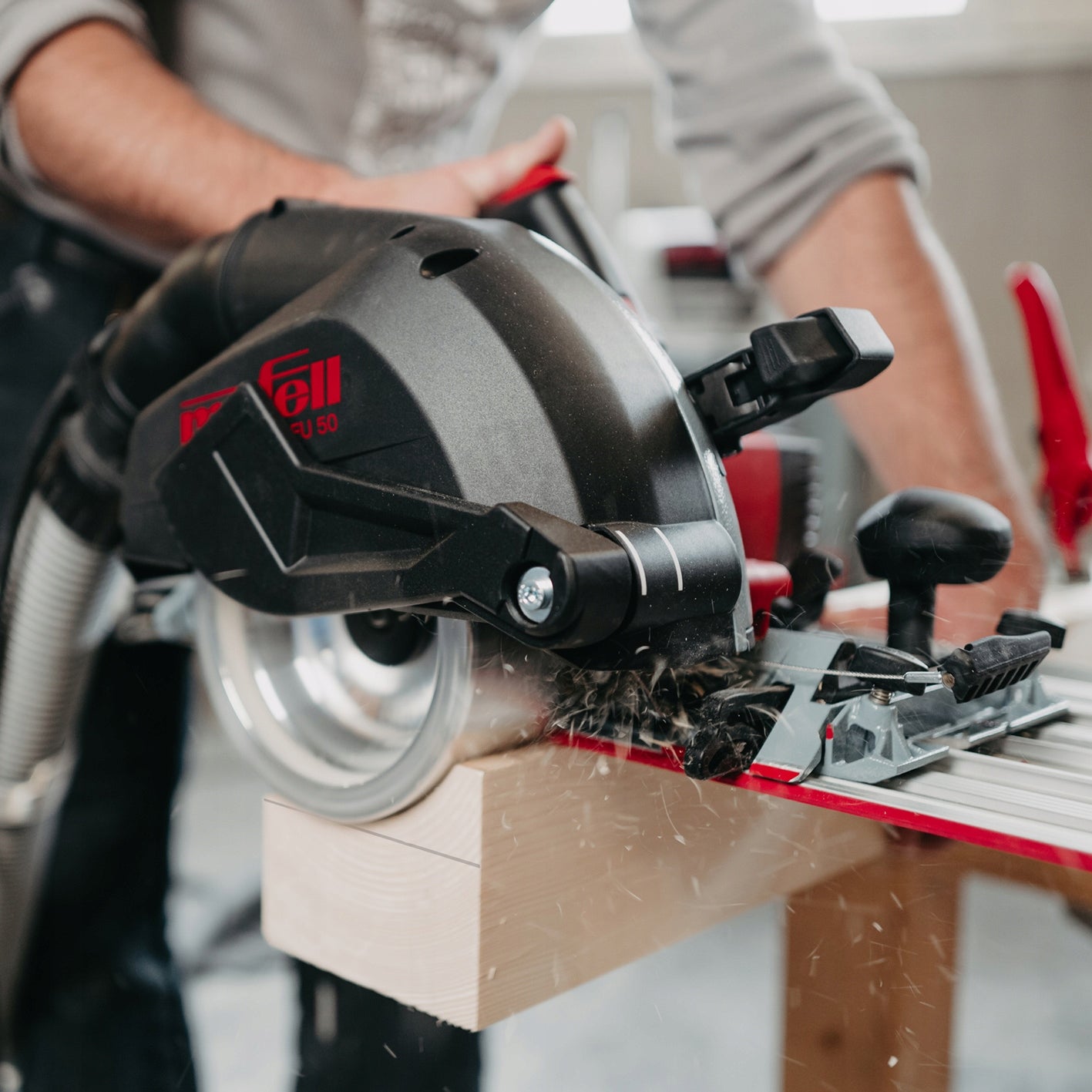

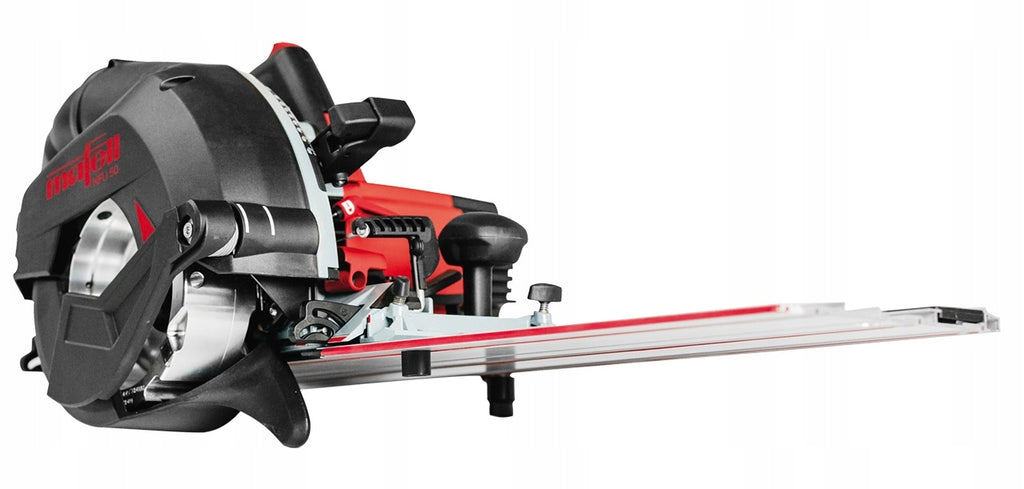

MILLING MACHINE FOR FRAMES MAFELL NFU 50 2300W

• Voltage: 230 V
• Power consumption: 2300 W
• Depth of milling without guide at 0°: 0 - 50 mm
• Depth of milling without guide at 0°: 0 - 44 mm
• Scope of cutting angles: 0 - 45 °
• Rotary speed: 5900 1/min
• Weight with guide rail: 9,4 kg
• Dimensions (W x Long x H) with guide L: 370 x 810 x 280 mm
• Milling length with guide L: 370 mm

• The NFU 50 frame milling machine offers flexibility in use and is a versatile device for performing a huge range of tasks related to the construction of wooden structures. A wide range of accessories opens up further possibilities for everyday work.
• The NFU 50 design is characterized by the use of extremely durable, high-quality and precisely made parts, including a lightweight magnesium alloy housing and impact-resistant glass fiber reinforced plastic components. It is also equipped with clever technical details that will help you meet the rigors of work.

• Rotary hose connection at d. 58 mm for large amounts of dust can be set using the locking function.
• The 2-in-1 lock allows you to quickly and easily set the cutting depth.
• The hydraulic brake stops the cutter within 3 seconds. The flashing LED light informs the user that the milling head is still rotating.
• remove the button from the cross-cutting guide, allowing the milling machine to be used either on the guide.

APPLICATION

• Longitudinal and transverse frames
• Friezes
• Panels in buildings of the Prussian wall, false floors
• Inlets at an angle of up to 45°
• Pivots
• For joining solid wood, slats and wooden boards

• Milling machine for frames MAFELL NFU 50
• 1 Head for framing, Ø 163 x 60 mm; cat. no. 091901
• 1 NFU-PA Position Indicator; Cat. 207467
• 1 Side guide SA 625; cat. no. 207183
• 1 Parallel guide; Cat. no. 207468
• 1 Guide L, max. diagonal cutting range 370 mm; cat. no. 208171
• 2 Repetitive bumpers; Cat. no. 206026
• 1 Allen wrench SW 6; Cat. no. 207496
• 1 screwdriver, Torx T 15; Cat. no. 093274
• 1 Power cable 10 m
• User manual

Specifications
