Riešutų malūnėlis LAMELOWANICA 900W su aliuminio pagrindu, lagaminėlio rinkinys FERM

Trumpai apie prekę

Prekė: Riešutų malūnėlis LAMELOWANICA 900W su aliuminio pagrindu, lagaminėlio rinkinys FERM. Kategorija: Frezavimo staklės.

• Gamintojas: Ferm
• Modelis: BJM1009

FERM 900W BJM1009 LAMELLAR – A SOLID STANDARD AT A REASONABLE PRICE

CONSTRUCTION DESIGNED FOR HEAVIER TASKS

The Ferm BJM1009 is a model that craftsmen appreciate for its predictability and solid base. It is not a plastic toy – here the body and foot are made of cast aluminum, which provides the necessary rigidity for serial connections under lamellas. This device is for those who know that the result of work depends on a secure hand and stable handling of the machine.

KEY FEATURES FOR THE EXPERIENCED USER:

• Efficient 900W motor: The power supply allows for reliable operation in hard wood (oak, ash) without the risk of overheating the winding.
• Aluminum foot and body: Rigid base design minimizes the risk of "swimming" the handle when recessing the cutter.
• Mechanical depth lock: High-speed turret setter for standard lamella sizes (0, 10, 20) with the possibility of precise calibration.
• Real angle adjustment: Smooth 0-90° setting with a solid lock that holds the set parameter when working under load.
• Workshop ergonomics: The 3 meter long power cord in rubber insulation provides freedom on large mounting tables.

TECHNICAL PARAMETERS OF THE PRODUCT

• Producer: FERM
• Series: Power
• Model: BJM1009
• Power supply: 230V 50Hz
• Power: 900 W
• No-load speed: 1100 / min
• Maximum milling depth: 14 mm
• Maximum cutter diameter: 100 mm
• Cutter hole diameter: 22 mm
• Adjustable milling angle: 0-90°
• Weight: 3,2 kg

FEATURES OF THE DEVICE:

• Adjustment of the angle of attack of the cutter - angle guide set in the range of 0-90°
• Angle Bumper - lowering/raising the position of the cutter to height for work on elements of different thickness
• Quick and easy setting of milling depth for lamellas of sizes 0, 10, 20

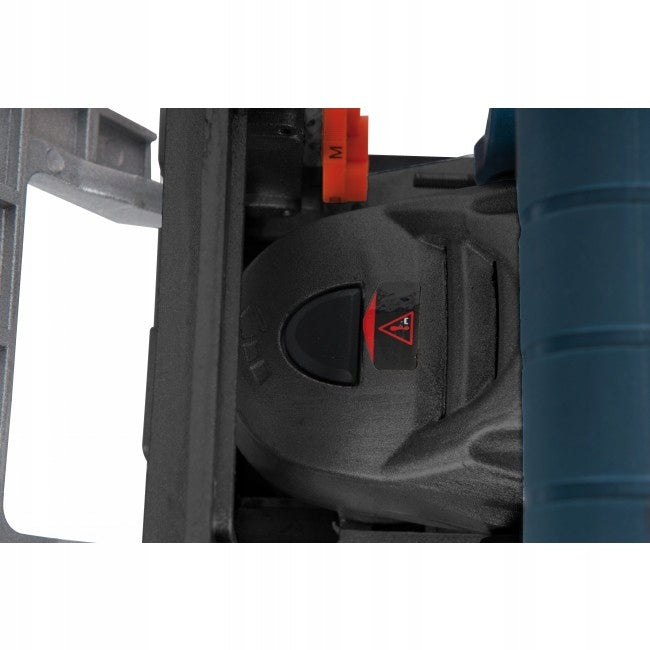

• Spindle lock mechanism for quick replacement of cutters with a single wrench
• Power cable with a length of 3 m.

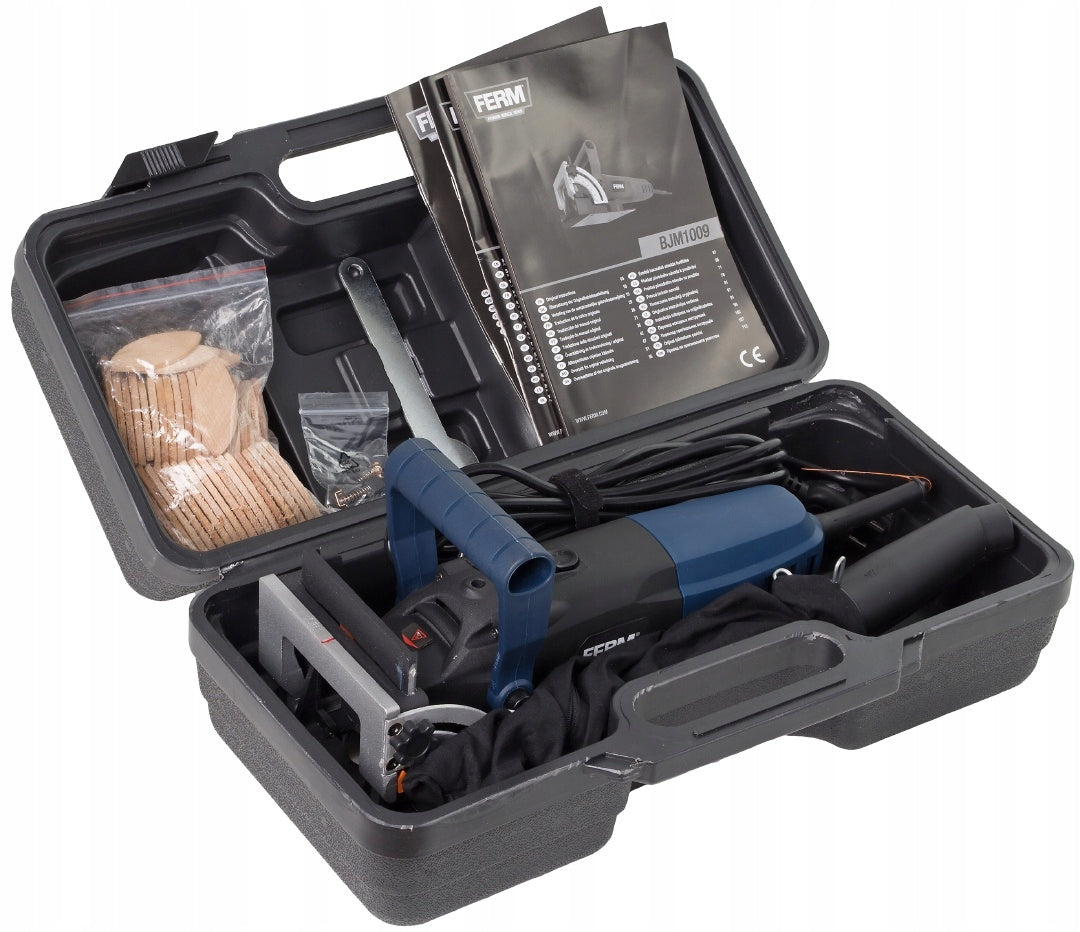

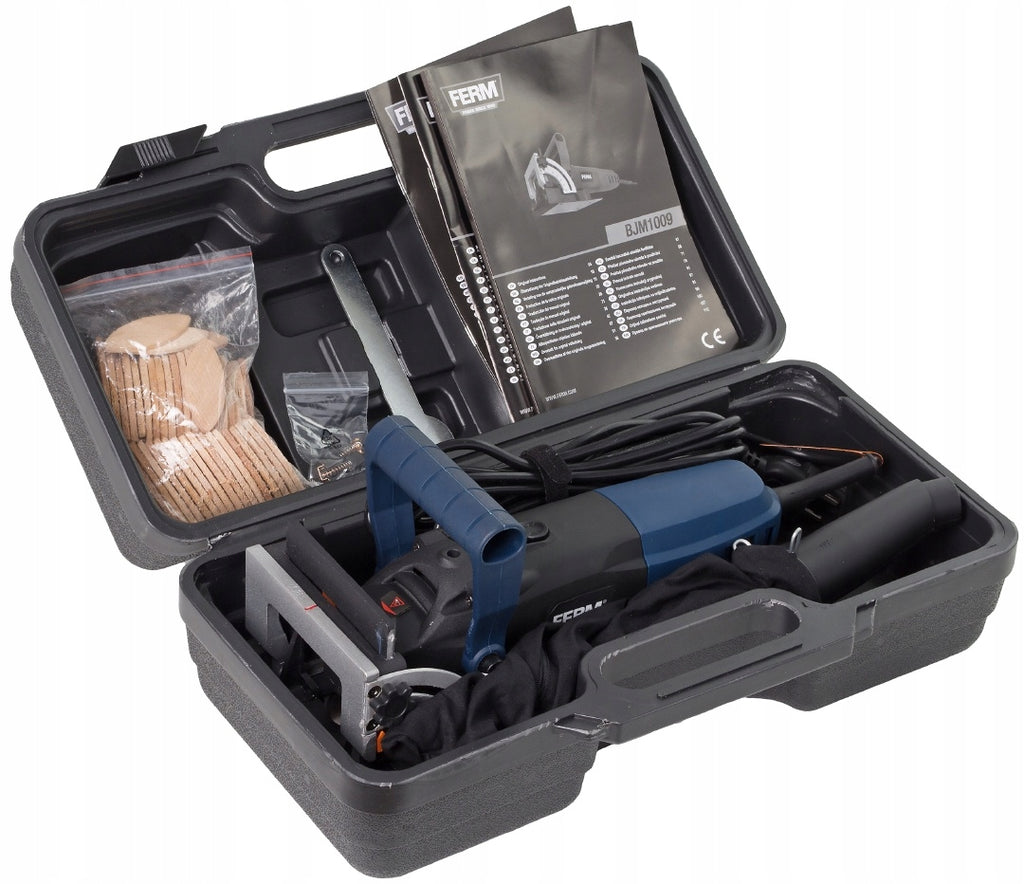

• Transport case
• Dust bag.

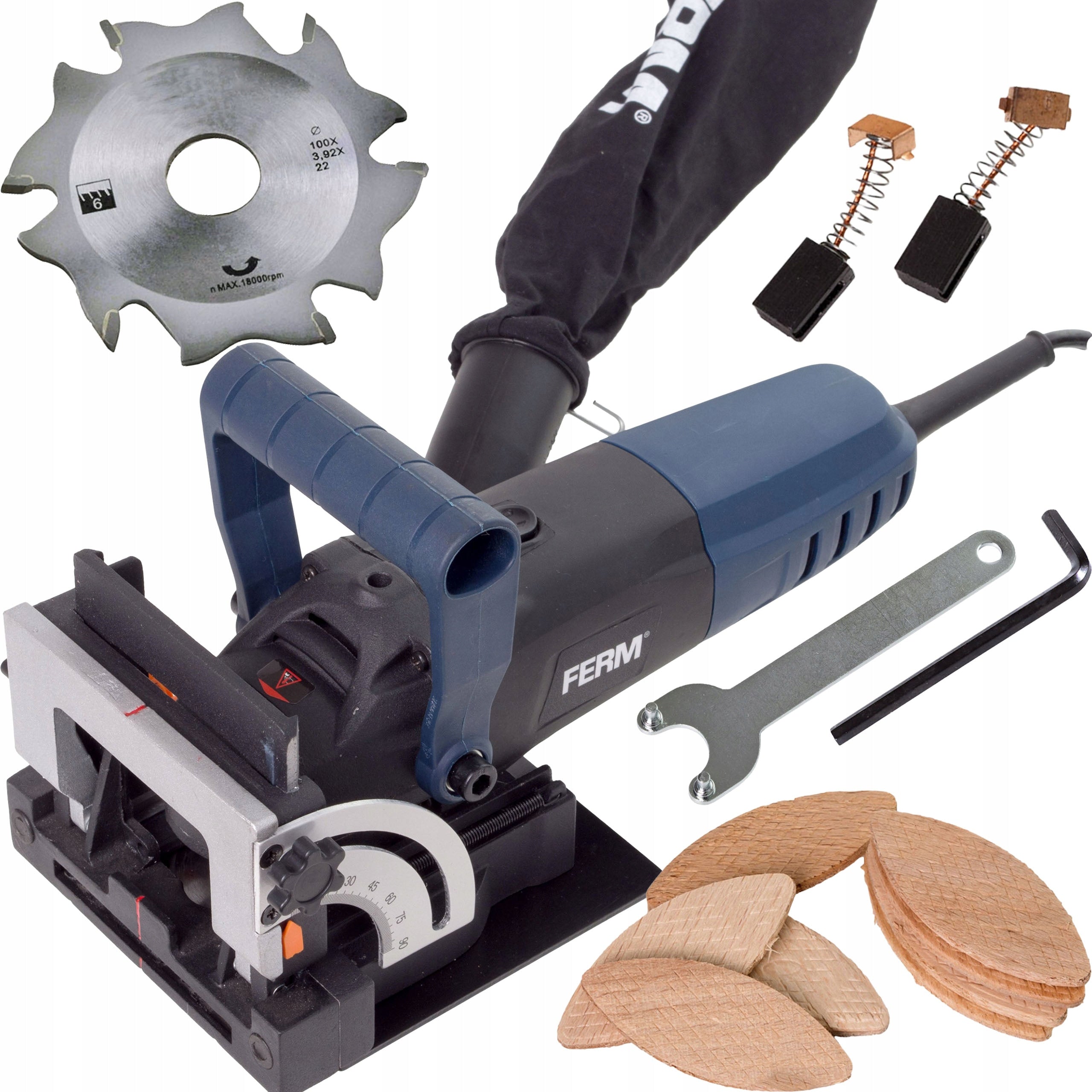

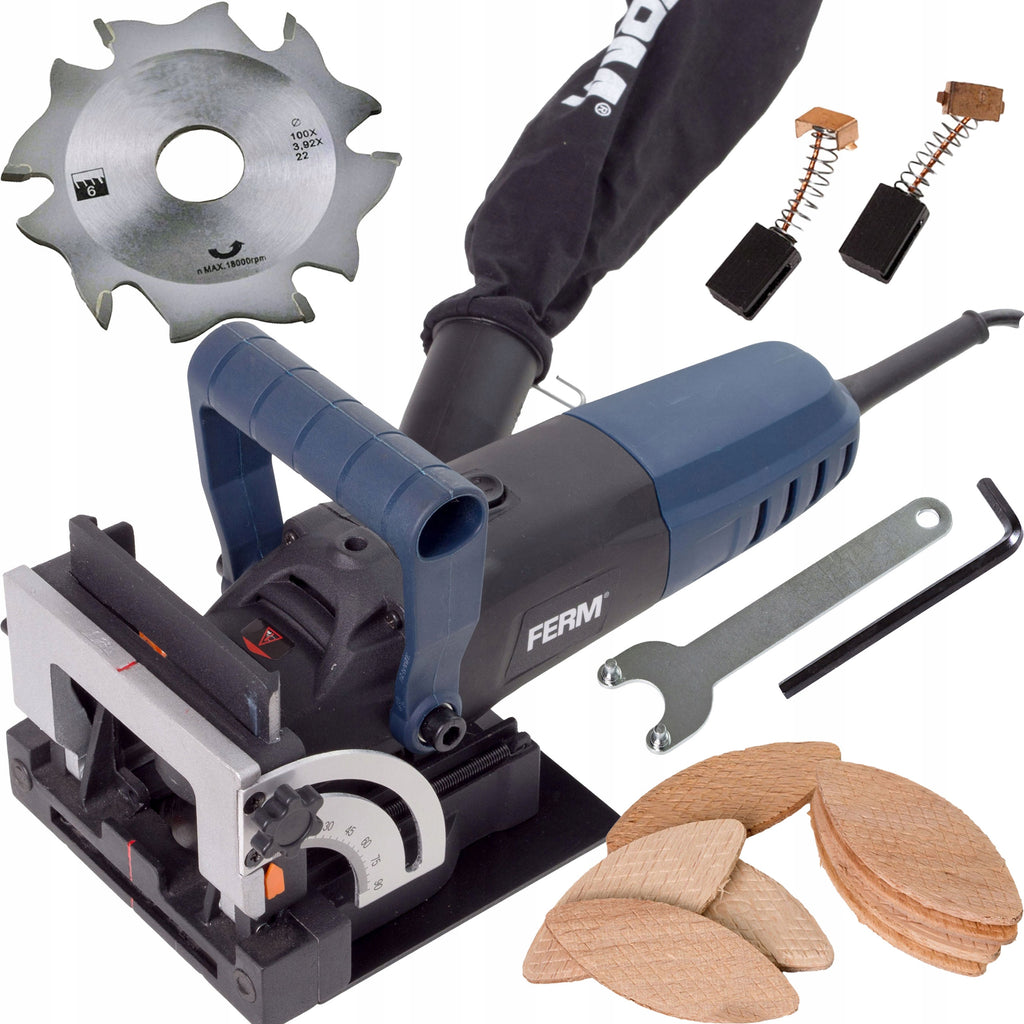

• FERM BJM1009 LAMELLA GRINDER
• 50 pcs. lameli (size 20)
• Cutter 100x22x4mm
• Wrench for assembly
• Hex Wrench
• Sewing bag
• Spare set of carbon brushes
• User manual
• Transport case

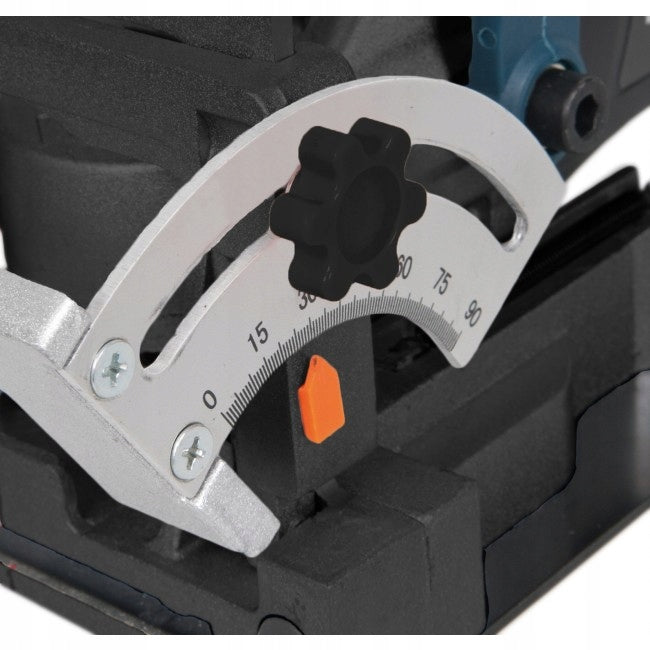

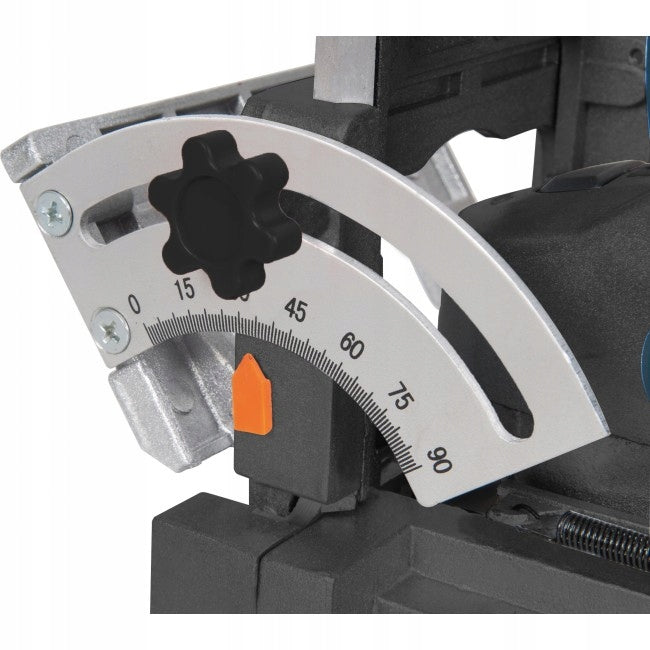

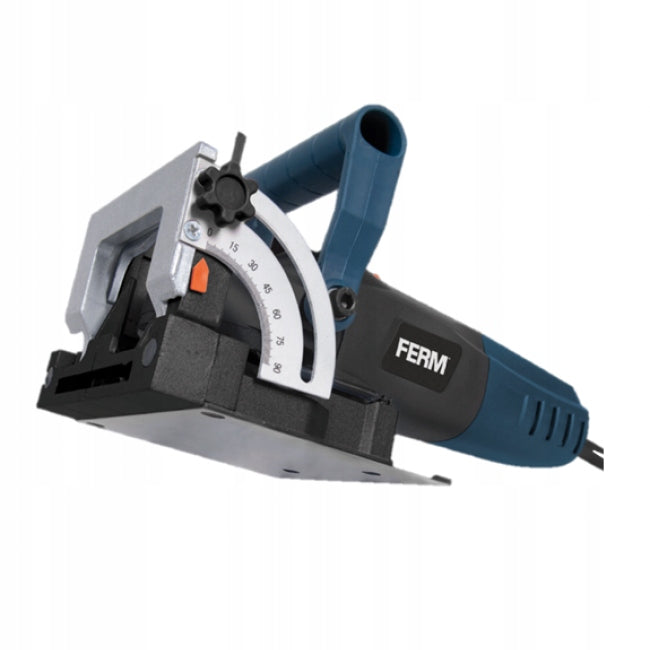

ADJUSTMENT OF THE CUTTER ANGLE OF ROTATION

• Ability to adjust the angle of attack of the cutter - angle guide can be set in the range of 0-90°. Thanks to this, milled lamella sockets can connect elements not only at right angles, but also at any angle in the range of 0-90°

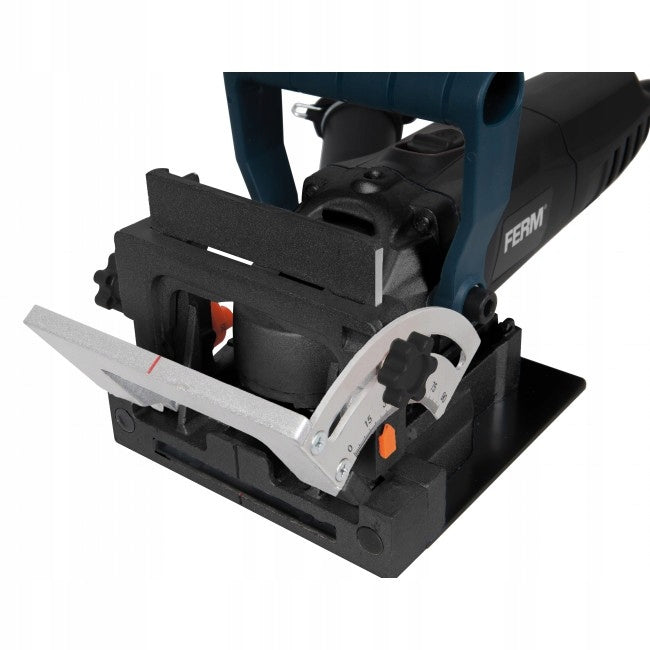

HEIGHT ADJUSTMENT

• Adjustable angle bumper - allows you to lower / raise the position of the cutter relative to the material, thanks to which we can process elements of different thickness.

QUICK SETTING OF MILLING DEPTH

• Quick and easy setting of milling depth for lamellas of sizes 0, 10, 20 by setting the appropriate position of the knob.

DUST AND SAWDUST REMOVAL

• Dust and sawdust bag with the possibility of connecting an external extraction allows us to maintain a clean and safe working environment

ERGONOMIC OPERATION

• Readable marker determining the central position of the cutter allows you to quickly set the device relative to the place of execution of a given connection.

HONEST ABOUT THE PRODUCT – OPINIONS OF PRACTITIONERS

We know that the craftsman looks at the tool through the prism of its limitations, not just its advantages:

• Guides and clearances: The BJM1009 model has minimal technological clearances on the guide columns, typical of this price class. An experienced operator, applying even pressure to the plane, easily obtains repeatable results.
• Suction system: The dust bag performs its role with single cuts. For serial production, we recommend connecting an external chip extraction for full precision settings.
• Workshop Economics: This device is chosen as the "second machine" in professional plants or the main one in workshops, where the price-strength ratio counts.

Thank you for checking out our offer and have a nice day.
